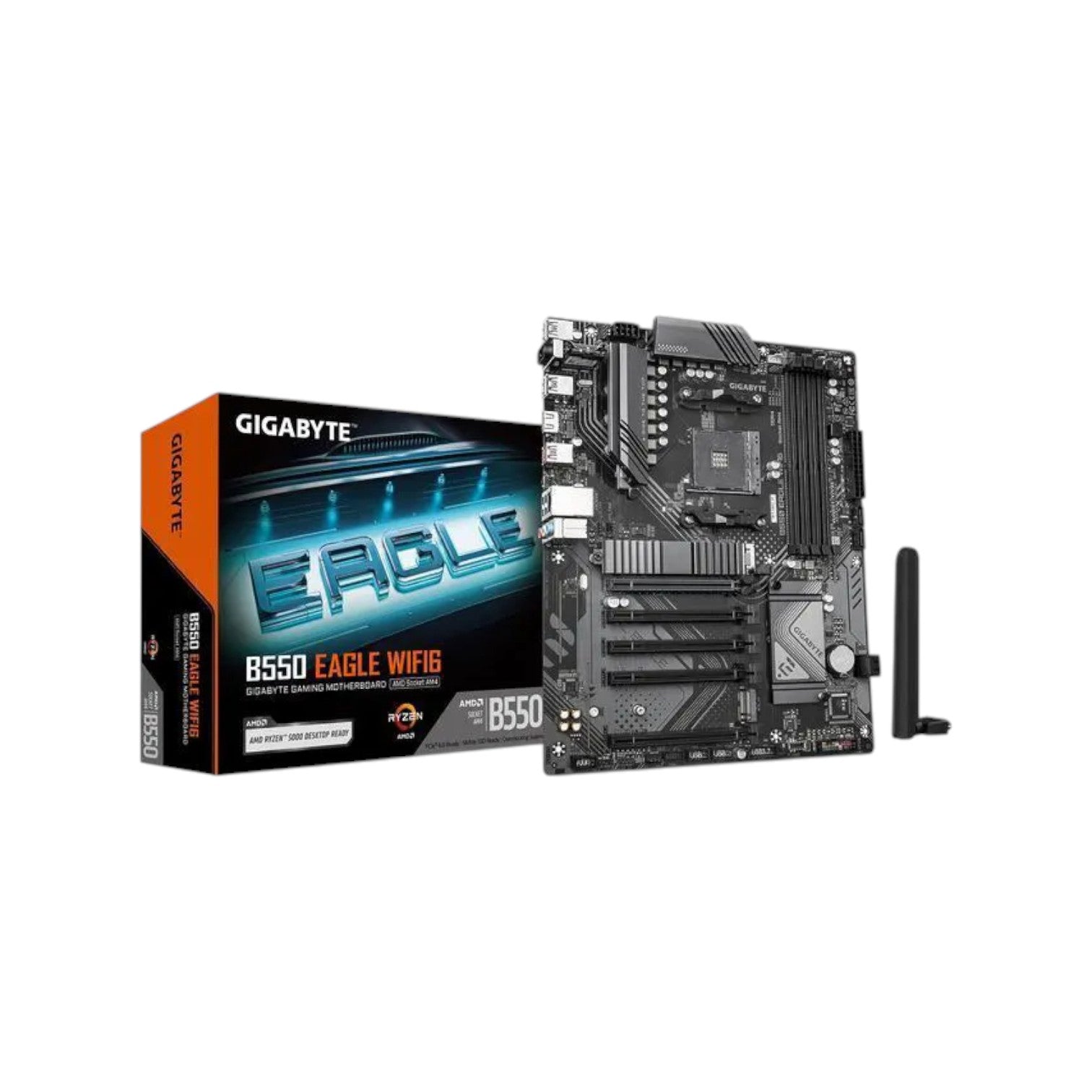

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B550 EAGLE WIFI6
Availability: In stock

Key Features

Graphics Output: 1x HDMI
Supported RAM: 4x DDR4, Max 128GB 3200 MT/s
Features: Realtek GbE LAN, Wi-Fi 6, Bluetooth 5.3
Supported CPU: Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors

Ask an expert
Tk 18,000
Tk 18,700
Tk 18,000
Subtotal: Tk 18,000
Description

Specification

Basic Information

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Chipset AMD B550
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
M.2 Socket 1 x M.2 connector (M2A_CPU)
1 x M.2 connector (M2B_SB)



Memory

Type DDR4
Slots 4 x DIMM
Supported Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB



Graphics

Graphics ntegrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
Max Shared Memory 16 GB



Connector & Ports

HDMI 1 x HDMI
USB (s) CPU:
- AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
- AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID Support for RAID 0, RAID 1, and RAID 10
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Back Panel Connectors
4 x USB 2.0/1.1 ports
2 x antenna connectors (1T1R)
1 x HDMI port (Note)
1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)



Others

Special Features Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

The Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard is a high-performance motherboard designed for AMD Ryzen CPUs, offering the perfect balance of speed, stability, and advanced connectivity. Built with a 10+3 Digital VRM power design, it delivers consistent and efficient power delivery, making it ideal for gaming, content creation, and professional workloads. Supporting PCIe 4.0, this motherboard enables ultra-fast data transfer for next-generation graphics cards and NVMe SSDs, ensuring top-tier system responsiveness. With dual M.2 slots, including a PCIe 4.0 x4 slot, users can enjoy blazing-fast storage speeds, reduced load times, and improved workflow efficiency. The built-in Wi-Fi 6 and Gigabit LAN ensure high-speed, low-latency internet connectivity, providing seamless online gaming and smooth streaming performance. To maintain thermal stability, the motherboard features a robust cooling system with full metal heatsinks and Smart Fan 6 technology, offering intelligent fan control for optimized airflow and reduced noise. Engineered with Gigabyte’s Ultra Durable components such as reinforced PCIe slots and solid power connectors, it ensures long-term durability and reliability. Whether you're a gamer, creator, or power user, the Gigabyte B550 EAGLE WIFI6 delivers cutting-edge performance, superior connectivity, and dependable build quality for any modern PC build.

Buy the Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
