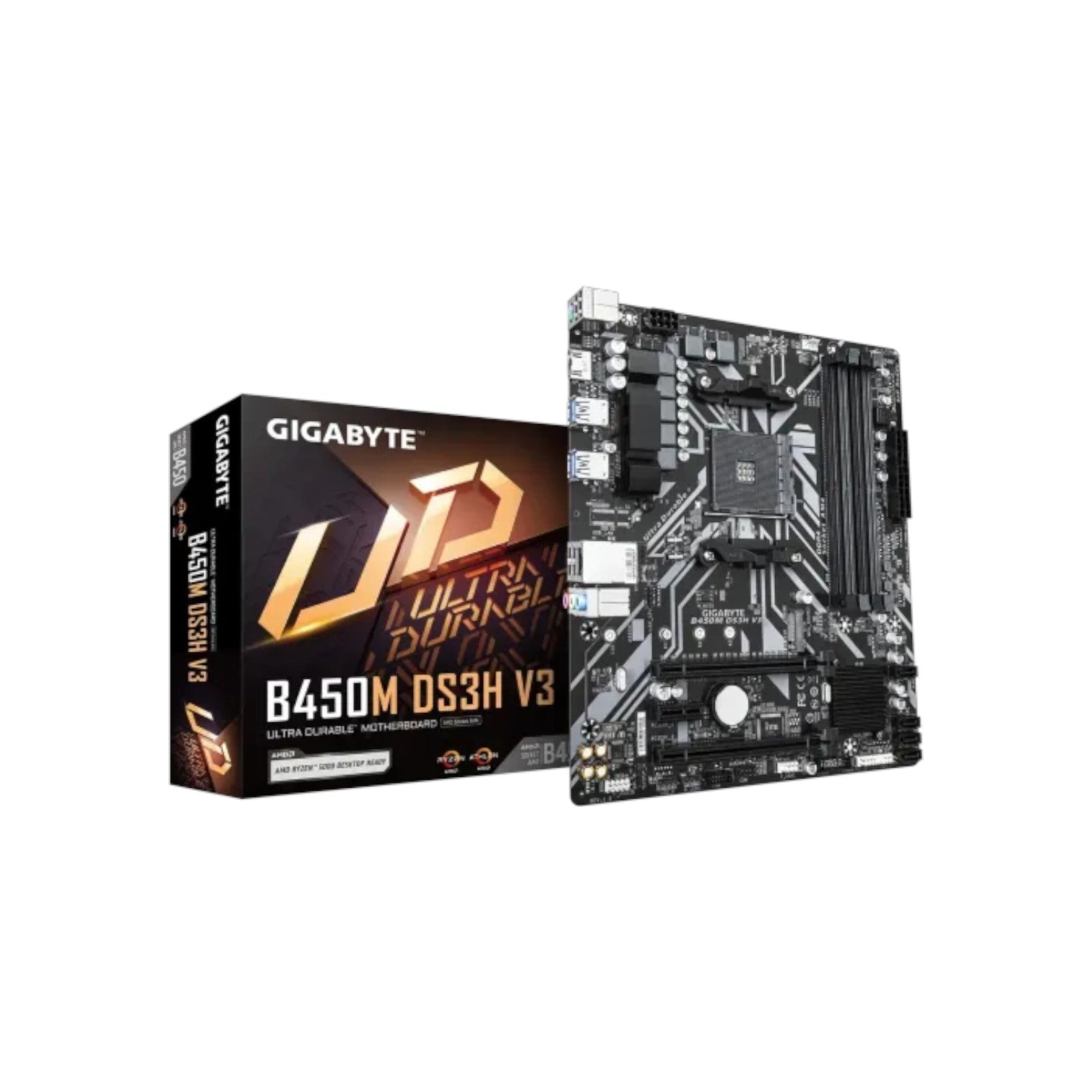

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B450M DS3H V3
Availability: In stock

Key Features

Features: 1 x M.2 Slot, Realtek GbE LAN
Graphics Output: 1 x HDMI port, Onboard 16GB
Supported RAM: 4 x DDR4, up to 128GB, 2933MT/s
Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/3rd/ 2nd/1st Gen Processors for Socket AM4

Ask an expert
Tk 10,300
Tk 11,000
Tk 10,300
Subtotal: Tk 10,300
Description

Specification

Basic Information

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Audio Realtek Audio codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector



Memory

Type DDR4
Slots 4 x DIMM
Supported Memory Dual channel memory architecture
Support for DDR4 2933/2667/2400/2133 MT/s memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB



Connector & Ports

HDMI 1 x HDMI port
USB (s) Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU.
4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, and RAID 10
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)



Others

Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

The Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard is a versatile and efficient choice designed to deliver reliable performance for a wide range of AMD Ryzen processors, including Ryzen 5000, 5000G, 4000G, and earlier generations with Radeon Vega Graphics and Athlon CPUs. Built on the AMD B450 chipset, it supports up to 128GB of dual-channel DDR4 memory with four DIMM slots, offering excellent scalability for gaming and productivity tasks. With XMP profile support, users can fine-tune memory speeds for optimal performance. The motherboard provides rich expansion options with a PCIe 3.0 x16 slot for graphics cards, a secondary PCIe x16 slot running at x1, and an additional PCIe x1 slot for add-on cards. For storage, it includes one high-speed M.2 connector compatible with PCIe NVMe and SATA SSDs, as well as four SATA 6Gb/s ports supporting RAID 0, 1, and 10 configurations. Visual output is enhanced with HDMI 2.1, supporting 4K resolution at 60Hz, while Realtek HD Audio delivers immersive 7.1-channel sound with S/PDIF Out support. Networking is powered by Realtek Gigabit LAN for fast and stable online connectivity. The motherboard also features RGB Fusion lighting with both standard and addressable LED headers, allowing complete customization of your build’s aesthetics. Smart Fan technology and advanced thermal sensors ensure effective cooling and system longevity. Designed for ease of use, it includes Q-Flash BIOS update support and a user-friendly UEFI interface for quick setup. Compact and feature-packed, the Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard delivers performance, durability, and style—perfect for gaming and everyday computing.

Buy the Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
