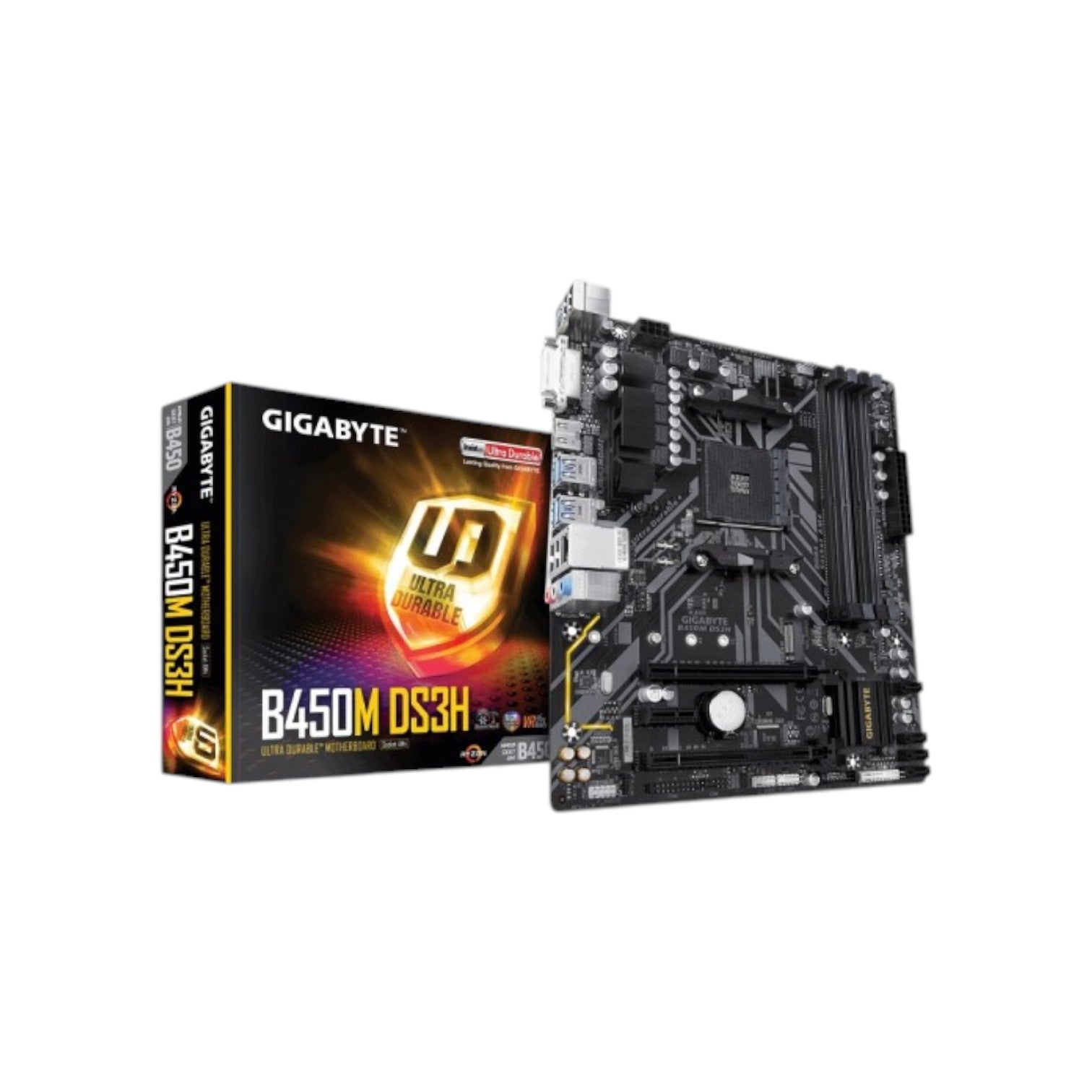

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B450M DS3H
Availability: Out Of Stock

Key Features

Chipset: AMD B450
3 x PCI Express slots
Memory: 4 x DDR4, Max 64 GB
Supports Up to AMD Ryzen 5000 series Processors

Ask an expert
Tk 10,800
Tk 11,300
Tk 10,800
Subtotal: Tk 10,800
Description

Specification

Basic Information

Supported CPU AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.



Memory

Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB



Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2



Connector & Ports

HDMI 1 x HDMI port
USB (s) Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)



Warranty

Warranty 3 years

Description

Gigabyte B450M DS3H AMD Micro ATX AM4 Motherboard

The Gigabyte B450M DS3H AMD Micro ATX AM4 Motherboard is a reliable and high-performance option built to support AMD Ryzen series processors. Featuring Dual Channel DDR4 support with up to 64GB of memory capacity, it ensures smooth multitasking and responsive system performance. The motherboard offers Ultra-Fast PCIe Gen3 x4 M.2 connectivity with PCIe NVMe and SATA mode for rapid storage speeds, alongside three PCIe slots for graphics and expansion cards. For visuals, it supports a maximum resolution of 4096x2160@60Hz via HDMI and 1920x1200@60Hz via DVI-D, enabling multiple display configurations. It is equipped with high-quality audio capacitors and an Audio Noise Guard with LED Trace Path Lighting, ensuring crystal-clear sound output for gaming and entertainment. The RGB Fusion feature supports customizable RGB LED strips in seven colors, allowing users to personalize their system aesthetics. Networking is powered by Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software, providing fast and stable connectivity. Combining speed, stability, and aesthetic flexibility, the Gigabyte B450M DS3H AMD Micro ATX AM4 Motherboard is ideal for gamers and professionals seeking a dependable and feature-rich foundation for their AMD system.

Buy the Gigabyte B450M DS3H AMD Micro ATX AM4 Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
