GIGABYTE A620M H AM5 Micro-ATX Motherboard

GIGABYTE A620M H AM5 Micro-ATX Motherboard

Brand: Gigabyte (AMD)
SKU: A620M H
Availability: In stock

Key Features

Features: 1 x DisplayPort, 1 x HDMI
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5

Ask an expert
Tk 11,500
Tk 11,900
Tk 11,500
Subtotal: Tk 11,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset AMD A620
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 2 x DIMM
Supported Memory 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory



Graphics

Graphics supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

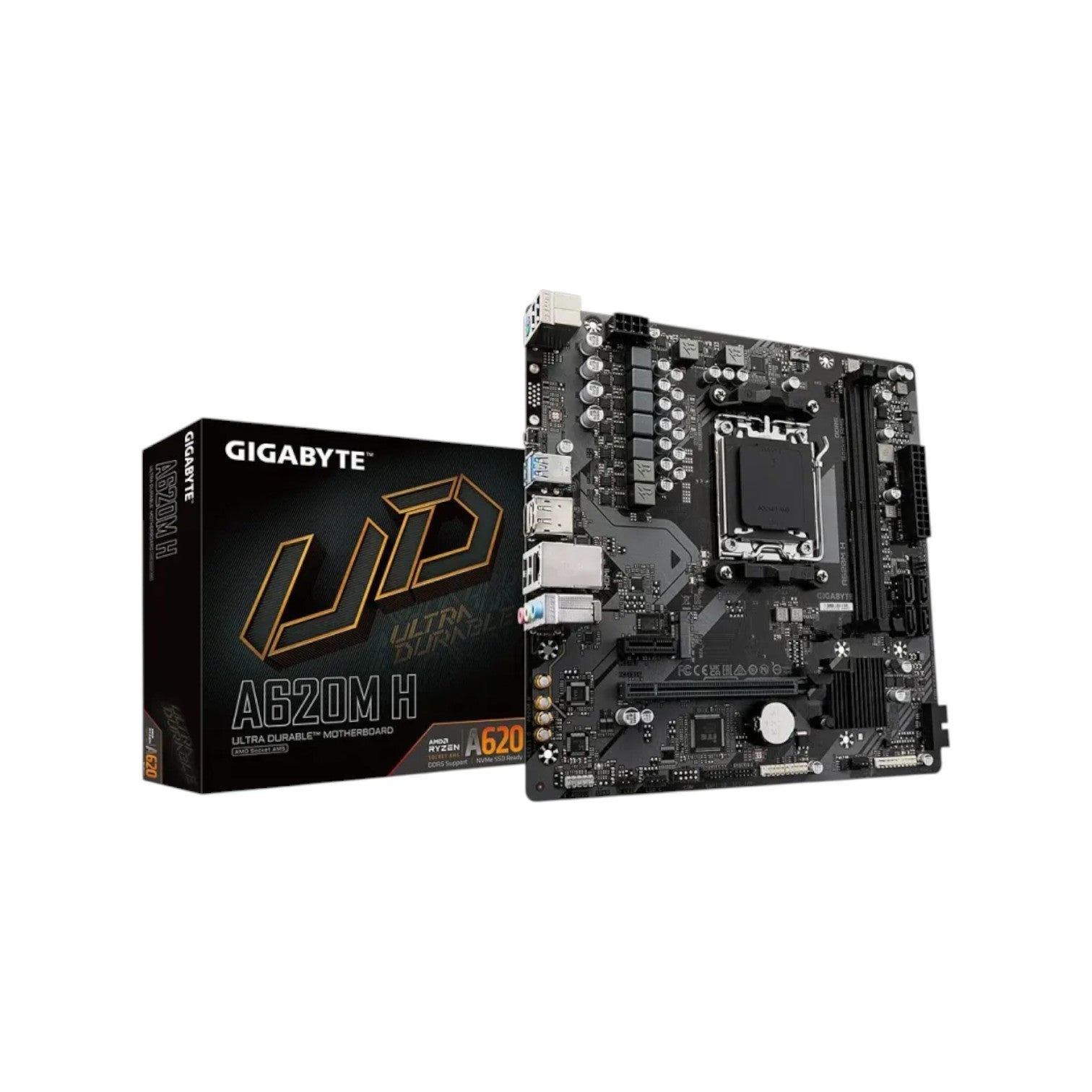

GIGABYTE A620M H AM5 Micro-ATX Motherboard

The GIGABYTE A620M H AM5 Micro-ATX Motherboard is engineered to deliver next-generation performance and reliability for modern AMD builds. Supporting AMD Ryzen 7000, 8000, and 9000 Series processors, it utilizes the AM5 socket and a robust 5+2+2 phase digital VRM design to ensure stable power delivery and efficient performance under heavy workloads. This motherboard supports dual-channel DDR5 memory with two DIMM slots and compatibility with both AMD EXPO and Intel XMP profiles, allowing users to maximize memory performance with ease. For ultra-fast storage, it includes a PCIe 4.0 x4 M.2 slot for NVMe SSDs, offering quick boot times and enhanced data transfer speeds. The GIGABYTE A620M H features an EZ-Latch PCIe x16 slot for effortless installation and removal of graphics cards, making upgrades simple and tool-free. It provides versatile connectivity with HDMI and DisplayPort outputs for multi-monitor setups and a Gigabit Ethernet LAN port for reliable networking. The Smart Fan 6 system offers intelligent cooling control with multiple temperature sensors and hybrid fan headers, along with a FAN STOP feature for silent and energy-efficient operation. Additionally, the Q-Flash Plus utility allows BIOS updates without requiring a CPU, RAM, or GPU, simplifying system maintenance and ensuring compatibility with future hardware. Compact yet powerful, the GIGABYTE A620M H AM5 Micro-ATX Motherboard is an ideal choice for builders seeking performance, stability, and upgrade flexibility in a modern desktop platform.

Buy the GIGABYTE A620M H AM5 Micro-ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
