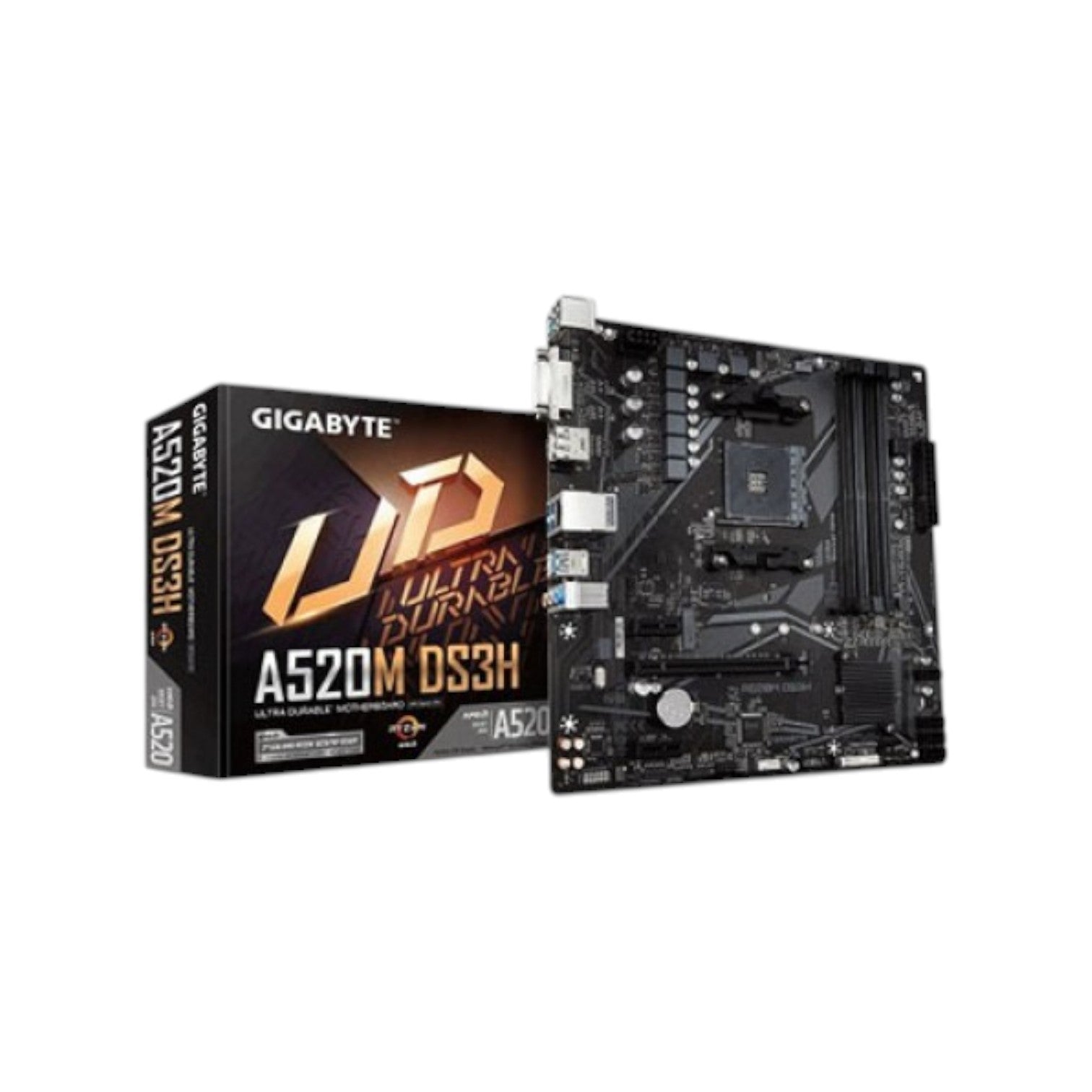

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

SKU: A520M DS3H Ultra Durable
Availability: In stock

Key Features

Ultra-Fast NVMe
RGB FUSION 2.0 Supported
5+3 Phases Pure Digital VRM
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

Tk 10,300
Tk 10,800
Tk 10,300
Subtotal: Tk 10,300

Specification

Basic Information

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)



Memory

Type Dual-Channel Memory Architecture
Slots 4 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)



Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for up to 3 displays at the same time
Max Shared Memory 16 GB



Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)



Others

Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Warranty

Warranty 3 years

Description

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

The Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard is designed for dependable performance and efficiency, making it an excellent choice for gaming and productivity. Built with a 5+3 phases pure digital PWM and Low RDS(on) MOSFET design, it ensures precise power delivery to support 3rd Gen AMD Ryzen CPUs. This optimized power management enhances system stability, performance, and scalability for demanding workloads.

Equipped with M.2 technology, the Gigabyte A520M DS3H allows users to maximize their system’s potential with high-speed storage options. Networking is powered by Realtek 8118 LAN, a high-performance gaming network chip that automatically allocates bandwidth to prioritize games or critical applications for smooth and lag-free online experiences. For visuals, the motherboard supports HDMI 2.1, backward compatible with HDMI 2.0 and 1.4, delivering up to 48 Gb/s of bandwidth. It supports cinematic 21:9 display ratios, Full HDR, and HDCP 2.3 for an immersive visual experience.

The Smart Fan 5 technology keeps your system cool and quiet by allowing fan headers to react to different thermal sensors throughout the motherboard. It also includes hybrid fan headers compatible with both PWM and Voltage mode fans, making the motherboard more liquid-cooling friendly. Fan Stop functionality allows users to stop fans completely when temperatures drop below a defined threshold, ensuring silent operation during light workloads.

RGB Fusion 2.0 enhances customization with addressable RGB lighting, offering control over both onboard and external 5V addressable LED light strips with support for up to 300 LEDs. Users can enjoy vibrant color patterns, dynamic effects, and adjustable speed settings to match their setup. For audio, the Gigabyte A520M DS3H integrates high-end audio capacitors that deliver clear, high-fidelity sound, while an audio noise guard isolates sensitive analog audio components for cleaner output.

Buy the Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard from Tech Buy BD. In Bangladesh, Tech Buy BD offers genuine Gigabyte motherboards at the best prices. Order online or visit your nearest Tech Buy BD store to get yours with a 3-year warranty.
