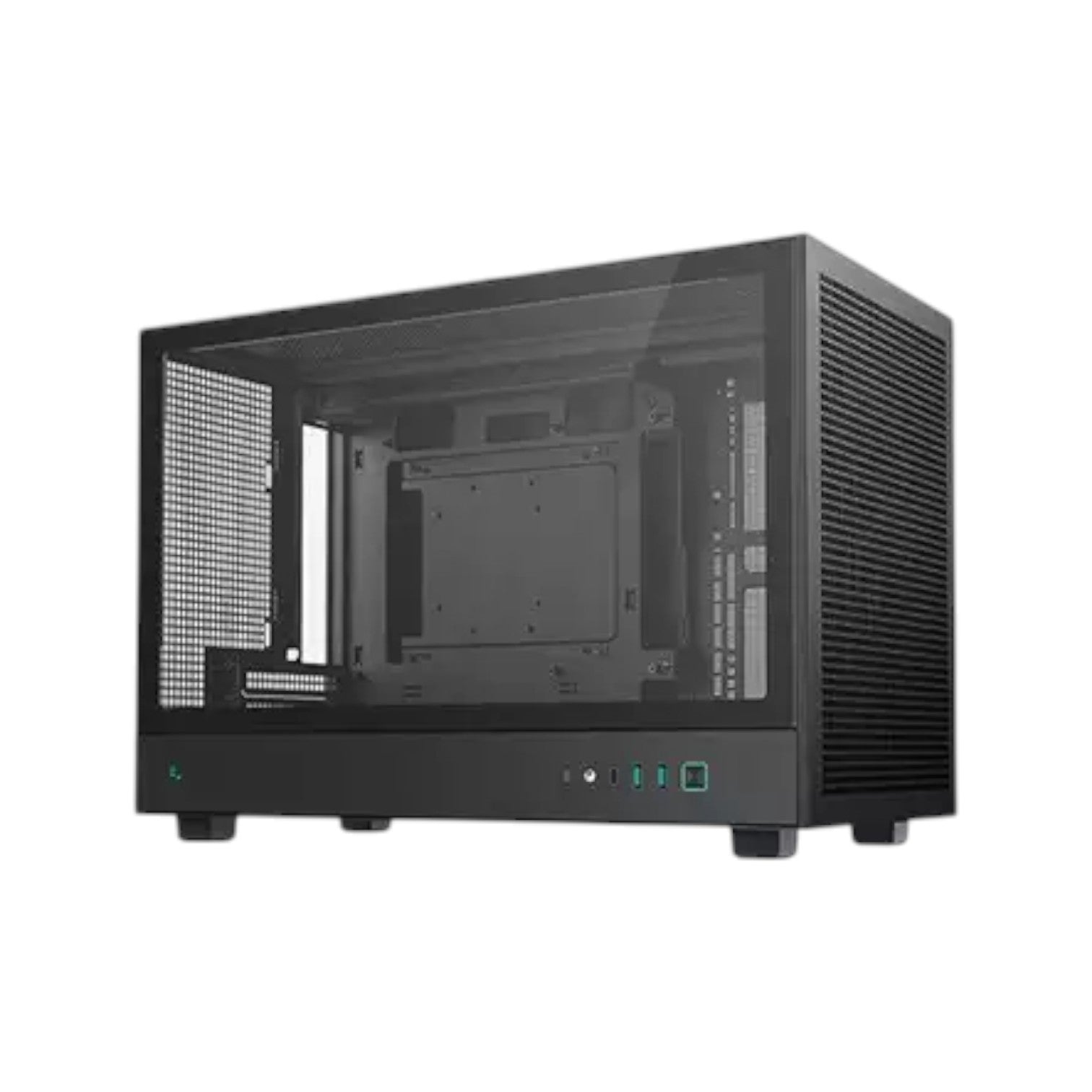

Deepcool CH260 M-ATX Gaming Casing

Tk 7,000
Tk 7,500
Tk 7,000
Brand: Deepcool
SKU: CH260
Availability: In stock

Key Features

Motherboard Support: Mini-ITX / Micro-ATX

Expansion Slots: 4 Slots

Front I/O Ports: USB3.0×2, Gen2 Type-C x1, Audio×1

Materials: ABS+SPCC+Tempered Glass

Subtotal: Tk 7,000

Specification

Case Type

Motherboard Support Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector)



External Features

Color(s) Black
Material ABS+SPCC+Tempered Glass
Weight 5.3Kg
Dimensions 438mm*225mm*312.5mm(L×W×H)
Front Ports USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
Expansion Slots 4 Slots
Radiator Support Top:120/240/360mm
Rear:120mm
Fan Support Front:2×120mm
Top:3×120mm/2×140mm
Rear: 1×120mm
Drive Bays 1x 3.5" Drive Bays
1x 2.5" Drive Bays



Clearance Space

Maximum CPU Cooler Height 174mm
Maximum Graphics Card Length 388/413mm
Maximum PSU Length ATX PS2(maximum length: 150mm)

Warranty

Warranty No Warranty

Description

DeepCool CH260 M-ATX Gaming Casing

The Deepcool CH260 M-ATX Gaming Casing is a compact yet powerful desktop case designed for users who want high performance, clean aesthetics, and flexible hardware compatibility in a smaller footprint. Built with a durable combination of ABS, SPCC steel, and tempered glass, this casing delivers a premium look while maintaining structural strength for long-term use. It supports both Micro-ATX and Mini-ITX motherboards, making it ideal for streamlined gaming rigs or efficient workstations. The front I/O panel is well equipped with dual USB 3.0 ports, a high-speed USB Type-C Gen2 connector, and a combined audio and microphone jack, ensuring fast data transfer and convenient peripheral connectivity.

Inside, the Deepcool CH260 offers four expansion slots along with support for both 3.5-inch and 2.5-inch storage drives, giving users flexibility for SSD and HDD installations. Although it comes without pre-installed fans, the case is engineered for strong airflow, supporting up to six cooling fans across the front, top, and rear positions. Advanced cooling setups are also supported, with radiator compatibility up to 360mm at the top and 120mm at the rear, allowing builders to implement effective liquid cooling solutions. The spacious interior accommodates CPU coolers up to 174mm in height and graphics cards up to 413mm in length when front fans are not installed, making it suitable for high-performance GPUs. An ATX PS2 power supply bay supports units up to 150mm in length, ensuring compatibility with most standard PSUs. With its balanced design, excellent airflow potential, and builder-friendly layout, the Deepcool CH260 M-ATX Gaming Casing is an excellent choice for modern compact PC builds.

Buy the Deepcool CH260 M-ATX Gaming Casing from Tech Buy BD. Order online or visit your nearest Tech Buy BD showroom to get the original product with official support.
