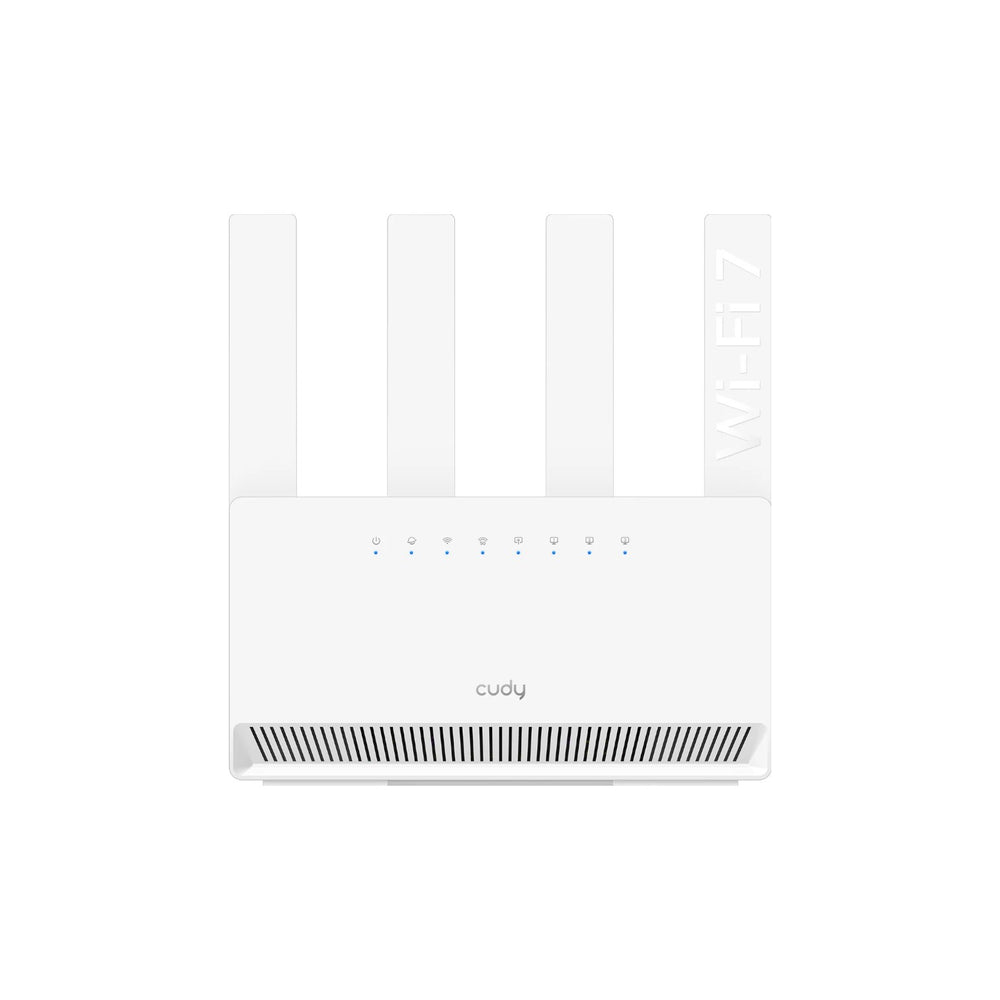

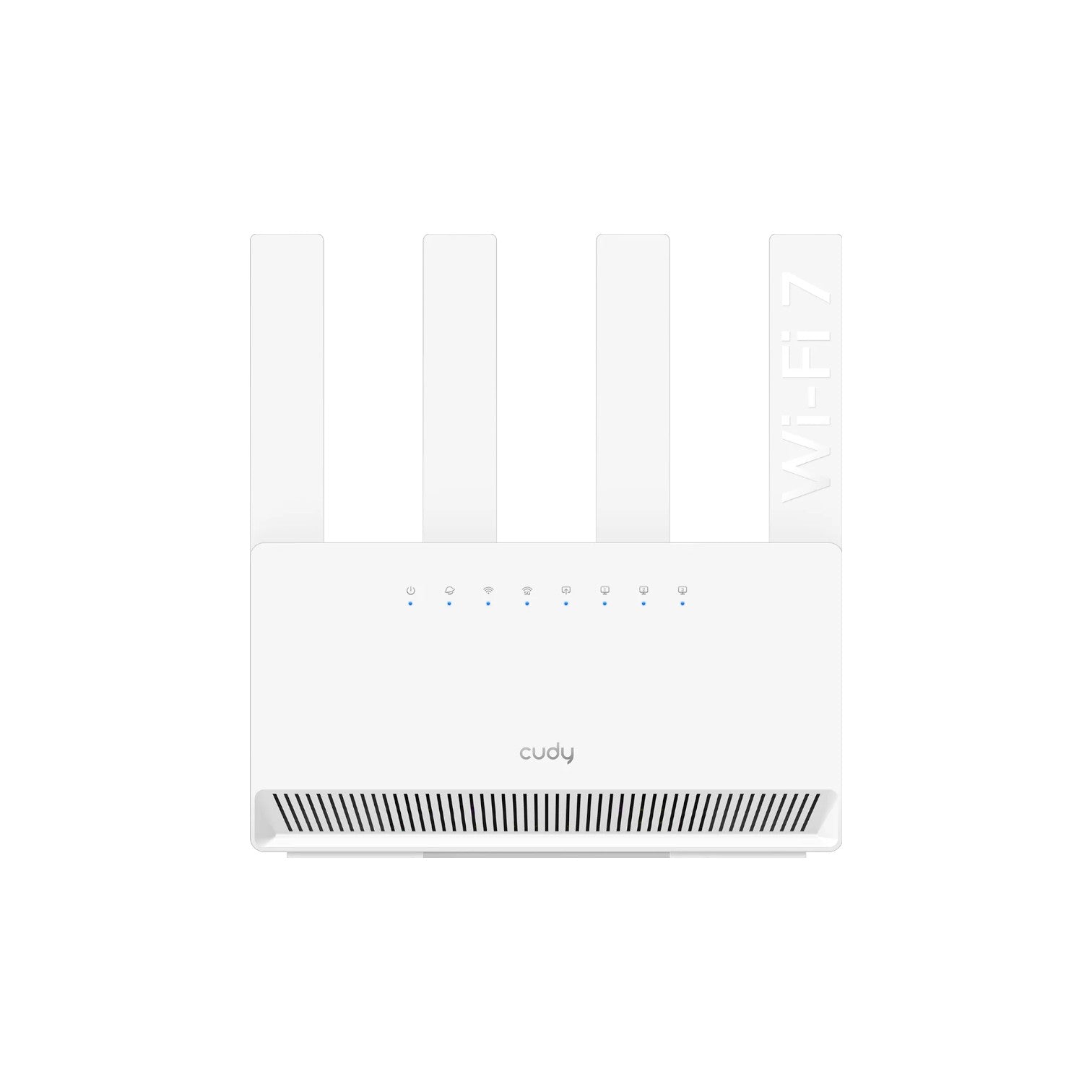

Cudy WR3600E BE3600 Gigabit Mesh Wi-Fi 7 Router

Brand: Cudy
SKU: WR3600E
Availability: In stock

Key Features

Frequency: Dual Band 2.4 GHz & 5 GHz
Wi-Fi Speed: 5GHz 2882 Mbps, 2.4GHz 688 Mbps
Device Connect: Up to 512, Area Covers Up to 130 m² (1,400 ft²)
Ports: 4× Gigabit Ethernet Ports, Cudy Mesh, VPN Server and Client

Color: White
Tk 7,800
Tk 8,520
Tk 7,800
Subtotal: Tk 7,800

Specification

Key Features

 Data Rate 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
Antenna 4 × Fixed Antennas
Button WPS Button, Reset Button
Frequency 5 GHz, 2.4 GHz
Wireless 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
5 GHz Antenna Gain Max: 7.8dBi
2.4 GHz Antenna Gain Max: 5.2dBi

FEM or PA/LNA:
5 GHz: 2× External
2.4 GHz: 2× External

Beamforming: True

Range Performance:
Max: 220 m (722 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance:
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

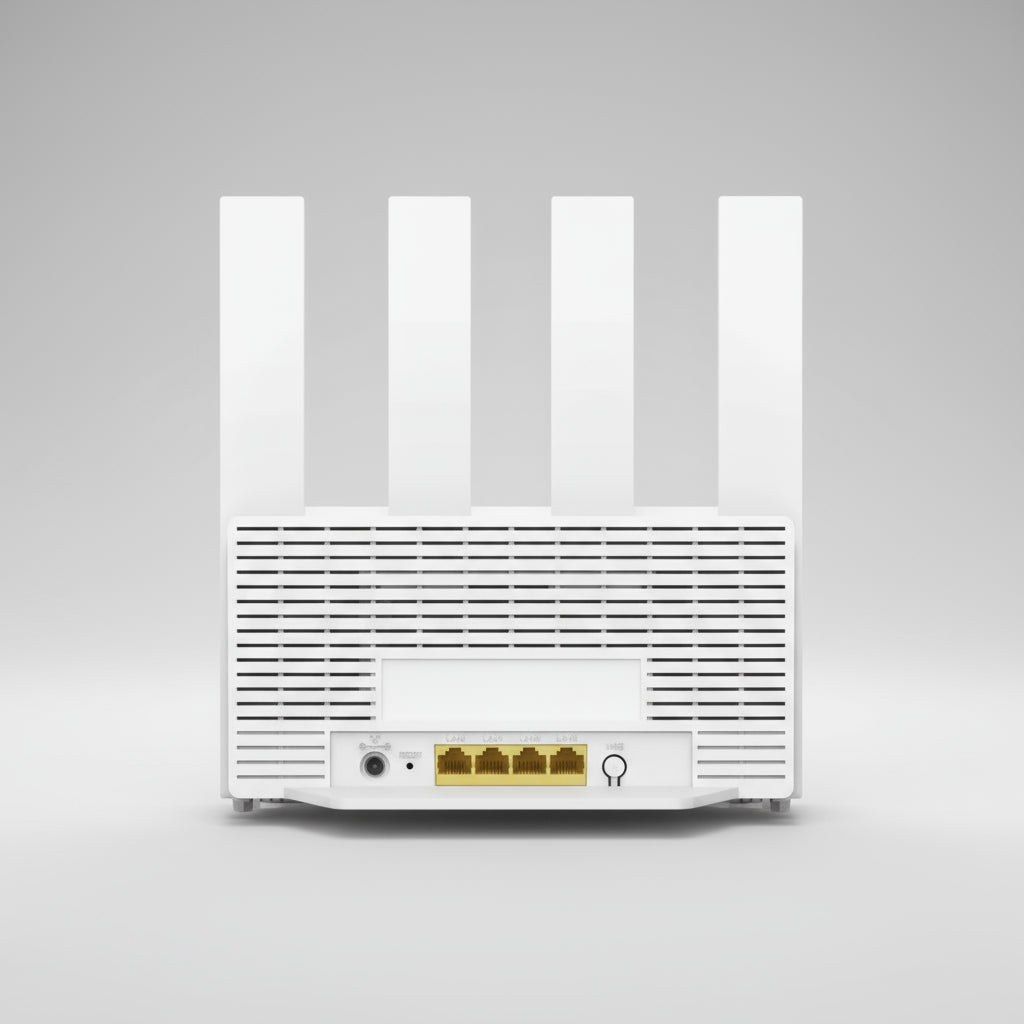

Interface Gigabit RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports

LED:
System
Internet
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WAN
LAN

Physical Buttons:
WPS Button
Reset Button

Power Input: DC Jack
Network Standard QoS: Per-User Rate Limiting

DHCP:
Address Reservation
DHCP Client List
Server

IP Versions: IPv4/IPv6

IPv6 Protocols:
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite

IPTV/VLAN:
Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN

TTL Customization:
Extend
Spoof
Custom

IGMP:
IGMP Proxy
IGMP Snooping

Forwarding:
Port Forwarding
Port Triggering
UPnP
DMZ

Firewall:
SPI Firewall
DoS Protection
Block PING

Application Layer Gateway:
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Others CPU:
Chipset: BCM6764
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage:
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L

4-Stream Dual-Band Wi-Fi 7
Max Capacity: 512
200 Connected Devices Recommended
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
Covers 130 m² (1,400 ft²)
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control, VPN Server and Client

Reliability:
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

General:
Operation Modes:
Wi-Fi Router
Access Point
Multi-Band Backhaul: True
WAN Mode:
DHCP
Static IP
PPPOE
PPTP
L2TP

System:
LED Control: Ture
Local Control Method:
Config Web Page
App Control
Remote Control Method:
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR181
Firmware Upgrade:
Local Update
App (Over the Air)
Online Update
Reliability:
Timed Reboot
Backup and Restore
Diagnostic Tools:
Diagnosis
Ping
Traceroute
NSLookup
System Log

Management
All Devices Management:
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management:
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management:
Domain Filter
IP Filter
Power Mode Power Methods: DC
DC: 12V 1A

Power Adapter:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W): 8.5W

Physical Dimension

Dimension 209×48×220.4 mm
8.23×1.89×8.68 inches
Color White
Weight 339.8 g (11.99 oz.)

Warranty

Warranty 1 year Warranty

Description

Cudy WR3600E BE3600 Gigabit Mesh Wi-Fi 7 Router

The Cudy WR3600E BE3600 Gigabit Mesh Wi-Fi 7 Router delivers next-generation wireless performance, combining ultra-fast speeds, advanced technology, and strong signal coverage for modern homes and offices. Powered by a 2.0GHz Quad-Core ARM Cortex-A7 processor and the Broadcom BCM6764 chipset, it ensures smooth and reliable performance even during peak network activity. Built on the latest Wi-Fi 7 standard, it supports 4K-QAM modulation, 160MHz channel bandwidth, and Multi-Link Operation (MLO), providing higher efficiency and faster data transmission across multiple devices.

Offering dual-band speeds of up to 2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band, the Cudy WR3600E delivers exceptional wireless performance with 2×2 MIMO streams and beamforming technology for stronger, more focused signals. Equipped with four high-gain antennas—7.8dBi for 5GHz and 5.2dBi for 2.4GHz—along with external FEM amplifiers, it ensures stable connectivity and extended coverage of up to 130m² (1,400ft²), making it ideal for apartments, small homes, or office environments.

For wired connections, the router includes four Gigabit Ethernet ports (one WAN and three LAN), allowing you to connect PCs, smart TVs, or gaming consoles for high-speed, low-latency performance. It also supports advanced security and management features, including QoS per-user rate limiting, SPI firewall, DoS protection, VPN passthrough, and compatibility with WireGuard, OpenVPN, IPsec, and ZeroTier VPNs—ensuring both speed and security for your entire network.

The WR3600E offers easy setup and remote management through its intuitive web interface, mobile app, or HTTPS access. It also includes convenient tools like Wi-Fi scheduling, MAC filtering, and parental controls for better customization and control. Certified by FCC and CE, this energy-efficient router consumes a maximum of just 8.5W and features a sleek, compact desktop design.

Buy the Cudy WR3600E BE3600 Gigabit Mesh Wi-Fi 7 Router from Tech Buy BD and enjoy ultra-fast Wi-Fi 7 performance, secure connectivity, and advanced network management backed by a 1-year warranty.
