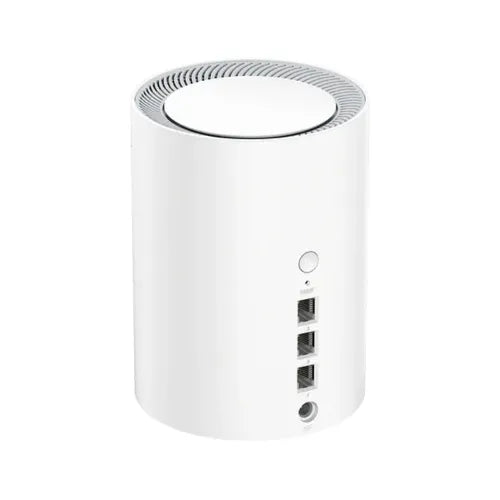

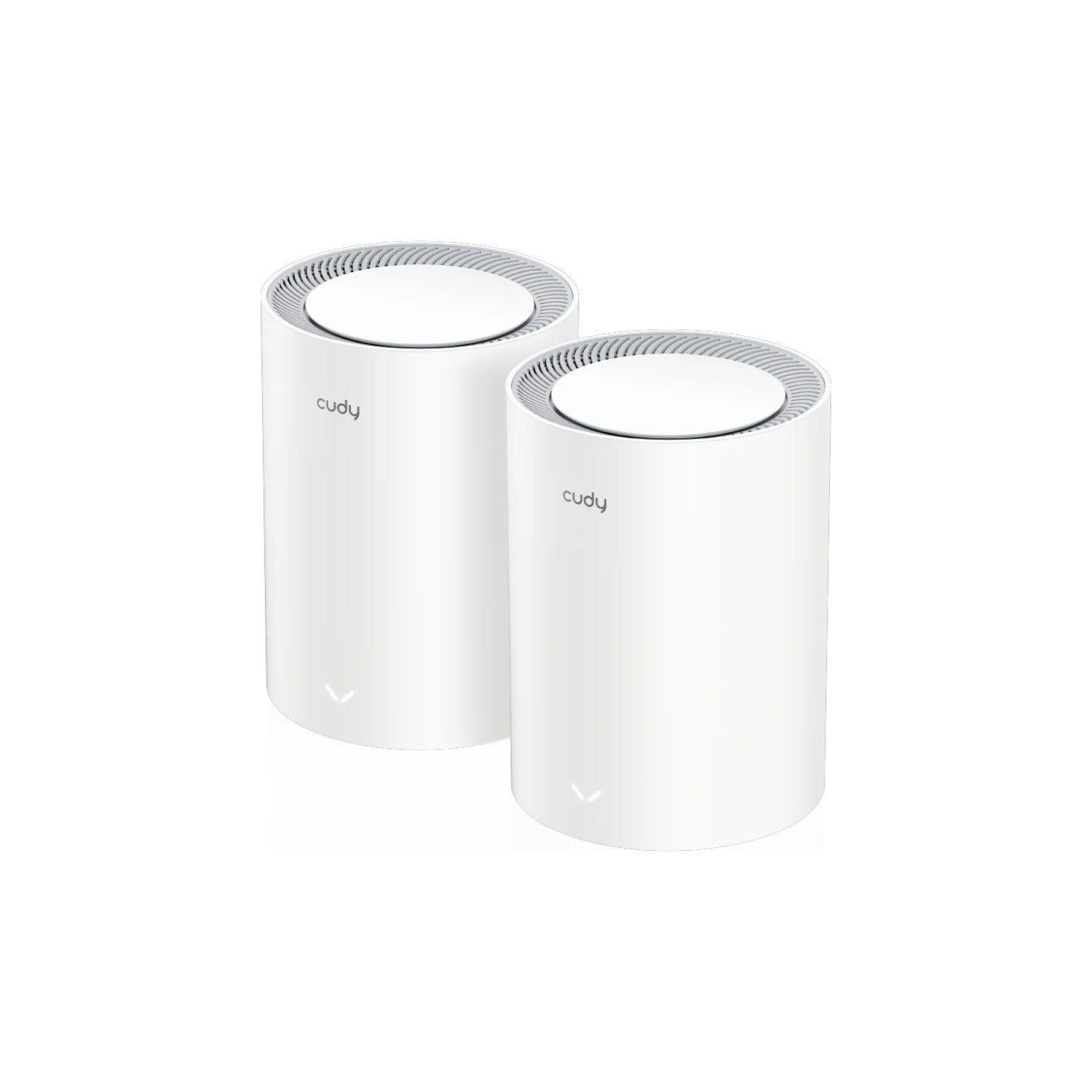

Cudy M3600 BE3600 Dual Band Wi-Fi 7 Mesh Router (2 Pack)

Brand: Cudy
SKU: M3600
Availability: In stock

Key Features

Speed: 2882 Mbps + 688 Mbps Wi-Fi
2.0 GHz Quad-Core, ARM Cortex-A7
4× Internal Antennas, 3× Gigabit Ports
Connect 200 Devices, Up to 2100 sq ft Coverage

Color: White
Tk 15,000
Tk 15,400
Tk 15,000
Subtotal: Tk 15,000

Specification

Key Features

 Data Rate 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
Antenna Wi-Fi Antennas: 4× Internal
5 GHz Antenna Gain Max: 5.5dBi
2.4 GHz Antenna Gain Max: 5.4dBi
Button WPS Button, Reset Button
Frequency 5 GHz, 2.4 GHz
Wireless Wi-Fi Standards: Wi-Fi 7
Max Wi-Fi Modulation: 4K-QAM
Wi-Fi Efficiency:
- MLO
- MRU
- 4Puncturing
- OFDMA
- MU-MIMO
- BSS Color
Max Capacity: 512
Recommended Client Upper Limit: 200
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
Interface Gigabit RJ45 Ports: 3
Ethernet Notes: 1× WAN port, the rest are LAN ports
Uplink Ethernet Ports:
1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches
2-Pack: 55×54.5×35.3 cm
21.65×21.46×13.9 inches
3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches
LED:
- System
- Speed/Link/ACT of Ethernet Port
Physical Buttons:
- WPS Button
- Reset Button
Power Input: DC Jack
Network Standard QoS: Per-User Rate Limiting
DHCP:
- Address Reservation
- DHCP Client List
- Server
IP Versions: IPv4/IPv6
IPv6 Protocols:
- Relay
- Dynamic (SLAAC/DHCPv6)
- Static (Fixed IP)
- Passthrough
- 464XLAT
- MAP-E
- DS-Lite
IPTV/VLAN:
- Bridge
- Tag VLAN
- VoIP VLAN
- IPTV VLAN
TTL Customization:
- Extend
- Spoof
- Custom
IGMP:
- IGMP Proxy
- IGMP Snooping
Forwarding:
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
Firewall:
- SPI Firewall
- DoS Protection
- Block PING
Application Layer Gateway:
- IPSec Passthrough
- L2TP Passthrough
- PPTP Passthrough
- FTP Passthrough
- TFTP Passthrough
- H323 Passthrough
- SIP Passthrough
- RTSP Passthrough
Ports Gigabit RJ45 Ports: 3
Ethernet Notes: 1× WAN port, the rest are LAN ports
Others Coverage Up to 2100 Sq ft
Processor: CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L

Operation Modes:
- Wi-Fi Router
- Access Point
- Range Extender
- WISP
- Client
Mesh: Cudy Mesh
Mesh Backhaul:
- Wireless Backhaul
- Wired Backhaul
Multi-Band Backhaul: True
WAN Mode:
- DHCP
- Static IP
- PPPOE
- PPTP
- L2TP
Internet Failover Sequence:
- WAN
- WISP

System:
LED Control: True
Local Control Method:
- Config Web Page
- App Control
Remote Control Method:
- Config Page via HTTPS
- App Control
- TR069/TR098/TR111/TR143/TR181
Firmware Upgrade:
- Local Update
- App (Over the Air)
- Online Update
Reliability:
- Timed Reboot
- Backup and Restore
Diagnostic Tools:
- Diagnosis
- Ping
- Traceroute
- NSLookup
- System Log
Languages:
- English
- Bengali
- Catalan
- Czech
- German
- Greek
- Spanish
- French
- Hebrew
- Croatian
- Hungarian
- Italian
- Japanese
- Khmer
- Korean
- Dutch
- Norwegian
- Polish
- Portuguese
- Romanian
- Russian
- Slovak
- Swedish
- Thai
- Turkish
- Ukrainian
- Vietnamese
- Simplified Chinese
- Traditional Chinese

Utilities:
VPN Server:
- WireGuard
- OpenVPN
- IPsec
- Zerotier
- PPTP
- L2TP
VPN Client:
- WireGuard
- OpenVPN
- IPsec
- Zerotier
- PPTP
- L2TP
DNS Options:
- DNS over TLS
- Manual DNS
- Rebind Protection
- Override Clients' DNS
DNS over TLS Providers:
- Cloudflare
- Google
- Quad9
- Custom
Wake on LAN: True
Online Detection: True

Reliability
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing

Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management
Cudy Mesh, VPN Client, Cudy App, Cloud Control
Power Mode Power Methods: DC
DC Input: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 9W

Physical Dimension

Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Color White

Warranty

Warranty 1 year Warranty

Description

Cudy M3600 BE3600 Dual Band Wi-Fi 7 Mesh Router (2 Pack)

The Cudy M3600 BE3600 Dual Band Wi-Fi 7 Mesh Router (2 Pack) delivers next-generation performance and reliability for homes and offices requiring ultra-fast, uninterrupted connectivity. Powered by a 2.0GHz Quad-Core ARM Cortex-A7 CPU, 512MB DDR3L RAM, and 128MB NAND flash storage, it ensures smooth multitasking and stable performance even under heavy device loads. Designed with cutting-edge Wi-Fi 7 technology, it achieves speeds up to 2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band, delivering superior efficiency and reduced interference for high-speed streaming, gaming, and multitasking.

Equipped with advanced technologies such as MU-MIMO, OFDMA, Beamforming, and BSS Color, the M3600 ensures fast, stable, and efficient communication across multiple devices. Each unit covers up to 2100 square feet and supports up to 200 connected devices, making it ideal for modern smart homes and small businesses. With both wireless and wired backhaul options, the mesh system guarantees consistent, high-speed performance across every node.

The router features four internal antennas for wide-range coverage and three Gigabit Ethernet ports (one WAN and two LAN) for high-speed wired connections to desktops, gaming consoles, or smart TVs. It also includes robust network management tools such as VPN server/client support for WireGuard, OpenVPN, and IPsec, as well as QoS per-user rate control, parental controls, and domain/IP filtering.

Security and reliability are enhanced with IPv4/IPv6 compatibility, DNS-over-TLS encryption, IPTV VLAN support, and a powerful firewall for complete network protection. Easily managed through the Cudy App or web interface, the M3600 offers seamless control and monitoring from anywhere. Compact, energy-efficient, and easy to install, this mesh router system is built for the demands of modern high-speed networks.

Buy the Cudy M3600 BE3600 Dual Band Wi-Fi 7 Mesh Router (2 Pack) from Tech Buy BD and experience cutting-edge Wi-Fi 7 performance, intelligent mesh connectivity, and enterprise-grade security backed by a 1-year warranty.
