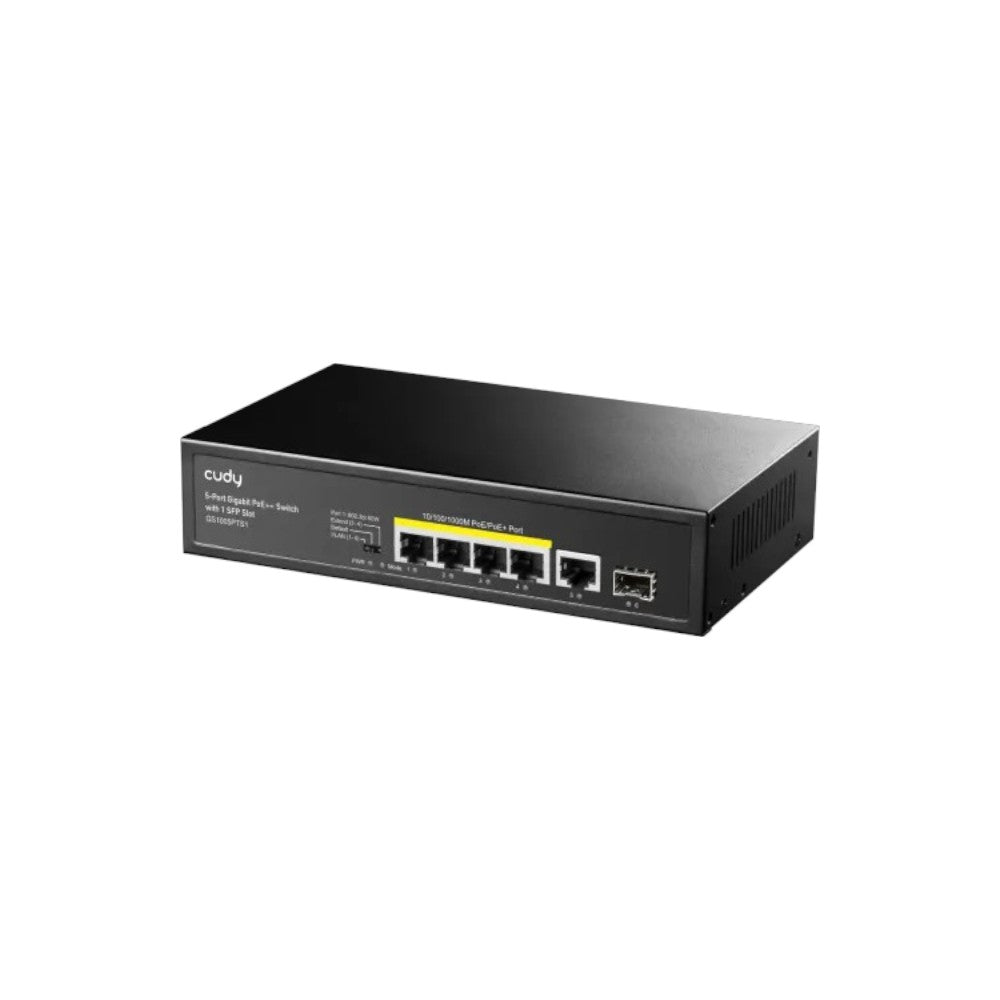

Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot

Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot

Tk 4,400
Tk 4,800
Tk 4,400
Brand: Cudy
SKU: GS1005PTS1
Availability: In stock

Key Features

Ethernet Ports: 4*10/100/1000M PoE, 1*1000M RJ45 Port

SFP Ports: 1* Gigabit SFP Uplink Port

Switching Capacity: 12Gbps, Throughput: 8.928Mpps

PoE Budget: 120 Watts PoE Power

Ask an expert
Subtotal: Tk 4,400
Description

Specification

Main Features

Port 4*10/100/1000M PoE Port
1*1000M RJ45 Port
1* Gigabit SFP Uplink Port
Network Standard IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3z(1000Base-FX)
IEEE802.3x (Flow control)
Access Method 10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Multimode fiber : 50/125, 62.5/125, 100/140μm
Single-mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Advanced Functions VLAN： Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default: In normal mode, all ports can communicate with each other, and the transmission distance is within 100 meters
Extend： Link extension mode, 3-4 ports PoE power supply, and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Transmission Method Store-and-Forward
Data Transmission Rate Jumbo frame: 1528Bytes
Packet buffer: 2M bit
Packet forwarding rate: 1.48Mpps
Bandwidth: 2M bit
Environment Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height: Maximum10,000 feet
Storage heigh: Maximum 10,000 feet



Hardware Features

Power Supply Input Voltage: AC 100-240 V
Dimensions 200*118*44mm
Weight 0.6kg



Warranty Information

Warranty 1 Year warranty


Description

Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot

The Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot is designed to provide reliable high-speed networking and power delivery for modern network environments. It features four Gigabit PoE+ ports, one Gigabit Ethernet port, and one Gigabit SFP uplink slot, offering flexible connectivity options for both copper and fiber network connections. With a total PoE power budget of up to 120W, the switch supports IEEE 802.3af and IEEE 802.3at standards, enabling seamless integration with PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones while delivering both data and power through a single Ethernet cable.

For extended deployment flexibility, the switch includes an extend mode that allows PoE power transmission distances of up to 250 meters, making it suitable for surveillance systems and installations across larger areas. VLAN mode provides enhanced network security by isolating PoE ports, helping prevent broadcast interference and improving network stability. Additionally, a watchdog function automatically restarts PoE power to devices that become unresponsive, ensuring continuous and stable operation for connected equipment.

The GS1005PTS1 offers efficient data handling with a switching capacity of 12Gbps and a forwarding rate of 8.928 Mpps, supported by a 1Mb packet buffer and a 2K MAC address table. It is compatible with various network media including Cat5 or higher UTP cables and fiber connections through the SFP port. With plug-and-play functionality, DIP switch controls, and LED indicators for easy monitoring, the Cudy GS1005PTS1 provides a dependable and versatile solution for surveillance systems, business networks, and high-performance PoE networking applications.

Buy the Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
