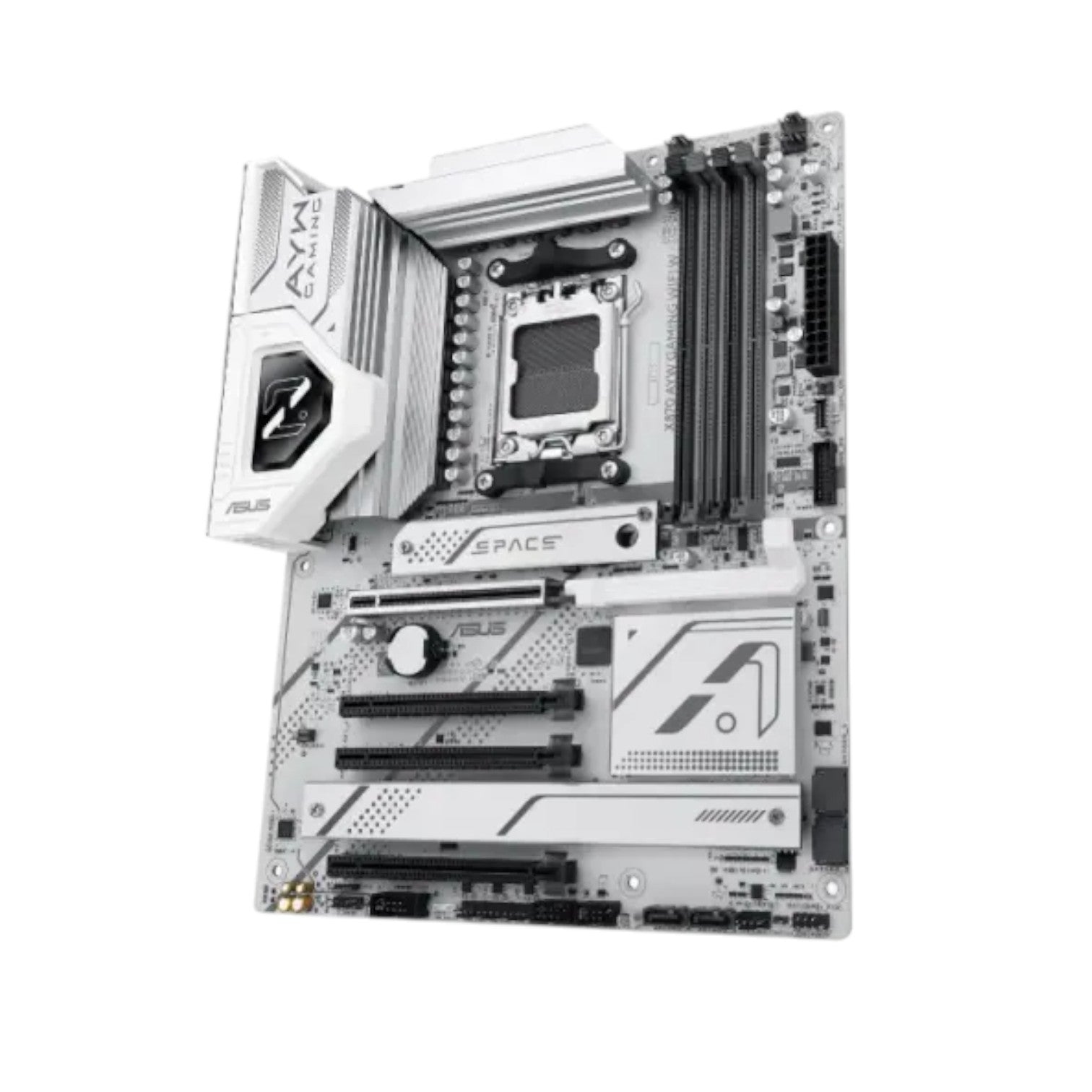

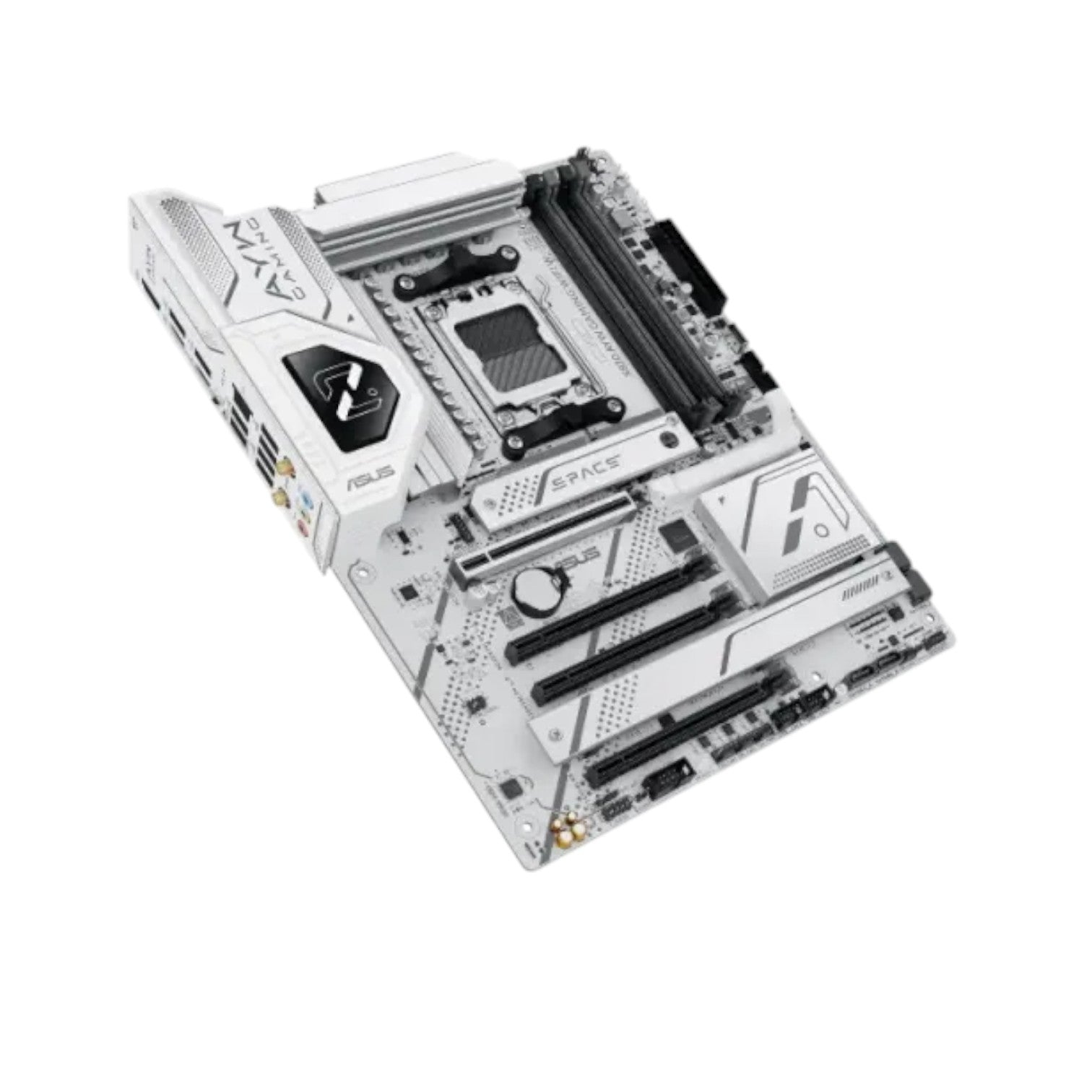

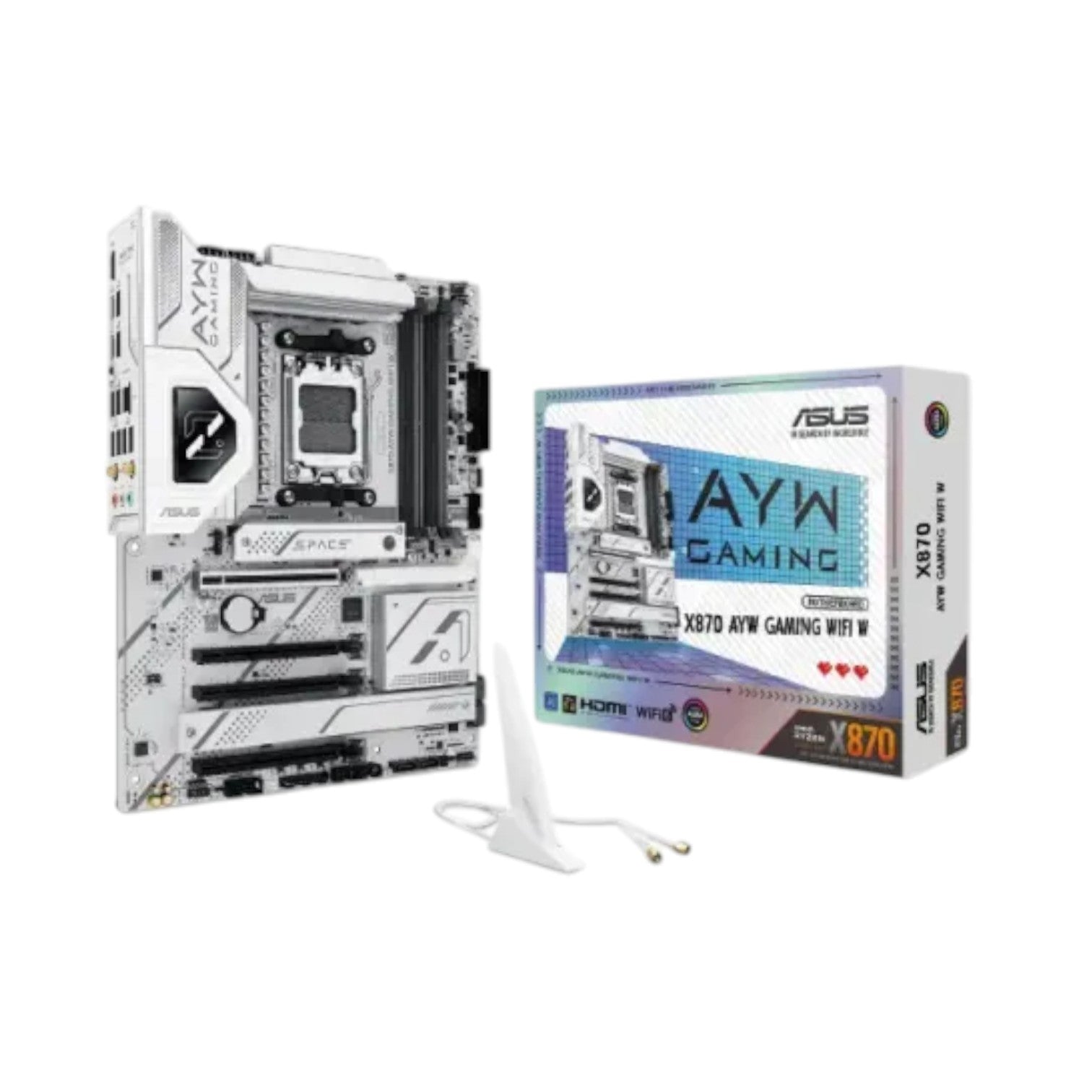

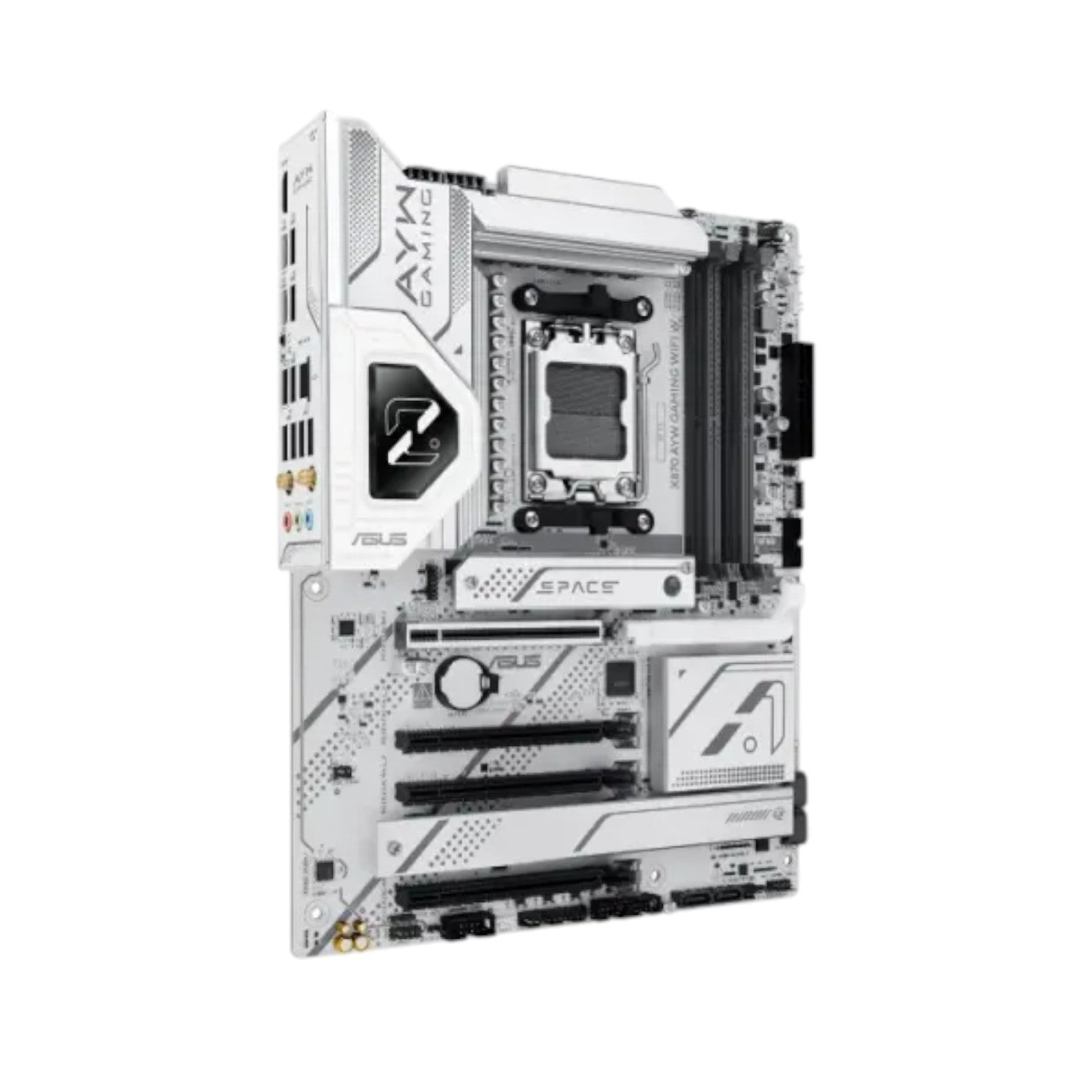

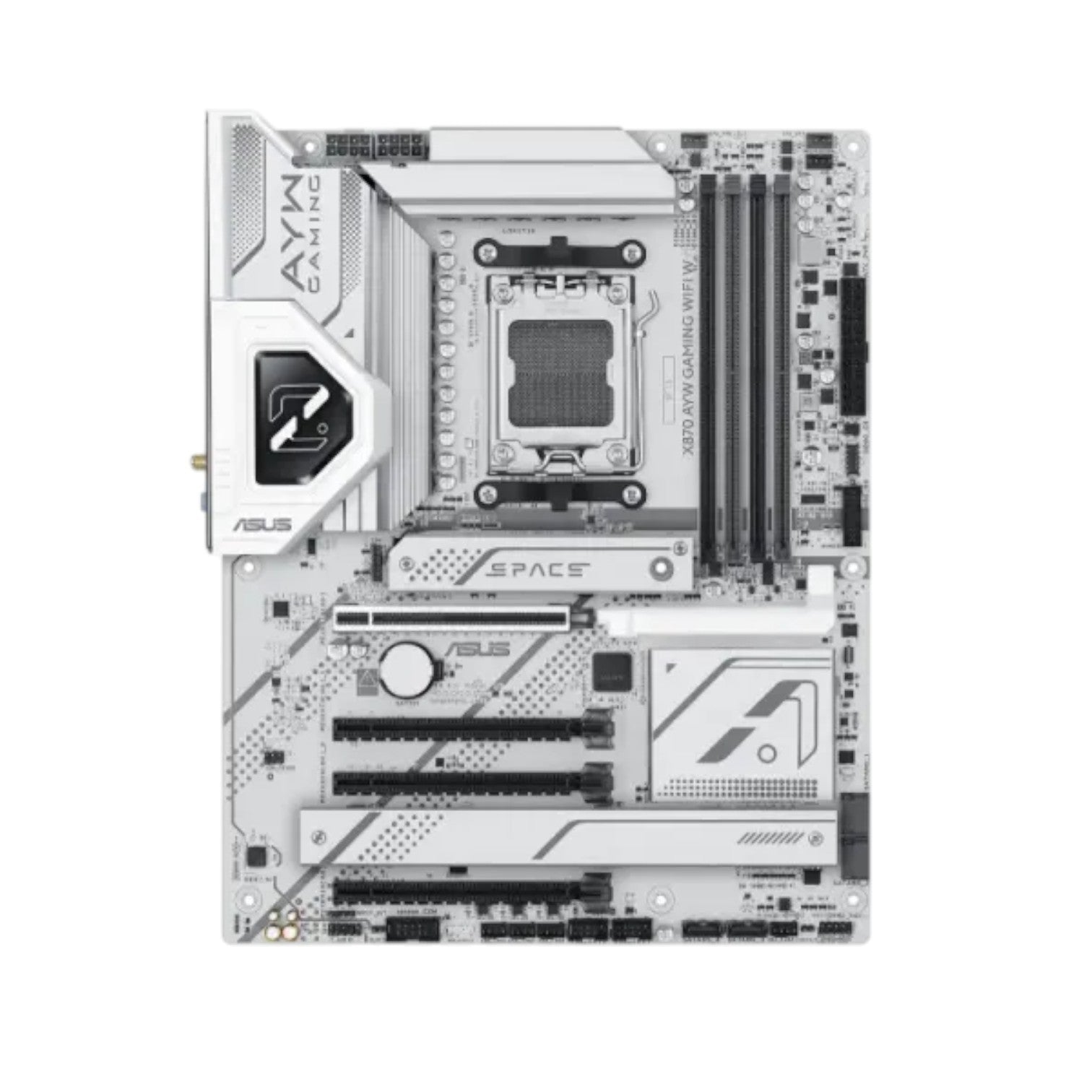

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

Brand: ASUS
SKU: X870-AYW-GAMING-WIFI-W
Availability: In stock

Key Features

  • Model: X870 AYW GAMING WIFI W
  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
  • Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
  • Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Ask an expert
Tk 44,500
Tk 48,610
Tk 44,500
Subtotal: Tk 44,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)
M.2 Socket MD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 256GB



Graphics

Graphics 1 x HDMI port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI 2.1
USB (s) Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.
* PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
** Specifications vary by CPU types.
RAID AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey



Warranty

Warranty 3 years

Description

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

The Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard is a next-gen powerhouse built to deliver elite performance for gamers, creators, and professionals. Designed around the AMD X870 chipset and AM5 socket, it fully supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, offering future-proof compatibility and cutting-edge computing power for demanding workloads and high-end gaming.

This Asus motherboard supports up to 256GB of DDR5 memory across four DIMM slots, reaching speeds of 8000+ MT/s (OC) with ECC/Non-ECC support, dual-channel architecture, and tuning through AMD EXPO and ASUS AEMP profiles for maximum performance.

For advanced graphics and display options, the Asus X870 AYW GAMING WIFI W features one HDMI 2.1 port and two USB4 Type-C ports supporting DisplayPort 1.4a, capable of 4K@60Hz output depending on CPU capabilities. Expansion is extensive with one PCIe 5.0 x16 slot for Ryzen 9000/7000 GPUs, additional PCIe 4.0 and PCIe 3.0 slots, and three M.2 slots (PCIe 5.0 & 4.0) for ultra-fast NVMe SSDs. Four SATA 6Gb/s ports and full AMD RAIDXpert2 support (RAID 0/1/5/10) ensure superior flexibility and storage performance.

Connectivity is exceptional — including dual USB4 (40Gbps) ports, 10 rear USB ports, and 7 front USB headers, with a USB 20Gbps Type-C port supporting 30W PD fast charging. Networking performance is powered by Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2, offering reliable, high-speed data transfer and stable wireless connections for gaming, streaming, or professional tasks.

The Realtek 7.1 Surround Sound High Definition Audio CODEC delivers premium sound with 24-bit/192kHz playback, audio shielding, and high-end capacitors, ensuring crystal-clear audio for immersive entertainment and precise sound reproduction.

DIY-friendly and durable, the Asus X870 AYW GAMING WIFI W includes Q-Design features such as M.2 Q-Latch, PCIe Slot Q-Release, and Q-LED indicators for simplified installation and maintenance. The pre-mounted I/O shield adds convenience and protection during system assembly, while ASUS 5X Protection III, DIGI+ VRM, SafeSlot, and LANGuard ensure long-term reliability and hardware safety.

Cooling is managed with precision — VRM and M.2 heatsinks, multiple fan headers, and AI-based thermal control via Fan Xpert 4 deliver optimal temperature regulation even under heavy loads. Customization is enhanced with Aura Sync RGB lighting and addressable RGB Gen 2 headers, allowing users to create personalized lighting effects synced across compatible devices.

Bundled ASUS software, including Armoury Crate, Aura Creator, ASUS DriverHub, and Fan Xpert 4, offers complete system control, monitoring, and aesthetic customization, while BIOS Flashback ensures safe and easy firmware updates.

The Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard combines high-speed performance, advanced connectivity, and sleek design, making it the perfect foundation for building a next-level gaming or creative workstation.

Price in Bangladesh: 44,500৳
Buy the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
