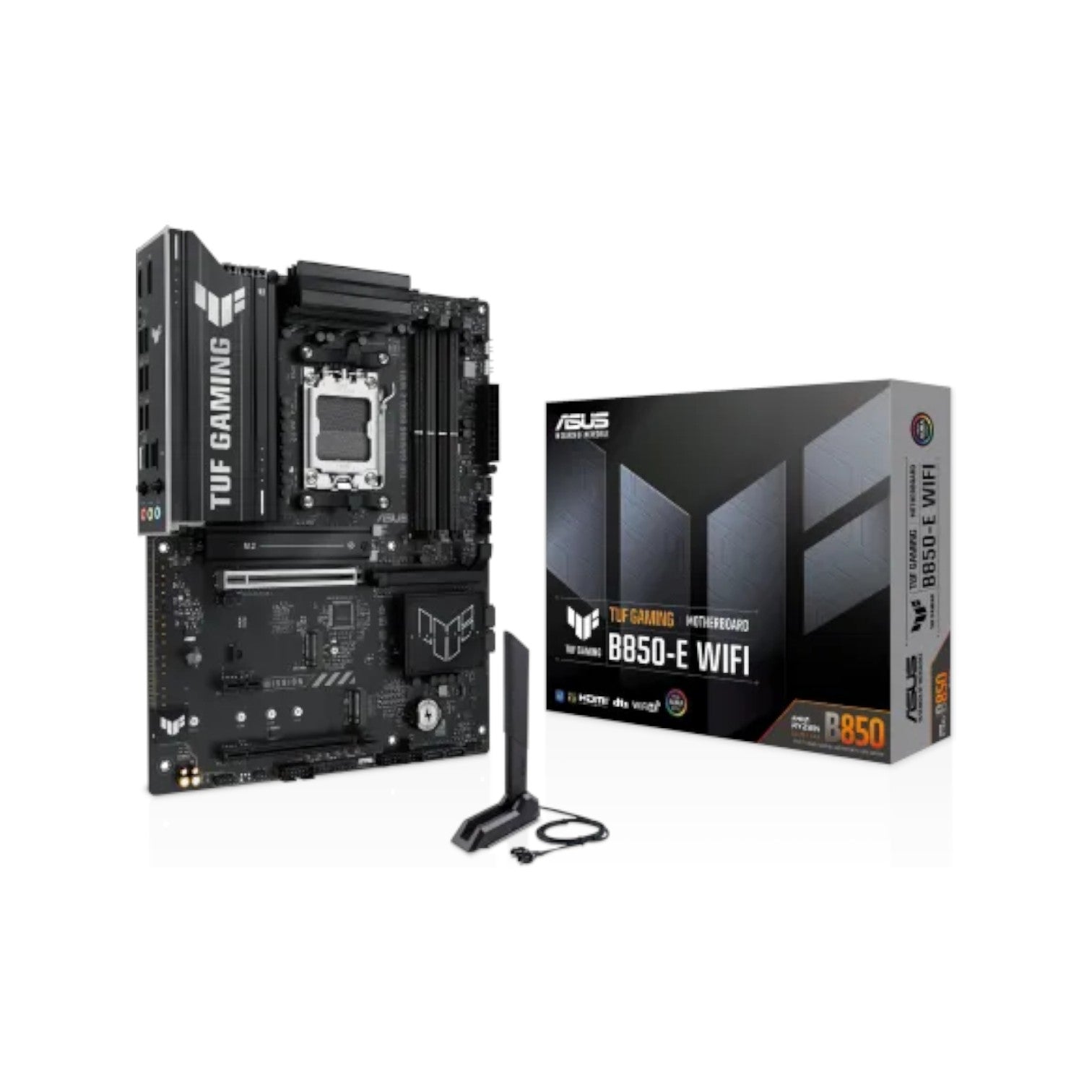

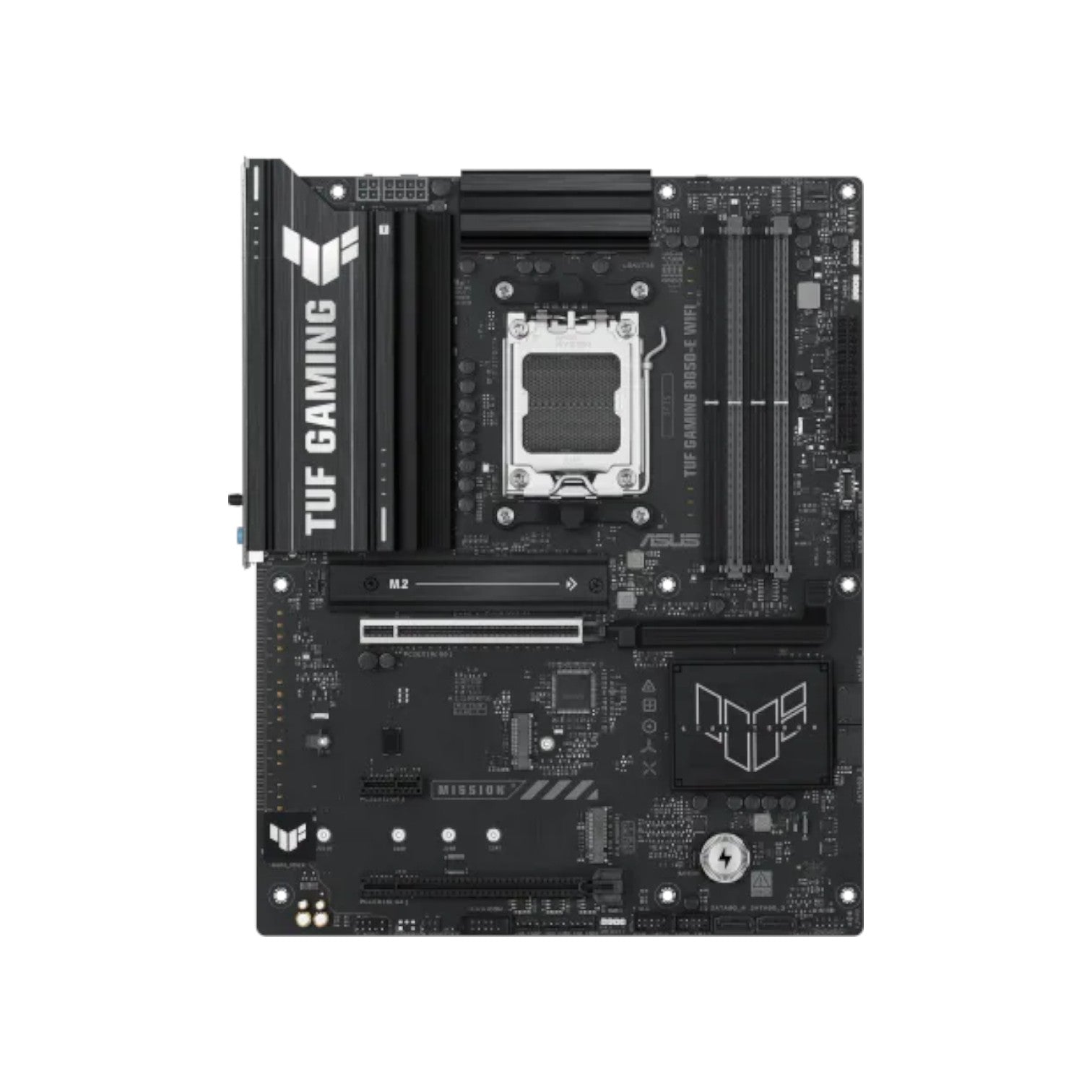

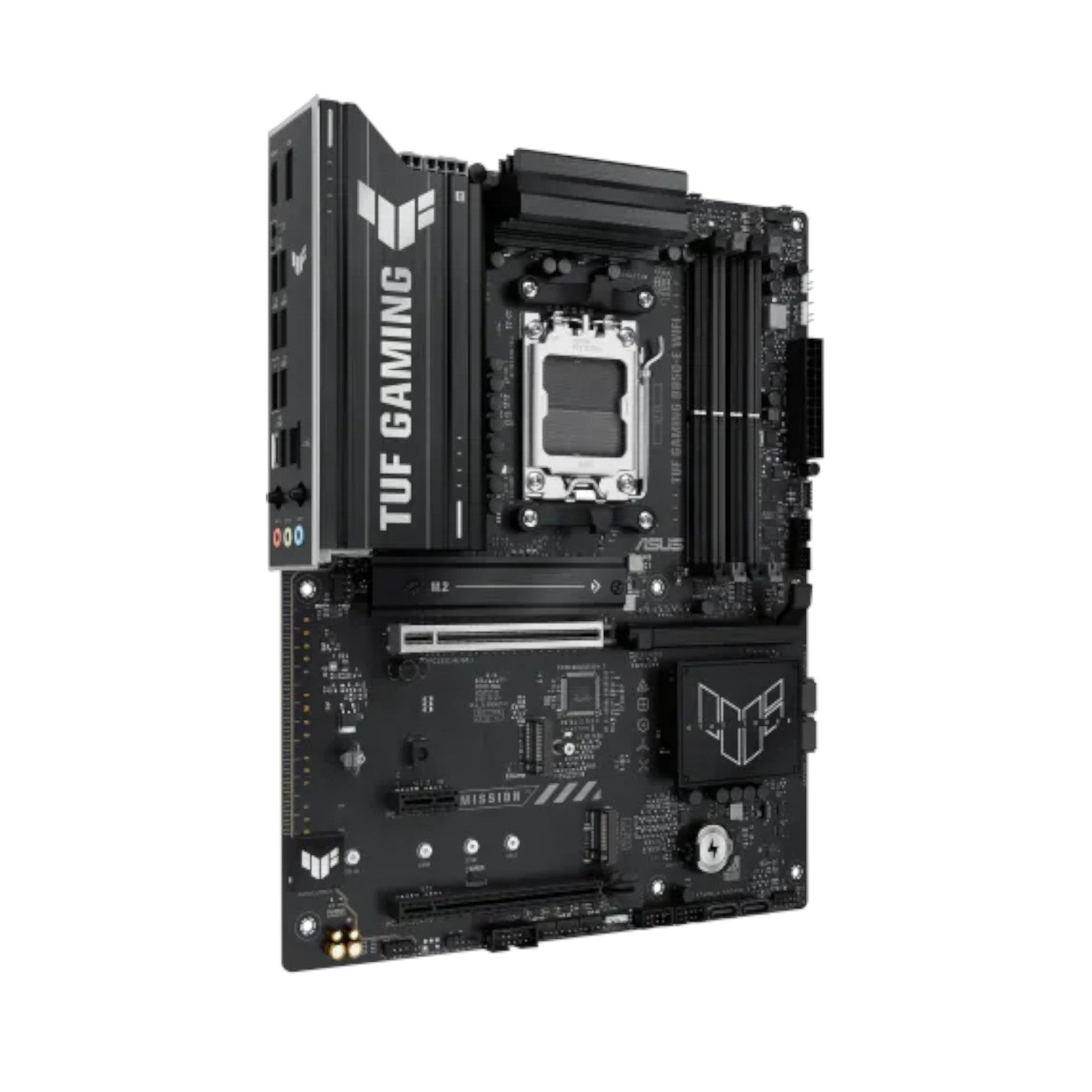

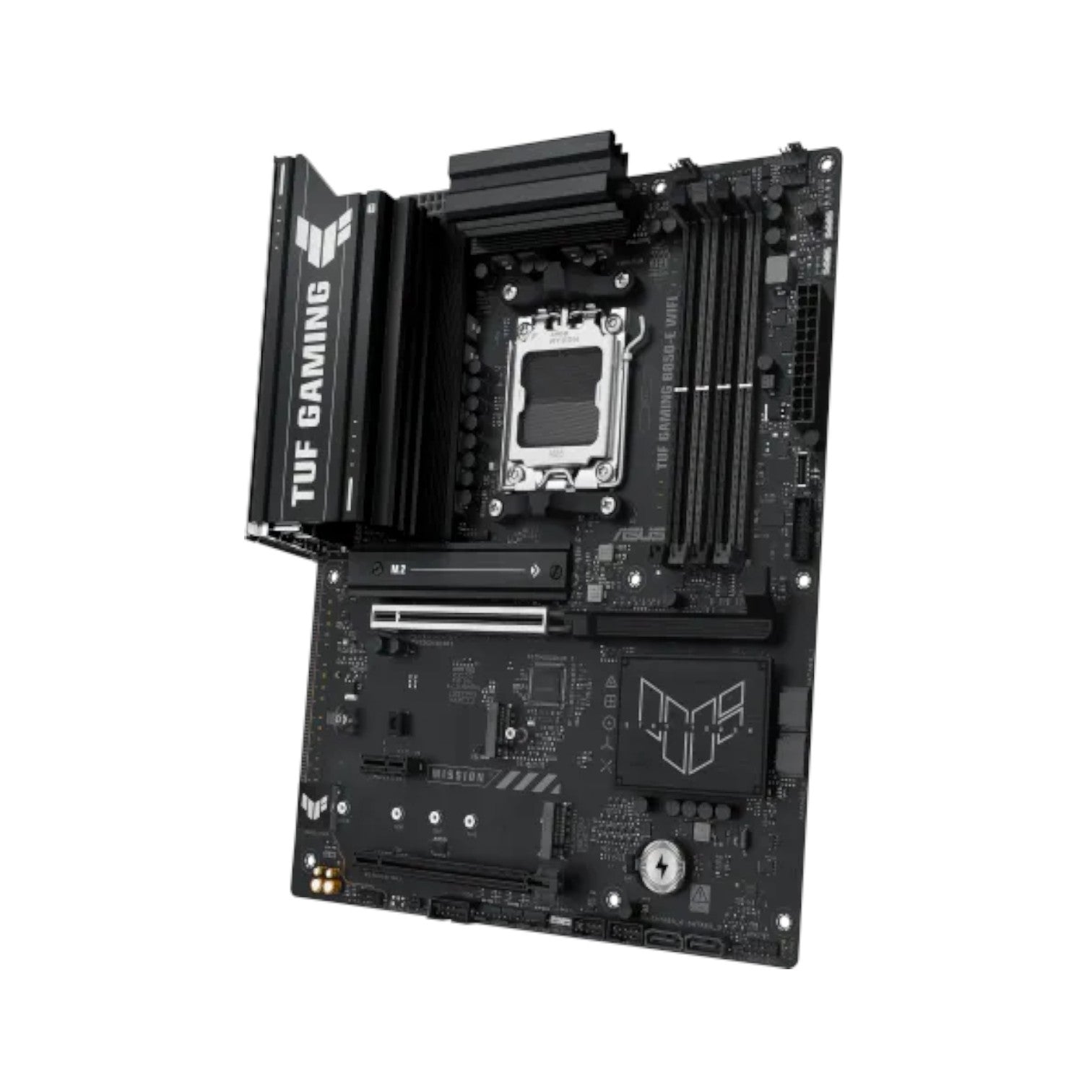

Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard
Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard
Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard
Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard

Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard

Brand: ASUS
SKU: TUF-B850E-WIFI
Availability: In stock

Key Features

Model: TUF GAMING B850-E WIFI

Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket

Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)

Graphics Output: 1 x HDMI port, 1 x DisplayPort

Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound

Ask an expert
Tk 35,500
Tk 37,950
Tk 35,500
Subtotal: Tk 35,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x1 mode)
1 x PCIe 4.0 x1 slot
M.2 Socket AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual-channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Specifications vary by CPU types.
RAID AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Back Panel I/O Ports:
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey



Warranty

Warranty 3 years

Description

Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard

The Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard is a high-performance platform built for gamers, creators, and professionals who demand power, stability, and durability. Engineered with the AMD B850 chipset, it fully supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors through the AM5 socket, delivering next-generation performance for gaming and productivity.

This motherboard supports up to 256GB of DDR5 memory across four DIMM slots, with speeds reaching 8000+ MT/s (OC) for superior multitasking and responsiveness. The inclusion of AMD EXPO and ASUS AEMP profiles ensures optimized compatibility and easy overclocking. For display output, the HDMI 2.1 and dual USB4 Type-C ports with DisplayPort 1.4a support up to 4K@60Hz visuals, enabling a seamless multi-display setup depending on CPU specifications.

Designed for expandability, the Asus TUF GAMING B850-E WIFI features one PCIe 5.0 x16 slot, multiple PCIe 4.0 and 3.0 slots, and three M.2 sockets supporting both PCIe Gen 5 and Gen 4 SSDs, ensuring lightning-fast data access and storage flexibility. Additionally, four SATA 6Gb/s ports and AMD RAIDXpert2 Technology provide comprehensive storage configurations with RAID 0/1/5/10 support.

Connectivity is one of the motherboard’s strongest points, featuring dual USB4 (40Gbps) Type-C ports, 10 rear USB ports, 7 front panel USB headers, and Realtek 2.5Gb Ethernet for fast, stable networking. For wireless communication, it integrates Wi-Fi 6 (802.11ax) and Bluetooth 5.2, offering smooth online gaming, streaming, and device connectivity.

The TUF GAMING B850-E WIFI also delivers an immersive audio experience powered by Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting 24-bit/192kHz playback, audio shielding, and premium-grade capacitors for crystal-clear sound reproduction.

For durability and ease of use, ASUS integrates its 5X Protection III suite, which includes DIGI+ VRM, SafeSlot, LANGuard, and stainless-steel back I/O shielding. The Q-Design suite—featuring M.2 Q-Latch, PCIe Q-Release, and Q-LED indicators—simplifies installation and troubleshooting, while EZ DIY tools like CrashFree BIOS 3, EZ Flash 3, and BIOS FlashBack™ make setup effortless even for beginners.

With comprehensive thermal solutions, including enlarged VRM and M.2 heatsinks and multiple fan headers, this motherboard ensures optimal cooling during extended gaming or rendering sessions. Aura Sync RGB lighting allows for full customization and synchronization with compatible components, giving your setup a striking and personalized look.

Bundled software like Armoury Crate, Aura Creator, ASUS GlideX, and DriverHub, along with complimentary trials for Norton 360 Deluxe and WinRAR, enhances both performance and user convenience.

The Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard is a powerhouse of stability, performance, and future-ready features—perfect for those building a long-lasting and high-end gaming or workstation PC.

Price in Bangladesh: 35,500৳
Buy the Asus TUF GAMING B850-E WIFI AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
