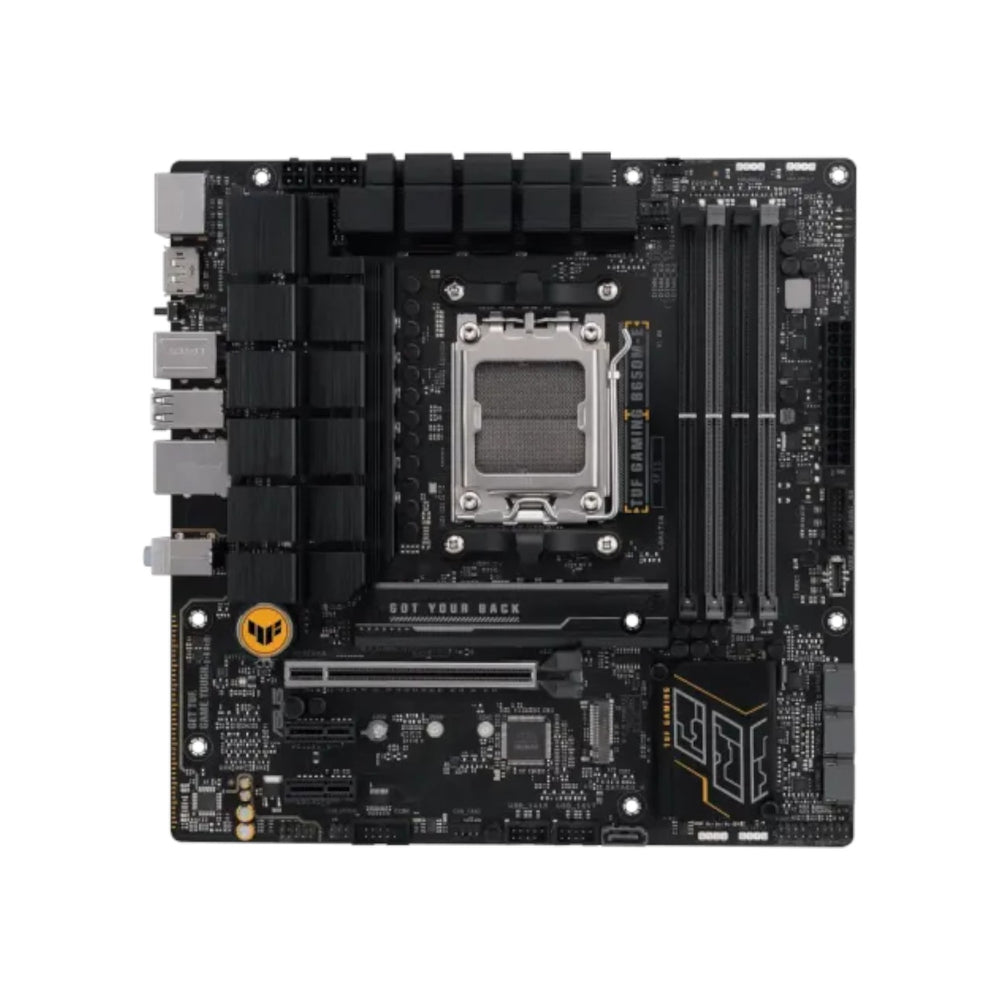

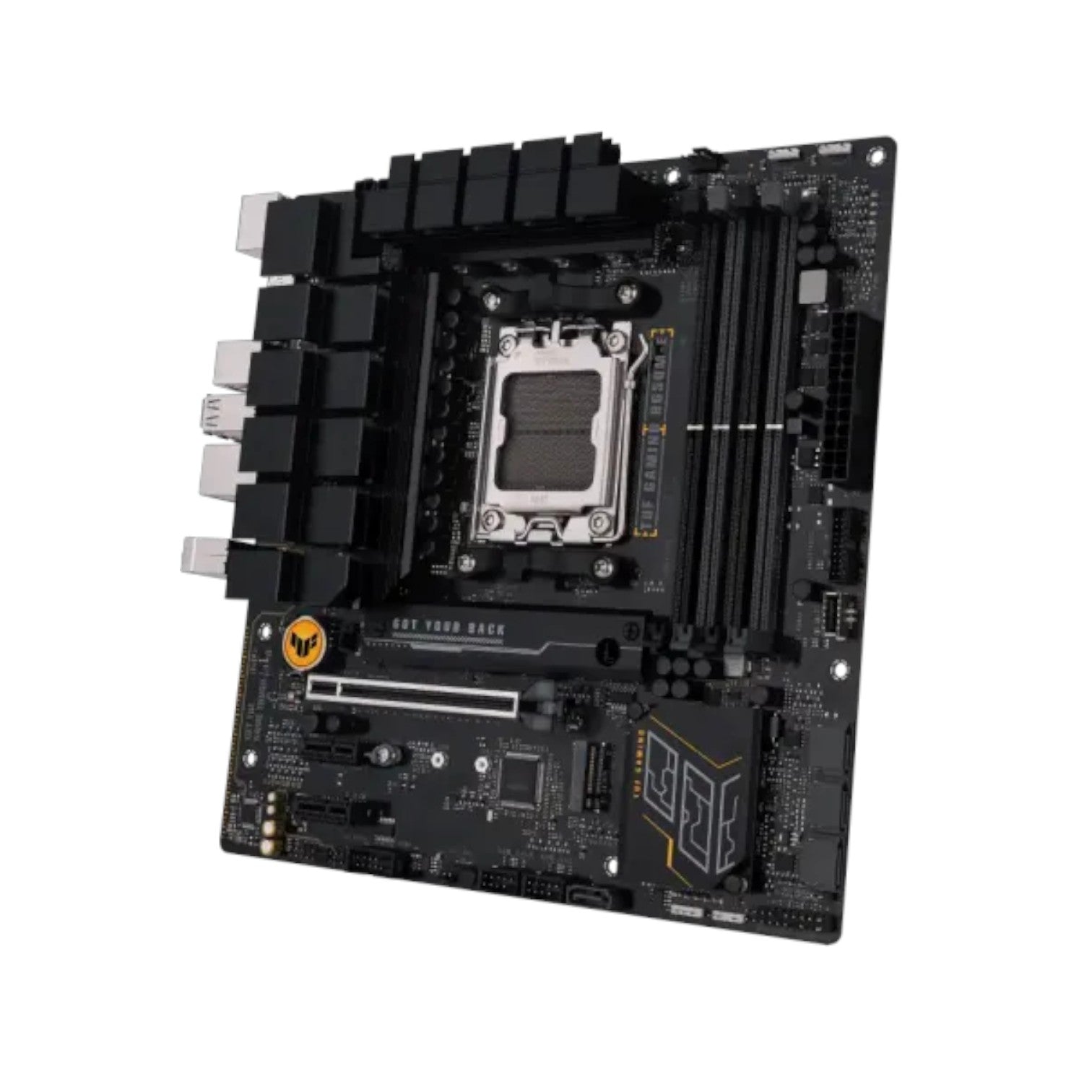

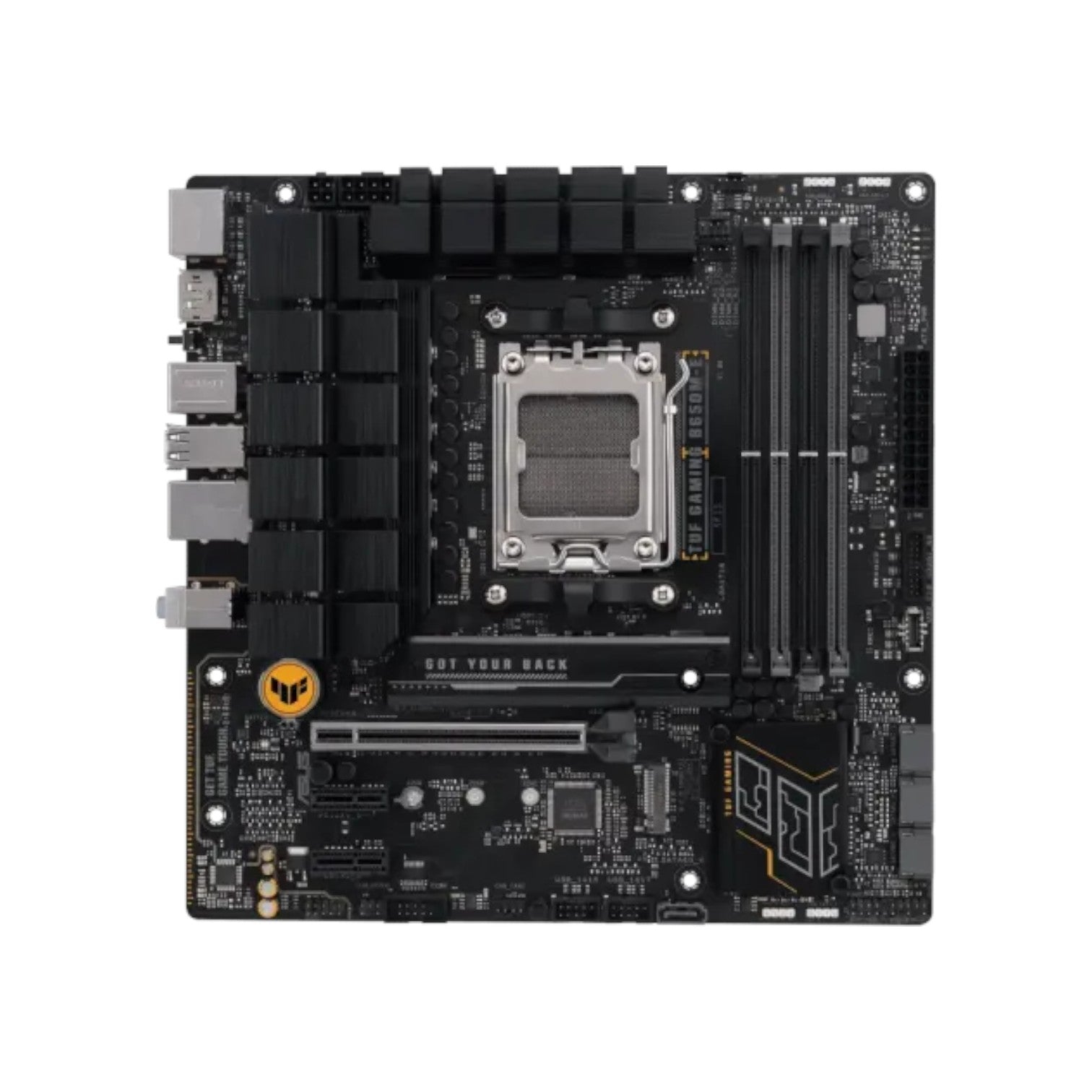

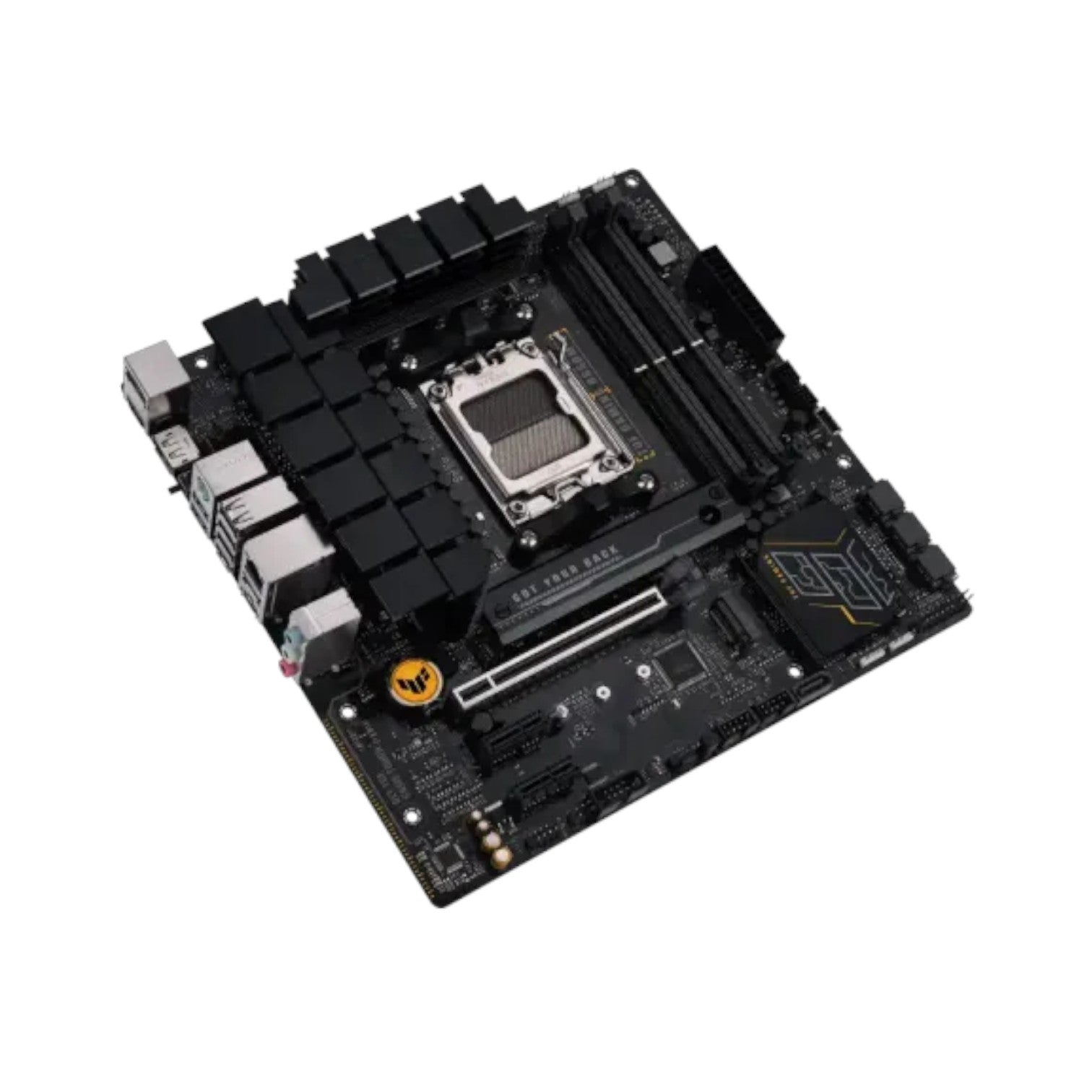

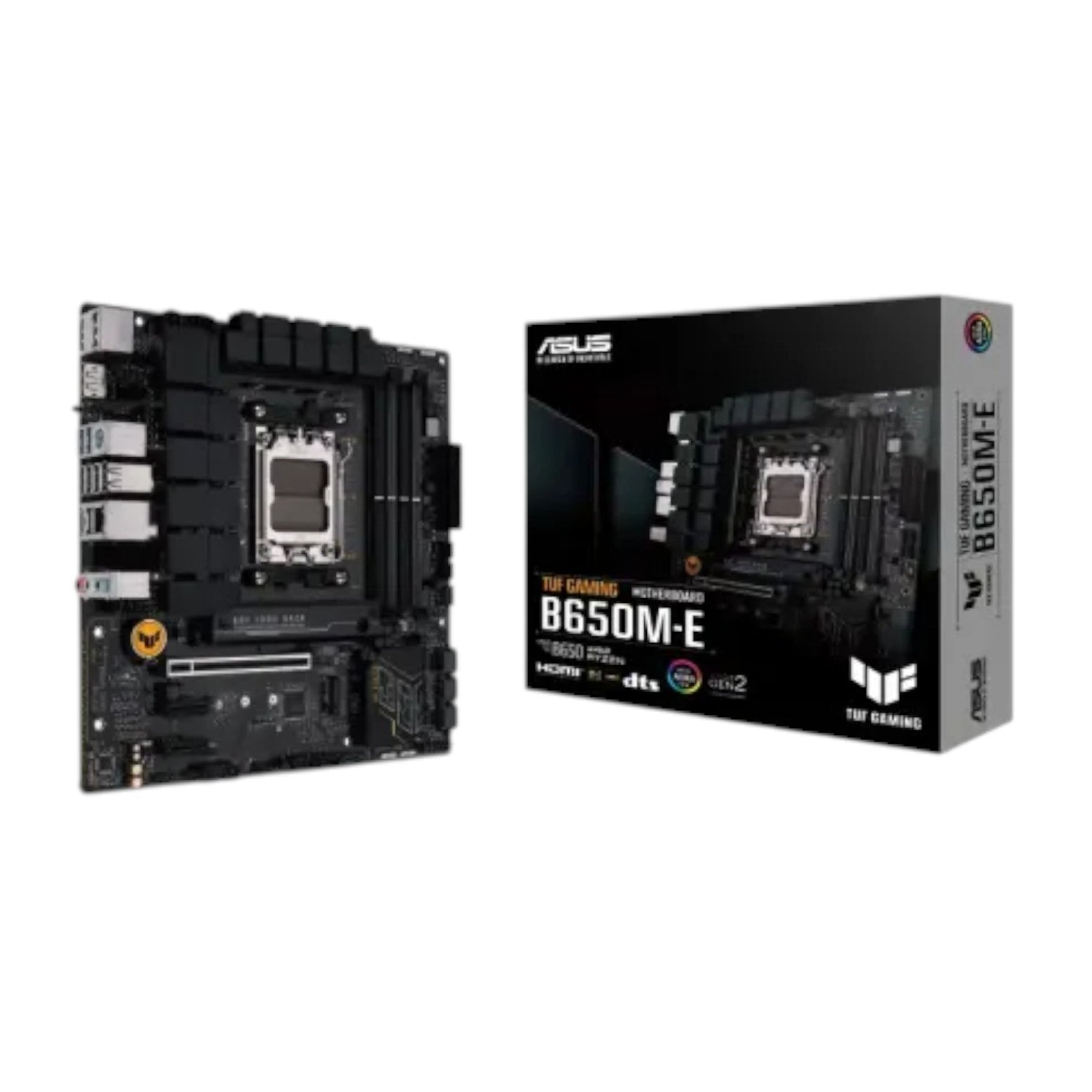

Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard

Brand: ASUS
SKU: TUF-B650M-E
Availability: In stock

Key Features

Model: TUF GAMING B650M-E

Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5

Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)

Graphics Output: 1x HDMI, 2x Display Port

Features: Realtek 2.5Gb Ethernet

Tk 27,500
Tk 29,840
Tk 27,500
Subtotal: Tk 27,500

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
2 x PCIe 4.0 x1 slots



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 192GB



Graphics

Graphics 2 x DisplayPort
1 x HDMITM port



Connector & Ports

HDMI 1x HDMI
Display Port (s) 2x DisplayPort
USB (s) Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers(60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

Asus TUF GAMING B650M-E AMD AM5 Micro-ATX Motherboard

The Asus TUF GAMING B650M-E AMD AM5 Micro-ATX Motherboard is engineered for gamers and PC builders who demand reliability, endurance, and next-level performance. Built on the AMD B650 chipset, it supports the latest AMD Ryzen 8000 and 7000 Series Desktop Processors, ensuring powerful computing performance for gaming, streaming, and content creation.

Constructed with military-grade components, this motherboard offers an 8+2 power stage design for stable and efficient power delivery, even under heavy loads. The enlarged VRM heatsink, optimized M.2 heatsink, and comprehensive fan control system ensure consistent thermal management during intense gaming or multitasking sessions.

The Asus TUF GAMING B650M-E supports DDR5 memory modules with high-speed performance and enhanced stability, allowing for smooth multitasking and faster application responsiveness. It also features PCIe 5.0 support for M.2 storage, providing ultra-fast data transfer speeds and reduced loading times, perfect for high-performance gaming builds.

Connectivity is seamless with USB 3.2 Gen 2 Type-C, 2.5Gb Ethernet (TUF LANGuard), and AI noise-cancellation technology, enabling lag-free networking and crystal-clear communication during online gaming or streaming. For added convenience, the M.2 Q-Latch allows tool-free SSD installation, while Q-LED troubleshooting lights simplify diagnostics during system setup.

The motherboard’s UEFI BIOS offers both easy and advanced tuning modes, giving beginners straightforward configuration options and experienced users deep system control. Its intelligent system management enables fine-tuning of performance, power efficiency, and thermal balance to match any user preference.

Built for durability, the ASUS TUF GAMING B650M-E features ESD Guards, SafeSlot Core+, and a stainless steel back I/O panel, protecting against wear, corrosion, and electrical surges. Audio quality is top-tier, with DTS Audio Processing and premium capacitors delivering immersive, distortion-free sound for gaming or media playback.

Customizable Aura Sync RGB lighting allows users to create a unique gaming setup with synchronized lighting across compatible devices, adding visual flair to performance-driven builds.

The Asus TUF GAMING B650M-E represents the perfect blend of strength, performance, and reliability—ideal for gamers and PC builders looking for long-lasting quality and next-generation technology in a compact form factor.

Price in Bangladesh: 27,500৳
Buy the Asus TUF GAMING B650M-E AMD AM5 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
