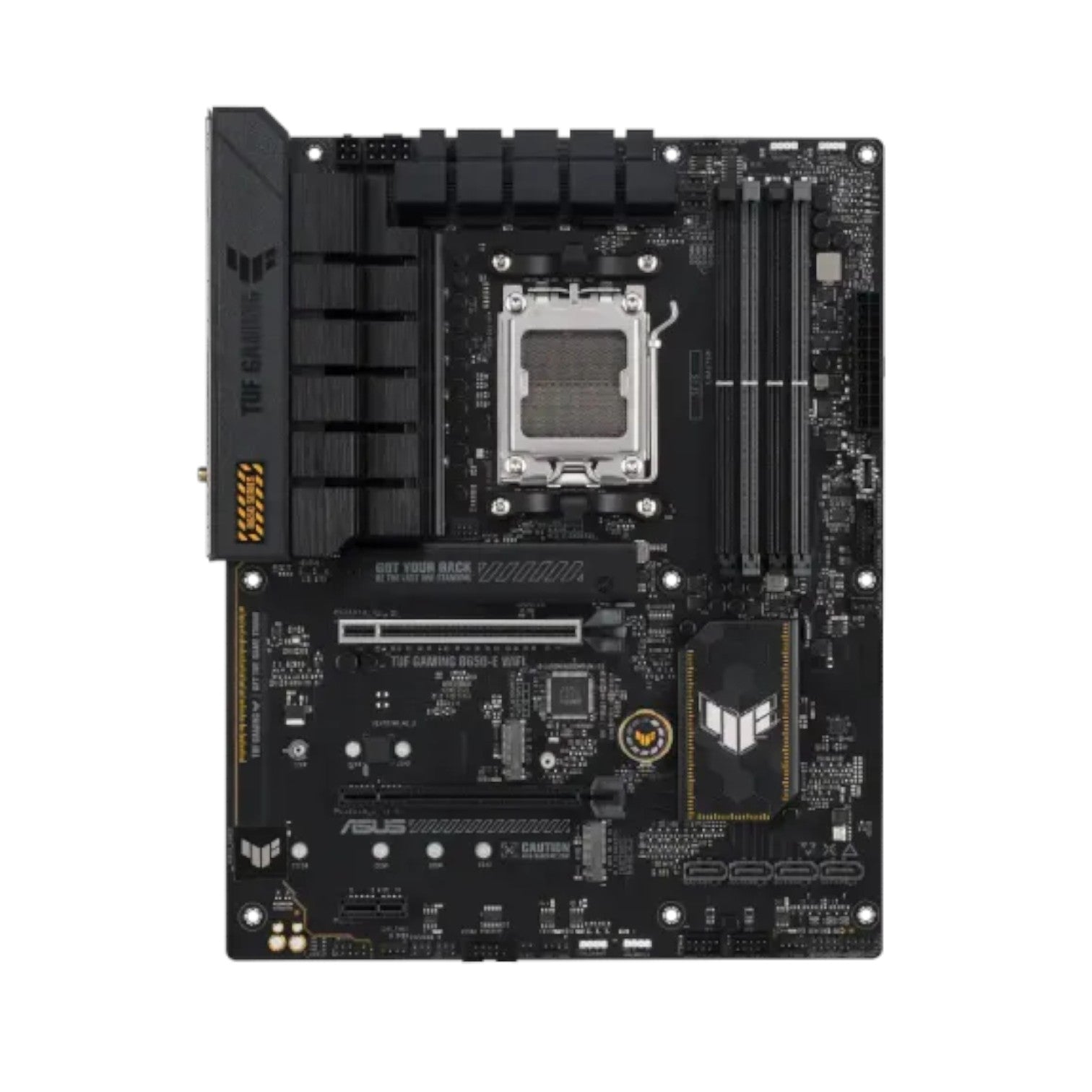

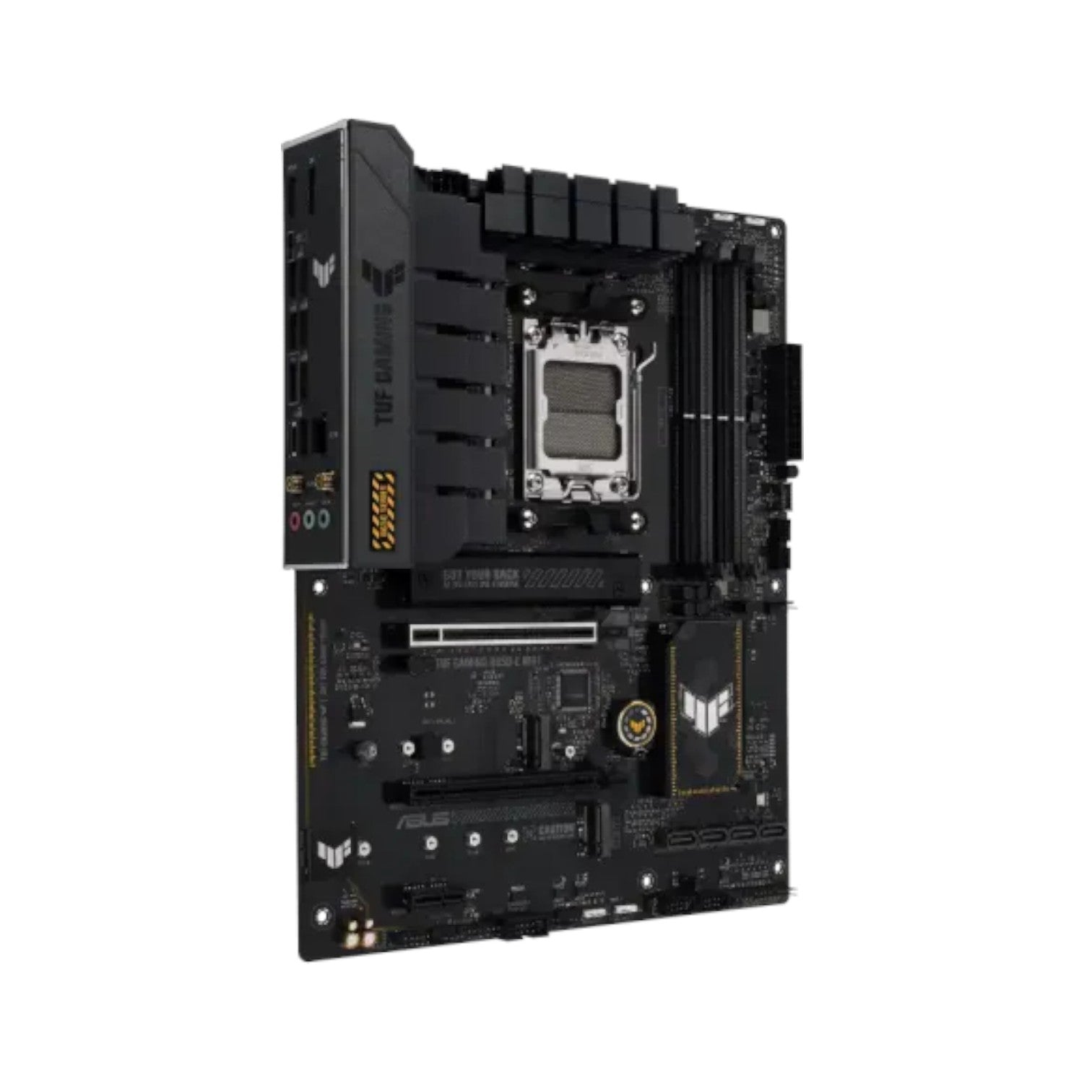

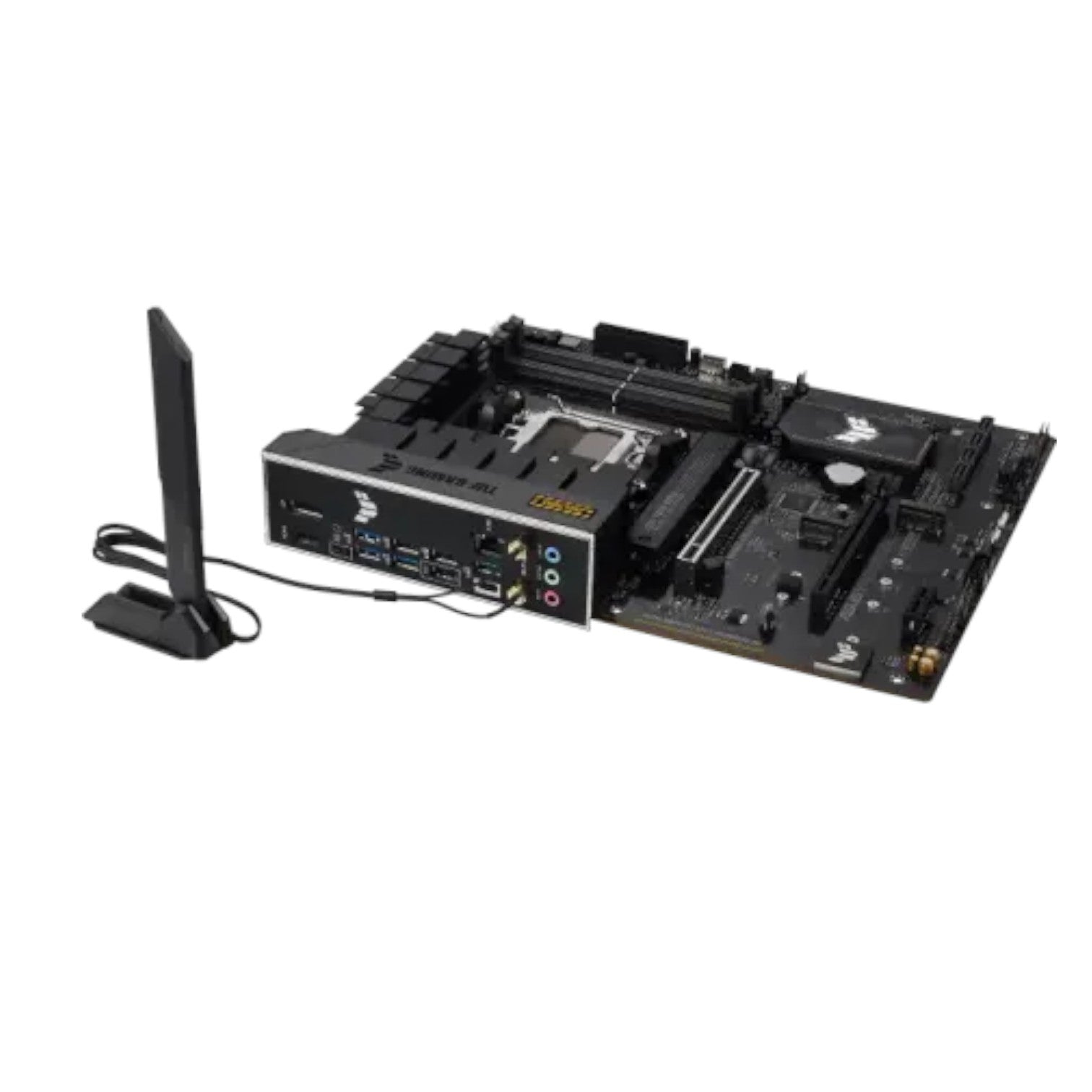

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

Brand: ASUS
SKU: TUF-B650E-WIFI
Availability: In stock

Key Features

Model: TUF GAMING B650-E WIFI

Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5

Supported RAM: 4x DDR5, up to 192GB, 8000+(OC)

Graphics Output: 1x HDMI, 1x DisplayPort

Features: 1 x 2.5Gb Ethernet, Wi-Fi 6E

Ask an expert
Tk 27,500
Tk 28,900
Tk 27,500
Subtotal: Tk 27,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
M.2 Socket Supports 3 x M.2 slots



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Maximum Memory 192GB



Graphics

Graphics * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function

Back Panel I/O Ports

2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard

The Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard is built for gamers and power users seeking exceptional performance, stability, and durability. Powered by the AMD B650 chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, it provides a future-ready platform for next-generation computing and gaming experiences. Designed with the AM5 socket, it ensures full compatibility with the latest processor technology, combining high efficiency with incredible processing power.

This motherboard supports up to 192GB of DDR5 memory across four DIMM slots, with speeds exceeding 8000MHz (OC) for unmatched multitasking and responsiveness. It delivers superior performance for demanding workloads, gaming, and AI-powered applications. The PCIe 5.0 x16 slot offers support for cutting-edge GPUs, while multiple PCIe 4.0 M.2 slots ensure blazing-fast storage performance and reduced load times for games and applications.

Connectivity on the TUF GAMING B650-E WIFI is top-tier, featuring 2.5Gb Ethernet and Wi-Fi 6E, providing lightning-fast wired and wireless networking. Whether gaming online, streaming, or working with large data transfers, users can expect seamless and reliable connectivity. The rear I/O includes a variety of USB 3.2 Gen 2 and Gen 1 ports, along with a USB Type-C® interface for high-speed data transfer and modern peripheral support.

Durability is a cornerstone of the TUF GAMING series, and this model is no exception. Built with military-grade components, TUF capacitors, and ProCool power connectors, the board ensures long-lasting reliability under intensive workloads. The comprehensive cooling system, including large VRM and M.2 heatsinks and multiple fan headers, maintains system stability during prolonged gaming or rendering sessions.

The ASUS TUF GAMING B650-E WIFI features a rugged off-black aesthetic with sharp geometric patterns, embodying strength and resilience. It includes Aura Sync RGB lighting, allowing users to synchronize lighting effects with other compatible components for a cohesive and customizable setup.

Enhanced with AI Noise Cancellation, DTS Audio Processing, and Armoury Crate software, this motherboard provides immersive audio and intelligent system management. The user-friendly UEFI BIOS and Q-Design elements like M.2 Q-Latch and Q-LED indicators make setup and customization simple, even for first-time builders.

The Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard is built for gamers who demand high performance, stability, and longevity — making it an outstanding foundation for any modern gaming or workstation PC.

Price in Bangladesh: 27,500৳
Buy the Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
