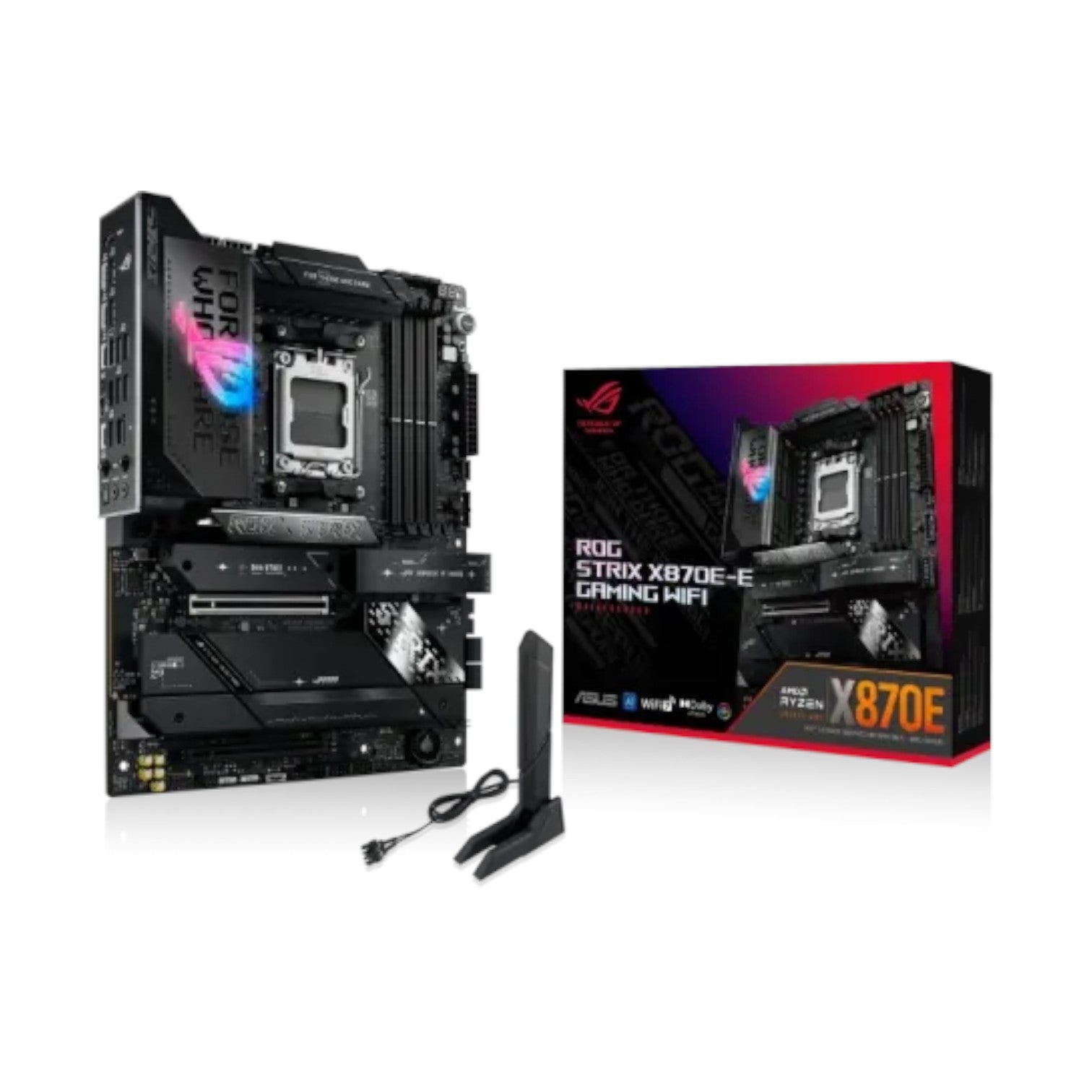

Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard

Brand: ASUS
SKU: ROG-X870E-E-GAMING-WIFI
Availability: In stock

Key Features

Model: ROG STRIX X870E-E GAMING WIFI

Supported CPU: AMD Socket AM5 for AMD Ryzen 9000/8000 & 7000 Series Processors

Supported Memory: 4 x DIMM, Max. 192GB, DDR5

Graphics Output: 1 x DisplayPort, 1 x HDMI port, 2x USB4 (up to 40Gbps transfer rate)

Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4

Tk 81,800
Tk 88,750
Tk 81,800
Subtotal: Tk 81,800

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 &
8000 & 7000 Series Desktop Processors*
Chipset AMD X870
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Expansion Slots

PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
M.2 Socket Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory*"
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs****
* Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI
2.1.
****Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Rear USB (Total 12 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4
Supported Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors**
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
**** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header



Others

Special Features Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Dynamic OC Switcher
FlexKey



Warranty

Warranty 3 years

Description

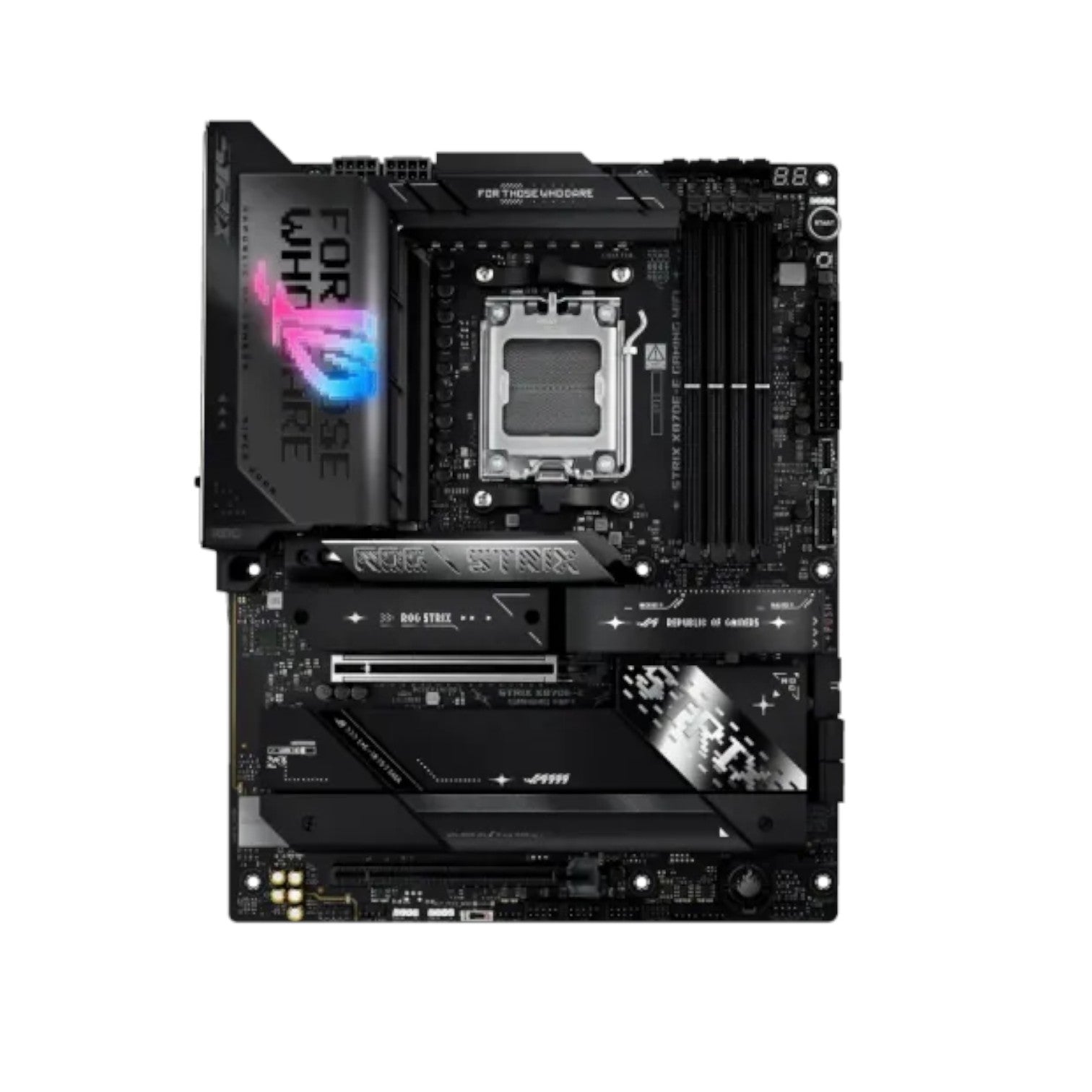

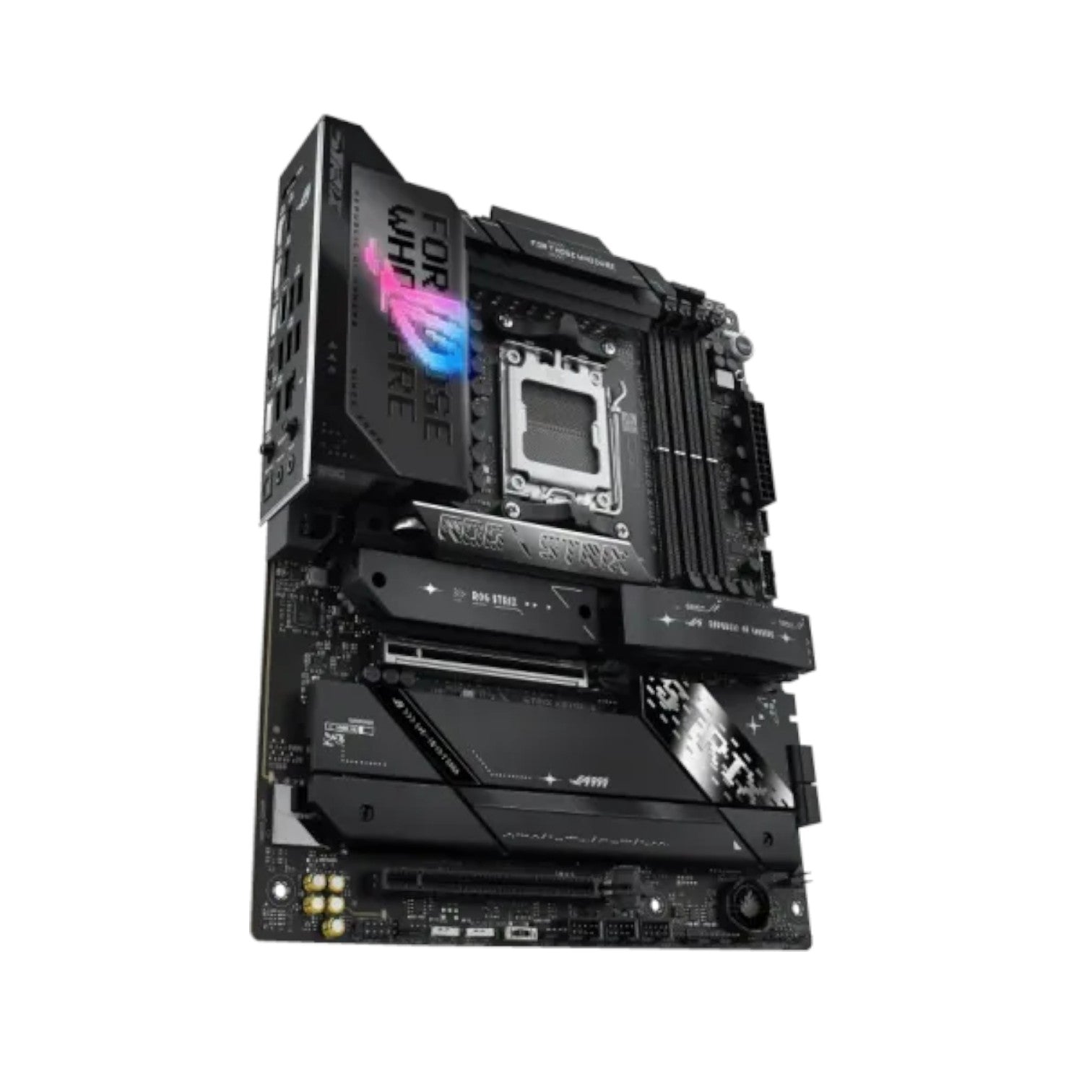

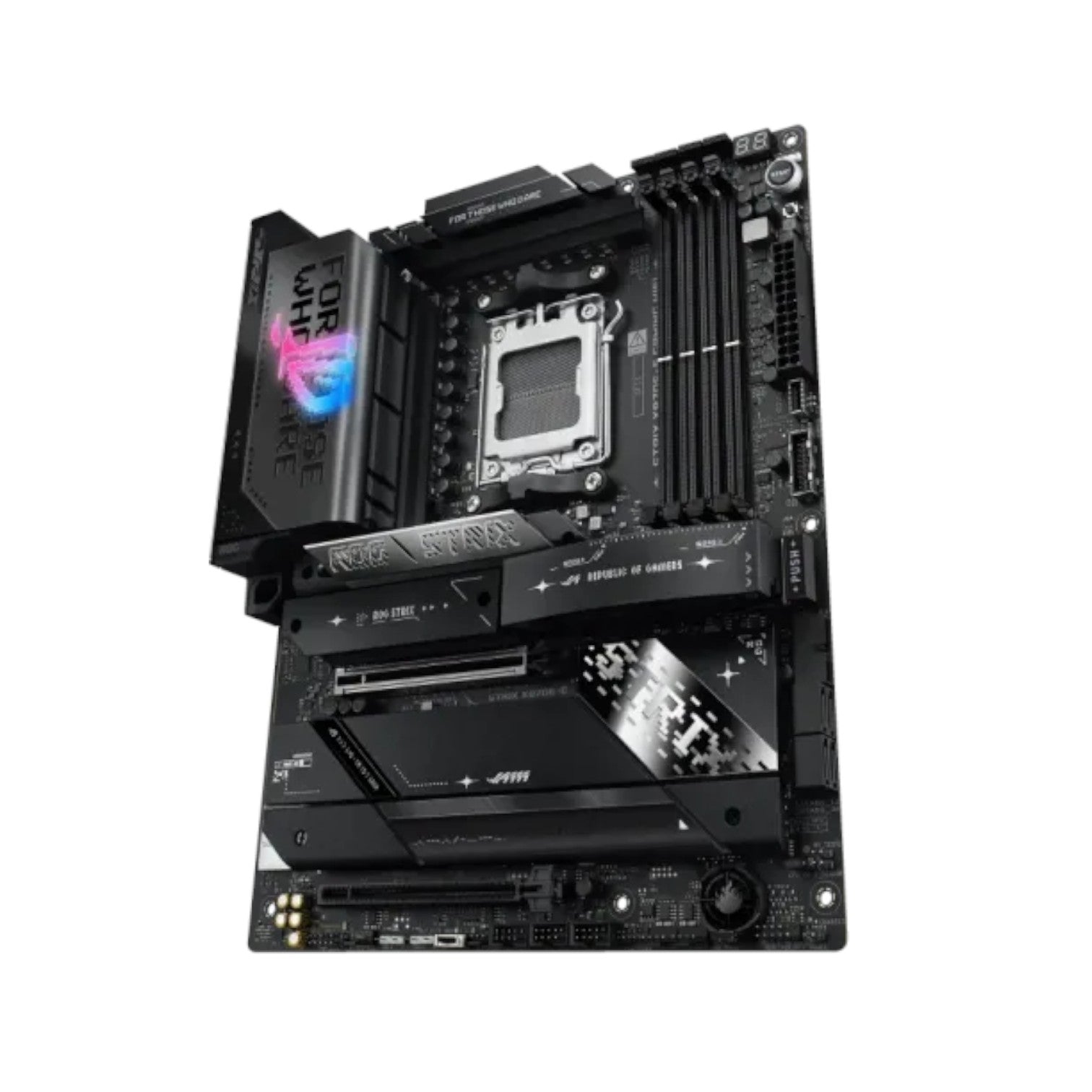

Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard

The Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard is a flagship-grade motherboard built for elite gamers, power users, and creators who demand cutting-edge performance and exceptional reliability. Designed around the AMD X870 chipset and AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, delivering unrivaled performance for next-generation gaming and productivity.

Equipped with four DDR5 DIMM slots, the motherboard supports up to 128GB of high-speed memory, overclockable to 8000+ MT/s (OC). With AMD EXPO and ASUS AEMP II profiles, users can easily fine-tune RAM for faster response and optimized stability. This makes the ROG STRIX X870E-E GAMING WIFI ideal for both esports competitors and heavy multitaskers who rely on top-tier responsiveness.

Storage and expansion capabilities are future-ready, featuring four M.2 slots (PCIe 5.0 & 4.0) with pre-installed heatsinks and two SATA 6Gb/s ports for additional storage flexibility. The PCIe 5.0 x16 slot ensures support for the latest graphics cards, enabling ultra-smooth gaming, 3D rendering, and creative workflows.

Connectivity is at the forefront of modern technology with dual USB4 Type-C ports (40Gbps), multiple USB 10Gbps and 5Gbps ports, PCIe 5.0 expansion, and Wi-Fi 6E for ultra-low latency wireless networking. It also includes 2.5Gb Ethernet, ensuring stable and high-speed wired connections perfect for competitive gaming and professional streaming setups.

Cooling performance is uncompromising. The Asus ROG STRIX X870E-E features massive VRM and M.2 heatsinks, high-conductivity thermal pads, and multiple hybrid fan headers controlled via AI Cooling II and Fan Xpert 4 software. These intelligent cooling systems automatically optimize airflow and noise levels for peak efficiency.

The ROG STRIX X870E-E GAMING WIFI supports 4K@60Hz output via HDMI and DisplayPort, providing stunning visual clarity and immersive detail. It also integrates the ROG SupremeFX ALC4080 codec, delivering 7.1-channel surround sound, premium capacitors, and advanced signal shielding for audiophile-grade clarity in both games and media creation.

For builders, ASUS Q-Design enhancements simplify setup with features like PCIe Slot Q-Release, M.2 Q-Latch, Q-LED diagnostic indicators, and a pre-mounted I/O shield. Combined with AI Overclocking and AI Networking, it ensures effortless optimization of CPU, power, and bandwidth.

Aesthetically, the board boasts a bold, futuristic design with Aura Sync RGB lighting, allowing users to customize their setup with millions of color combinations and dynamic effects synchronized across compatible ROG devices.

Packed with Armoury Crate, AI Suite 3, and ROG-exclusive utilities, the Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard provides full system control, detailed performance monitoring, and complete personalization — making it the ultimate choice for those seeking premium power and next-level gaming dominance.

Price in Bangladesh: 81,800৳
Buy the Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
