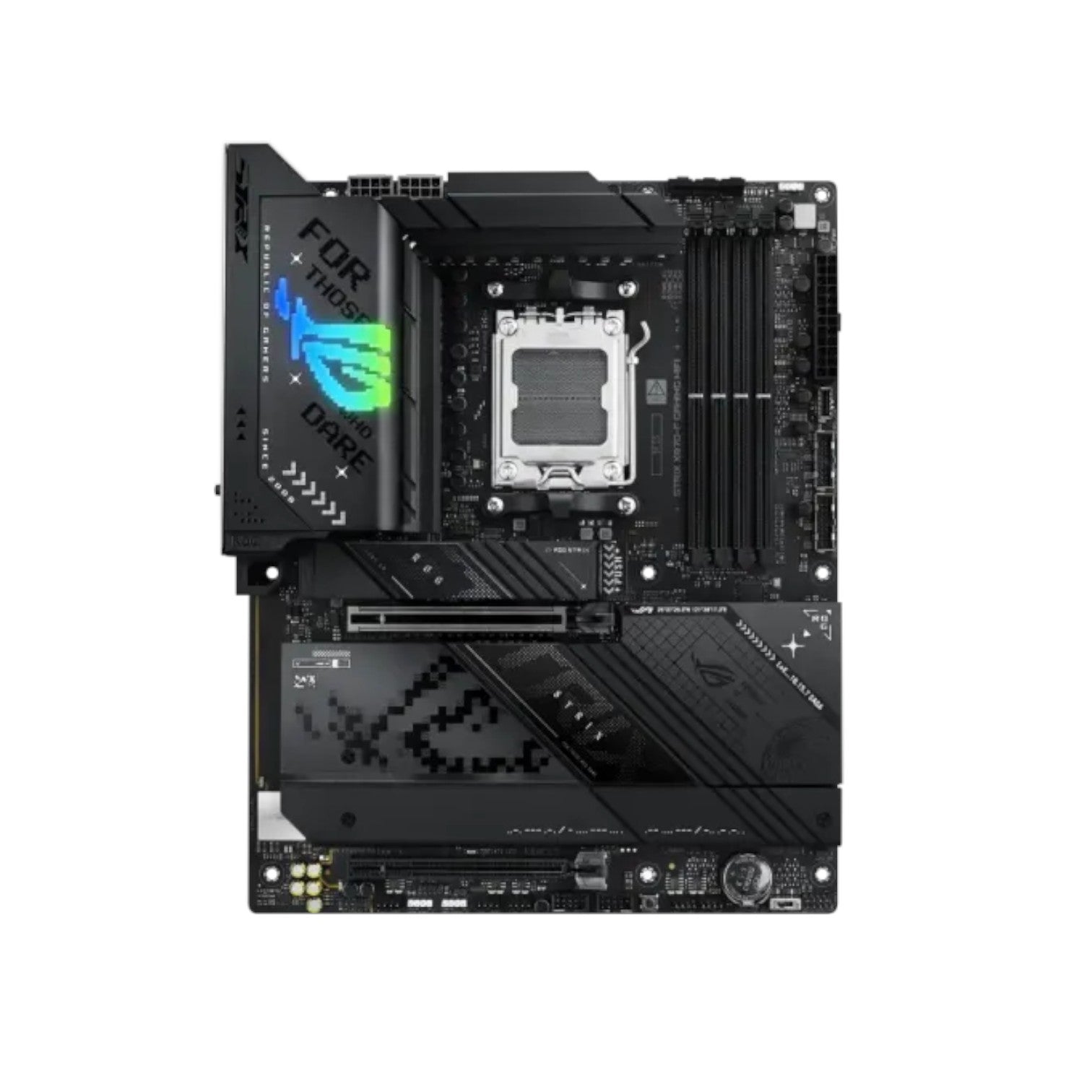

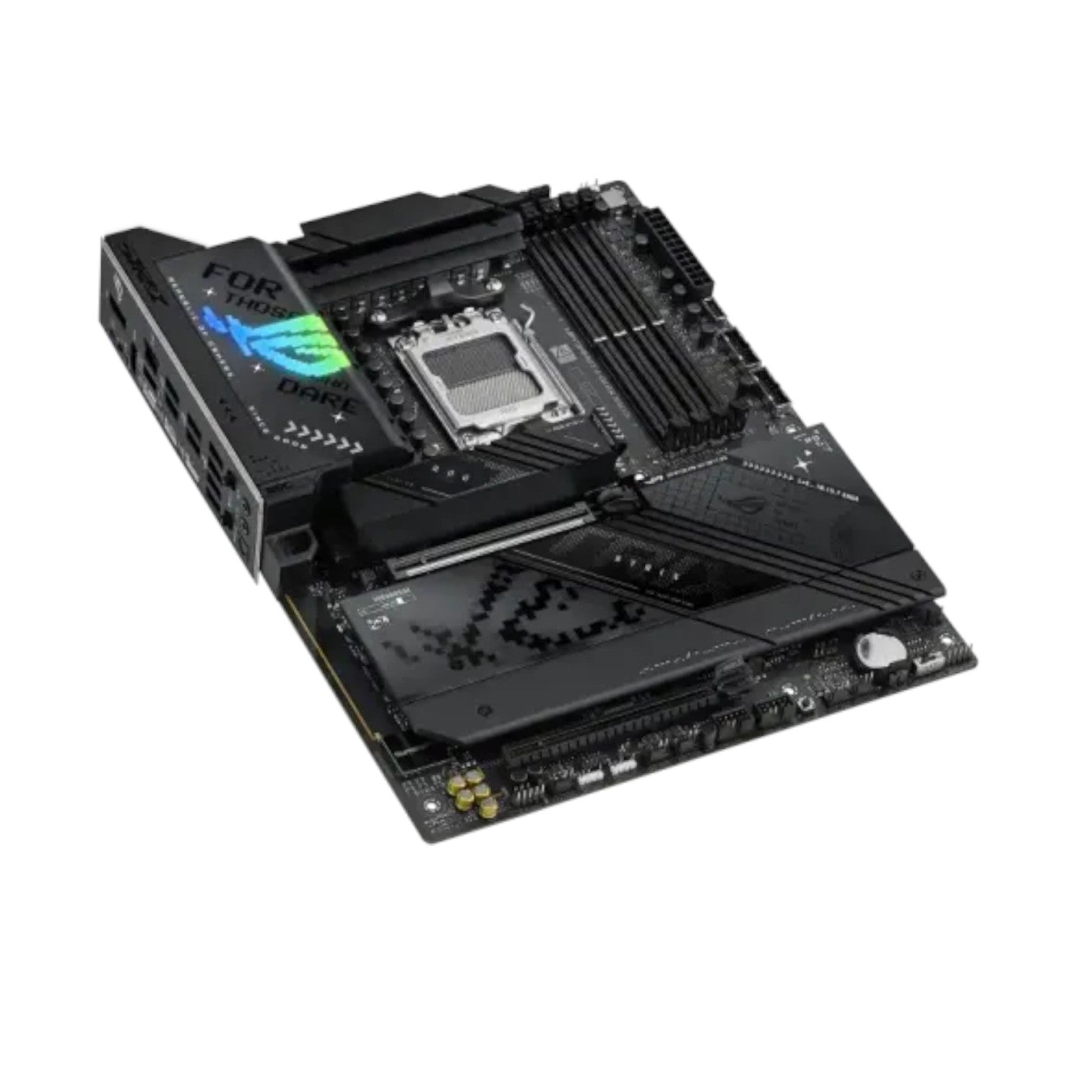

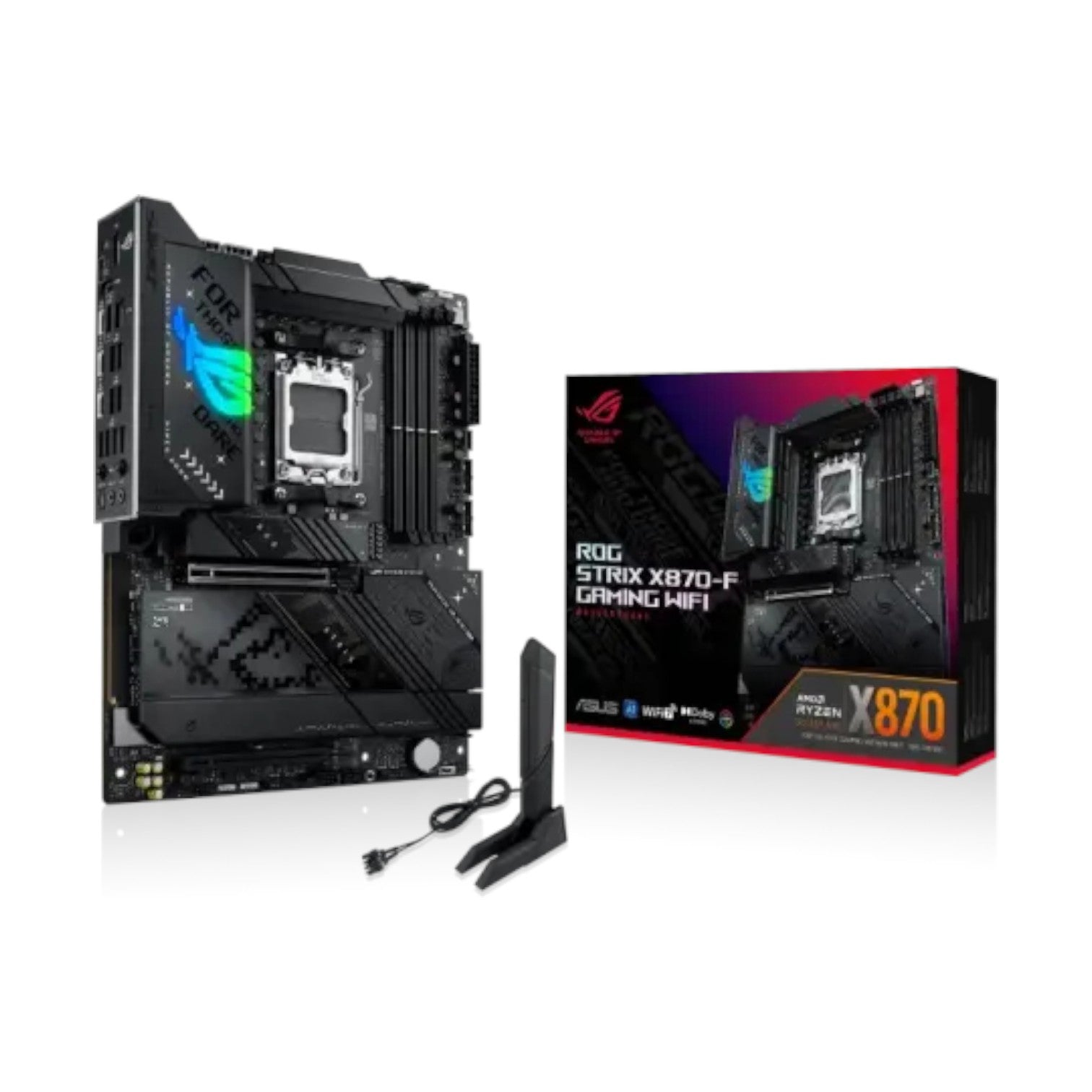

Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard

Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard

Brand: ASUS
SKU: ROG-X870-F-GAMING-WIFI
Availability: In stock

Key Features

  • Model: ROG STRIX X870-F GAMING WIFI
  • Supported CPU: AMD Socket AM5 for Ryzen 9000/8000 & 7000 Series Processors
  • Supported Memory: 4 x DIMM slots, max. 192GB, DDR5, Up to 8000+MT/s(OC) with Ryzen
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port, 2x USB4 (up to 40Gbps transfer rate)
  • Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4
Ask an expert
Tk 69,500
Tk 74,870
Tk 69,500
Subtotal: Tk 69,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket Supports 4 x M.2 slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
2 x USB4 (40Gbps) ports support USB
Type-C display outputs
* Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI
2.1.
Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
VGA resolution support depends on
processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Rear USB (Total 12 ports)
2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4
Supported Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header



Others

Special Features Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Dynamic OC Switcher
FlexKey



Warranty

Warranty 3 years

Description

Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard

The Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard is a next-generation powerhouse engineered for elite gamers, creators, and performance enthusiasts. Built on the AMD X870 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, delivering incredible power and speed for modern gaming and advanced workloads. Designed with the AM5 socket, it provides a future-ready platform capable of handling cutting-edge CPU performance and memory overclocking with ease.

This Asus ROG STRIX X870-F GAMING WIFI motherboard supports up to 192GB of DDR5 RAM across four DIMM slots, with overclocking potential exceeding 8000+ MT/s (OC). With AMD EXPO and ASUS AEMP profiles, users can easily fine-tune their memory for maximum bandwidth, speed, and stability—ideal for gaming, rendering, and high-performance computing.

For visuals, the board offers dual USB4 Type-C ports with DisplayPort 1.4 support, as well as HDMI 2.1 output capable of delivering 8K and 4K resolutions, depending on CPU specifications. Expansion flexibility is ensured with PCIe 5.0 x16 support for Ryzen 9000/7000 processors and PCIe 4.0 x16 for Ryzen 8000, giving you the freedom to install next-gen GPUs and expansion cards.

Storage options are vast, featuring four M.2 slots supporting PCIe 5.0 and PCIe 4.0 interfaces, along with RAID 0/1/10 configurations for both PCIe and SATA drives. This ensures ultra-fast data transfers and versatile storage scalability for professional workflows and gaming setups.

Networking is top-tier, combining Wi-Fi 7 for lightning-fast wireless speeds up to 6.5Gbps and Intel 2.5Gb Ethernet for rock-solid wired performance. The connectivity suite includes two USB4 Type-C ports (40Gbps), six USB 10Gbps, and four USB 5Gbps ports on the rear I/O, along with a front USB 20Gbps Type-C port for high-speed peripherals and device charging.

The ROG SupremeFX 7.1 Surround Sound System with the ALC4080 codec and Savitech SV3H712 AMP delivers immersive, studio-quality audio with support for Dolby Atmos, crystal-clear vocals, and deep bass response—perfect for both gaming and creative audio work.

Engineered for stability and cooling, the Asus ROG STRIX X870-F features massive VRM heatsinks, high-conductivity thermal pads, and AI-powered thermal management with Fan Xpert 4, ensuring peak efficiency during extended gaming or rendering sessions.

DIY-friendly features like BIOS FlashBack, Q-LED indicators, M.2 Q-Latch, and a pre-mounted I/O shield simplify setup and maintenance. Customization is made effortless through Aura Sync RGB lighting, allowing synchronization across all compatible ROG components and peripherals for a cohesive, vibrant gaming setup.

Bundled software such as Armoury Crate, AI Overclocking, and ASUS Fan Xpert 4 give users full control over performance tuning, cooling, and aesthetics. Optimized for Windows 11, this motherboard ensures seamless compatibility and next-level responsiveness across gaming, creative, and productivity tasks.

The Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard combines elite performance, advanced connectivity, and refined aesthetics, making it a top choice for those seeking the ultimate gaming and productivity platform.

Price in Bangladesh: 69,500৳
Buy the Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
