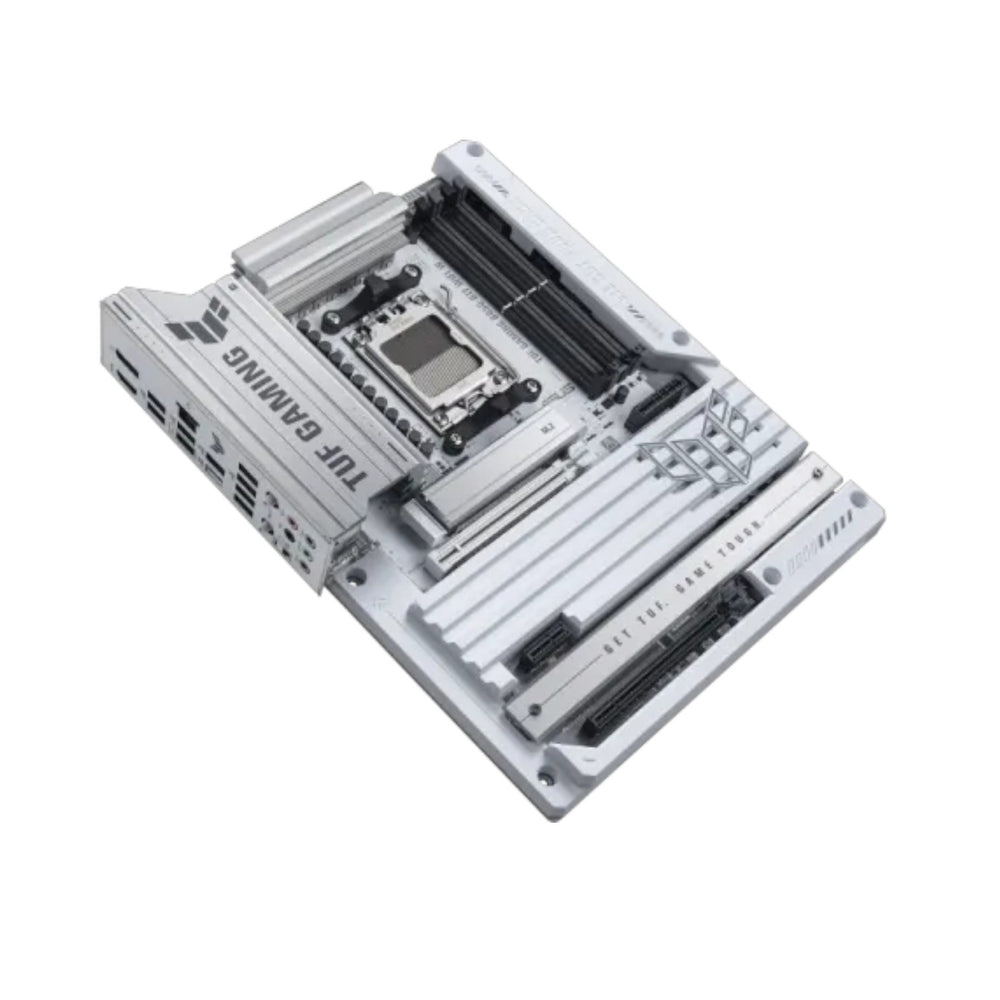

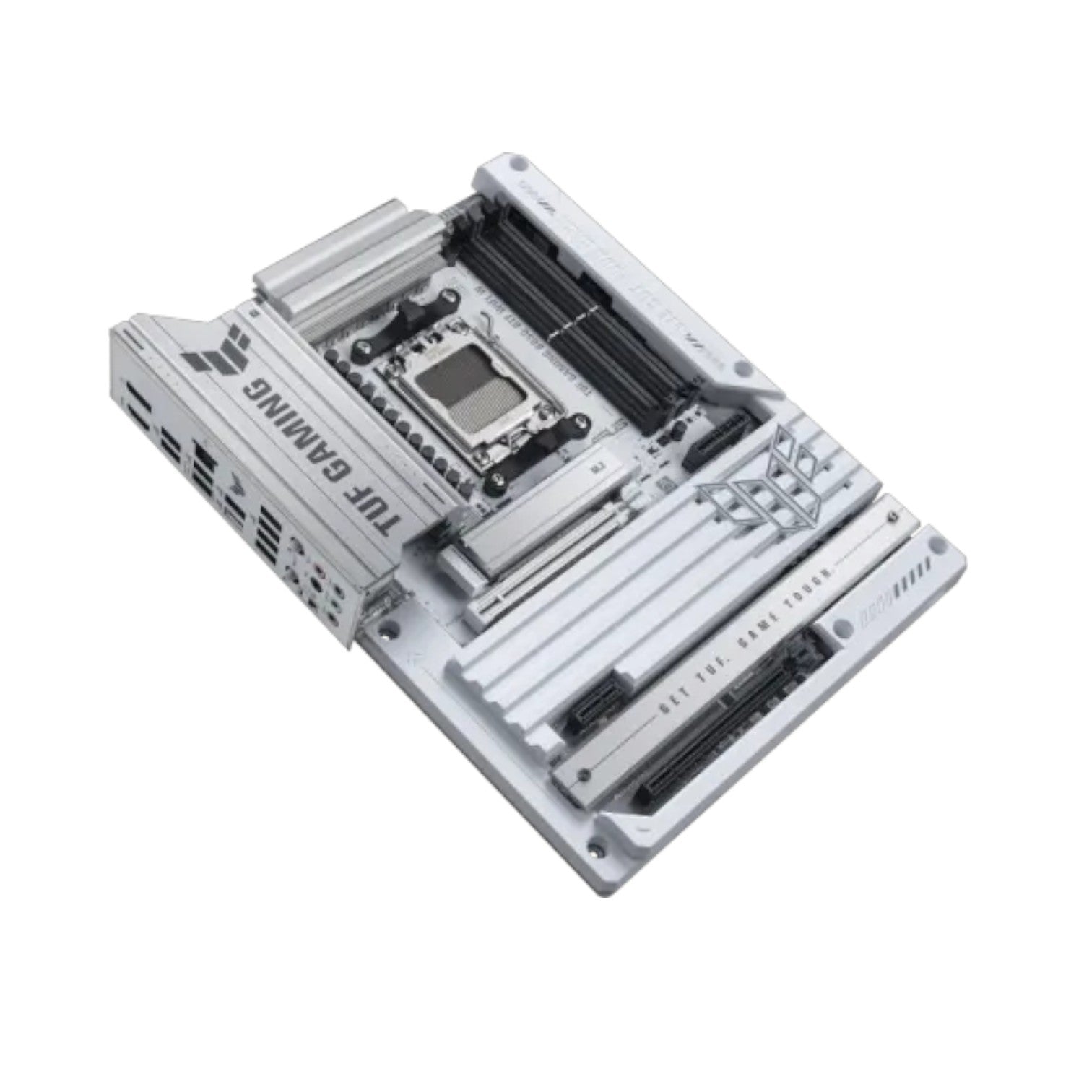

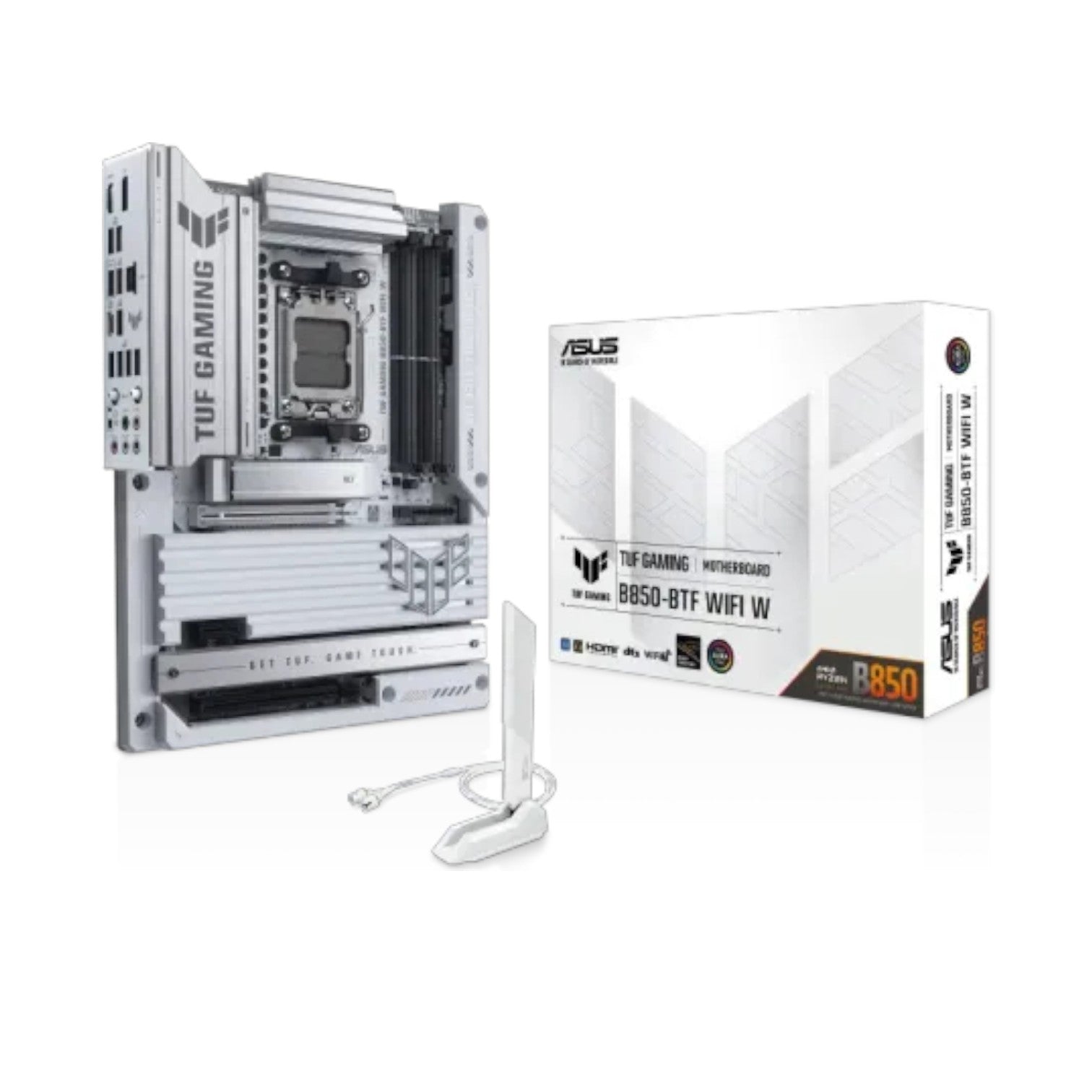

Asus TUF GAMING B850-BTF WIFI W ATX Motherboard

Brand: ASUS
SKU: ROG-B850-G-GAMING-WIFI
Availability: In stock

Key Features

Model: TUF GAMING B850-BTF WIFI W

Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series

Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)

Graphics Output: 1x HDMI, 1x Display Port

Features: Intel2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4

Tk 39,700
Tk 41,000
Tk 39,700
Subtotal: Tk 39,700

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
1 x PCIe 4.0 x1 slot
M.2 Socket 3 x M.2



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory 256GB



Graphics

Graphics 1 x DisplayPort*
1 x HDMI™ port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4***
* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When the PCIEX16(G4) slot is operating, the M.2_3 slot will be disabled.
RAID AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
BTF Related
1 x 12V-2X6 Auxiliary Power connector
1 x Graphics Card High-Power slot



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey



Warranty

Warranty 3 years

Description

Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard

The Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard delivers cutting-edge performance and next-generation features in a compact, gamer-focused design. Built on the powerful AMD B850 chipset, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, offering superior processing power and efficiency for gaming, streaming, and creative workloads.

With support for up to 256GB of DDR5 memory across four DIMM slots, the motherboard achieves speeds of 8000+ MT/s (OC), providing blazing-fast performance for demanding multitasking and gaming scenarios. Enhanced with AMD EXPO and ASUS AEMP profiles, users can easily optimize memory performance for maximum stability and responsiveness.

The ROG STRIX B850-G GAMING WIFI is designed for high-end expansion in a compact micro-ATX form factor, featuring PCIe 5.0 x16 and PCIe 4.0 slots for next-generation GPUs and add-on cards. Storage flexibility is ensured with three M.2 slots (including one PCIe 5.0 x4) and four SATA 6Gb/s ports, all with support for RAID configurations via AMD RAIDXpert2 Technology for speed and data protection.

Connectivity is top-notch, with Wi-Fi 7 and Realtek 2.5Gb Ethernet ensuring ultra-fast networking performance, while Bluetooth 5.3 provides stable wireless device connectivity. For display output, the motherboard includes HDMI 2.1 and DisplayPort 1.4 outputs supporting up to 4K@60Hz, making it ideal for high-resolution monitors and multi-display setups.

Rear I/O is loaded with modern ports, including USB 20Gbps Type-C, USB 10Gbps, and multiple USB 5Gbps ports for extensive peripheral support. The front panel USB 10Gbps Type-C header adds even more convenience for fast device charging and connectivity.

Audio is powered by the Realtek ALC1220P 7.1 Surround Sound Codec, enhanced by premium capacitors, DTS audio support, and dedicated PCB layers for superior sound isolation—ensuring crisp, immersive gaming and entertainment audio.

Built with ROG’s robust power architecture, the motherboard uses a 14+2+1 power stage design with premium chokes and capacitors, delivering consistent power for high-performance CPUs. Advanced cooling is ensured through enlarged VRM heatsinks, dedicated M.2 heatsinks, and multiple fan headers managed by Fan Xpert 2+ technology.

The ROG STRIX B850-G also incorporates ASUS Q-Design for easy installation, including PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-LED diagnostics, and Q-Antenna for quick setup. Aura Sync RGB lighting with Gen 2 ARGB headers lets users fully customize their build aesthetics, syncing perfectly with compatible components for a personalized gaming rig.

Bundled with Armoury Crate, Aura Creator, AI Suite 3, and a 60-day Norton 360 Deluxe trial, this motherboard offers advanced control and security features right out of the box.

Compact yet powerful, the Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard is a perfect choice for gamers and PC enthusiasts seeking premium performance, robust cooling, and future-ready connectivity in a sleek mATX design.

Price in Bangladesh: 39,700৳
Buy the Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
