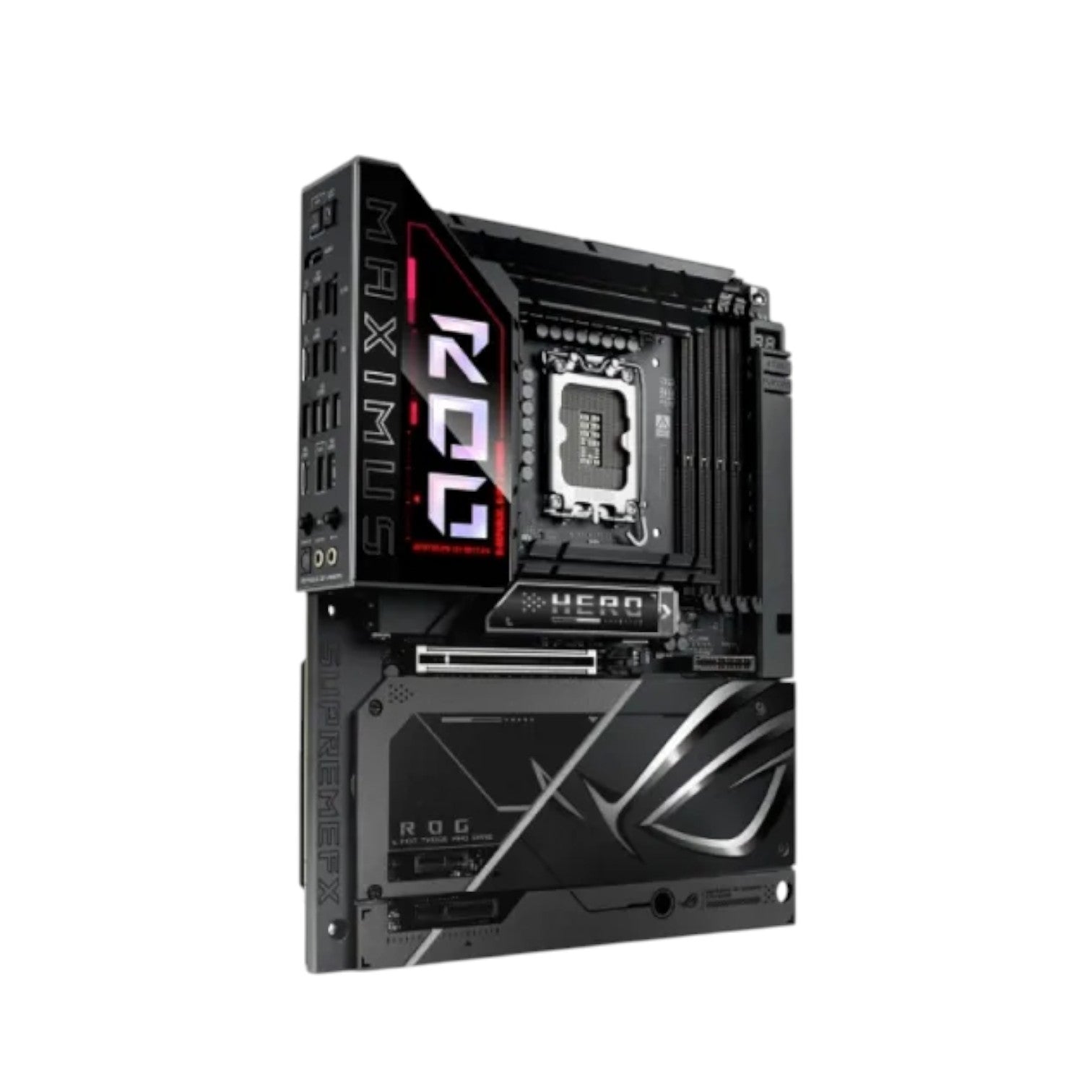

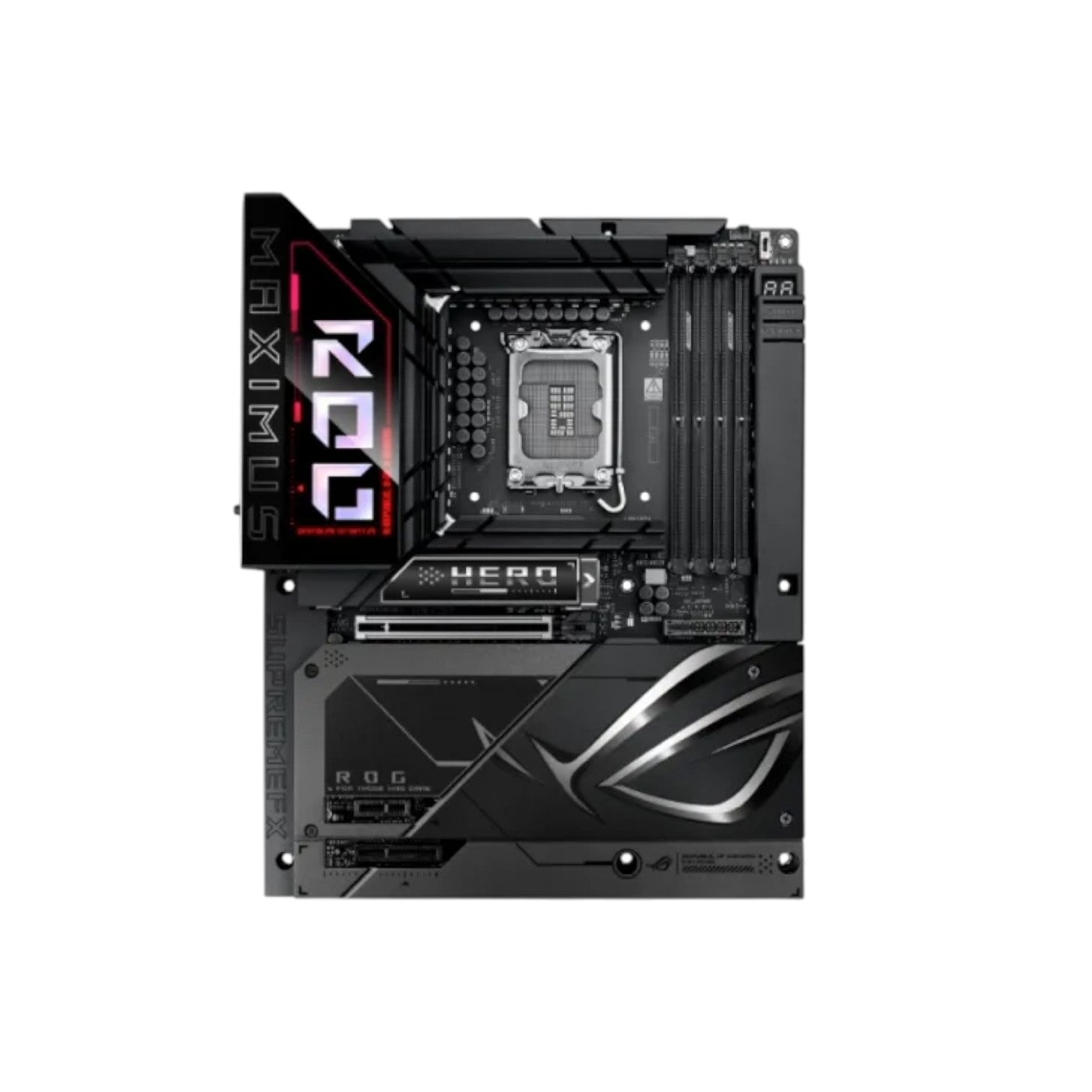

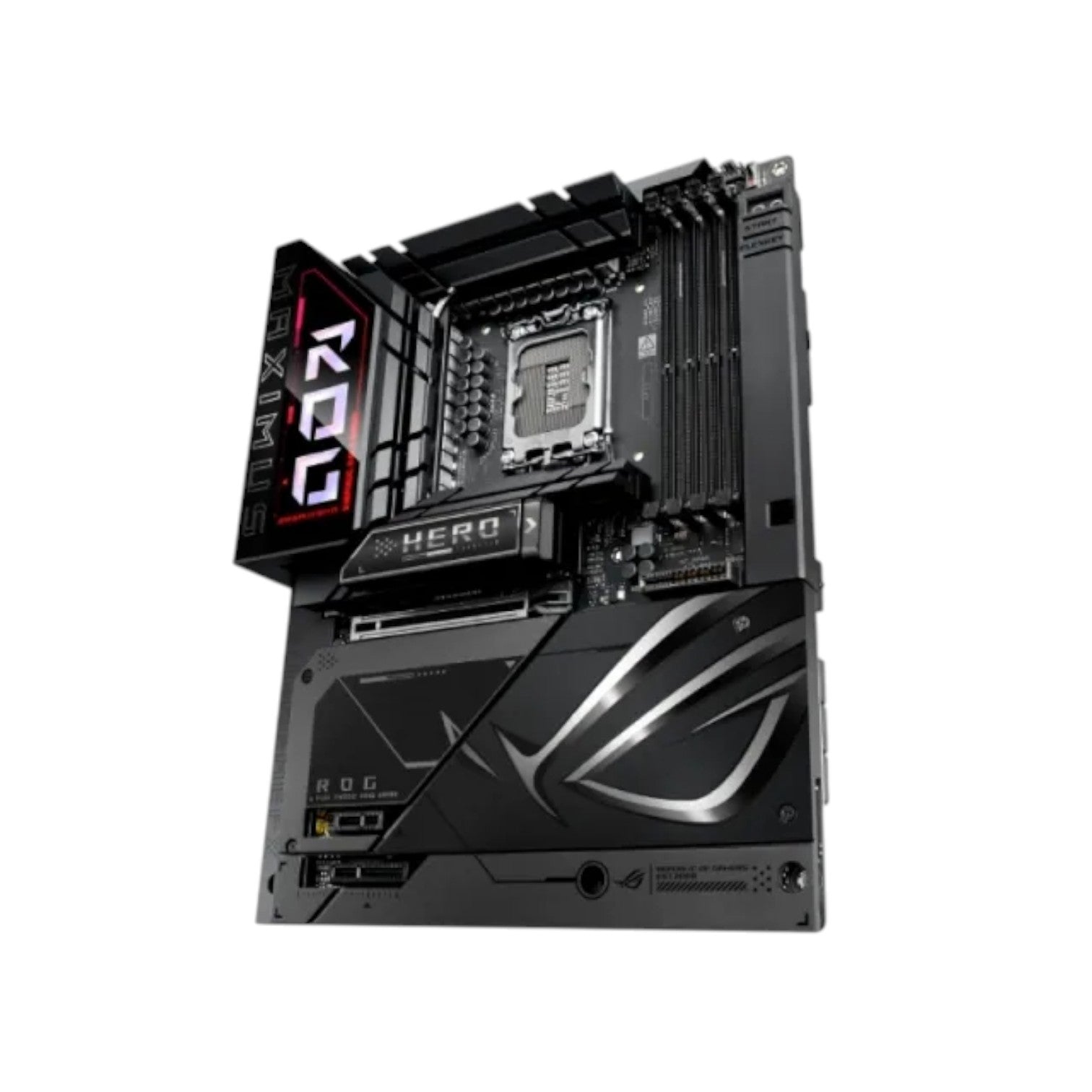

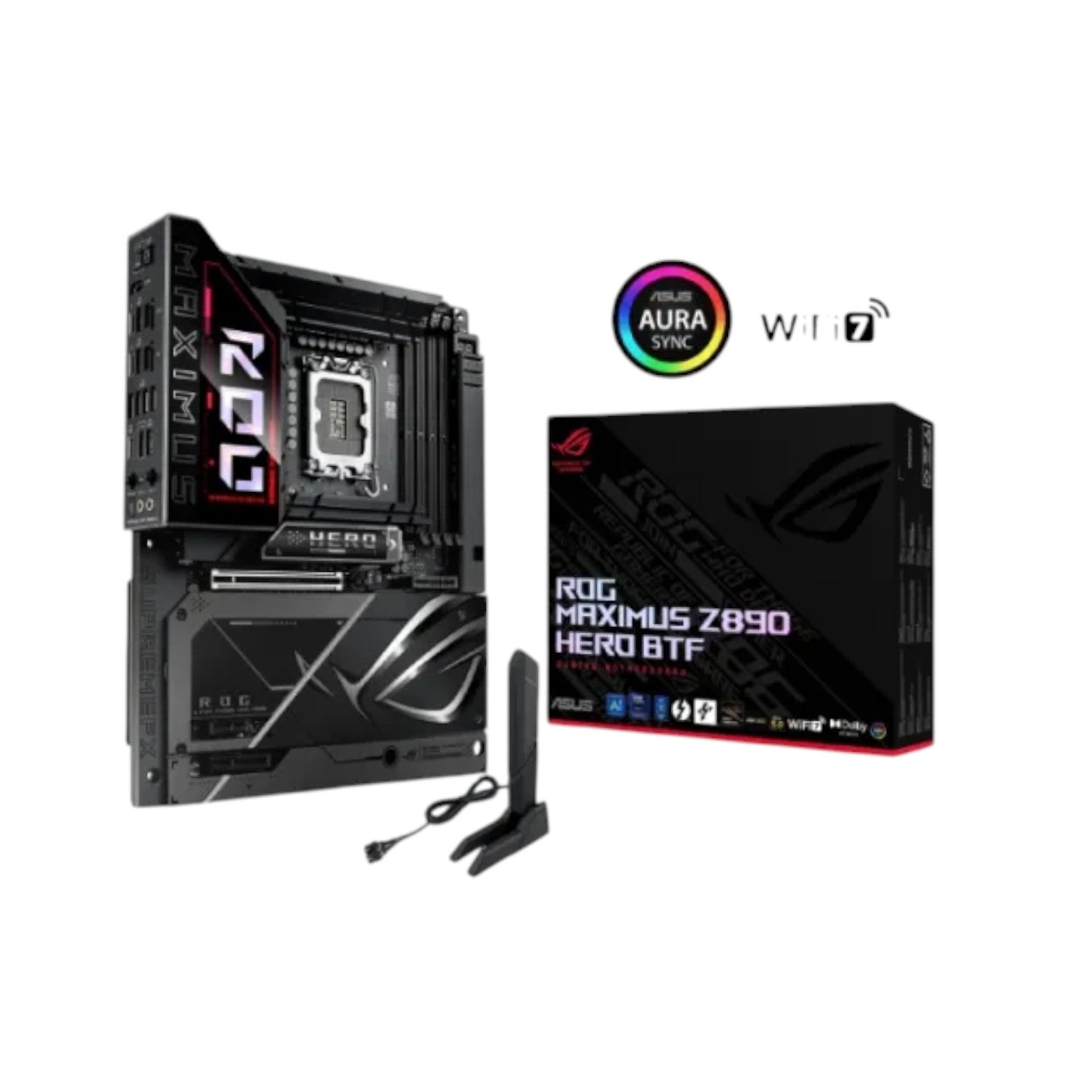

ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard
ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard
ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard
ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard

ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard

Brand: ASUS
SKU: ROG-Z890-HERO-BTF
Availability: In stock

Key Features

Model: ROG MAXIMUS Z890 HERO BTF

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, Support up to 9200+MT/s (OC)

Graphics Output: 1x HDMI, 2x Intel Thunderbolt 4

Features: 6x M.2 Slot, 2x Ethernet, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 105,800
Tk 115,010
Tk 105,800
Subtotal: Tk 105,800
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Expansion Slots

PCI Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 4.0 x1 slot
M.2 Socket Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)



Memory

Type DDR5
Slots 4x DIMM slots
Supported Memory Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory 256GB



Graphics

Graphics 1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.



Connector & Ports

HDMI 1 x HDMI
USB (s) Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Audio 2 x Gold-plated audio jacks
Internal I/O Ports Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header*
* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Internal I/O Ports Back Panel I/O Ports
2 x Thunderbolt 4 (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Alteration PCIe mode switch
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header



Others

Special Features Extreme OC Kit
- FlexKey button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting II
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
- Hwinfo
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
Thunderbolt™ Share
TurboV Core
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

Warranty

Warranty 3 years

Description

ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard

The ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard is a flagship-class gaming and performance motherboard designed for enthusiasts who demand top-tier power, design, and future-ready connectivity. Built on the advanced Intel Z890 chipset, it supports the latest Intel Core Ultra Series (Series 2) processors through the LGA1851 socket, ensuring exceptional performance and unmatched stability for gaming, content creation, and heavy multitasking.

This premium ASUS motherboard supports up to 256GB of DDR5 memory across four DIMM slots with blazing overclocked speeds of up to 9200+ MT/s (OC). Technologies like DIMM Flex, NitroPath DRAM, Intel XMP, and ASUS Enhanced Memory Profile III (AEMP III) optimize stability and fine-tune memory performance, delivering next-level responsiveness and bandwidth for demanding applications.

For graphics and expansion, the ROG MAXIMUS Z890 HERO BTF offers one PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots, supporting next-generation GPUs and high-speed expansion cards. Storage capabilities are equally powerful, featuring six M.2 slots and four SATA 6Gb/s ports, all compatible with PCIe and SATA RAID configurations for lightning-fast data transfer and massive storage flexibility.

Display outputs include HDMI 2.1 and dual Thunderbolt 4 Type-C ports, supporting resolutions up to 8K@60Hz, delivering premium visual clarity and performance. Network connectivity is top-tier with Intel 2.5Gb Ethernet, Realtek 5Gb Ethernet, Wi-Fi 7 (2x2 802.11be), and Bluetooth 5.4, ensuring rock-solid, ultra-low-latency connections for gaming and professional workloads.

The ROG MAXIMUS Z890 HERO BTF excels in connectivity with a robust rear I/O featuring two Thunderbolt 4 Type-C ports, five USB 10Gbps, and four USB 5Gbps ports. The front panel includes a 20Gbps Type-C port with 60W Power Delivery and Quick Charge 4+, a 10Gbps Type-C, and additional headers for USB 5Gbps and 2.0 — giving users a wide range of high-speed connection options for any setup.

For immersive audio, this motherboard is equipped with ROG SupremeFX 7.1 Surround Sound powered by the ALC4082 codec and enhanced by an ESS ES9219 DAC, gold-plated connectors, and Dolby Atmos technology — ensuring professional-grade clarity and an immersive soundstage for gaming and media production.

Thermal performance and power delivery are unmatched, with high-end VRM heatsinks, multiple M.2 heatsinks, dedicated fan headers, and AIO pump connectors that maintain optimal temperatures during heavy workloads. The 16+2+2 power stage design ensures precise, stable power delivery for overclocking and extreme gaming performance.

For convenience and customization, ASUS Q-Design features like M.2 Q-Latch, PCIe Q-Release, and pre-mounted I/O shield simplify installation and upgrades. RGB lighting with Aura Sync enables personalized lighting effects, syncing seamlessly with other ASUS components for a unified aesthetic.

Intelligent software tools such as AI Overclocking, AI Cooling II, AI Networking II, and Fan Xpert 4 make system tuning simple and efficient, while Armoury Crate centralizes control of RGB, performance profiles, and monitoring.

With its combination of ultra-fast connectivity, advanced cooling, AI-powered optimization, and luxurious design, the ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard stands as the ultimate foundation for an elite gaming or workstation build.

Price in Bangladesh: 105,800৳
Buy the ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
