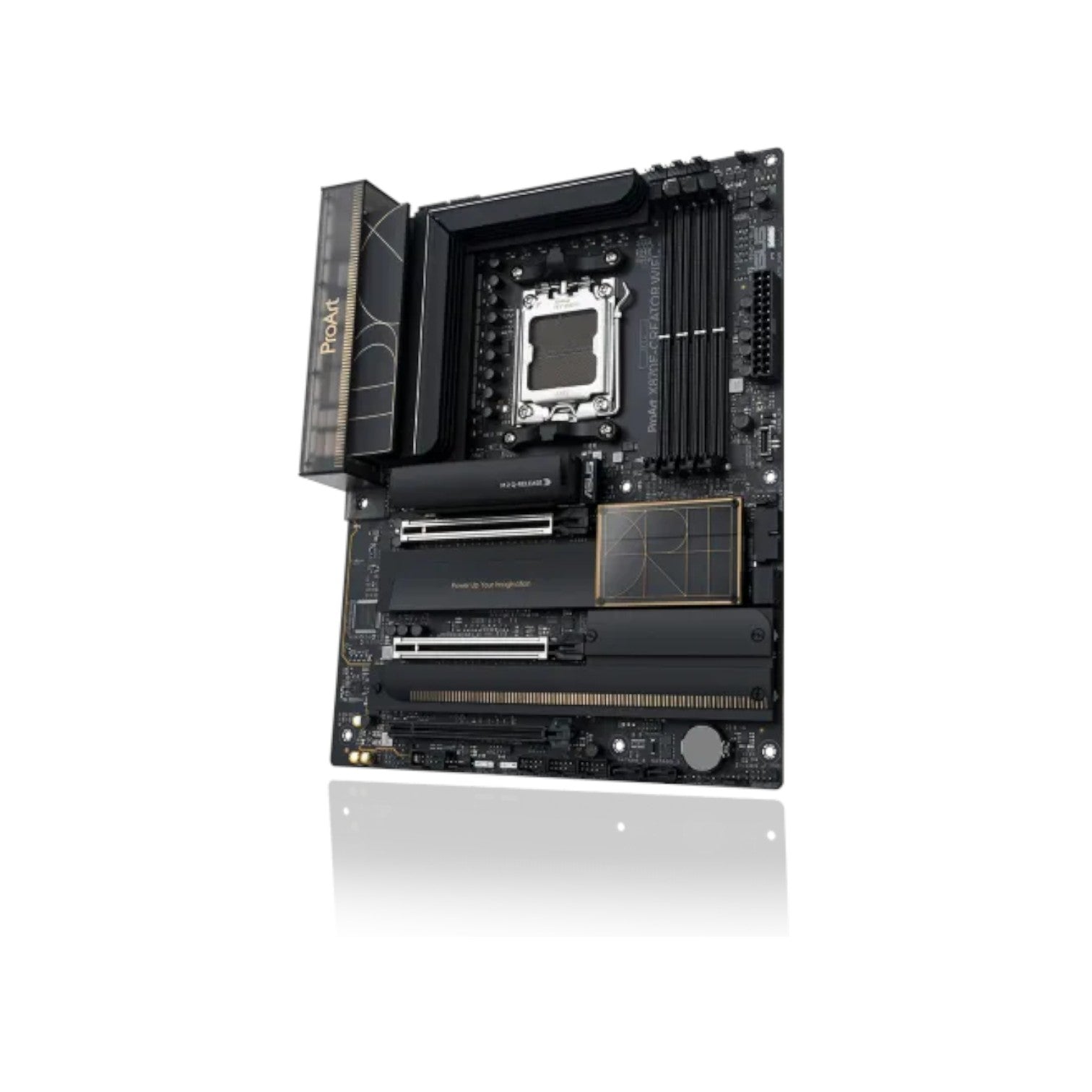

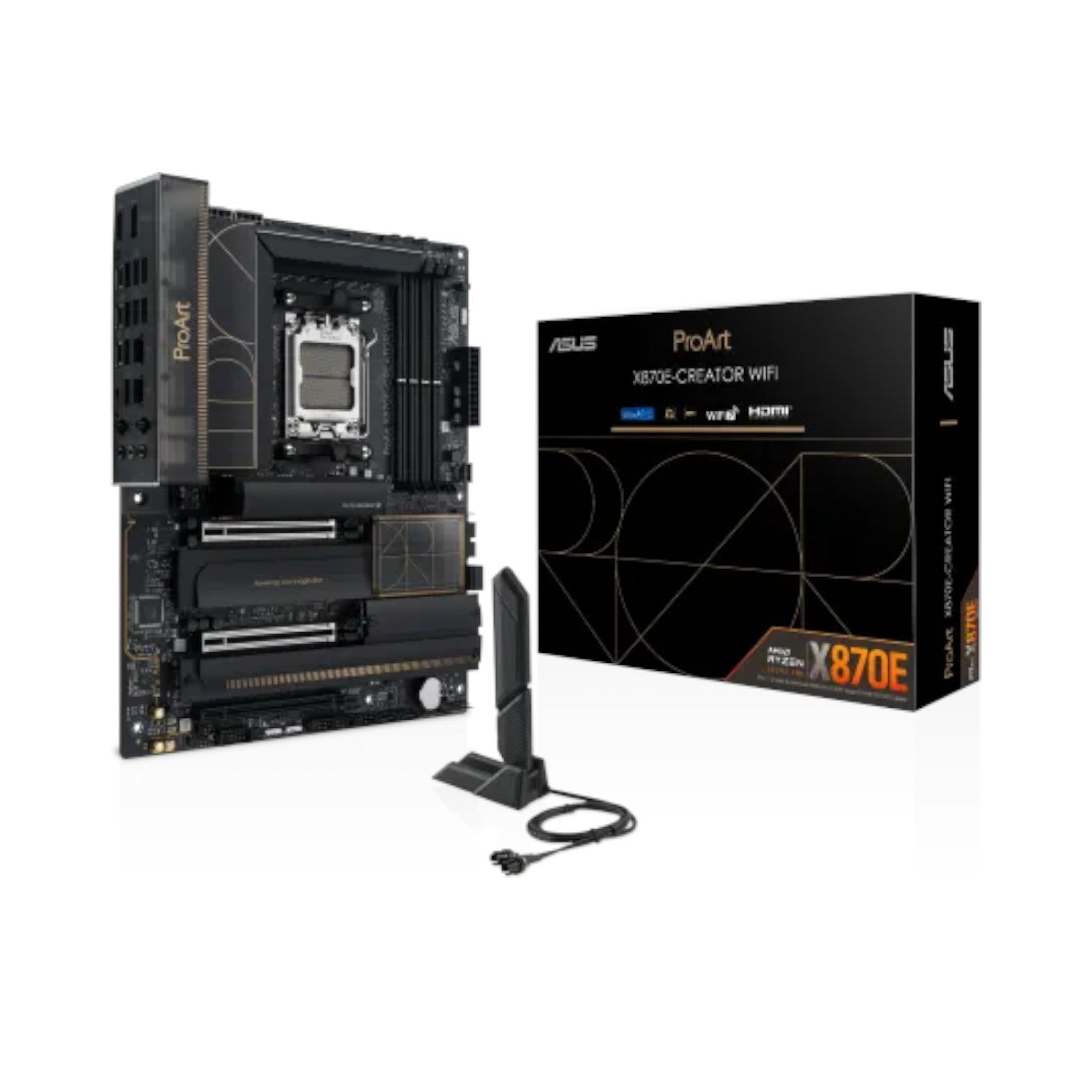

ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard
ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard
ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard

ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard

Brand: ASUS
SKU: PROART-X870E-CREATOR-WIFI
Availability: In stock

Key Features

  • Model: ROG STRIX X870-F GAMING WIFI
  • Supported CPU: AMD Socket AM5 for Ryzen 9000/8000 & 7000 Series Processors
  • Supported Memory: 4 x DIMM slots, max. 192GB, DDR5, Up to 8000+MT/s(OC) with Ryzen
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port, 2x USB4 (up to 40Gbps transfer rate)
  • Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4
Ask an expert
Tk 76,400
Tk 82,460
Tk 76,400
Subtotal: Tk 76,400
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

Expansion Slots

PCI AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
AMD Ryzen 7000 Series Desktop Processors
2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
M.2 Socket 3 x M.2 slots



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 192GB



Graphics

Graphics 1 x HDMITM port**
1 x USB Type-C port supports DisplayPort output***
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
1 x HDMI port**
1 x USB Type-C port supports DisplayPort output***
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x USB Type-C, shared with DisplayPort graphic output
USB (s) Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
*** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
RAID AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors
I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

Back Panel I/O Ports
1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
CreationFirst
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard

The ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard is a premium creative workstation motherboard designed for professionals who demand top-tier performance, reliability, and versatility. Powered by the AMD X870 chipset and featuring the AM5 socket, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, delivering the computational muscle required for high-end creative workloads, 3D rendering, AI applications, and advanced multitasking.

Engineered to handle demanding production environments, the ASUS ProArt X870E-CREATOR supports up to 192GB of DDR5 memory across four DIMM slots, with overclocking potential beyond 8000MT/s (OC). This ensures smooth performance for heavy-duty tasks such as 8K video editing, large-scale graphic design, and real-time simulation. The robust 16+2+2 power stage design provides consistent, efficient power delivery for maximum system stability, even under extended workloads.

Storage and expansion are designed for creative flexibility. The motherboard includes four M.2 slots (PCIe 5.0 & 4.0) and four SATA 6Gb/s ports, providing ultra-fast NVMe and RAID storage options for high-speed data access and redundancy. For graphical and expansion needs, the PCIe 5.0 slots deliver next-generation bandwidth for GPUs, capture cards, and high-performance add-ons, ensuring seamless workflow acceleration.

Connectivity is one of the strongest aspects of the ProArt X870E-CREATOR WiFi. It features dual USB4 Type-C ports (40Gbps), 10Gb Ethernet, 2.5Gb Ethernet, and WiFi 7 for lightning-fast wired and wireless performance. Whether transferring massive project files, streaming, or collaborating online, this motherboard ensures zero compromise on speed and stability.

The integrated ProArt Creator Hub software provides intuitive system monitoring, fan control, and performance tuning tools, empowering creators to fine-tune their system for optimal output. AI-assisted technologies such as AI Overclocking, AI Cooling, and AI Networking automate key performance enhancements, maintaining ideal system conditions with minimal user input.

Cooling performance is exceptional, thanks to large VRM heatsinks, high-conductivity thermal pads, and multiple fan headers that ensure efficient heat dissipation during heavy rendering or multitasking. Additionally, Aura Sync RGB lighting enables customizable illumination, allowing users to personalize their setup with aesthetic precision.

The ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard is not just a platform — it’s a productivity powerhouse built for the most demanding creative professionals. From its superior power delivery and advanced connectivity to its precision tuning and durable design, this motherboard empowers creators, designers, and developers to bring their boldest ideas to life.

Price in Bangladesh: 76,400৳
Buy the ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
