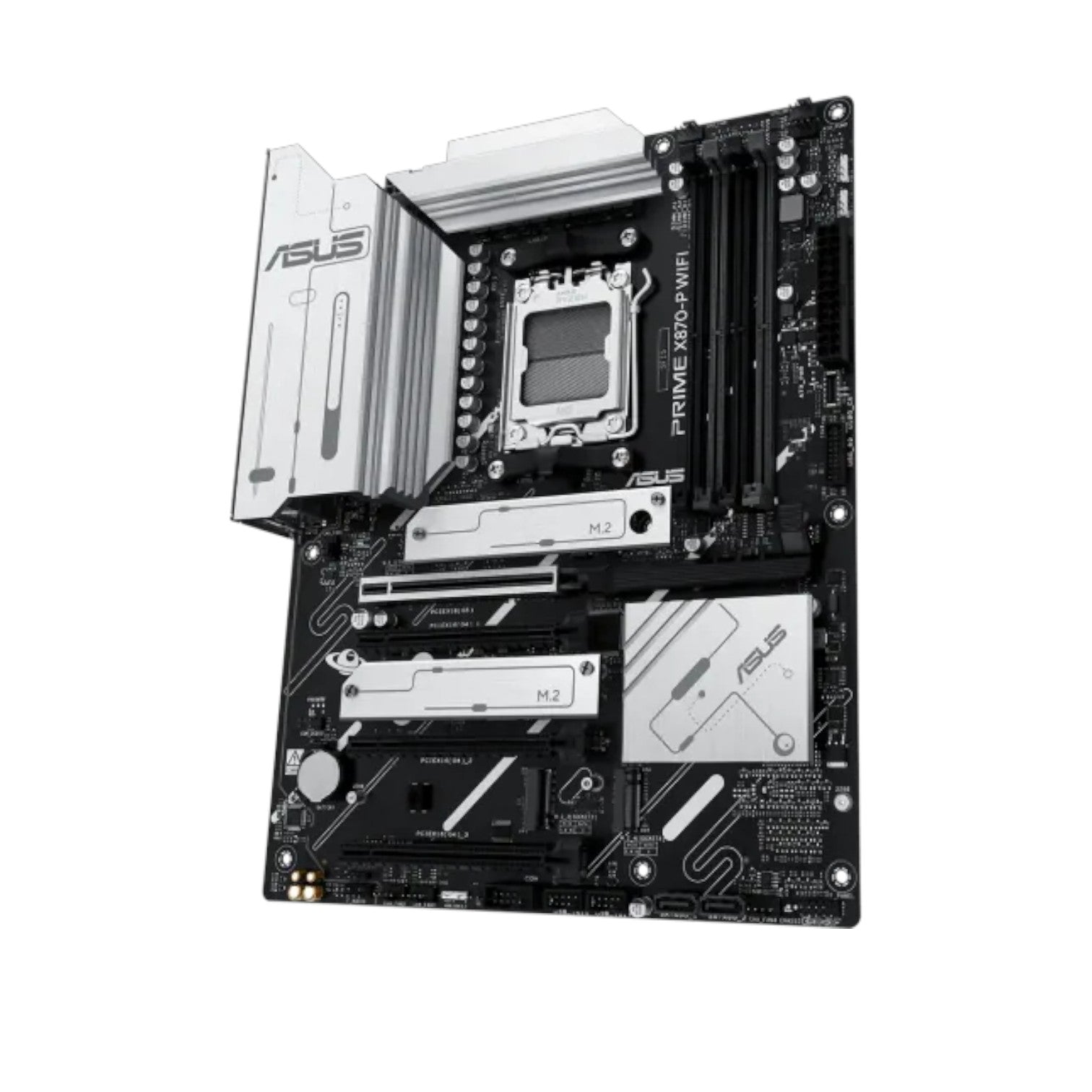

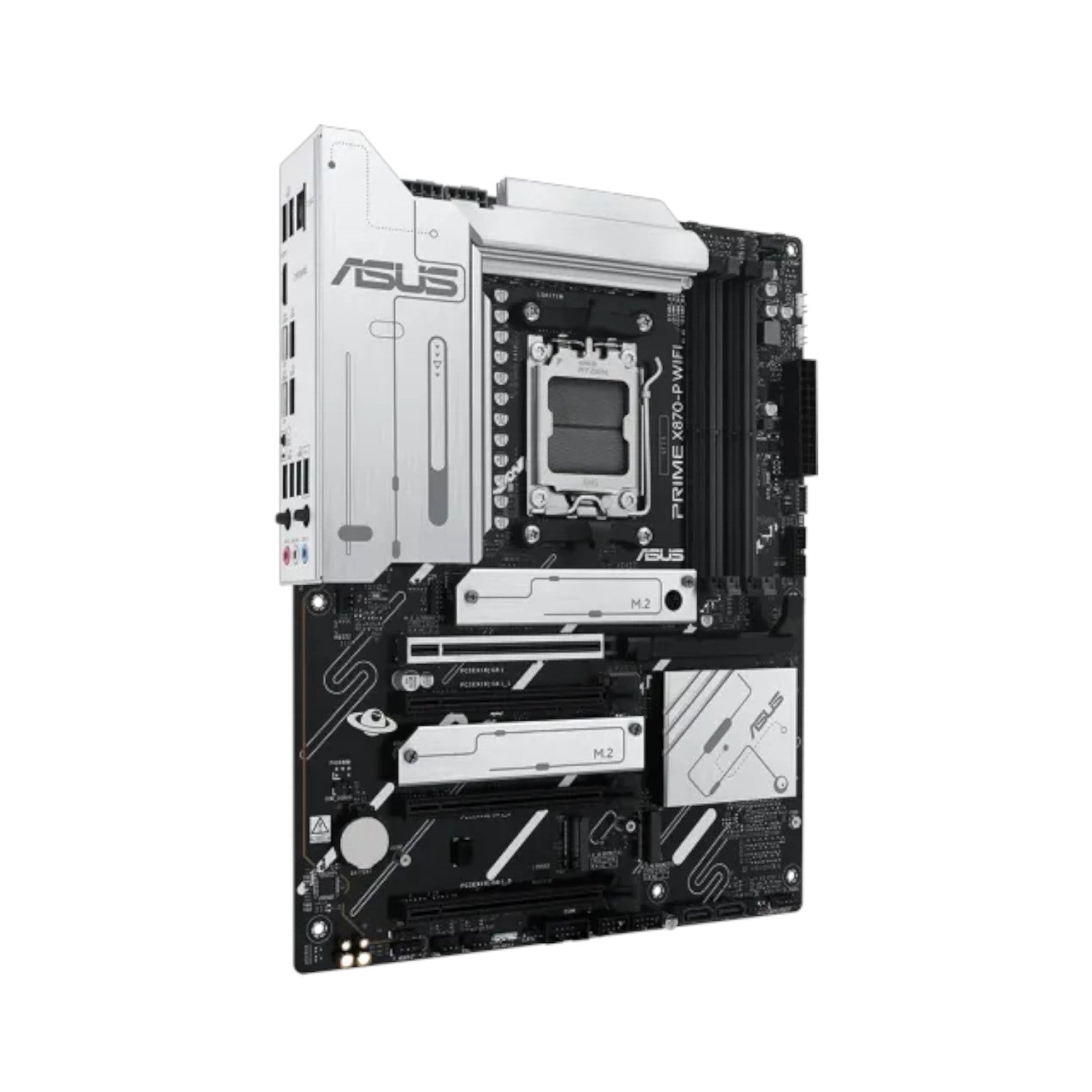

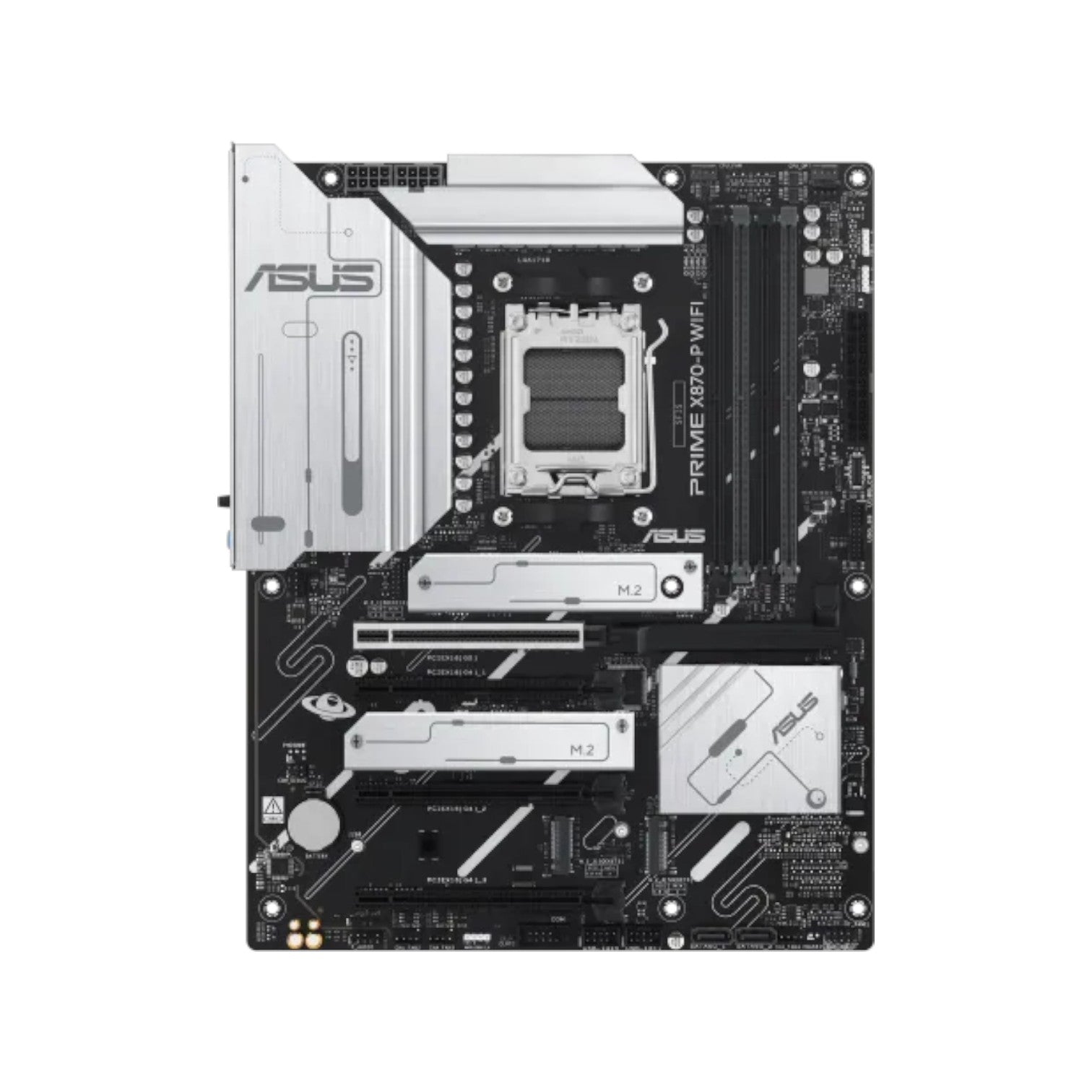

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard

Brand: ASUS
SKU: PRIME-X870-P-WIFI-CSM
Availability: In stock

Key Features

  • Model: PRIME X870-P WIFI-CSM
  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 Up to 8000+(OC)
  • Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
Ask an expert
Tk 43,800
Tk 47,200
Tk 43,800
Subtotal: Tk 43,800
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
M.2 Socket AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
3 x PCIe 4.0 x16 slots (support x1 mode)***
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GBB



Graphics

Graphics 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI 2.1
USB (s) 2 x USB4 (40Gbps) ports support USB Type-C display outputs**

Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4**
Supported Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
2 x SATA 6Gb/s ports****
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
RAID * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey



Warranty

Warranty 3 years

Description

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard

The Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard is a next-generation performance platform built to harness the full potential of AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. Powered by the AMD X870 chipset and the AM5 socket, this motherboard is engineered for advanced computing, AI workloads, and seamless multitasking, offering a perfect balance of performance, connectivity, and efficiency.

Supporting up to 192GB of DDR5 RAM across four DIMM slots, the motherboard achieves speeds beyond 8000+ MT/s (OC), ensuring fast and stable performance for demanding applications. It features dual-channel architecture, ECC/Non-ECC support, and advanced memory tuning options with AMD EXPO and ASUS AEMP profiles for optimized compatibility and overclocking potential.

Storage flexibility is at its peak with four M.2 slots and two SATA 6Gb/s ports, allowing users to integrate multiple NVMe and SSD drives for blazing-fast data access and abundant storage capacity. Expansion support includes one PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots, providing excellent options for high-end GPUs and add-on cards, making this motherboard ideal for both professional workstations and gaming rigs.

For superior connectivity, the Asus PRIME X870-P WIFI-CSM includes dual USB4 (40Gbps) Type-C ports, multiple high-speed USB 10Gbps and 5Gbps ports, and Wi-Fi 7 support for ultra-low latency and exceptional wireless performance. A Realtek 2.5Gb Ethernet port ensures stable wired networking, while Bluetooth 5.3 offers effortless peripheral connectivity.

Visual output is equally powerful, with HDMI 2.1 and DisplayPort 1.4a providing 4K@60Hz display support, ensuring vibrant and detailed visuals for creators and gamers alike.

Thermal management is exceptional, featuring VRM heatsinks, high-conductivity thermal pads, and multiple temperature sensors across key components. Paired with Fan Xpert 4 software, the motherboard delivers intelligent cooling control, maintaining system stability during intense workloads.

The Asus PRIME X870-P WIFI-CSM also offers a clean aesthetic and customizable RGB lighting via Aura Sync, allowing synchronization with compatible RGB components for a unified, premium system appearance.

DIY enthusiasts will appreciate user-friendly features like M.2 Q-Latch, PCIe Slot Q-Release, Q-LED indicators, and a pre-mounted I/O shield, ensuring effortless installation and maintenance. The motherboard’s robust design includes ASUS 5X Protection III, DIGI+ VRM, and premium capacitors for long-lasting reliability and safety.

With powerful AI optimization, unmatched connectivity, and future-proof expandability, the Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard is a top-tier choice for professionals, creators, and gamers who want to build a high-performance and reliable PC ready for the next generation of computing.

Price in Bangladesh: 43,800৳
Buy the Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
