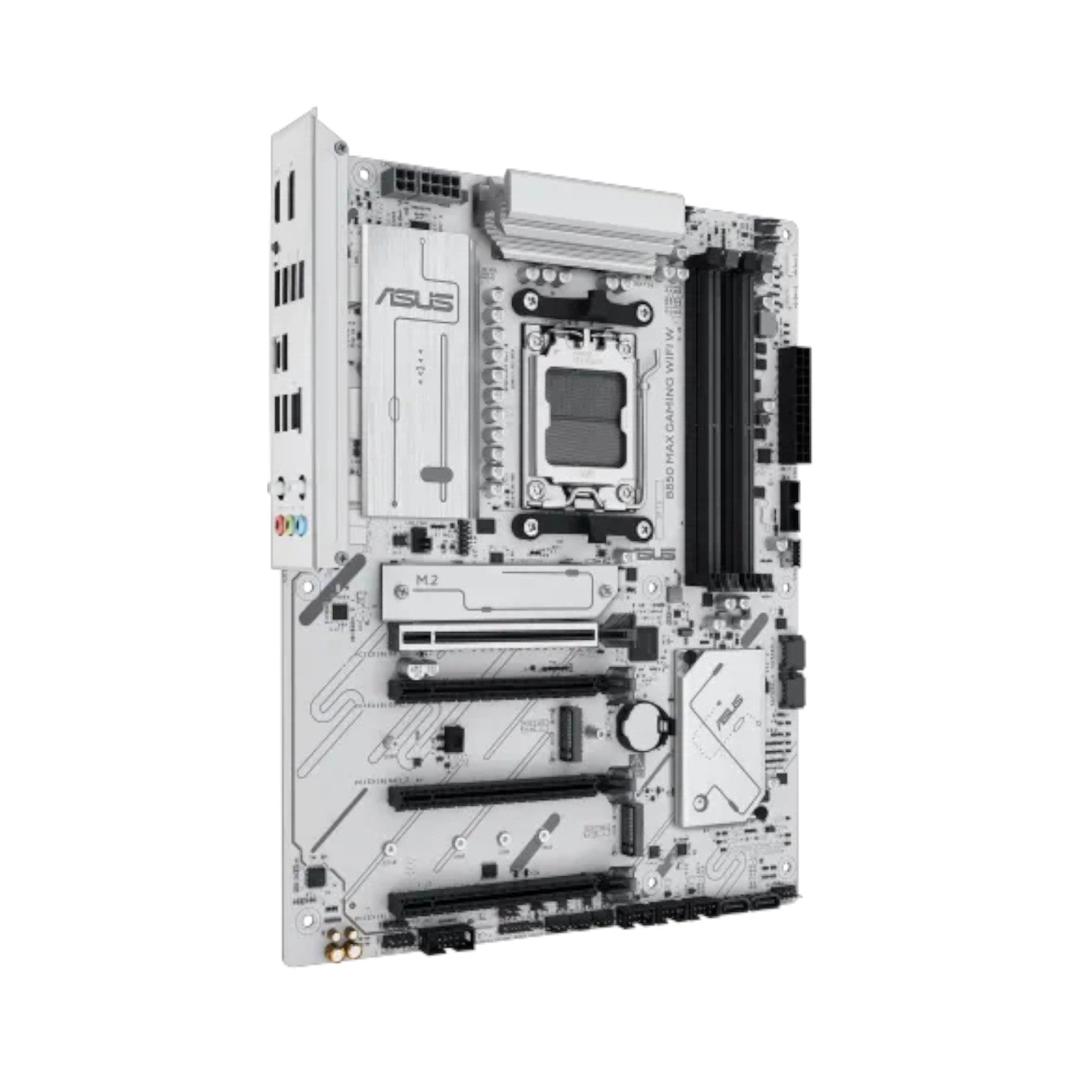

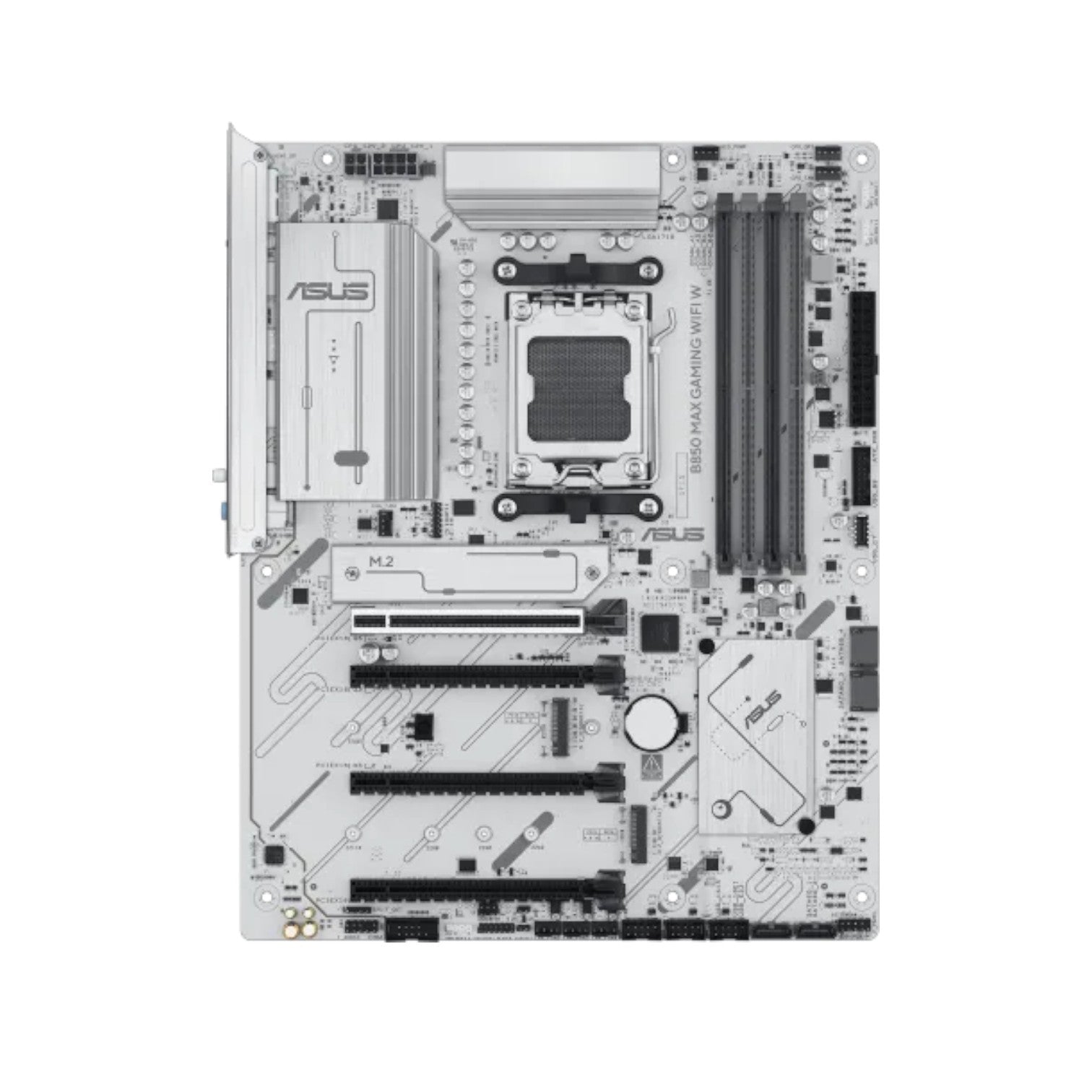

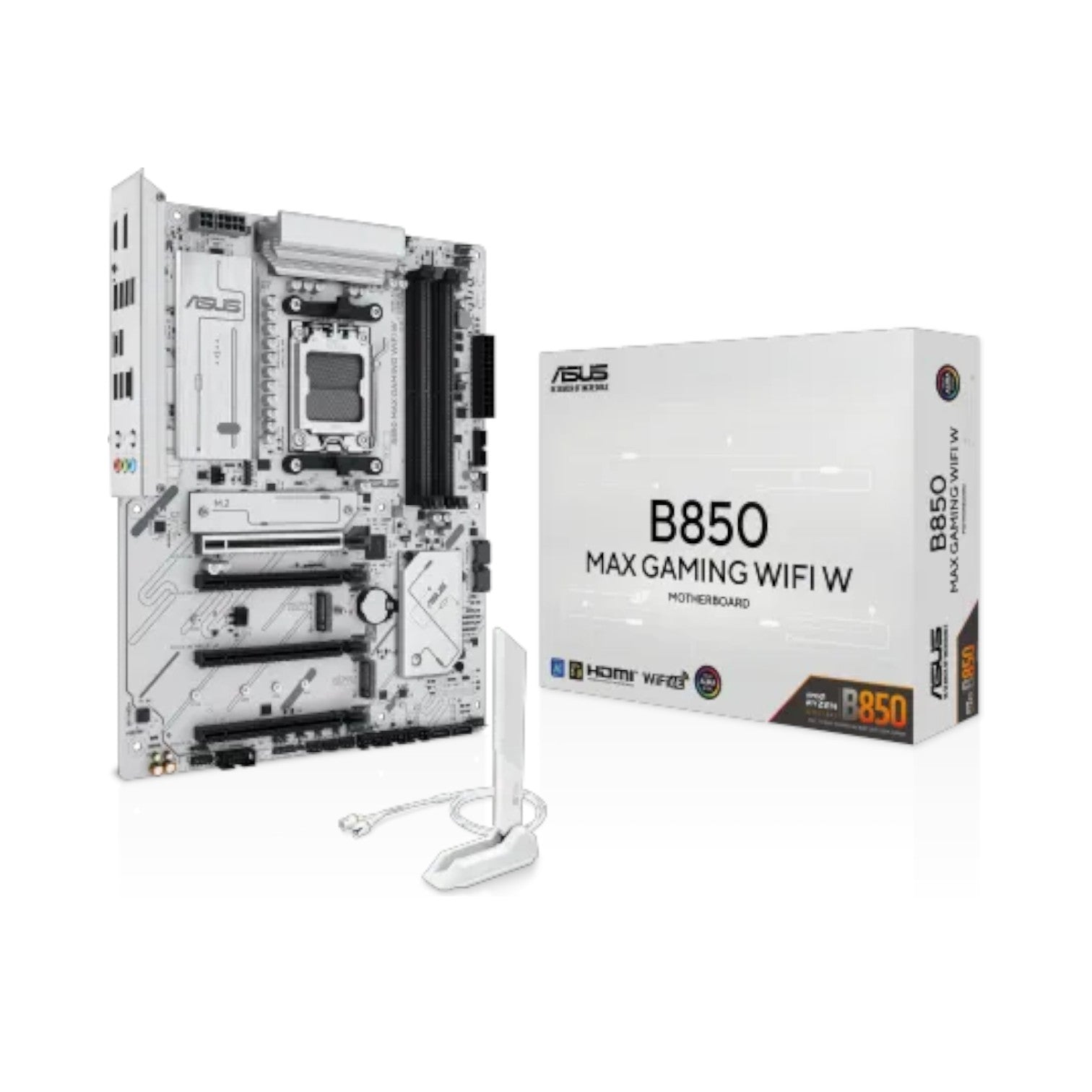

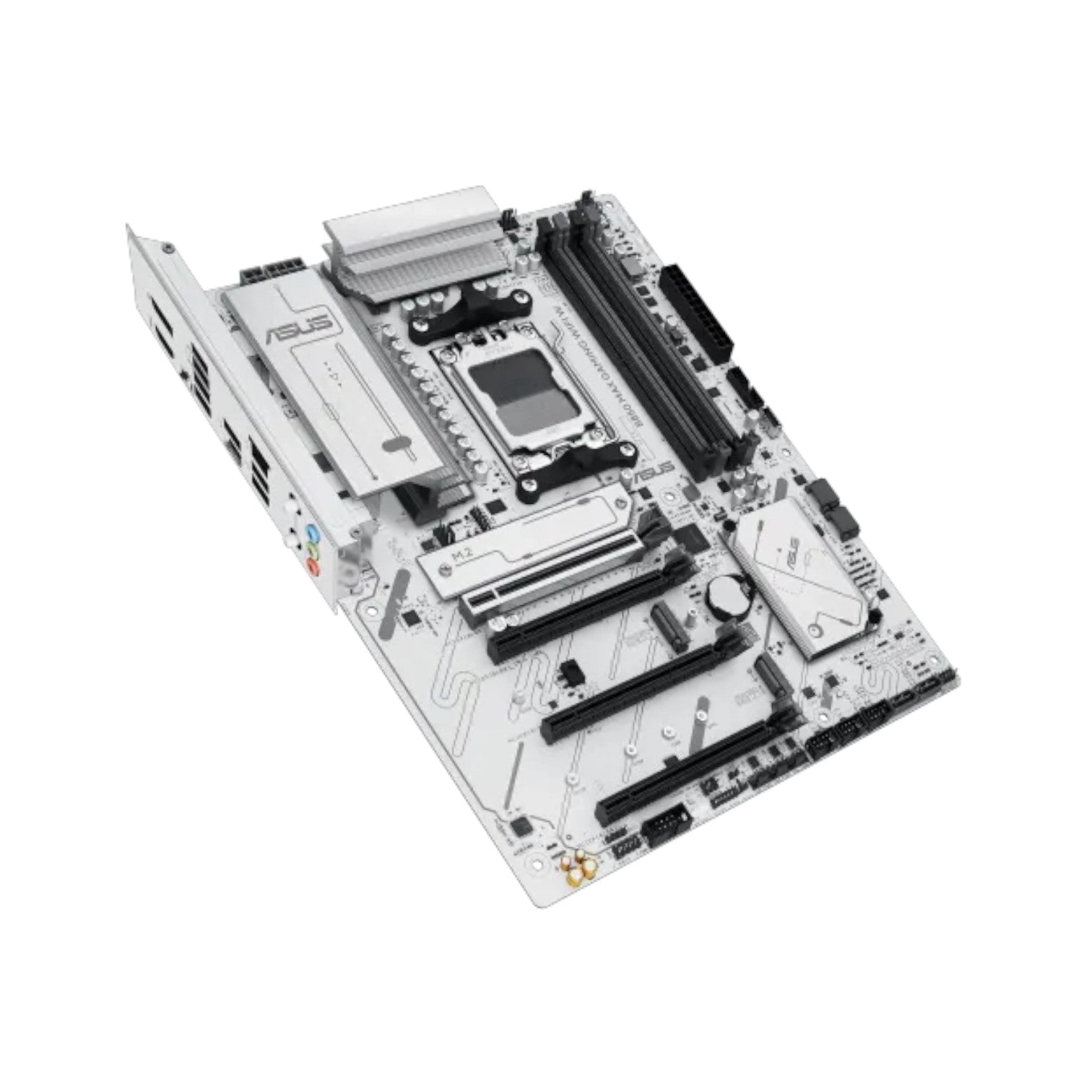

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard

Brand: ASUS
SKU: B850-MAX-GAMING-WIFI-W
Availability: In stock

Key Features

Model: B850 MAX GAMING WIFI W

Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket

Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)

Graphics Output: 1 x HDMI port, 1 x DisplayPort

Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound

Ask an expert
Tk 35,500
Tk 37,110
Tk 35,500
Subtotal: Tk 35,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
2 x PCIe 3.0 x16 slots (support x1 mode)
M.2 Socket AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Specifications vary by CPU types.



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual-channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Specifications vary by CPU types.
RAID AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt™ (USB4®) header
Back Panel I/O Ports:
1 x USB 10Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey



Warranty

Warranty 3 years

Description

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard

The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard is built for gamers, content creators, and performance enthusiasts seeking the perfect balance of power, reliability, and future-ready technology. Engineered on the advanced AMD B850 chipset, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, ensuring outstanding speed, stability, and compatibility for next-generation builds.

Designed to handle intensive workloads and high-performance gaming, the Asus B850 MAX GAMING WIFI W supports up to 256GB of DDR5 memory across four DIMM slots, achieving speeds of 8000+ MT/s (OC). It fully supports dual-channel architecture, AMD EXPO, and ASUS AEMP profiles for seamless memory tuning and enhanced system responsiveness, whether for gaming or professional tasks.

For expansion and storage, the motherboard includes PCIe 5.0 and PCIe 4.0 slots, allowing users to install the latest GPUs and add-on cards with incredible bandwidth. Storage performance is equally impressive with three M.2 slots supporting PCIe Gen 5 and Gen 4 SSDs, as well as four SATA 6Gb/s ports for traditional drives. The motherboard also supports RAID 0/1/10 configurations, ensuring both speed and data protection.

When it comes to display output, the Asus B850 MAX GAMING WIFI W offers HDMI 2.1 and dual USB4 Type-C ports, delivering support for 4K@60Hz visuals for immersive gaming and content creation experiences.

Networking and connectivity are top-tier, with Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2 ensuring fast, stable, and flexible communication for online gaming, streaming, and data sharing. The rear I/O panel includes 10 USB ports, including dual USB4 (40Gbps) and high-speed USB Type-C ports, providing outstanding flexibility for devices and peripherals.

Audio is powered by the Realtek 7.1 Surround Sound High Definition Audio CODEC, featuring premium capacitors, jack detection, and 24-bit/192kHz playback. The result is rich, detailed sound perfect for immersive gameplay, entertainment, or professional audio tasks.

The Asus B850 MAX GAMING WIFI W is designed with DIY-friendly features such as ASUS Q-Design, pre-mounted I/O shield, BIOS FlashBack, and M.2 Q-Latch, ensuring hassle-free installation and maintenance. Robust VRM and M.2 heatsinks ensure excellent cooling even under heavy loads, while ASUS 5X Protection III provides long-term durability and safety.

Aesthetically, the board integrates Aura Sync RGB lighting, allowing full customization and synchronization with other RGB-enabled components. Software utilities like Armoury Crate, Aura Sync, and AI Suite 3 provide centralized control over system tuning, lighting, and performance optimization.

With its exceptional blend of speed, reliability, and features, the Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard is an outstanding choice for building a high-end gaming PC or professional workstation that’s ready for the future.

Price in Bangladesh: 35,500৳
Buy the Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
