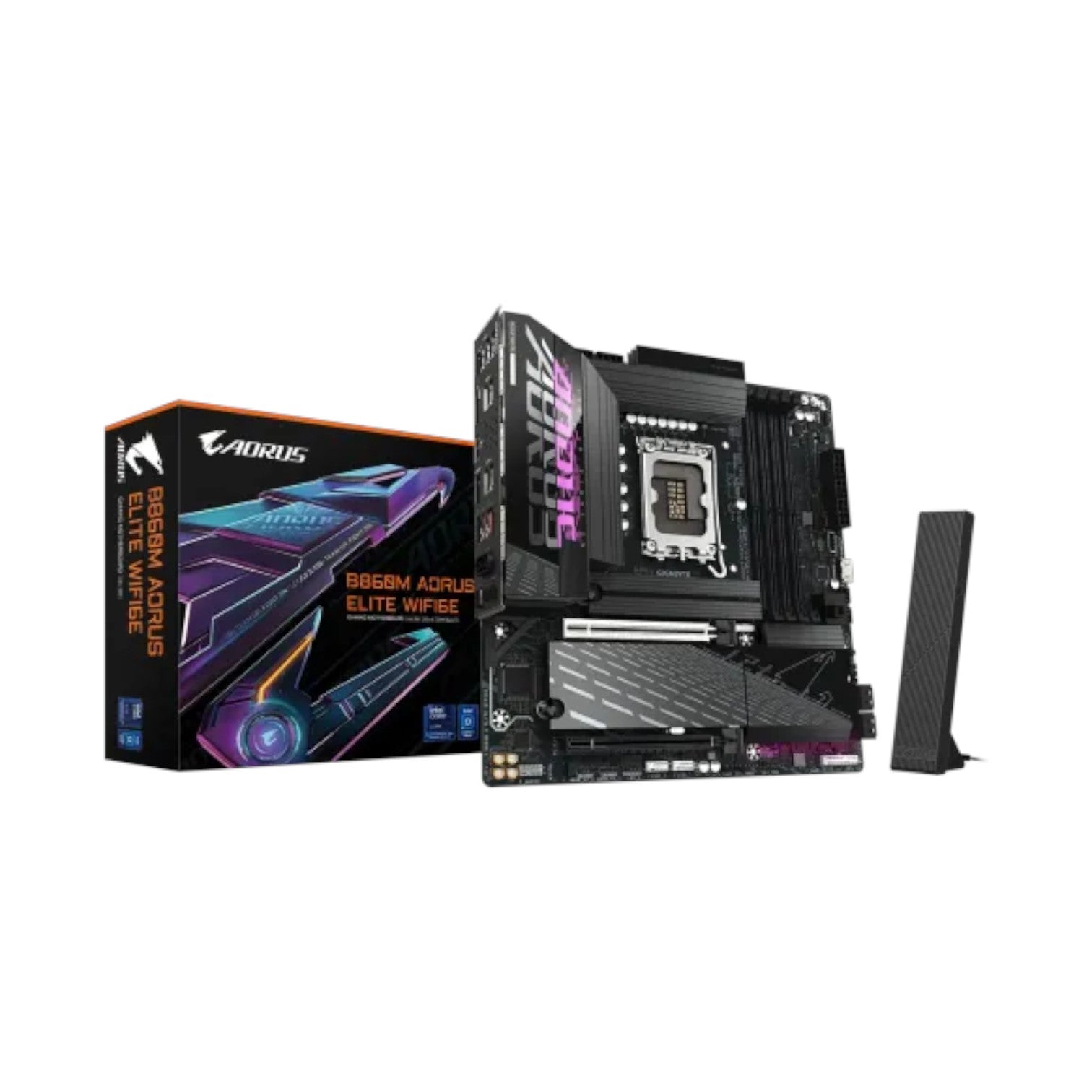

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B860M AORUS ELITE WIFI6E
Availability: In stock

Key Features

Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Socket

Ask an expert
Tk 33,500
Tk 34,000
Tk 33,500
Subtotal: Tk 33,500
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors
L3 cache
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors:
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years warranty

Description

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

The GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard is a powerhouse built for gamers, creators, and professionals seeking exceptional performance in a compact form factor. Designed with the latest Intel B860 Express chipset, it supports Intel Core Ultra processors through the advanced LGA1851 socket, ensuring high-speed computing and future-ready capabilities. With support for up to 256GB of DDR5 memory across four DIMM slots, it delivers speeds of up to 9200MT/s (OC), providing lightning-fast responsiveness and unparalleled multitasking power. The dual-channel memory architecture, along with ECC and non-ECC unbuffered DIMM support and XMP overclocking profiles, ensures seamless performance and stability under demanding workloads.

The GIGABYTE B860M AORUS ELITE WIFI6E sets the standard for next-generation connectivity and expansion. It includes a PCIe 5.0 x16 slot for powerful graphics cards or NVMe SSDs, complemented by an additional PCIe 4.0 x16 slot running in x4 mode. Storage flexibility is unmatched with three M.2 slots—one PCIe 5.0 x4 and two PCIe 4.0 x4—plus four SATA 6Gb/s ports supporting RAID configurations for maximum performance and data security.

Display performance is equally impressive, featuring quad-display support through HDMI 2.1, DisplayPort 2.1, and USB4 Type-C outputs. It can deliver resolutions up to 3840x2160 at 144Hz for immersive visuals, ensuring smooth and vibrant graphics for both gaming and creative applications. For audio, the Realtek High Definition Audio codec supports up to 7.1-channel output with S/PDIF Out, delivering crystal-clear, studio-quality sound.

Networking and connectivity are top-tier, offering Realtek 2.5GbE LAN alongside Intel Wi-Fi 6E AX211 or Realtek Wi-Fi 6E RTL8852CE (depending on board revision), ensuring ultra-fast, low-latency internet connections with seamless Bluetooth 5.3 support. A wealth of USB connectivity options includes a USB4 Type-C port, dual USB 3.2 Gen 2 Type-A ports, multiple USB 3.2 Gen 1 and USB 2.0 ports, ensuring compatibility with all modern peripherals.

The motherboard’s cooling and aesthetic features are designed for efficiency and customization, featuring multiple fan and pump headers, along with RGB Gen2 LED headers for dynamic lighting effects. Advanced features like onboard power and reset buttons, plus Q-Flash Plus for BIOS updates without installing a CPU or RAM, make setup and maintenance effortless.

Optimized for Windows 11, the GIGABYTE B860M AORUS ELITE WIFI6E delivers cutting-edge performance, exceptional connectivity, and unmatched reliability—all packed into a sleek Micro ATX design. It’s the ideal foundation for building a powerful, future-proof gaming rig or professional workstation.

Buy the GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
