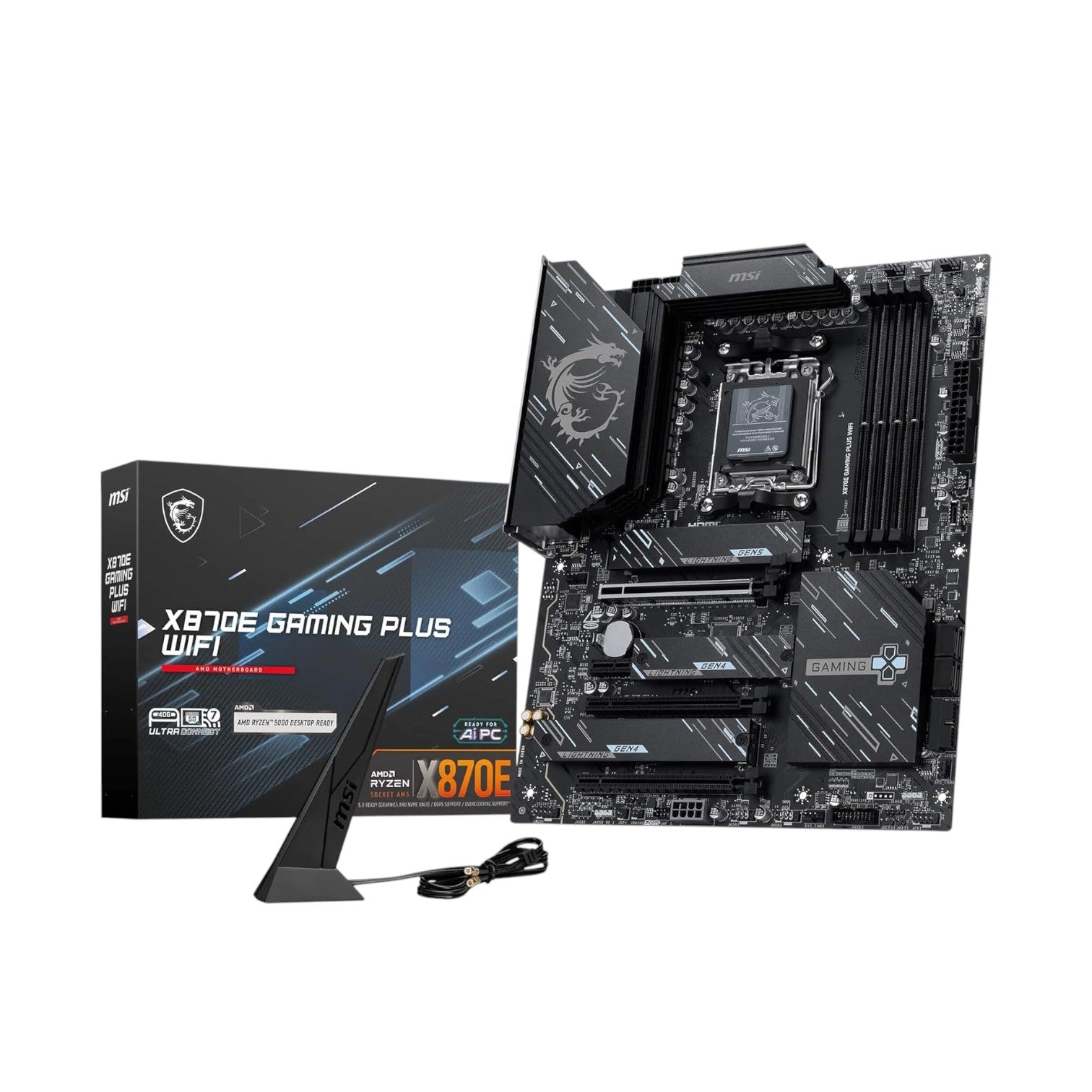

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: X870E GAMING PLUS WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
Graphics Output: 1x HDMI, 1x Type-C DisplayPort
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 39,500
Tk 40,400
Tk 39,500
Subtotal: Tk 39,500
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD X870E
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. Overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x Type-C DisplayPort
USB (s) 4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN Port (s) Realtek 8126VB 5G LAN
Wireless Communication module Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

Warranty 3 Years

Description

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is a high-performance MSI motherboard designed for gamers, creators, and enthusiasts using AMD’s latest desktop CPUs. Built on the powerful AMD X870E chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, ensuring future-proof performance and compatibility.

Memory support includes four DDR5 UDIMM slots, accommodating up to 256GB of dual-channel RAM with speeds up to DDR5-8200+ MT/s using AMD EXPO and overclocking settings. Features like CUDIMM support, Clock Driver bypass mode, and non-ECC unbuffered DIMMs provide cutting-edge performance, while double-sided latching DIMM slots improve installation reliability. Display connectivity includes HDMI 2.1 (4K at 60Hz) and USB4 Type-C with DisplayPort 1.4 (4K at 120Hz on supported CPUs), ideal for high-resolution, multi-monitor setups.

Expansion and storage are well-supported with three PCIe x16 slots, including one PCIe 5.0 x16 slot, three M.2 slots with one PCIe 5.0 x4 slot, and four SATA 6Gbps ports. RAID configurations include RAID 0, 1, 10 for SATA and RAID 0, 1, 5 for M.2 NVMe drives (RAID 5 exclusive to Ryzen 9000 CPUs). Audio is powered by the Realtek ALC897 codec, delivering immersive 7.1-channel HD sound.

Networking is robust, featuring Realtek 8126VB 5G LAN and Wi-Fi 7 with MU-MIMO and Bluetooth 5.4 for ultra-fast, low-latency connections. USB connectivity is extensive, including USB4 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps, and multiple USB 5Gbps and 2.0 ports. The motherboard is built for stability with a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and an 8-layer PCB with 2oz thickened copper.

Thermal management is handled by MSI’s Frozr Guard system with extended heatsinks, 7W/mK MOSFET thermal pads, choke thermal pads, and EZ M.2 Shield Frozr II. DIY-friendly features like EZ Debug LEDs, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna simplify setup and troubleshooting. The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard provides top-tier performance, connectivity, and durability for both gaming rigs and professional workstations.

Buy the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard comes with a 3-year warranty.
