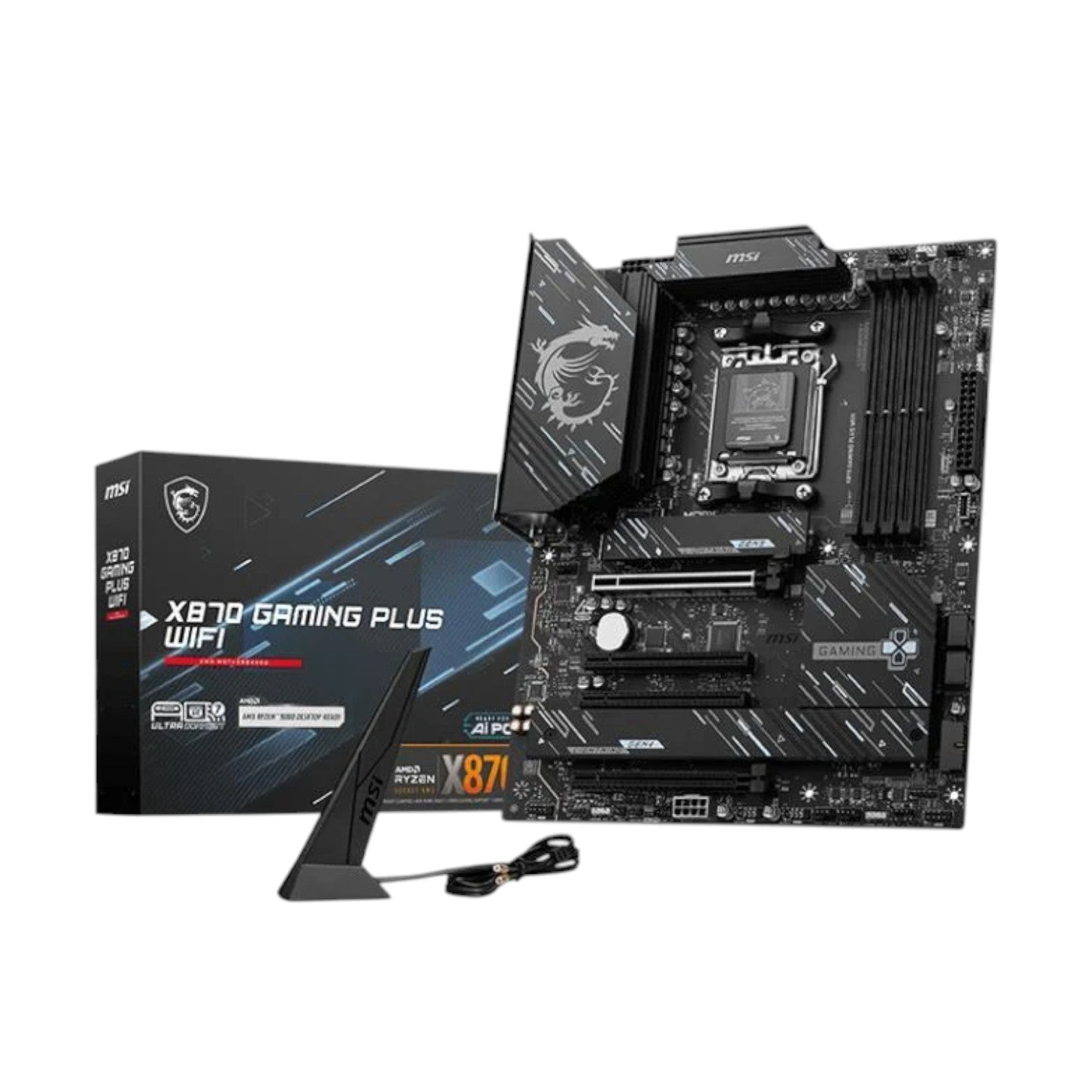

MSI X870 GAMING PLUS WIFI AM5 Motherboard

MSI X870 GAMING PLUS WIFI AM5 Motherboard

Brand: MSI (AMD)
SKU: X870 GAMING PLUS WIFI
Availability: Out Of Stock

Key Features

Supported RAM: 4x DDR5 8200 (OC) MT/s
Graphics Output: 1x HDMI, 1x Type-C Display Port
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 39,500
Tk 40,000
Tk 39,500
Subtotal: Tk 39,500
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD X870
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x Type-C DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN Port (s) Realtek 8126VB 5G LAN
Wireless Communication module Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Digit Debug LED

Warranty

Warranty 3 Years Warranty

Description

MSI X870 GAMING PLUS WIFI AM5 Motherboard

The MSI X870 GAMING PLUS WIFI AM5 Motherboard is a next-generation MSI motherboard crafted for gamers, creators, and professionals seeking a perfect balance of high performance, reliable connectivity, and customization flexibility. Optimized for AMD Ryzen 9000, 8000, and 7000 Series processors, this AM5 motherboard supports dual-channel DDR5 memory with speeds exceeding 8200+ MT/s for lightning-fast multitasking and responsive computing.

Power delivery is handled by a robust 14+2+1 Duet Rail Power System, featuring dual 8-pin CPU power connectors, MSI’s Core Boost and Memory Boost technologies, and an 8-layer 2oz thick copper PCB for ultra-stable performance, even during long, intensive workloads. Storage and expansion are fully supported with PCIe 5.0 x16 slots, Lightning Gen5 x4 M.2 slots, and EZ M.2 Shield Frozr II, providing secure, high-speed access for modern NVMe drives and GPUs.

Networking and connectivity are future-ready, featuring Wi-Fi 7, 5G LAN, and USB4 support for seamless online experiences. Audio is enhanced via MSI’s Audio Boost technology, delivering studio-grade sound for immersive gaming and professional applications. The motherboard also includes MSI’s EZ DIY features for simplified installation, easy troubleshooting, and efficient system customization.

With its powerful performance, advanced connectivity, versatile storage options, and sleek design, the MSI X870 GAMING PLUS WIFI AM5 Motherboard is a high-quality foundation for next-generation AMD PC builds.

Buy the MSI X870 GAMING PLUS WIFI AM5 Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI X870 GAMING PLUS WIFI AM5 Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI X870 GAMING PLUS WIFI AM5 Motherboard comes with a 3-year warranty.
