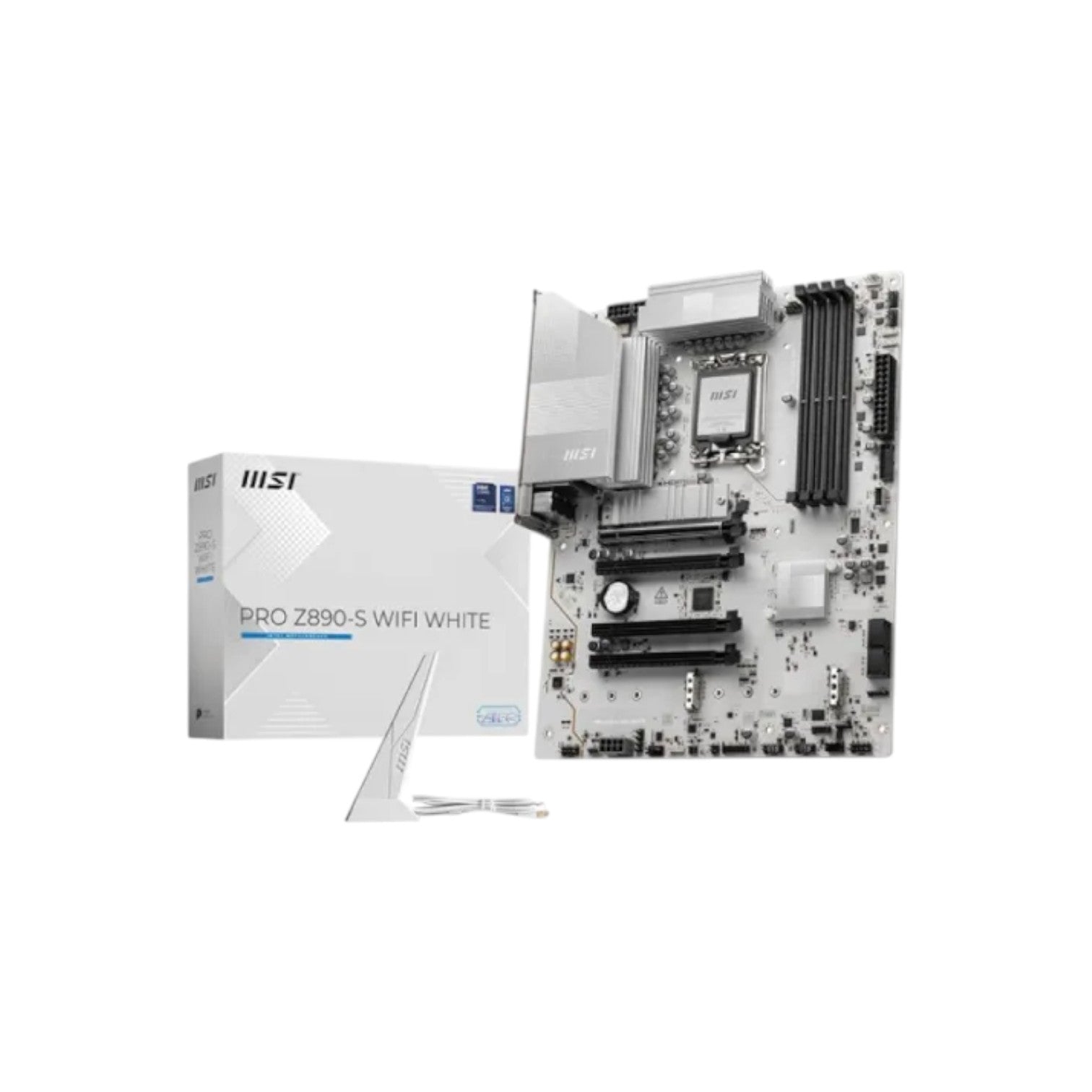

MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: PRO Z890-S WIFI WHITE
Availability: In stock

Key Features

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
Supported RAM: 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB

Ask an expert
Tk 37,500
Tk 39,000
Tk 37,500
Subtotal: Tk 37,500
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
LGA 1851
Chipset INTEL Z890
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special Features 4x EZ Debug LED

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory 256GB



Graphics

Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s) 4x USB 2.0 (Front)
6x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Warranty

Warranty 3 years

Description

MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard

The MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard is a premium, high-performance solution built to support the latest Intel Core Ultra (Series 2) processors on the advanced LGA 1851 socket. Designed for enthusiasts and professionals, it combines next-generation performance with an elegant white aesthetic that complements modern PC builds. This motherboard supports dual-channel DDR5 memory with speeds up to 8800+ MHz (OC) and a maximum capacity of 256GB, ensuring ultra-fast multitasking, responsiveness, and system efficiency. With PCIe 5.0 support, Lightning Gen 5 x4 M.2, and four PCIe x16 slots, the MSI PRO Z890-S WIFI WHITE offers exceptional expandability and cutting-edge data transfer speeds for demanding workflows and gaming.

Storage options are highly versatile, with three M.2 slots and four SATA 6Gb/s ports supporting both SATA and NVMe RAID configurations. Connectivity is equally impressive, featuring Intel Wi-Fi 7 for wireless speeds up to 5.8Gbps, a 2.5Gbps LAN port, and a wide range of USB options including USB 20Gbps Type-C and USB 5Gbps Type-A ports. The integrated Thunderbolt 4 interface enables data transfer speeds of up to 40Gbps, daisy-chaining for multiple devices, and 8K display output compatibility. The motherboard also supports DisplayPort 1.4, HDMI 2.1, and Type-C DisplayPort outputs, offering resolutions up to 8K for immersive visuals and creative workflows.

Built with a durable 6-layer PCB and dual 8-pin CPU power connectors, the MSI PRO Z890-S WIFI WHITE ensures reliable power delivery and stability. Thermal performance is optimized with expanded heatsinks, MOSFET thermal pads rated at 7W/mK, and the EZ M.2 Shield Frozr, maintaining ideal operating temperatures under load. Audio Boost, powered by the Realtek ALC897 codec, delivers immersive 7.1-channel HD sound for gaming and multimedia experiences. For ease of use, EZ Debug LEDs simplify troubleshooting, while addressable RGB headers provide extensive lighting customization for a personalized setup.

Buy the MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard comes with a 3-year warranty.
