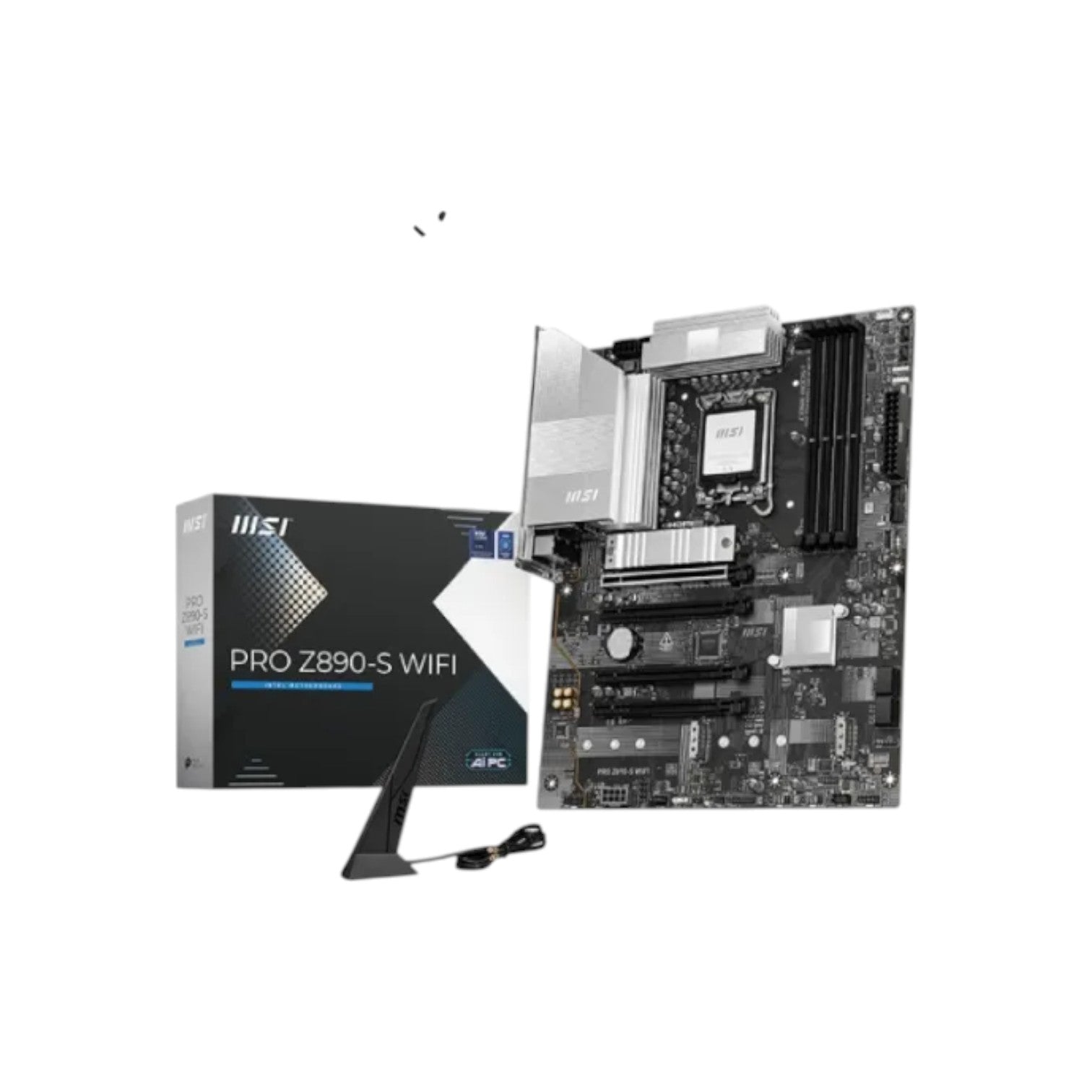

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: PRO Z890-S WIFI
Availability: In stock

Key Features

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
Supported RAM: 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB

Tk 36,700
Tk 38,000
Tk 36,700
Subtotal: Tk 36,700

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
LGA 1851
Chipset INTEL Z890
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special Features 4x EZ Debug LED

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s) 4x USB 2.0 (Front)
6x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Warranty

Warranty 3 years

Description

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

The MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard is a next-generation powerhouse designed for professionals, gamers, and creators who demand top-tier performance and stability. Built to support Intel Core Ultra (Series 2) processors with the latest LGA 1851 socket, this motherboard combines durability, speed, and advanced technology to deliver a seamless computing experience. Supporting dual-channel DDR5 memory with speeds up to 8800+ MHz (OC) and a maximum capacity of 256GB, it ensures ultra-fast data processing, responsiveness, and efficiency for both gaming and intensive workloads. Its robust 12+1+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, and 6-layer server-grade PCB design guarantee stable and reliable power delivery under high performance demands.

For superior cooling, the MSI PRO Z890-S WIFI integrates advanced thermal solutions such as an expanded heatsink, high-conductivity 7W/mK MOSFET thermal pads, and the M.2 Shield Frozr to maintain optimal temperatures during heavy use. The motherboard’s EZ DIY features — including EZ PCIe Clip II, EZ M.2 Clip II, and EZ Antenna — make assembly and upgrades effortless, ensuring a smooth building experience.

Equipped with the latest connectivity options, this MSI Intel Ultra Series motherboard includes PCIe 5.0 slots, Lightning Gen 5 x4 M.2 support, and a Thunderbolt 4 port offering 40Gbps transfer speeds, 8K display support, and USB 4.0 compatibility. For networking, it features Intel Wi-Fi 7, 2.5G LAN, and Bluetooth 5.4, providing high-speed, secure, and reliable connections. The Realtek ALC897 Codec-powered Audio Boost technology delivers crisp, immersive sound for gaming and multimedia.

With extensive storage options, including up to three M.2 slots, four SATA 6Gb/s ports, and RAID configuration support, the MSI PRO Z890-S WIFI provides flexibility for both performance and capacity. It also supports multiple high-resolution display outputs through HDMI 2.1, DisplayPort 1.4, and Type-C DisplayPort, with resolutions up to 8K. Additional features include USB 20Gbps Type-C ports, RGB and addressable LED headers, TPM 2.0 support, and diagnostic LEDs for advanced system monitoring.

Buy the MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
