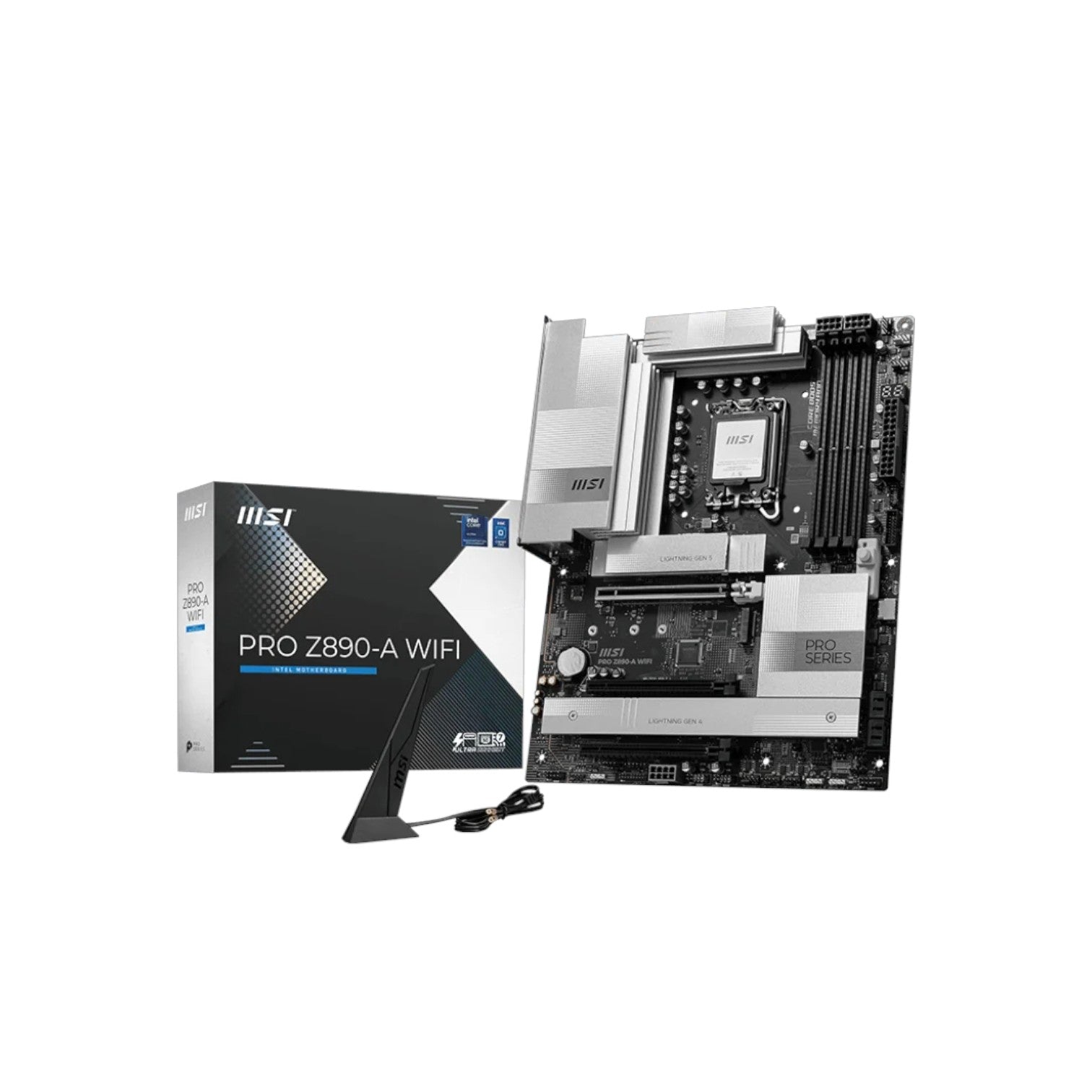

MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: PRO Z890-A WIFI
Availability: In stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Tk 44,000
Tk 44,300
Tk 44,000
Subtotal: Tk 44,000

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC1220P
7.1-Channel High Definition Audio
Supports S/PDIF output

Expansion Slots

PCI 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2



Memory

Type DDR5
Slots 4
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 256GB



Graphics

Graphics 1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 2x Type-C DisplayPort
Thunderbolt 4 ports, supporting DisplayPort 1.4 over USB Type-C
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s) Realtek 8126 5Gbps LAN
Wireless Communication module

Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

Supported Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard

The MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard is a high-end, performance-driven board built for professionals, creators, and power users seeking stability, speed, and next-generation connectivity. Designed to support Intel Core Ultra (Series 2) processors with the LGA 1851 socket, this motherboard provides a future-ready foundation for demanding computing tasks. Its sleek silver design complements modern PC builds, offering both style and substance. Equipped with a powerful 16+1+1 Duet Rail Power System with 90A Smart Power Stages, dual 8-pin CPU power connectors, and MSI’s Core Boost and Memory Boost technologies, it ensures precise and stable power delivery for top-tier CPUs and high-speed DDR5 memory. With support for up to 256GB of dual-channel DDR5 RAM running at speeds of up to 9200+ MHz (OC), the MSI PRO Z890-A WIFI delivers exceptional multitasking and application performance for professionals and gamers alike.

This motherboard excels in connectivity and expansion with built-in Wi-Fi 7, 5G LAN, and Thunderbolt 4 support for lightning-fast data transfers, smooth streaming, and versatile device compatibility. It also includes PCIe 5.0 slots and M.2 Gen5 storage for the latest GPUs and NVMe SSDs, ensuring blazing-fast bandwidth and storage performance. Multiple USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports, along with USB Type-C connectivity, provide plenty of options for high-speed peripheral connections. Designed with MSI’s EZ DIY features — including pre-installed I/O shielding, EZ PCIe Release, and EZ M.2 Shield Frozr II — the PRO Z890-A WIFI ensures hassle-free installation and easy upgrades.

Advanced thermal management features such as extended heatsinks, multiple fan headers, and MOSFET thermal pads rated at 7W/mK keep your system cool under heavy loads. The premium 6-layer PCB with 2oz thickened copper ensures durability, improved signal transmission, and long-term reliability. With Audio Boost technology powered by a high-definition audio codec, users can enjoy studio-quality sound for entertainment and content creation. Combining superior performance, versatile connectivity, and modern aesthetics, the MSI PRO Z890-A WIFI is the perfect choice for professionals and enthusiasts who demand cutting-edge reliability and speed.

Buy the MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
