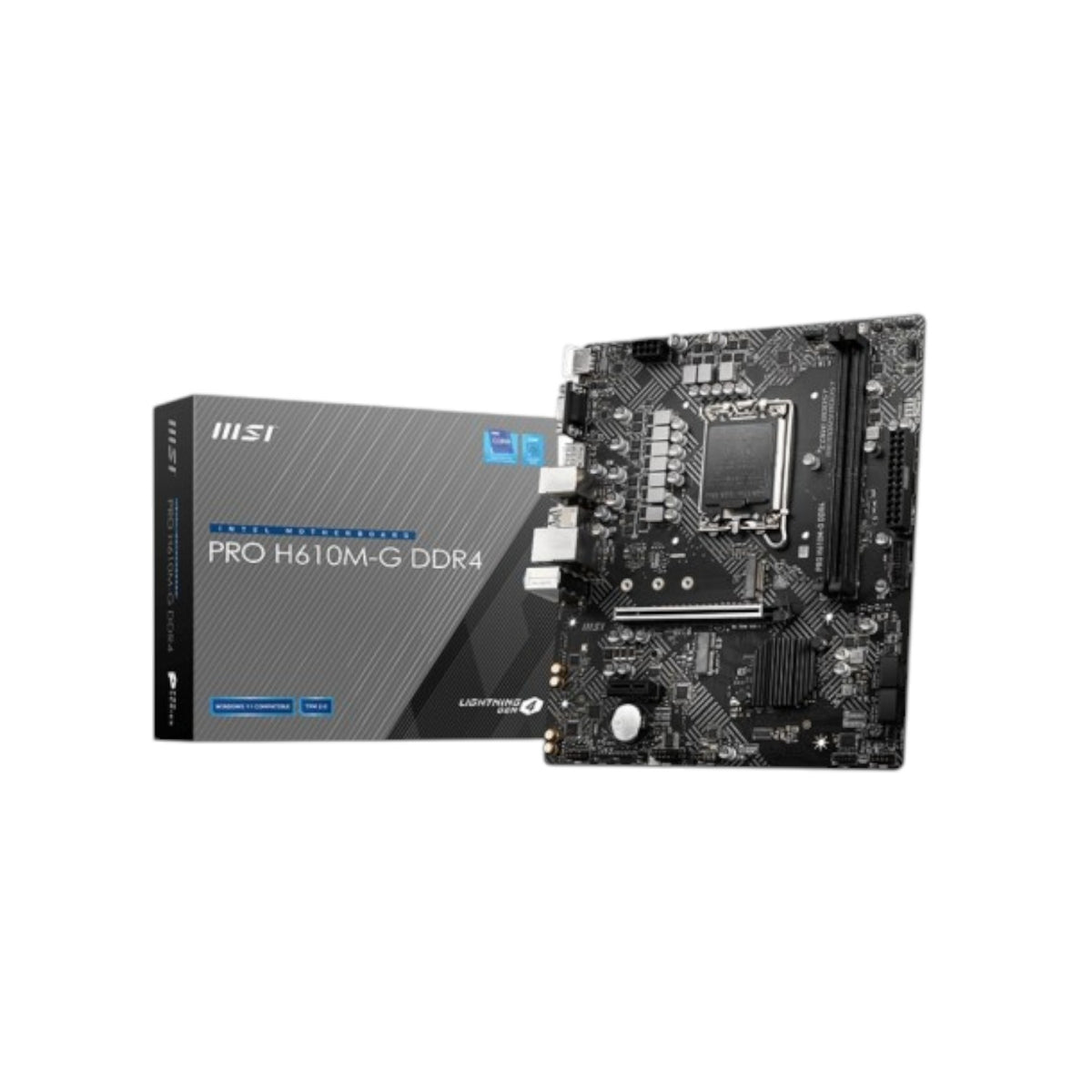

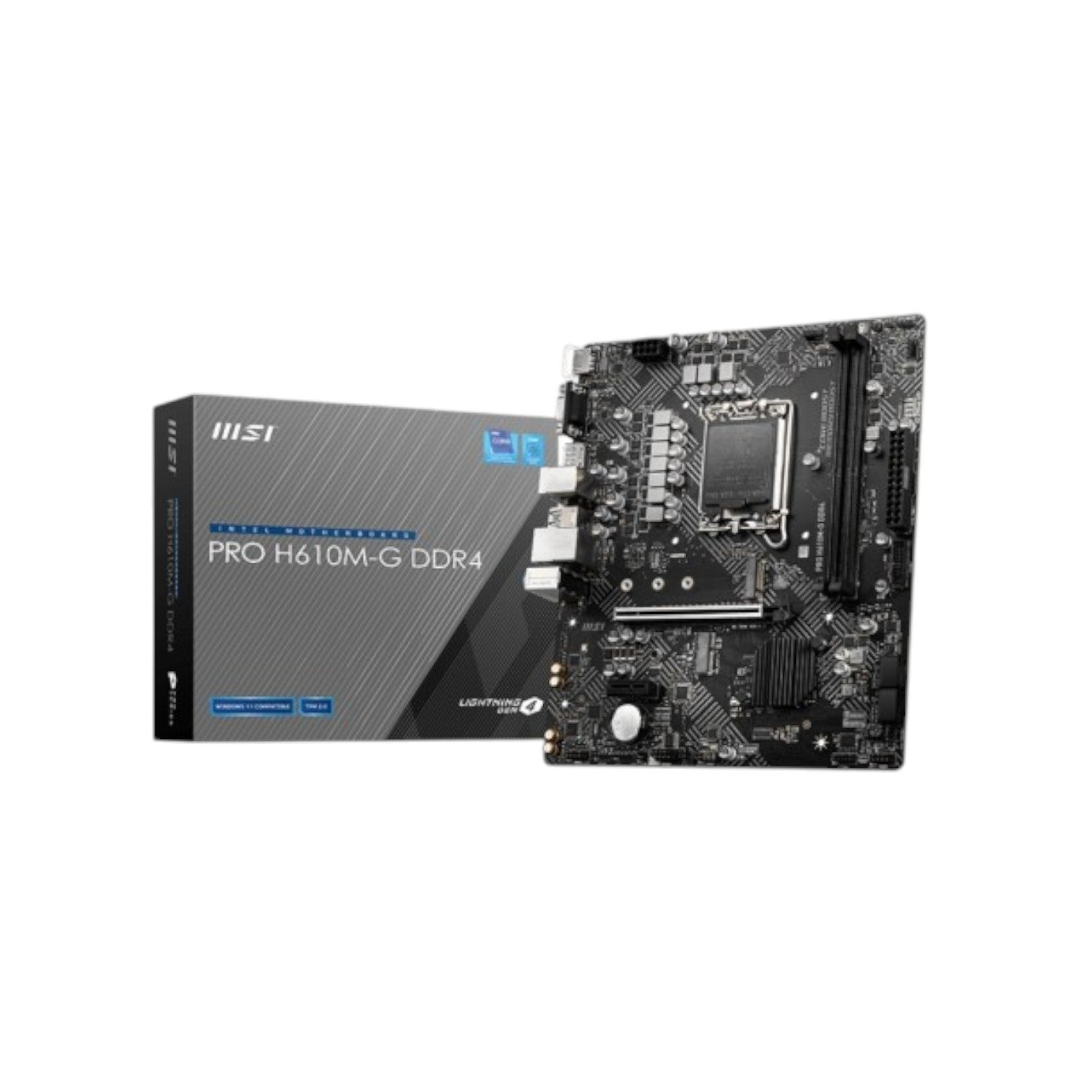

MSI PRO H610M-G DDR4 Micro-ATX Motherboard

Brand: MSI (Intel)
Availability: In stock

Key Features

Lightning Fast Experience: PCIe 4.0
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost, Memory Boost, Audio Boost
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Tk 10,900
Tk 11,700
Tk 10,900
Subtotal: Tk 10,900

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Processor socket LGA1700
Chipset Intel H610 Chipset
Form Factor mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Audio Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
M.2 Socket 3x M.2

Memory

Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memor
Maximum Memory Support up to 64GB

Graphics

Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA port
USB (s) Intel H610 Chipset:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports POWER CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

JUMPERS:
1x Clear CMOS jumper

LED FEATURES:
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED
TPM (Trusted Platform Module) 1x TPM module connector

Warranty

Manufacturing Warranty 3 Years Warranty

Description

MSI PRO H610M-G DDR4 Micro-ATX Motherboard
The MSI PRO H610M-G DDR4 is a reliable and efficient motherboard built for performance and stability. Designed with the LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. Featuring Dual Channel Non-ECC Unbuffered DDR4 memory with 2 DIMM slots, it ensures smooth multitasking and optimized memory performance. The 6+1+1 Hybrid Digital VRM Design, paired with solid capacitors, enhances transient response and reduces voltage oscillation for improved stability.

The motherboard includes MSI Lightning Gen 4 PCI-E technology, offering ultra-fast 64GB/s data transfer speeds—twice that of the previous generation. PCIe 4.0 ensures full backward and forward compatibility, while the reinforced Steel Armor design provides extra support for heavy graphics cards. The Realtek 8118 LAN chip delivers a high-performance and latency-free network experience with intelligent bandwidth allocation for gaming and streaming.

Equipped with solid plated ATX 12V 8-pin power connectors, the MSI PRO H610M-G DDR4 provides consistent and reliable power even during high CPU workloads. Smart Fan 6 technology ensures efficient thermal control with multiple temperature sensors and hybrid fan headers featuring a Fan Stop function. HDMI and D-Sub display ports allow for flexible multi-display setups, ideal for productivity and entertainment.

Buy MSI PRO H610M-G DDR4 Micro-ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO H610M-G DDR4 Micro-ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD outlet to get yours at the best price. The MSI PRO H610M-G DDR4 Motherboard comes with a 3-year warranty.
