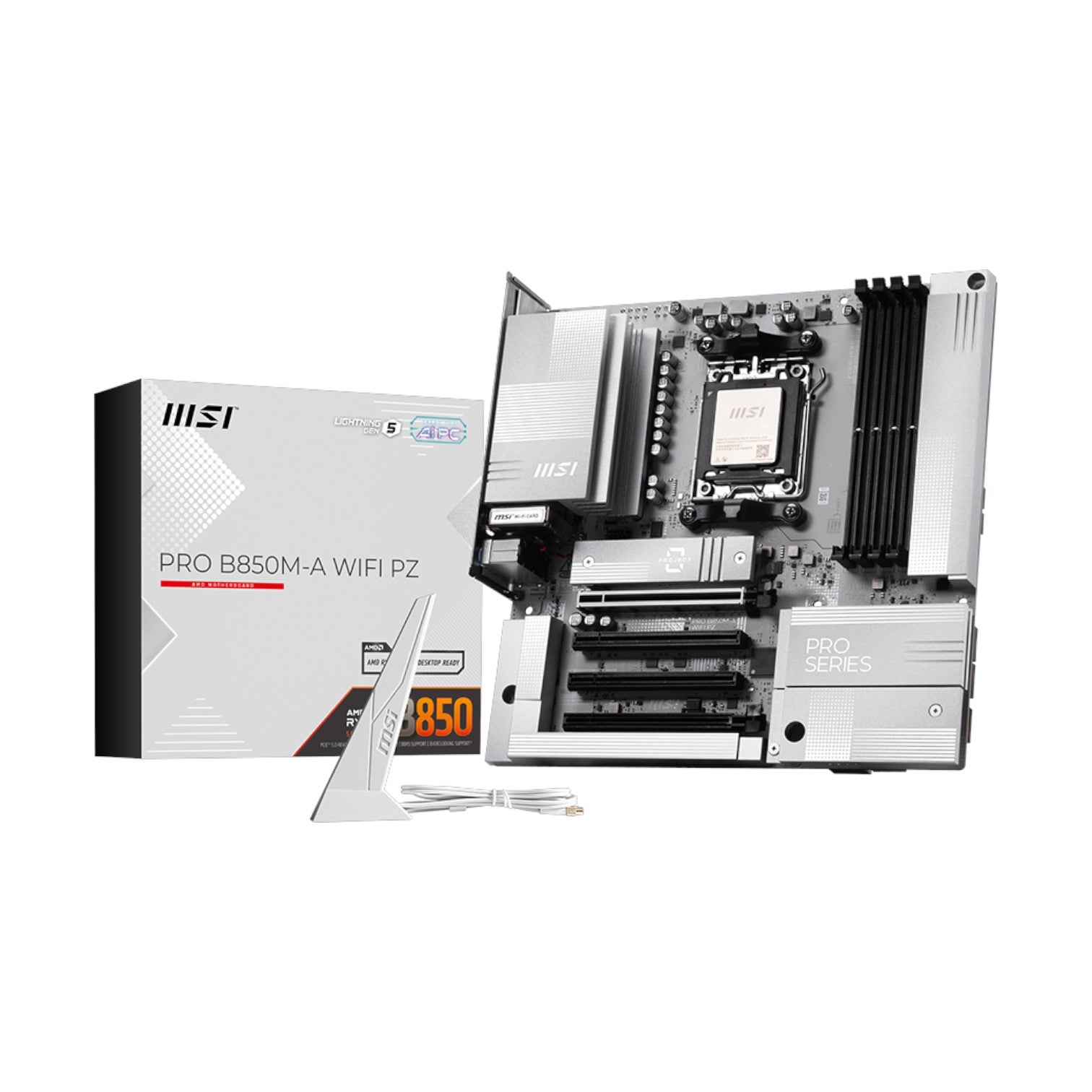

MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard

MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: PRO B850M-A WIFI PZ
Availability: In stock

Key Features

Supported RAM: 4x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 256GB
Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, Max Resolution of 4K 60Hz
Supported CPU: Ryzen 9000/8000/7000 Series for Socket AM5
Features: 2x M.2 Slot, Realtek 8126 5G LAN, Wi-Fi 7, Back-Connect (BTF) Design

Ask an expert
Tk 30,200
Tk 31,000
Tk 30,200
Subtotal: Tk 30,200
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B850
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)



Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB (s) 4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5G LAN
Wireless Communication module Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

Warranty 3 Years

Description

MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard

The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard is designed to deliver outstanding reliability, speed, and performance for modern PC builders, professionals, and gaming enthusiasts. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this AM5 motherboard ensures efficient power management and superior overclocking potential through its robust Direct 8+2+1 Power System with 60A Smart Power Stages (SPS) and 8+4-pin CPU connectors. Built with a 6-layer PCB made from 2oz thickened copper and server-grade materials, the MSI PRO B850M-A WIFI PZ guarantees excellent stability, signal integrity, and durability even under demanding workloads.

This motherboard supports dual-channel DDR5 memory with speeds up to 8200+ MT/s (OC), delivering exceptional performance for multitasking, gaming, and content creation. The advanced Frozr Guard thermal design incorporates extended heatsinks, 7W/mK MOSFET thermal pads, choke pads, and an M.2 Shield Frozr to ensure consistent cooling and optimal performance for all critical components.

For expansion and storage, the MSI PRO B850M-A WIFI PZ offers PCIe 5.0 support and Lightning Gen 5 x4 M.2 slots for next-generation NVMe SSDs, along with multiple SATA ports for versatile storage options. Networking is top-tier, featuring Realtek 8126 5G LAN for ultra-fast wired connectivity and the latest Wi-Fi 7 with Bluetooth support for seamless wireless networking — ideal for both gamers and professionals.

The motherboard also includes several EZ DIY features, such as EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, simplifying the building process and making upgrades effortless. For audio, MSI’s Audio Boost technology delivers high-quality, studio-grade sound, enhancing immersion during gaming and multimedia experiences. Multiple USB 10Gbps Type-C and Type-A ports ensure lightning-fast data transfers and flexible peripheral connections.

Compact yet powerful, the MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard embodies durability and innovation with military-grade components, RGB lighting support, and full Windows 11 compatibility. It’s an excellent choice for anyone building a future-ready system that combines efficiency, performance, and dependability.

Buy the MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard comes with a 3-year warranty.
