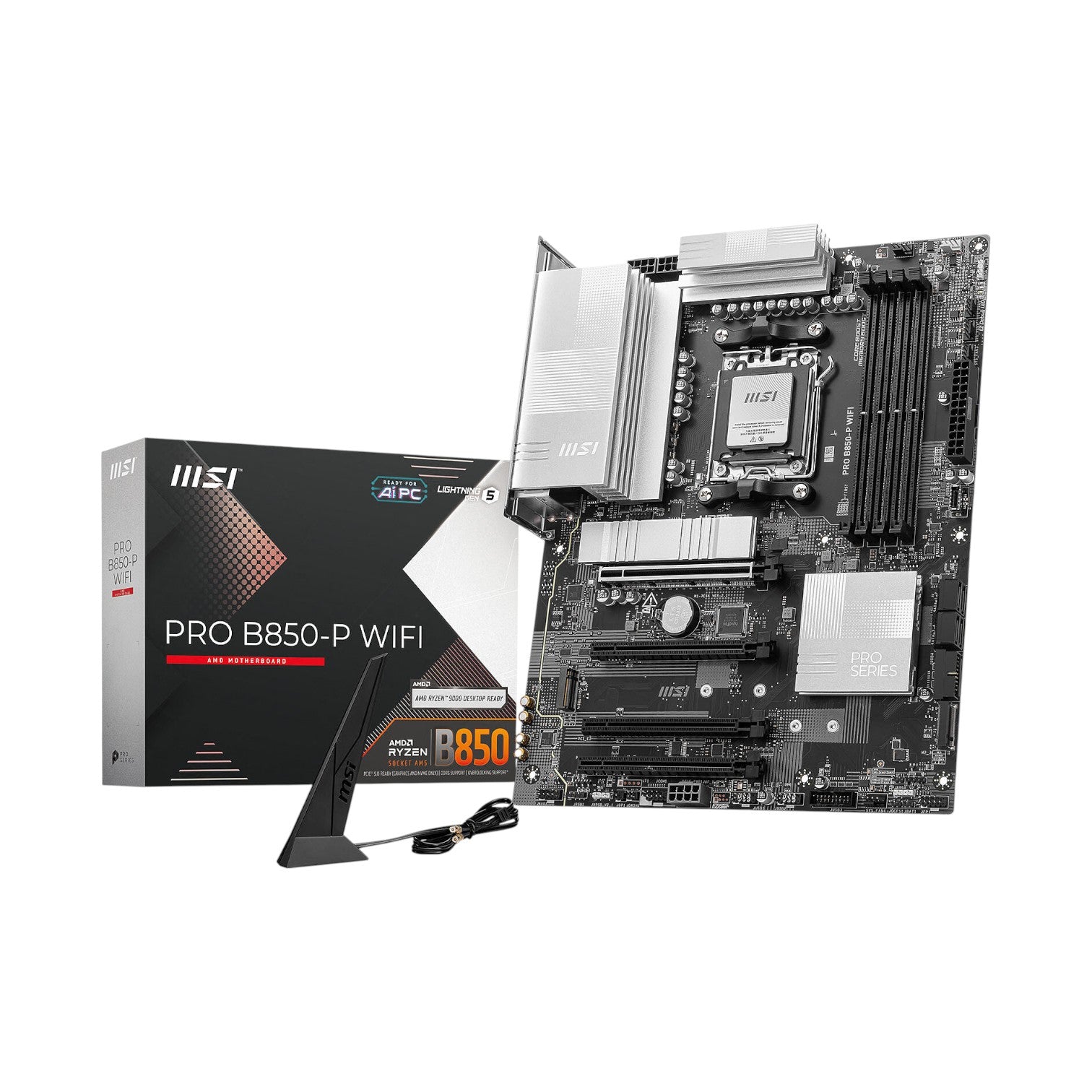

MSI PRO B850-P WIFI AM5 ATX Motherboard

MSI PRO B850-P WIFI AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: PRO B850-P WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI 2.1, 4K 60Hz Resolution
Supported RAM: 4x DDR5, up to 256GB, 8200+ MT/s (OC)
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series

Ask an expert
Tk 27,700
Tk 28,300
Tk 27,700
Subtotal: Tk 27,700
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*.
Maximum Memory 256GB



Graphics

Graphics 1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

HDMI 1x HDMI
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
LAN Port (s) Realtek 8126VB 5G LAN
Wireless Communication module Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features LED FEATURE: 4x EZ Debug LED

Warranty

Warranty 3 Years  Warranty

Description

MSI PRO B850-P WIFI AM5 ATX Motherboard

The MSI PRO B850-P WIFI AM5 ATX Motherboard is a top-tier motherboard built to meet the needs of modern creators, gamers, and professionals seeking powerful performance and next-generation support. Designed around the latest AMD B850 chipset, this motherboard supports Ryzen 7000, 8000, and 9000 Series desktop processors via the AM5 socket, delivering exceptional computing power for gaming, content creation, and demanding workloads.

Engineered with advanced DDR5 memory support, the MSI PRO B850-P WIFI can handle up to 256GB of RAM with overclocking speeds reaching 8200+ MT/s, ensuring rapid multitasking, faster load times, and ultra-smooth system performance. For expansion, it features PCIe 5.0 x16 support for the latest high-performance graphics cards, as well as multiple M.2 slots (including a Gen5-ready slot) equipped with MSI’s EZ M.2 Shield Frozr II for superior thermal management and consistent SSD performance. Power delivery is handled by a durable 12+2+1 Duet Rail Power System, supported by extended heatsinks and premium thermal pads to ensure stable operation even under heavy loads.

Connectivity is where the PRO B850-P WIFI truly shines. It integrates next-gen Wi-Fi 7 and 5G LAN, providing ultra-fast, stable, and reliable network speeds for gaming, streaming, and productivity. Whether wired or wireless, you can expect seamless and lag-free online performance. MSI’s thoughtful DIY-friendly features—such as EZ PCIe Clip II, EZ Antenna design, and tool-free installation options—make building and upgrading your system easier and more efficient.

For immersive audio, this motherboard includes Realtek ALC897 7.1-channel HD sound with MSI’s Audio Boost technology, delivering rich, detailed soundscapes for music, movies, and gaming. With its elegant silver-accented ATX design, durable components, and future-ready architecture, the MSI PRO B850-P WIFI AM5 ATX Motherboard offers an ideal balance of power, precision, and aesthetics for high-performance PC builds.

Buy the MSI PRO B850-P WIFI AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B850-P WIFI AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI PRO B850-P WIFI AM5 ATX Motherboard comes with a 3-year warranty.
