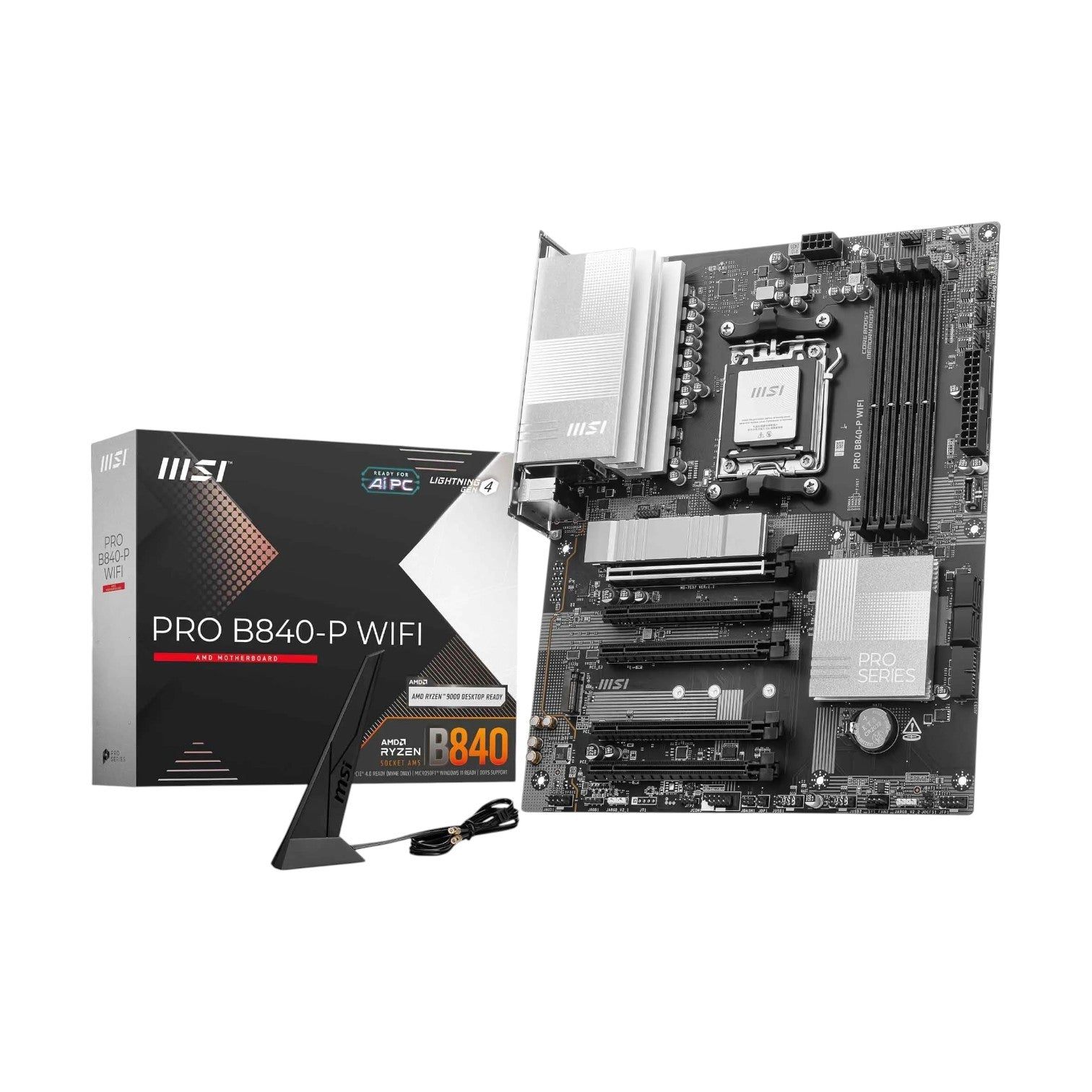

MSI PRO B840-P WIFI AMD AM5 ATX Motherboard

MSI PRO B840-P WIFI AMD AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: PRO B840-P WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz
Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 7

Ask an expert
Tk 22,600
Tk 24,500
Tk 22,600
Subtotal: Tk 22,600
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B840
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

Memory

Type DDR5
Slots 4x DDR5 UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB



Connector & Ports

HDMI 1x HDMI
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN Port (s) Realtek 8125D 2.5G LAN
Wireless Communication module Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI PRO B840-P WIFI AMD AM5 ATX Motherboard

The MSI PRO B840-P WIFI AMD AM5 ATX Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors. It uses the AM5 socket and AMD B840 chipset to deliver powerful computing performance and exceptional multitasking. With support for up to 256GB of DDR5 memory in dual-channel mode and speeds reaching 8000+ MT/s (OC), it ensures superior responsiveness for demanding workloads. Built with a 6-layer PCB using thickened copper, it enhances durability and performance, while its 7+2+1 phase power design, P-PAK, Core Boost, and Memory Boost ensure stability even under heavy loads.

The advanced Frozr Guard cooling technology includes extended heatsinks, MOSFET thermal pads, and EZ M.2 Shield Frozr II for efficient heat dissipation during intensive operations. For storage, it offers dual PCIe 4.0 M.2 slots and four SATA 6G ports supporting RAID 0, 1, and 10 configurations. It also provides a PCIe 4.0 x16 slot for fast GPU performance and PCIe 3.0 slots for additional expansion. Networking is top-tier with built-in Wi-Fi 7 delivering up to 5.8Gbps speed and 2.5G LAN for stable wired connections. The board features multiple USB options including 10Gbps Type-C and Type-A ports, along with RGB and ARGB headers for full lighting customization. The Realtek ALC897 audio codec provides immersive 7.1-channel HD sound, while HDMI 2.1 ensures 4K 60Hz display support. Additionally, EZ DIY features such as EZ M.2 and PCIe Clips, plus TPM 2.0 compatibility, make building and securing your system effortless.

Buy MSI PRO B840-P WIFI AMD AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B840-P WIFI AMD AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI PRO B840-P WIFI AMD AM5 ATX Motherboard comes with 3 years warranty.
