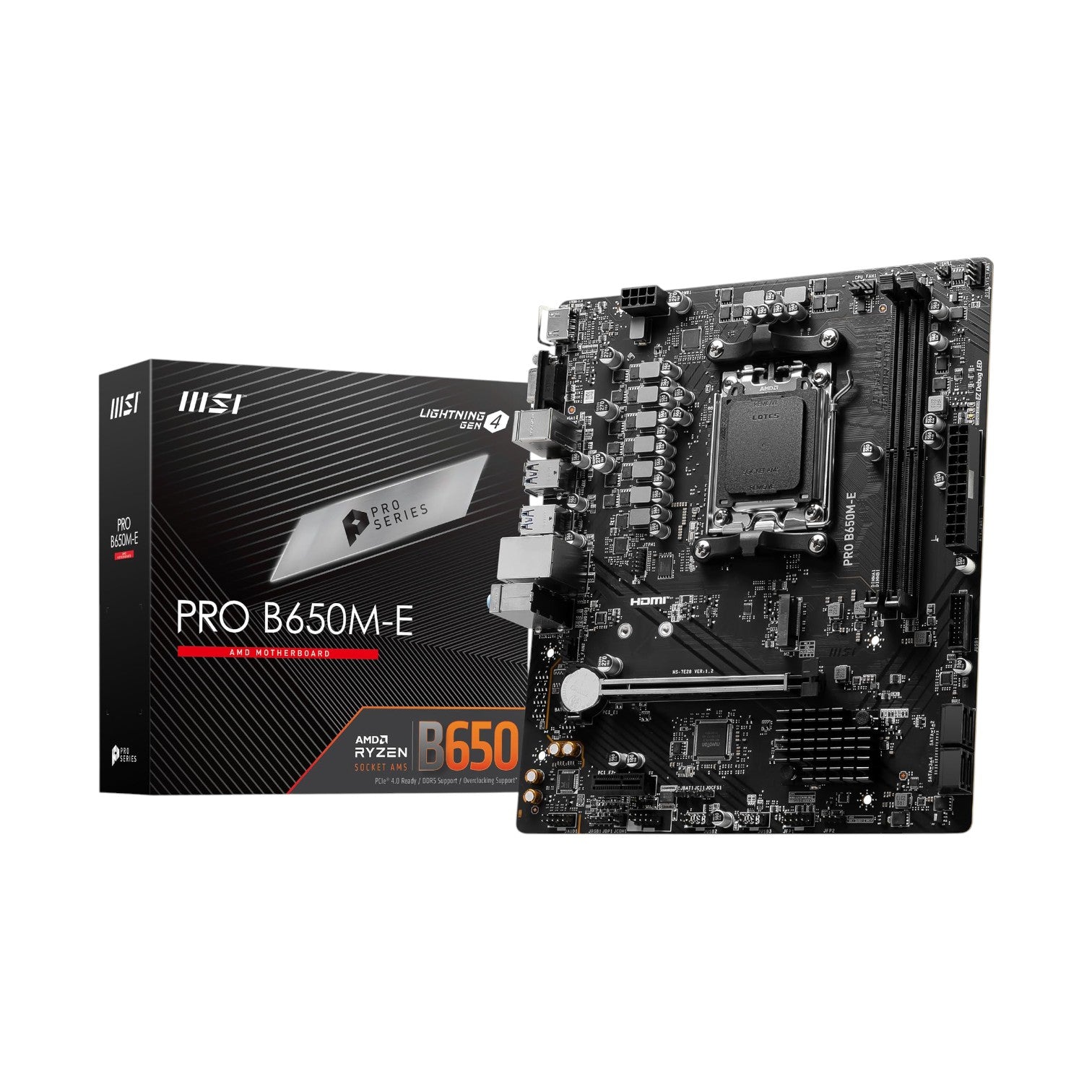

MSI PRO B650M-E AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: PRO B650M-E
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Supported RAM: 2x DDR5, up to 6800+ (OC)
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 11,700
Tk 12,500
Tk 11,700
Subtotal: Tk 11,700

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
BIOS Flash BIOS Button
Form Factor mATX
211mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
Supports x16 (For Ryzen 9000/ 7000 Series processors)
Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

Memory

Type DDR5
Slots 2 x UDIMM
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
VGA (s) 1x VGA
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front))

LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years Warranty

Description

MSI PRO B650M-E AM5 mATX Motherboard

The MSI PRO B650M-E AM5 mATX Motherboard is a reliable and high-performance motherboard designed for modern AMD systems. It supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, offering a future-ready platform for PC enthusiasts and professionals. Built with the advanced AM5 socket and efficient AMD B650 chipset, it delivers enhanced processing power and responsive system performance.

This motherboard supports dual-channel DDR5 memory with speeds up to 6800+ MHz (OC) and comes with two memory slots, supporting up to 128GB DDR5 RAM. Optimized for overclocking and compatible with AMD EXPO profiles, it ensures stable and efficient performance under heavy workloads. The MSI PRO B650M-E also supports non-ECC unbuffered memory, making it ideal for high-speed multitasking and demanding applications.

For display options, the motherboard features an HDMI 2.1 port supporting 4K at 60Hz and a VGA port for legacy monitors, providing flexible connectivity. Audio is powered by the Realtek ALC897 codec, delivering immersive 7.1-channel high-definition sound for gaming, streaming, or professional work. Expansion options include one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, enabling GPU acceleration and additional add-on cards. Storage options include one PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports, supporting RAID 0, 1, and 10 for fast and secure storage configurations.

Networking is handled by Realtek RTL8111H Gigabit LAN, ensuring stable wired connections for gaming, video calls, and data transfer. Connectivity includes multiple USB ports: 2x rear USB 2.0, 4x front USB 2.0, 4x rear USB 5Gbps Type-A, and 2x front USB 5Gbps Type-A, supporting peripherals and external devices. Internal headers include ATX power, CPU and system fan headers, front panel connectors, chassis intrusion, front audio, COM port, TPM 2.0, and RGB LED connectors. EZ Debug LEDs simplify troubleshooting and system diagnostics.

Measuring 211mm x 243.84mm, the micro-ATX form factor makes it perfect for compact, space-efficient builds without compromising features. With support for next-gen AMD Ryzen processors, ultra-fast DDR5 memory, PCIe 4.0 storage and GPU compatibility, and high-speed USB connectivity, the MSI PRO B650M-E mATX Motherboard is ideal for gamers, business users, and system builders seeking performance, reliability, and value.

Buy MSI PRO B650M-E AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B650M-E AM5 mATX Motherboard from Tech Buy BD. We have a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI PRO B650M-E AM5 mATX Motherboard comes with a 3-year warranty.
