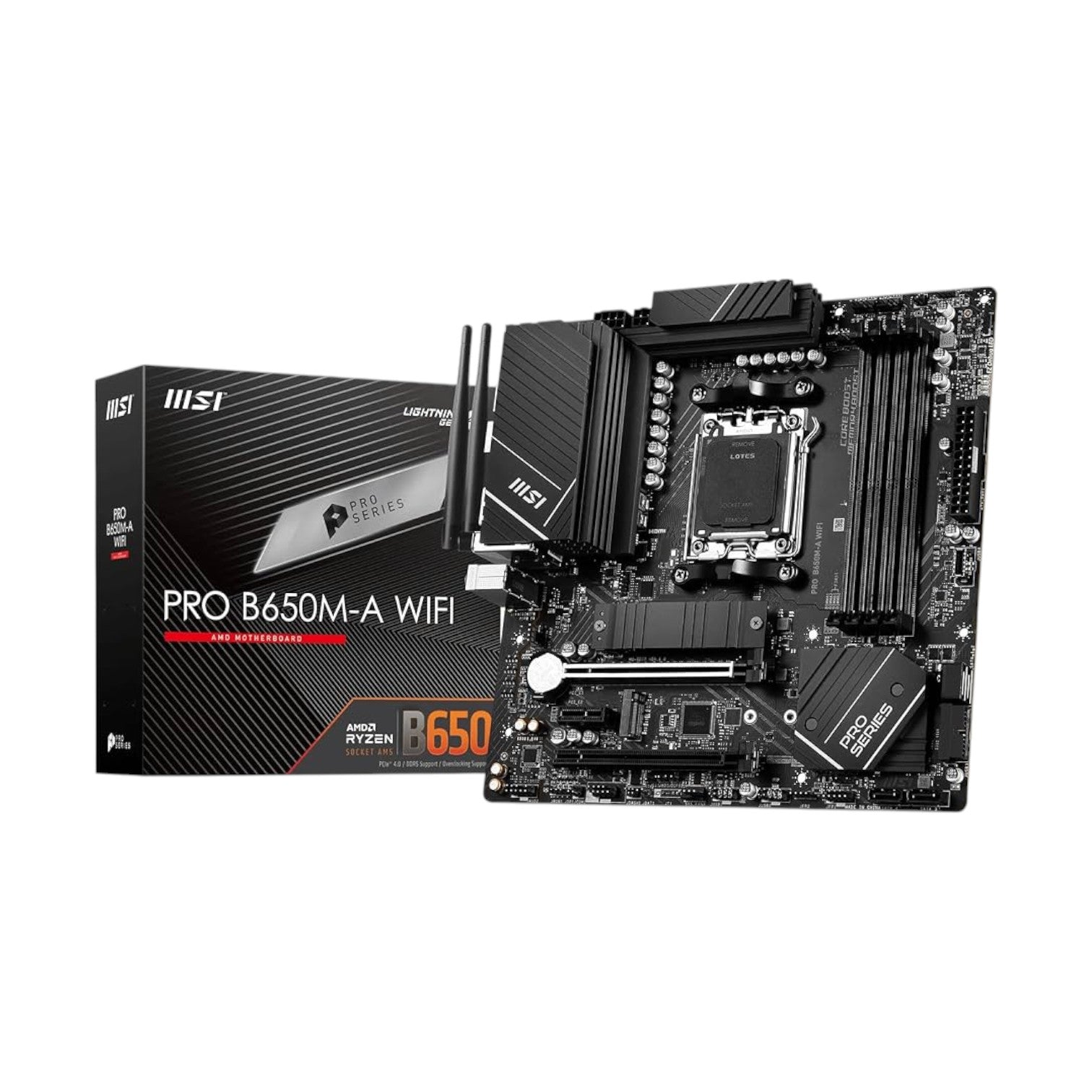

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: PRO B650M-A WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 6400+(OC) MHz
Features: 2.5G LAN with Wi-Fi 6E Solution
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 20,200
Tk 20,600
Tk 20,200
Subtotal: Tk 20,200
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5800+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
1x DisplayPort
Support HDMI 2.1, maximum resolution of 4K 60Hz
Supports DP1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
LAN Port (s) Realtek 8125BG 2.5G LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2
Supported Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard

The MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard is a reliable and high-performance choice for users who demand stability, speed, and versatility for both gaming and professional workloads. Designed to support AMD Ryzen 8000 and 7000 Series processors with up to 16 Zen 4 cores, this motherboard ensures top-tier performance and efficiency. It supports dual-channel DDR5 memory with a maximum capacity of up to 128GB and speeds of up to 6400+ MHz (OC), providing the bandwidth and responsiveness required for modern computing.

Equipped with MSI’s Core Boost technology, the PRO B650M-A WIFI combines a premium PCB layout and optimized power design to deliver clean, precise, and efficient current to the CPU. This ensures reliable power delivery for multi-core processors and provides excellent headroom for stable overclocking. Built with a durable 6-layer PCB made of 2oz thickened copper and server-grade materials, it offers superior heat dissipation, signal integrity, and long-term durability.

The advanced thermal design includes an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr that helps maintain ideal operating temperatures during heavy workloads or gaming sessions. For storage and expansion, it features PCIe 4.0 slots and Lightning Gen 4 x4 M.2 with heatsink protection, ensuring ultra-fast SSD performance without throttling.

Connectivity options are extensive, with built-in Wi-Fi 6, Bluetooth, and 2.5G LAN for fast, stable networking. The motherboard also includes USB 3.2 Gen 2x2 Type-C ports offering speeds up to 20Gbps—four times faster than standard USB 3.2 Gen 1. The rear I/O panel features convenient shortcuts for Safe Boot, RGB lighting control, and Turbo mode activation, enhancing user experience and customization.

With its balance of durability, performance, and functionality, the MSI PRO B650M-A WIFI DDR5 Motherboard is perfect for both gamers and professionals seeking a reliable AM5 platform with advanced DDR5 support and cutting-edge connectivity.

Buy MSI PRO B650M-A WIFI DDR5 Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard from Tech Buy BD. We have a wide range of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD store to get yours at the best price. The MSI PRO B650M-A WIFI Motherboard comes with 3 years warranty.
