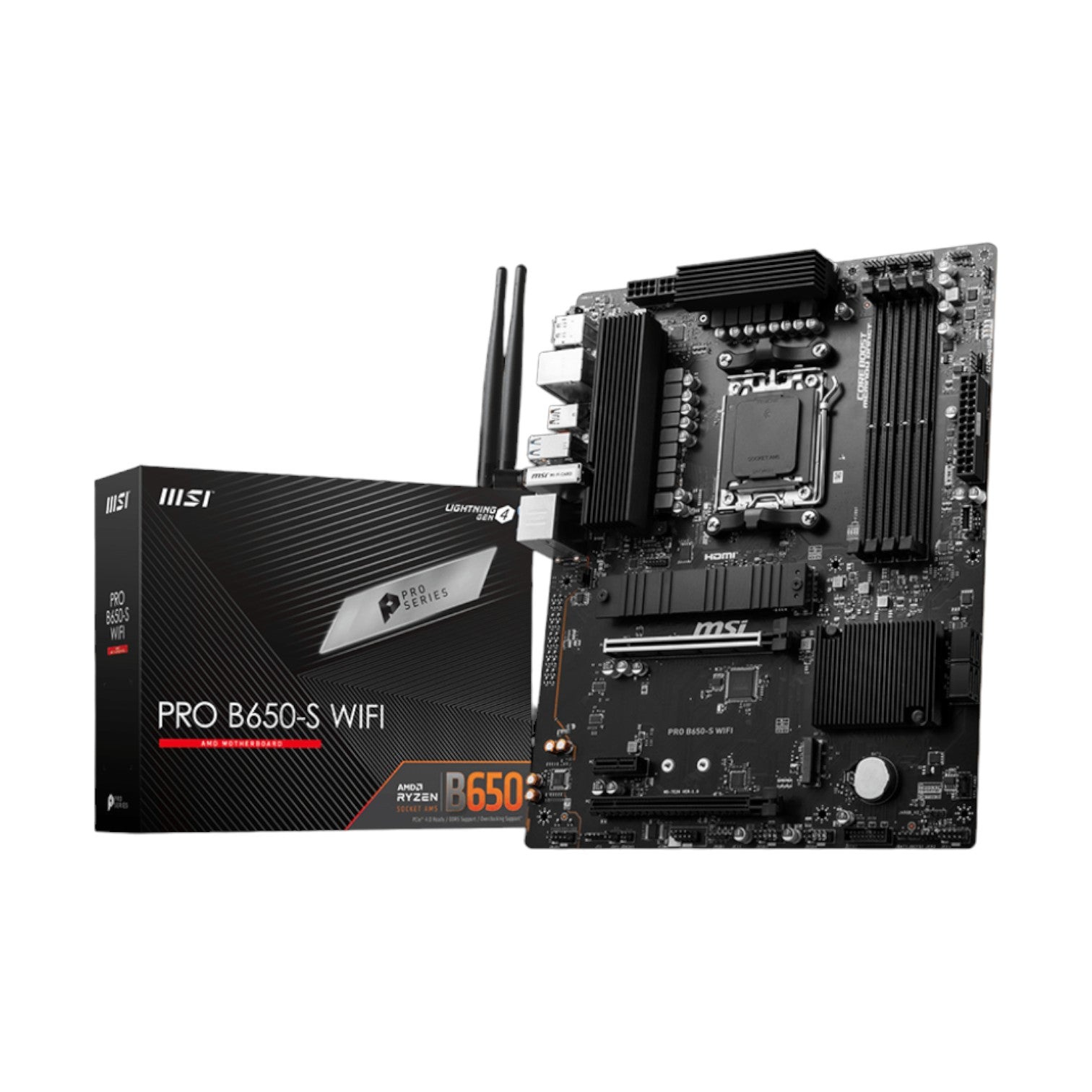

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: PRO B650-S WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 7200+(OC) MHz
Features: 2.5G LAN with Wi-Fi 6E Solution
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 20,700
Tk 21,700
Tk 20,700
Subtotal: Tk 20,700
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000 & 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7200+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 192GB



Graphics

Graphics 1x HDMI
1x DisplayPort
Support HDMI 2.1, maximum resolution of 4K 60Hz
Supports DP1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 8125BG 2.5G LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports INTERNAL IO:
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

BACK PANEL PORTS:
DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is engineered for those who demand top-tier performance, reliability, and efficiency. Designed to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, this motherboard ensures compatibility with the latest and most powerful CPUs available. Featuring dual-channel DDR5 memory support with speeds of up to 7200+ MHz (OC), it delivers exceptional data transfer rates and smooth multitasking for gaming, content creation, and professional workloads.

With a 12+2 Duet Rail Power System, dual 8-pin CPU power connectors, and MSI’s Core Boost and Memory Boost technologies, the MSI PRO B650-S WIFI ensures precise and stable power delivery for enhanced performance and overclocking potential. Its robust thermal design includes 7W/mK MOSFET thermal pads and M.2 Shield Frozr, effectively dissipating heat to maintain system stability during heavy usage. Built on a 6-layer PCB made from 2oz thickened copper, it provides improved durability, signal integrity, and long-term reliability.

For storage and expansion, the motherboard includes PCIe 4.0 slots and Lightning Gen 4 x4 M.2 with M.2 Shield Frozr protection, ensuring lightning-fast SSD performance while preventing thermal throttling. Connectivity options are equally impressive, with USB 3.2 Gen 2x2 ports supporting data transfer speeds up to 20Gbps, catering to modern peripherals and external drives.

Networking is fast and reliable thanks to 2.5G LAN and Wi-Fi 6E, offering high-speed, low-latency connections for both wired and wireless users. Additionally, AUDIO BOOST technology enhances your gaming and multimedia experience by delivering studio-grade sound quality for immersive entertainment.

Overall, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard combines superior power design, advanced cooling, and cutting-edge connectivity, making it an ideal choice for gamers, creators, and professionals seeking a powerful and future-ready AM5 platform.

Buy MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard from Tech Buy BD. We have a wide range of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD store to get yours at the best price. The MSI PRO B650-S WIFI Motherboard comes with 3 years
