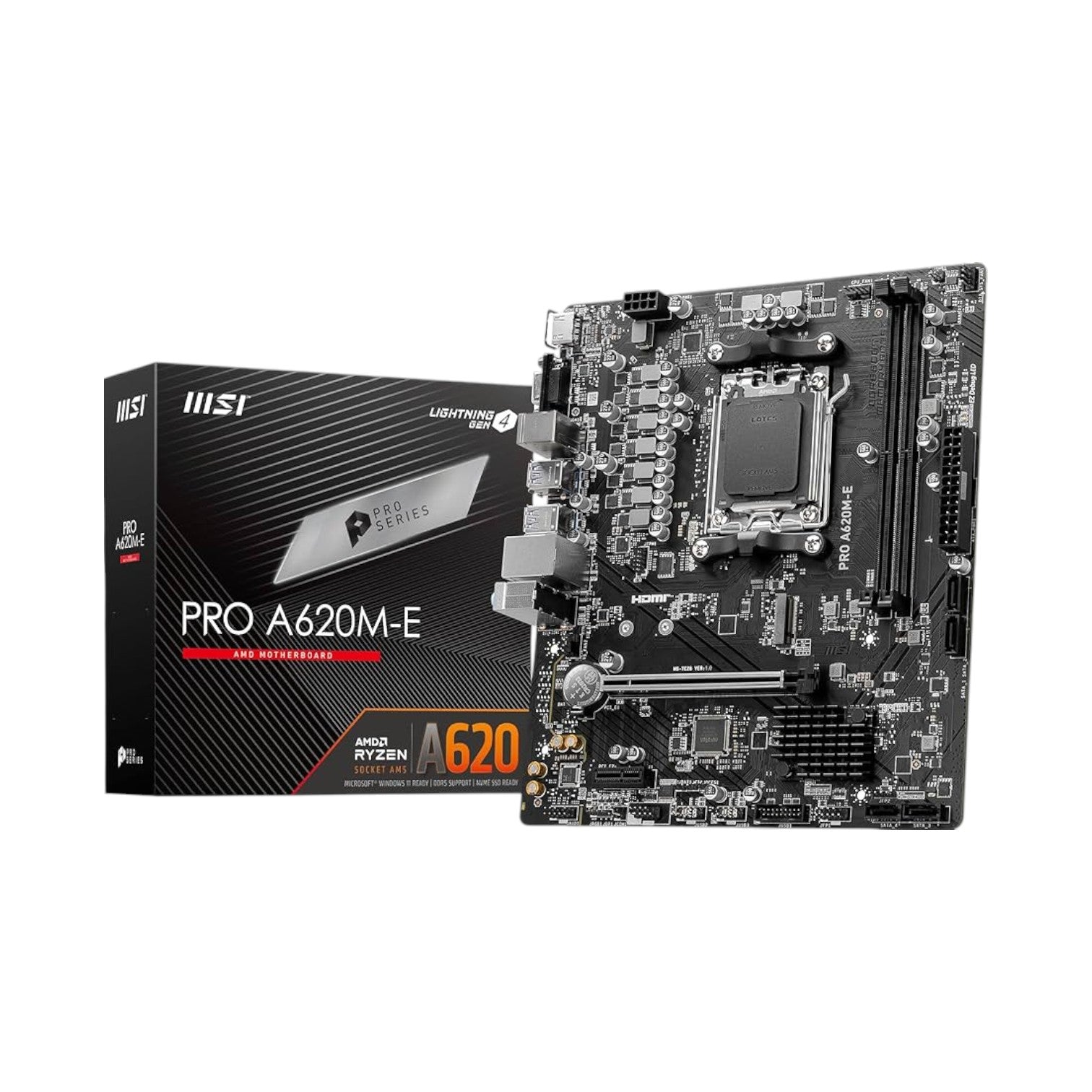

MSI PRO A620M-E AMD AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: PRO A620M-E
Availability: In stock

Key Features

Graphics Output: 1x HDM, 1x VGA
Features: 1x M.2, RTL8111H Gigabit LAN
Supported RAM: 2x DDR5, Max 96GB 6000+MHz (OC)
Supported CPU: Ryzen 9000/ 8000 / 7000 Series Processors for Socket AM5

Tk 11,300
Tk 11,499
Tk 11,300
Subtotal: Tk 11,300

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD A620
Form Factor mATX
211mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 2
Supported Memory Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 96GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x VGA
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI PRO A620M-E AMD AM5 mATX Motherboard

The MSI PRO A620M-E AMD AM5 mATX Motherboard is compatible with the latest AMD Ryzen 7000 Series desktop processors, offering high performance for modern systems. Supporting DDR5 memory and Dual Channel DDR5 6000+ MHz (OC), it delivers lightning-fast memory speeds and enhanced overall performance. Core Boost technology, combined with a premium layout and digital power design, ensures optimal power delivery to support multi-core processors and maximize system efficiency. The Memory Boost feature provides pure data signals using advanced technology, guaranteeing the best performance, stability, and compatibility.

Gamers will enjoy lightning-fast data transfer and shorter loading times thanks to Lightning Gen 4 x4 M.2 support and PCIe 4.0 slots. Audio Boost technology delivers studio-quality sound for an immersive gaming experience. Steel Armor protection shields VGA cards from bending and EMI interference, providing better durability and stability for high-performance setups. The MSI PRO A620M-E is an excellent choice for building a powerful and reliable gaming system.

Buy MSI PRO A620M-E AMD AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO A620M-E AMD AM5 mATX Motherboard from Tech Buy BD. We offer a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI PRO A620M-E Motherboard comes with a 3-year warranty.
