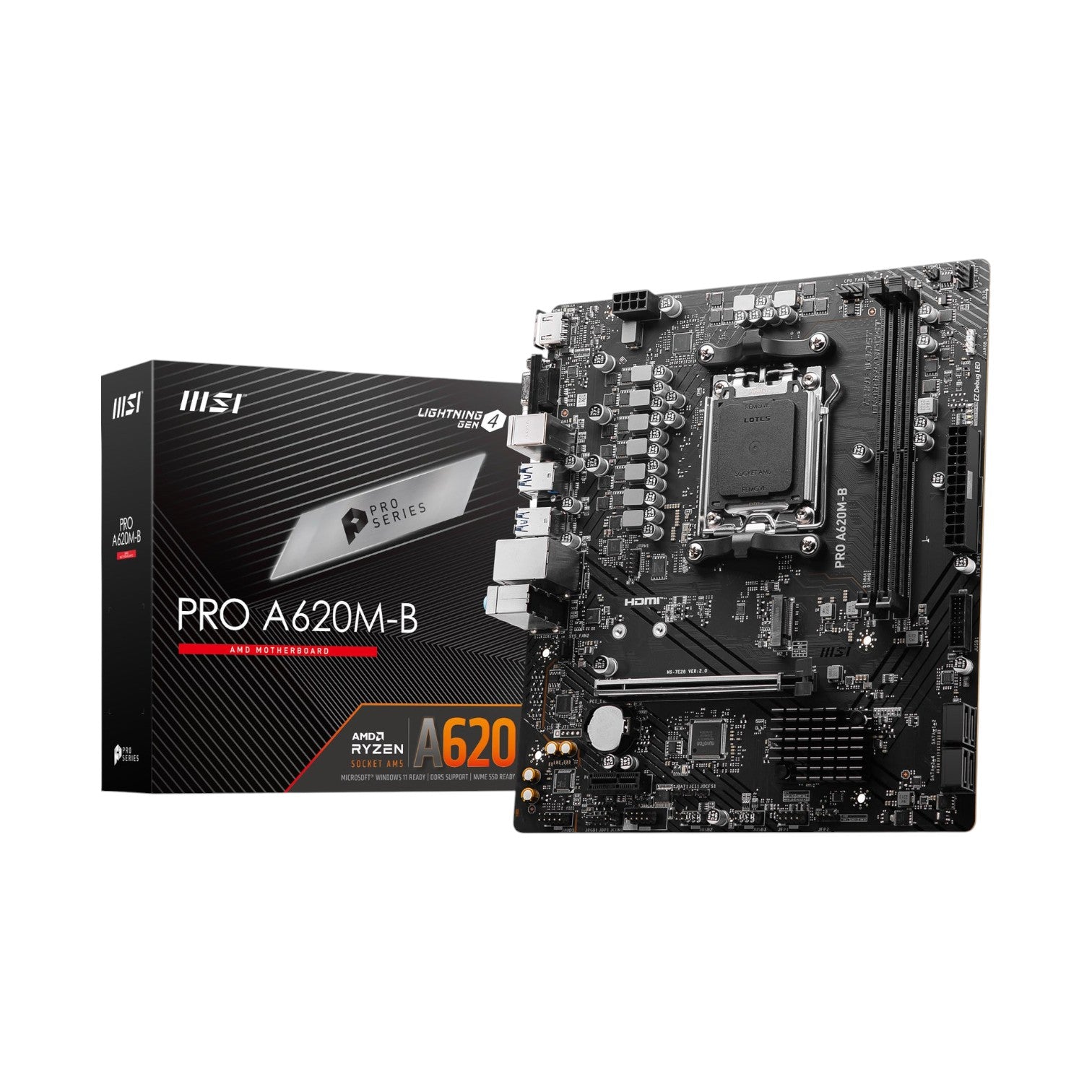

MSI PRO A620M-B AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: PRO A620M-B
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8125BG 5G LAN
Supported RAM: 2x DDR5, up to 6800+(OC) MT/s
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 11,800
Tk 12,300
Tk 11,800
Subtotal: Tk 11,800

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD A620
Form Factor mATX
215mmx243.84mm
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
Supports x16 (For Ryzen 9000 and 7000 Series processors)
Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports x4 (For Ryzen 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2

Memory

Type DDR5
Slots 2x DIMMs
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6000+ MHz
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
VGA (s) 1x VGA
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Supported Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI PRO A620M-B AM5 mATX Motherboard

The MSI PRO A620M-B AM5 mATX Motherboard is a high-performance, compact solution designed for modern AMD systems, making it an ideal choice for users building with cutting-edge technology. Powered by the AMD A620 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, ensuring long-term compatibility and top-tier performance. The motherboard features two DDR5 memory slots, supporting up to 128GB of non-ECC, unbuffered dual-channel DDR5 RAM at overclocked speeds of up to 6800+ MHz (1DPC 1R) and 6000+ MHz (1DPC 2R), with full support for AMD EXPO memory profiles.

For display options, the MSI PRO A620M-B includes an HDMI 2.1 port with 4K at 60Hz output and a legacy VGA port for CPUs with integrated graphics, offering flexibility for various monitor setups. Expansion options include a PCIe 4.0 x16 slot (configurable to x16, x8, or x4 depending on the CPU) and an additional PCIe 3.0 x1 slot. Storage is versatile, with one PCIe 4.0 x4 M.2 slot supporting 2280 and 2260 NVMe SSDs and four SATA 6Gbps ports supporting RAID 0, 1, and 10 for both speed and redundancy.

Networking is powered by the Realtek RTL8125BG 2.5G LAN for ultra-fast wired connections, while the Realtek ALC897 audio codec delivers 7.1-channel high-definition sound for immersive multimedia experiences. The rear I/O includes USB 3.2 Gen 1 5Gbps Type-A ports, USB 2.0, HDMI, VGA, audio jacks, LAN, and PS/2 support for keyboard and mouse. Internal headers provide power connections, fan headers, USB ports, audio, TPM 2.0 support, addressable RGB (JARGB_V2) and RGB (JRGB) headers, and EZ Debug LEDs for easy troubleshooting. Measuring 215mm by 243.84mm, the motherboard fits standard micro-ATX cases, making it suitable for small yet powerful desktop builds. It is compatible with Windows 11 and Windows 10 64-bit, providing a future-ready platform for gamers, content creators, and professionals.

Buy MSI PRO A620M-B AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO A620M-B AM5 mATX Motherboard from Tech Buy BD. We offer a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI PRO A620M-B AM5 mATX Motherboard comes with a 3-year warranty.
