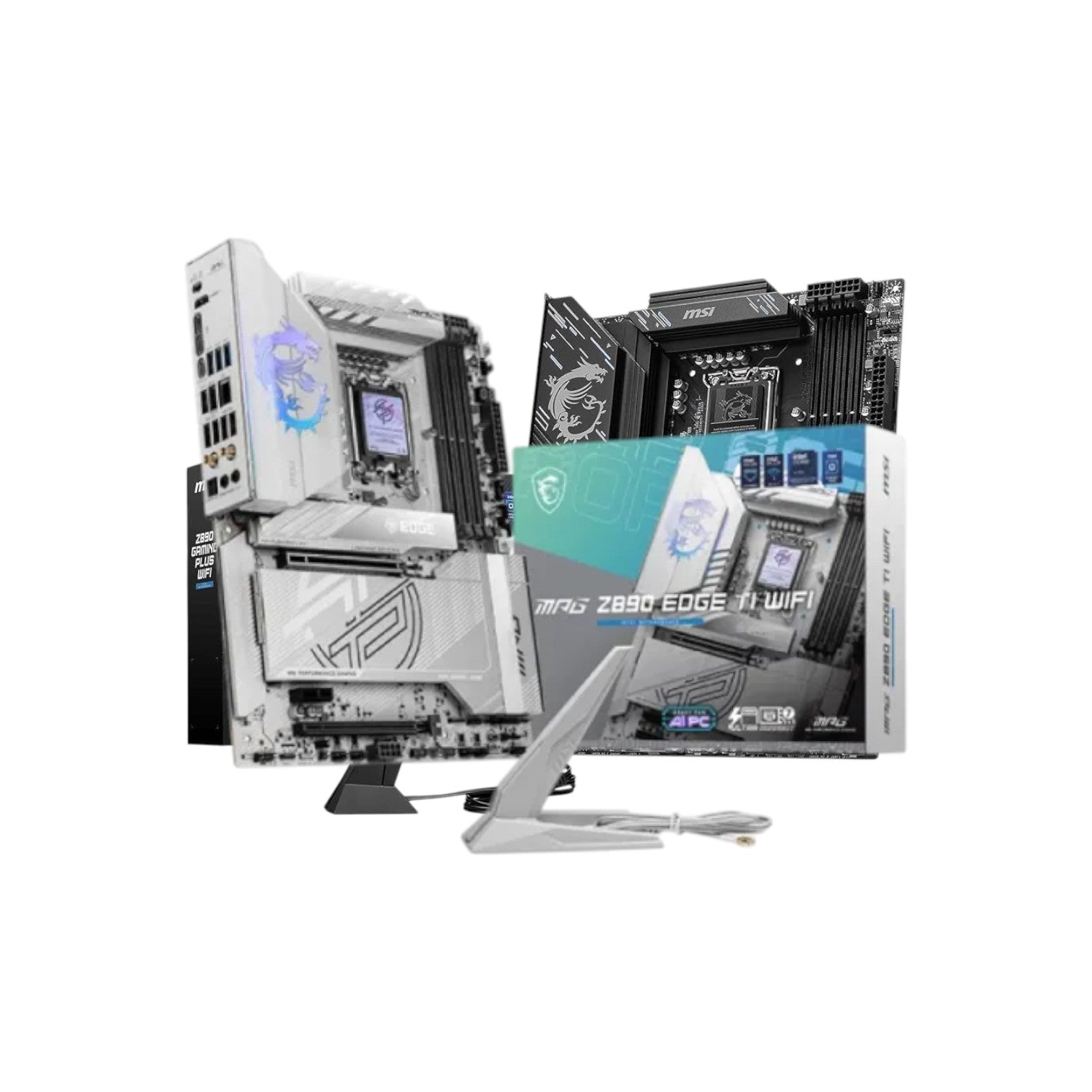

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: MPG Z890 EDGE TI WIFI
Availability: In stock

Key Features

Features: 5x M.2, Intel Wi-Fi 7
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Tk 60,000
Tk 61,500
Tk 60,000
Subtotal: Tk 60,000

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
M.2 Socket 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices

*Please refer to the manual for M.2 SSD heatsink restrictions.

Memory

Type DDR5
Slots 4x DDR5 UDIMM, Maximum Memory
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 2x Type-C DisplayPort
ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s) 1x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s) 1x Intel® Killer™ E5000B 5G LAN
Wireless Communication module Intel® Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features LED FEATURE
4x EZ Debug LED
1x EZ Digit Debug LED

Warranty

Warranty 3 years

Description

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is a premium, next-generation powerhouse built for gamers, content creators, and professionals who demand extreme performance and reliability. Powered by the Intel Z890 chipset and compatible with Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this advanced motherboard combines speed, power, and precision for high-end computing. It supports dual-channel DDR5 memory with a capacity of up to 256GB and blazing overclocking speeds of 9200+ MT/s, ensuring unrivaled multitasking efficiency and responsiveness. Engineered with a robust 16+2+1 Duet Rail Power System and 90A SPS, it delivers stable power for heavy workloads and gaming marathons. The premium extended heatsinks, MOSFET thermal pads, and enhanced thermal design ensure superior cooling and long-term stability, even under the most demanding conditions.

Equipped with PCIe 5.0 technology, the MSI MPG Z890 EDGE TI WIFI offers lightning-fast bandwidth for next-generation GPUs and expansion cards. Storage capabilities are top-tier, featuring five M.2 slots, including PCIe 5.0 M.2 Gen5 support, enabling ultra-fast NVMe SSD performance for instant loading and transfer speeds. This motherboard redefines connectivity with Thunderbolt 4, delivering up to 40Gbps transfer rates, 8K display output, and daisy-chain support for multiple high-speed devices. The Intel Killer BE1750x Wi-Fi 7 module and 5G LAN provide cutting-edge wireless and wired networking with ultra-low latency, making it ideal for esports, streaming, and creative workloads.

The MSI MPG Z890 EDGE TI WIFI is packed with user-friendly and customization features such as EZ PCIe Release, EZ M.2 Shield Frozr II, and Debug LEDs, simplifying the building and upgrading process. A high-end audio system powered by the Realtek ALC1220P codec delivers crystal-clear, studio-grade 7.1-channel sound. The sleek titanium design paired with customizable RGB Mystic Light accents makes this board a perfect centerpiece for any gaming or professional rig. With multiple USB 20Gbps Type-C ports, DisplayPort, and HDMI 2.1 outputs supporting up to 8K resolution, this motherboard ensures maximum versatility and future readiness. Combining raw performance, cutting-edge connectivity, and superior craftsmanship, the MSI MPG Z890 EDGE TI WIFI is the ultimate ATX motherboard for power users who refuse to compromise.

Buy the MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
