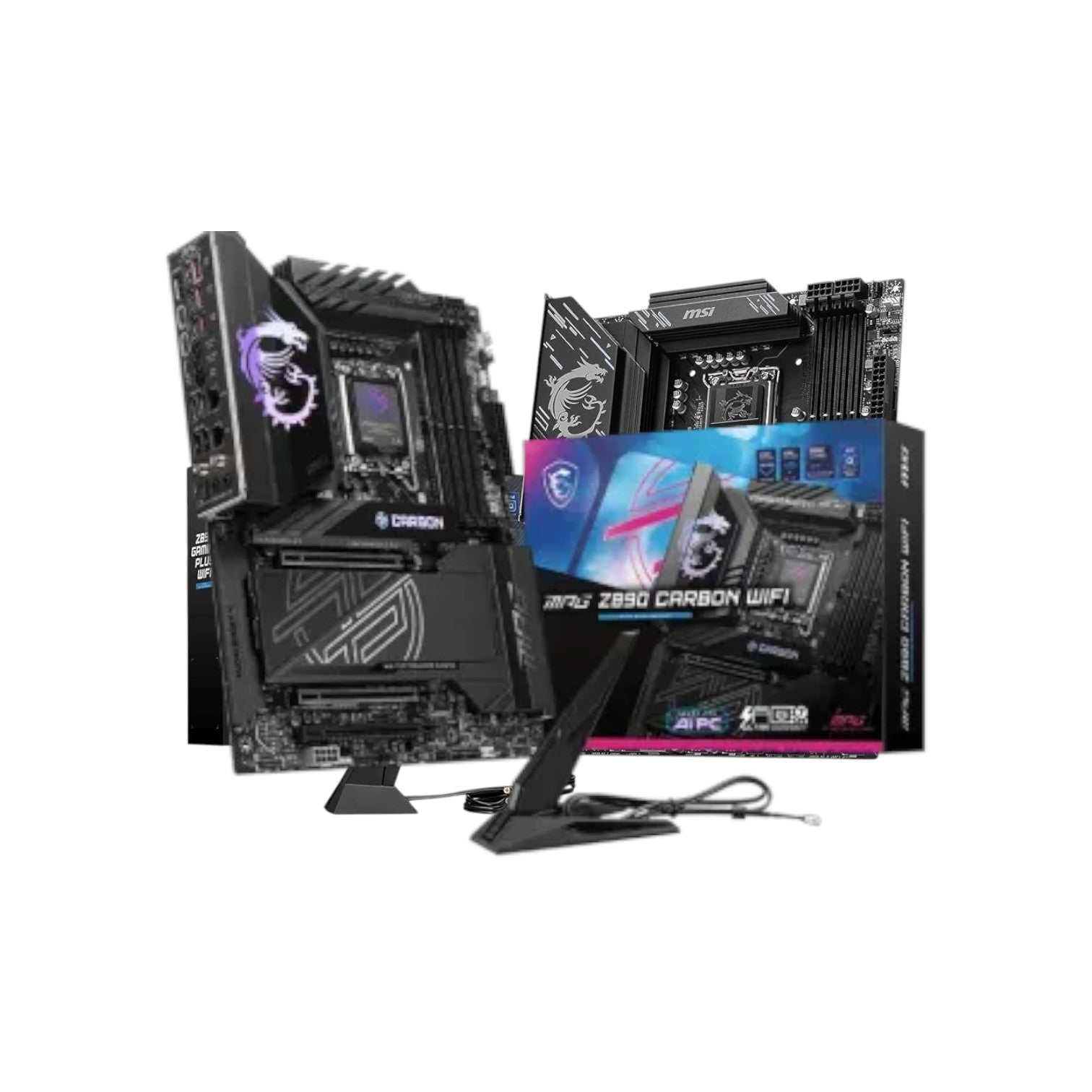

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: MPG Z890 CARBON WIFI
Availability: In stock

Key Features

Features: 5x M.2, Intel Wi-Fi 7
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Tk 76,500
Tk 78,900
Tk 76,500
Subtotal: Tk 76,500

Specification

Basic Information

Supported CPU Supports Intel® Core™ Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC1220P Codec
7.1-Channel USB High Definition Audio
Supports S/PDIF output

Expansion Slots

PCI 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 supports BIOS adjustment to x8+x4+x4*
• PCI_E2 supports BIOS adjustment to x4+x4*
M.2 Socket 5x M.2

Memory

Type DDR5
Slots 4
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 256GB



Graphics

Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 1.4
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
10x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s) 1x Intel® Killer™ E5000B 5G LAN
1x Intel® I226V 2.5G LAN
Wireless Communication module Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
RAID •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features LED FEATURE:
4x EZ Debug LED
1x EZ Digit Debug LED

Warranty

Warranty 3 years

Description

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard

The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is a next-generation powerhouse designed for gamers, creators, and AI professionals who demand top-tier performance, reliability, and advanced connectivity. Built on the Intel Z890 chipset, it supports Intel Core Ultra (Series 2) processors with the LGA 1851 socket, ensuring exceptional computing power and efficiency. Its sleek carbon-black design with Mystic Light RGB accents gives any build a premium aesthetic while maintaining a high-performance core. Supporting up to 256GB of DDR5 memory with speeds reaching 9200+ MHz (OC), this motherboard ensures blistering performance for multitasking, gaming, and professional workloads. Equipped with a robust 16+2+1 power phase design, 90A Smart Power Stages, and Core Boost technology, it guarantees stable power delivery even during extreme overclocking.

The MSI MPG Z890 CARBON WIFI excels in connectivity and expansion, featuring PCIe 5.0 slots and M.2 Gen5 storage for the latest GPUs and NVMe SSDs. Its Thunderbolt 4 ports offer up to 40Gbps data transfer speeds and 8K display support, while multiple USB 3.2 Gen 1, Gen 2, and 20Gbps Type-C ports ensure seamless peripheral integration. Networking is future-ready with Intel Wi-Fi 7 and 10G Super LAN, providing ultra-low latency and lightning-fast connections for online gaming, streaming, and data-intensive tasks. With a focus on thermal management, the motherboard includes extended heatsinks, MOSFET thermal pads, and M.2 Shield Frozr to keep components cool during heavy loads.

User-friendly EZ DIY features, such as pre-installed I/O shielding, EZ PCIe Release, and EZ M.2 Clip II, make installation and upgrades effortless. Audio Boost technology, powered by the Realtek ALC4080 codec, delivers immersive 7.1-channel HD audio for gaming and multimedia experiences. The premium 6-layer PCB with 2oz thickened copper ensures signal stability, durability, and long-term reliability. Combining aesthetics with unmatched functionality, the MSI MPG Z890 CARBON WIFI is ideal for building a high-end gaming rig or professional workstation that delivers exceptional speed, stability, and connectivity.

Buy the MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
