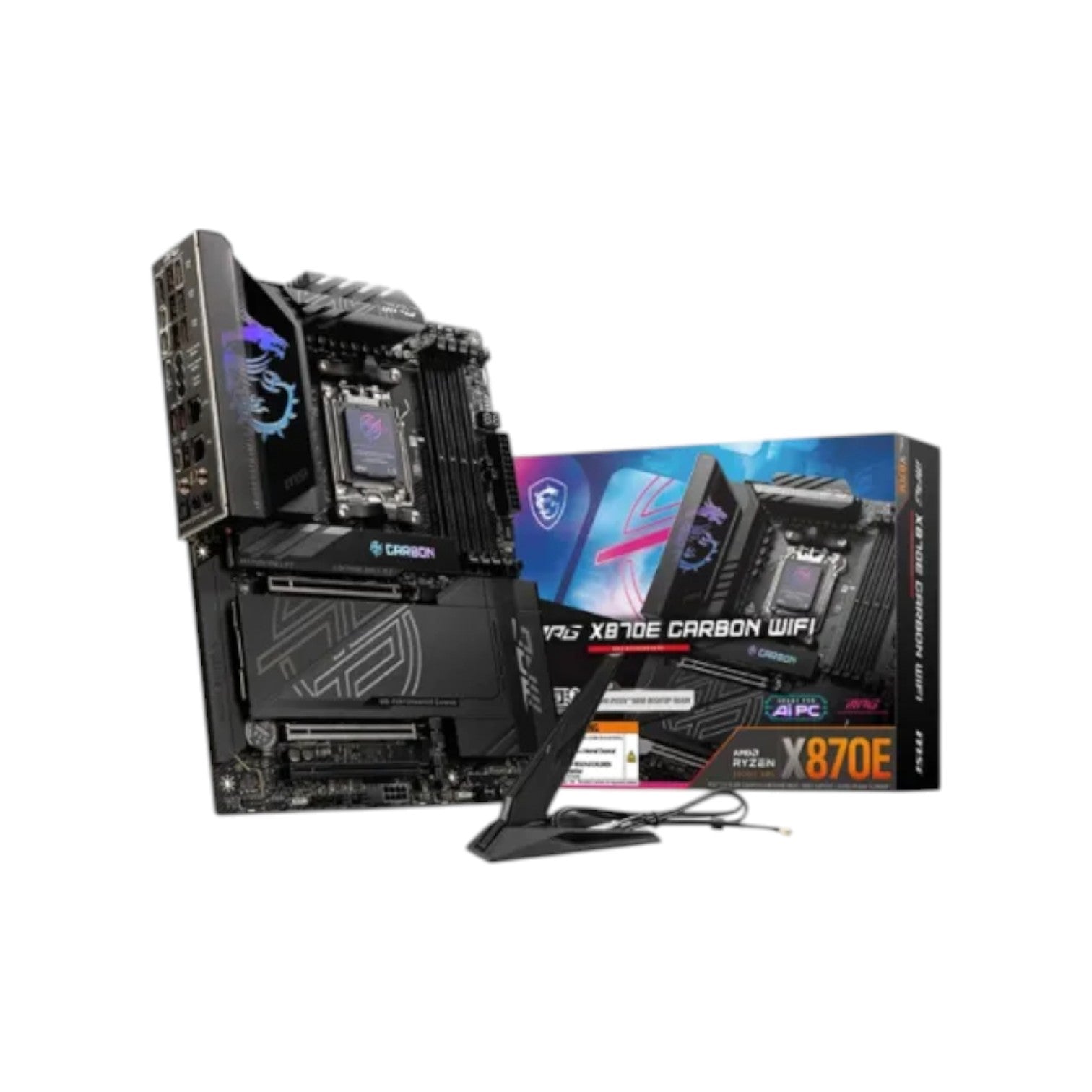

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard (MMSIAMD5202)

Tk 65,500; ~~Tk 69,500~~; Tk 65,500
Unit price: per

Brand: MSI (AMD)

SKU: MPG X870E CARBON WIFI

Availability: Out Of Stock

Key Features

Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Supported RAM: 4x DDR5, Up to 8400-5600 (OC) MT/s
Features: 1x 2.5G LAN, 1x 5G LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5

Ask an expert

Subtotal: Tk 65,500

Quantity:

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard (MMSIAMD5202)

~~Tk 69,500~~ Tk 65,500

Quantity:

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard (MMSIAMD5202)

~~Tk 69,500~~ Tk 65,500

Description

Description

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870E
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output

Expansion Slots

PCI

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

M.2 Socket

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Memory

Type	DDR5
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory	256GB

Graphics

1x HDMI
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	2x Type-C DisplayPort
USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)	1x Realtek 8126 5G LAN 1x Realtek 8125 2.5G LAN
Wireless Communication module	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

Warranty

3 Years

Description

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard

The MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard is a premium, high-performance motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Built with the powerful AM5 socket, it delivers exceptional stability and performance for gaming, content creation, and professional workloads. This motherboard supports up to 256GB of DDR5 memory with overclocking speeds of up to 8400 MT/s, ensuring unmatched multitasking and responsiveness.

Equipped with three PCI-E x16 slots supporting both PCIe 5.0 and 4.0 configurations, the MSI MPG X870E CARBON WIFI motherboard provides optimal compatibility for next-generation graphics cards and expansion devices. For display connectivity, it features HDMI 2.1 and dual USB Type-C ports with DisplayPort output, supporting high-resolution visuals up to 8K at 60Hz — perfect for gaming and multimedia setups. The Realtek ALC4080 codec delivers rich, high-fidelity 7.1-channel audio with S/PDIF output, providing an immersive listening experience for audiophiles and gamers alike.

For storage, the motherboard comes with four M.2 slots and four SATA 6G ports, supporting RAID configurations for both SATA and NVMe drives, ensuring ultra-fast data transfer and flexible storage options. Extensive USB connectivity includes USB 2.0, USB 5Gbps, USB 10Gbps, and USB 40Gbps Type-C interfaces for high-speed data access and device compatibility. Networking capabilities are equally advanced, featuring Realtek 5G and 2.5G LAN for wired connections, while Wi-Fi 7 with MU-MIMO and Bluetooth 5.4 ensures fast, reliable wireless connectivity.

The MSI MPG X870E CARBON WIFI motherboard also includes a robust cooling system with multiple fan headers and support for advanced cooling solutions, ensuring efficient thermal management during intensive workloads. Aesthetically, it stands out with RGB lighting and diagnostic features like EZ Debug LED and EZ Digit Debug LED, making it both visually striking and easy to troubleshoot.

Buy the MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your Desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard comes with a 3-year warranty.
