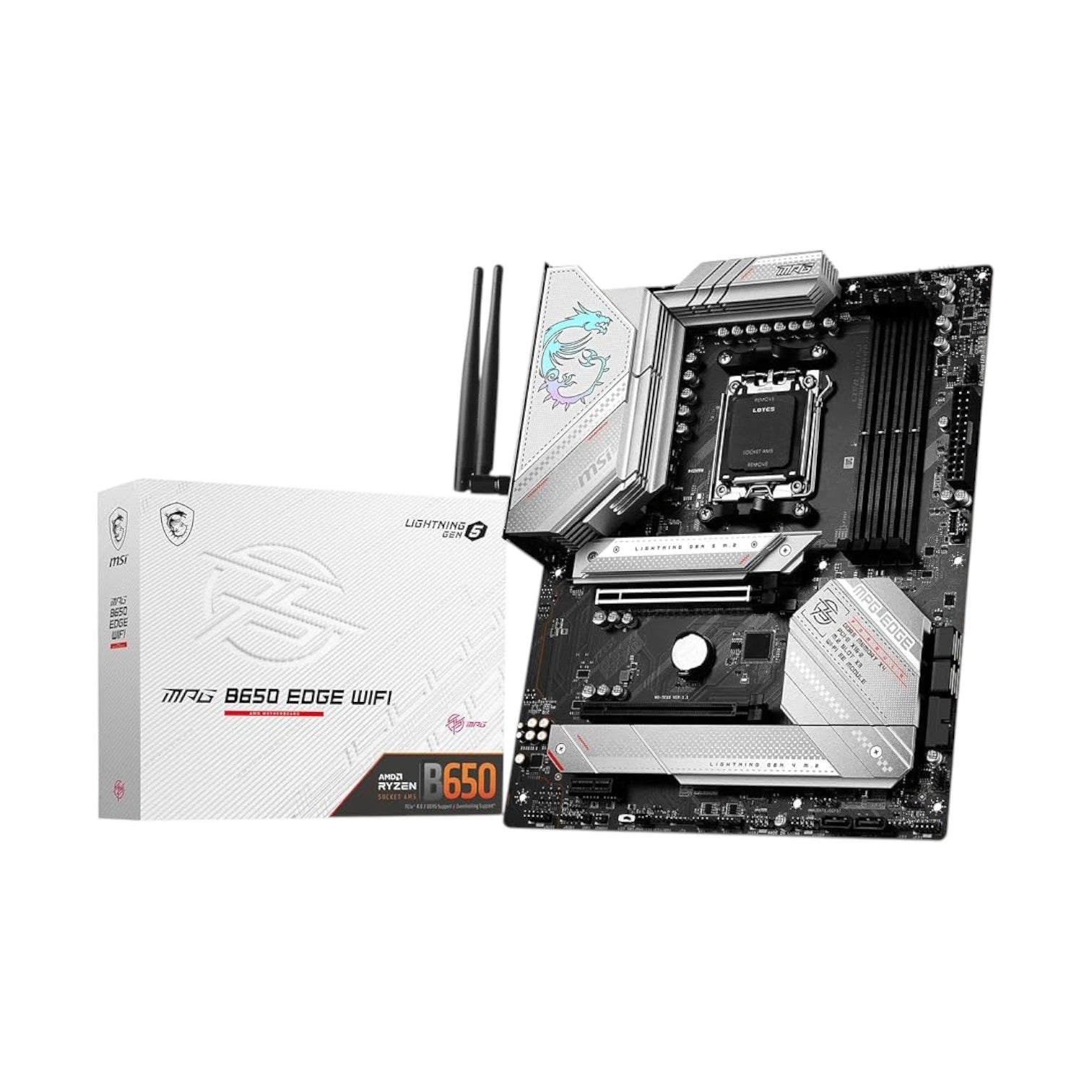

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: MPG B650 EDGE WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 6600+(OC) MHz
Features: 2.5G LAN and AMD Wi-Fi 6E Solution
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 33,200
Tk 33,400
Tk 33,200
Subtotal: Tk 33,200

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz

Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
1x DisplayPort
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2
Supported Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ LED Control switch

Warranty

Warranty 3 Years

Description

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard is engineered for gamers, creators, and professionals who demand cutting-edge performance, stability, and style. Supporting AMD Ryzen 8000 and 7000 Series processors with up to 16 Zen 4 cores, this AM5 motherboard delivers outstanding computing power for gaming, multitasking, and heavy workloads. It supports dual-channel DDR5 memory with up to 128GB capacity and speeds reaching 6600+ MHz (OC), ensuring ultra-fast data transfer and responsiveness across applications.

Powered by MSI’s advanced Core Boost technology, the MPG B650 EDGE WIFI provides precise and efficient power delivery to the CPU, enabling smooth performance and enhanced overclocking potential. The board is constructed with a durable 6-layer PCB featuring 2oz thickened copper and server-grade materials, ensuring consistent stability and long-term reliability. Thermal management is exceptional, with an extended heatsink design, 7W/mK MOSFET thermal pads, choke pads, and a double-sided M.2 Shield Frozr that protects SSDs from heat buildup to maintain top-tier speeds during intensive operations.

For storage and expansion, this motherboard features PCIe 4.0 slots and Lightning Gen 4 x4 M.2 connectors, offering lightning-fast data transfer and full compatibility with next-gen GPUs and NVMe SSDs. The M.2 Shield Frozr ensures sustained SSD performance by preventing thermal throttling. Additionally, the rear I/O panel provides convenient access to functions such as direct safe boot entry, RGB lighting control, and Turbo Mode activation with just one click.

The MSI MPG B650 EDGE WIFI boasts robust connectivity options, including seven USB-A 3.2 Gen 1 and Gen 2 ports with speeds of up to 10Gbps and a USB-C 3.2 Gen 2x2 port offering blazing-fast 20Gbps transfer rates. These ports make it easy to connect a wide range of peripherals, from external storage devices to professional-grade audio interfaces.

With its sleek design, advanced power architecture, and superior cooling, the MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard provides the performance and features needed for an elite PC build. It’s the perfect foundation for those who want next-gen gaming and productivity in one platform.

Buy the MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard comes with a 3-year warranty.
