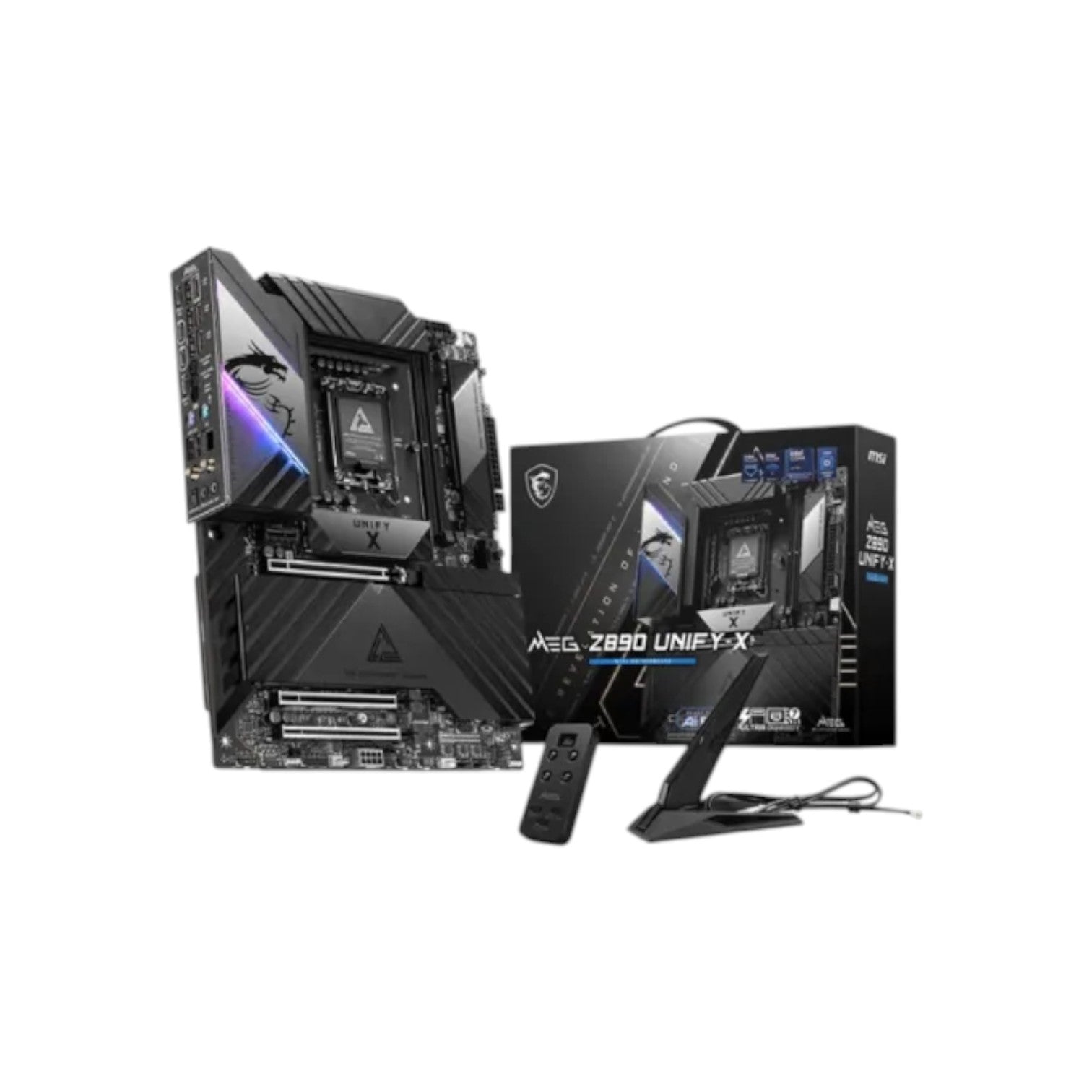

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: MEG Z890 UNIFY-X
Availability: In stock

Key Features

Features: 6x M.2, Intel Wi-Fi 7
Graphics Output: 2x Type-C DisplayPort
Supported RAM: 2x DDR5, Max 128GB 9600 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Ask an expert
Tk 85,000
Tk 87,000
Tk 85,000
Subtotal: Tk 85,000
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

* PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.
** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
M.2 Socket 6x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
*** Please refer to the manual for M.2 SSD heatsink restrictions.

Memory

Type DDR5
Slots 2x DDR5 UDIMM, Maximum Memory
Supported Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Maximum Memory 128GB



Graphics

Graphics 2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

Display Port (s) 2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN Port (s) 1x Intel® Killer E5000B 5G LAN
Wireless Communication module Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage 6x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
6x SATA 6G

* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
*** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features LED FEATURE
4x EZ Debug LED
1x EZ Digit Debug LED

Warranty

Warranty 3 years

Description

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard is a flagship-grade powerhouse built for extreme performance, advanced overclocking, and professional computing. Powered by the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, offering cutting-edge efficiency and stability. Designed for elite gamers, creators, and PC enthusiasts, this MSI MEG motherboard combines premium engineering with a sleek, stealth-black aesthetic that reflects strength and precision. Supporting up to 128GB of dual-channel DDR5 memory, it delivers unmatched performance with speeds reaching an astounding 9600+ MT/s (OC) for record-breaking responsiveness and stability. With full support for Intel XMP 3.0, it ensures easy one-click memory tuning and exceptional bandwidth for demanding applications.

The MSI MEG Z890 UNIFY-X stands out with its robust power delivery system, featuring an 18+2+1 phase power design with 105A Smart Power Stages for precise and stable performance even under heavy loads. It offers superior expansion capabilities with three PCIe x16 slots (Gen 5.0 and Gen 4.0) and one PCIe x1 slot, allowing support for the latest GPUs and high-performance add-in cards. Storage options are extensive, with six M.2 slots—one PCIe 5.0 x4 and five PCIe 4.0 x4—alongside six SATA 6Gb/s ports, providing unmatched speed and flexibility. Advanced cooling solutions, including a premium extended heatsink, Frozr Guard technology, MOSFET thermal pads, and M.2 Shield Frozr, ensure optimal thermal efficiency during overclocking and heavy workloads.

Connectivity is cutting-edge, featuring dual Thunderbolt 4 ports supporting up to 40Gbps transfer speeds and 8K video output at 120Hz. The motherboard also includes multiple USB 3.2 Gen 2x2 and 10Gbps ports for lightning-fast data access. Networking is equally impressive with the Intel Killer E5000B 5G LAN and Killer BE1750x Wi-Fi 7, ensuring ultra-low latency and blazing-fast network speeds up to 5.8Gbps. For audio perfection, the Realtek ALC4080 codec delivers 7.1-channel USB high-definition sound at 32-bit/384kHz, enhanced by Audio Boost technology for immersive clarity.

The MSI MEG Z890 UNIFY-X motherboard is engineered for the ultimate performance enthusiast, featuring robust build quality, superior power management, and elite connectivity. Whether you’re gaming at the highest level, editing 8K content, or pushing the limits of AI computation, this board provides unparalleled performance, stability, and scalability.

Buy the MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard comes with a 3-year warranty.
