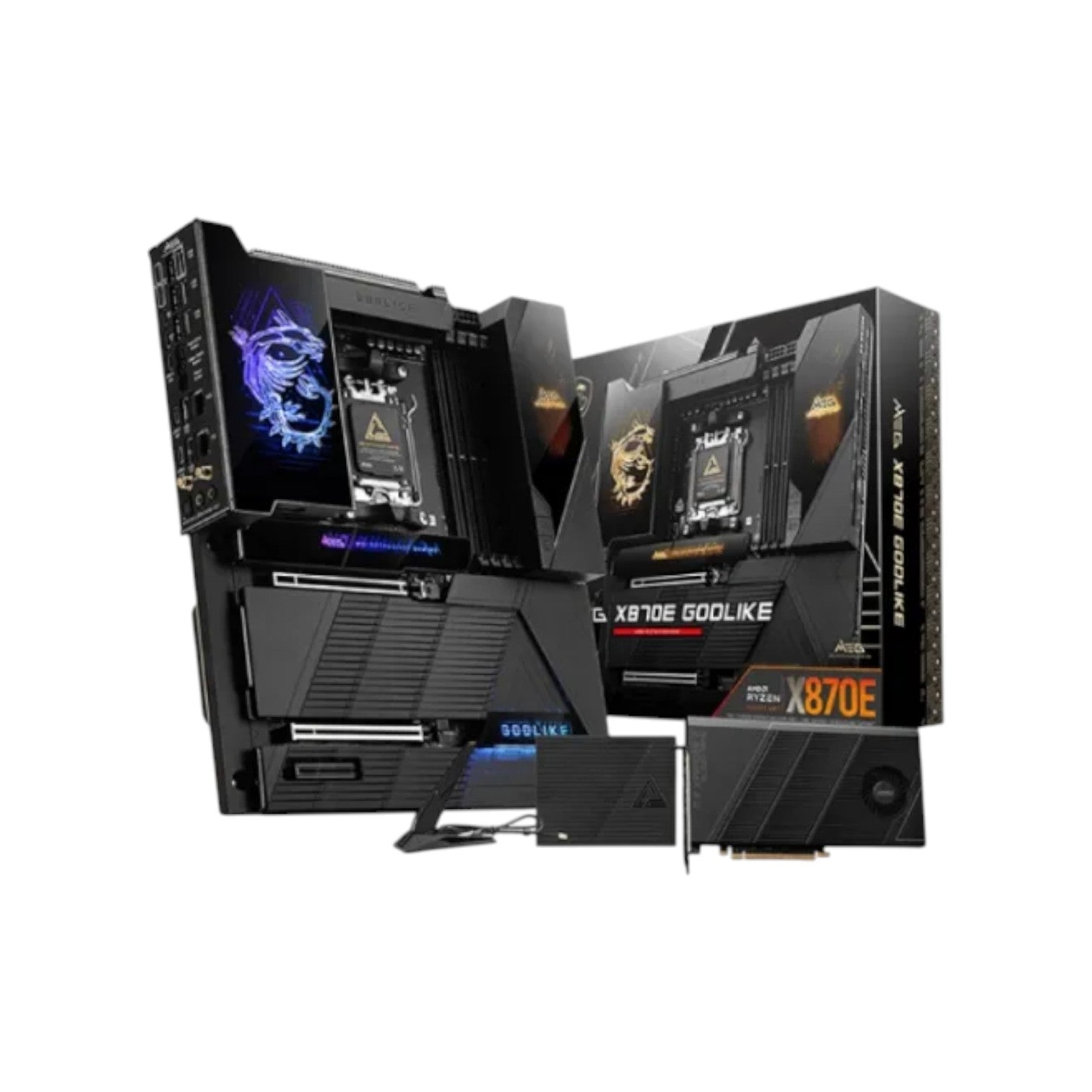

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard (MMSIAMD5201)

Tk 179,100; ~~Tk 192,500~~; Tk 179,100
Unit price: per

Brand: MSI (AMD)

SKU: MEG X870E GODLIKE

Availability: In stock

Key Features

Features: 7x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Graphics Output: 2x Type-C DisplayPort, 3.99-inch LCD Dynamic Dashboard III
Supported RAM: 4x UDIMM, Dual Channel DDR5 8400+MT/s (OC), Max 256GB

Ask an expert

Subtotal: Tk 179,100

Quantity:

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard (MMSIAMD5201)

~~Tk 192,500~~ Tk 179,100

Quantity:

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard (MMSIAMD5201)

~~Tk 192,500~~ Tk 179,100

Description

Description

Specification

Basic Information

Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870E
Form Factor	E-ATX 304.8mmx277mm
Audio	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI

2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

M.2 Socket

7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

Memory

Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory	256GB

Graphics

Supports NVIDIA SLI Technology
Supports AMD MULTI-GPU

Connector & Ports

Display Port (s)	2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)	1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN
Wireless Communication module	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage	7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports

Others

Special Features

LED FEATURE 1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

Warranty

3 Years

Description

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard

The MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard is a true technological masterpiece engineered to redefine high-end PC performance. Built on the advanced AMD X870E chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors with the AM5 socket, ensuring uncompromising computing power for enthusiasts and professionals. With four DDR5 UDIMM slots supporting up to 256GB of memory, it achieves speeds from DDR5 4800 (JEDEC) MT/s up to an incredible DDR5 9000–5600 (OC) MT/s. Dual-channel architecture, non-ECC, un-buffered memory, and CUDIMM compatibility ensure stability, dependability, and exceptional performance for demanding workloads.

This motherboard offers superior connectivity and expandability with two PCI-E x16 slots and one PCI-E x4 slot, supporting both PCIe 5.0 and 4.0 for the latest GPUs and expansion cards. Onboard graphics support comes via two Type-C DisplayPort USB4 connections that deliver stunning 4K@60Hz visuals with DisplayPort 1.4 HBR3 over USB Type-C. Audiophiles will appreciate the inclusion of the Realtek ALC4082 Codec paired with the ESS9219Q Combo DAC/HPA, delivering 7.1-channel USB high-resolution audio, 32-bit/384 kHz playback, and crystal-clear S/PDIF output for a truly immersive sound experience.

Storage performance is equally impressive with seven M.2 slots and four SATA 6G connectors, supporting both PCIe 5.0 and 4.0 interfaces. RAID configurations for both SATA and NVMe ensure blazing-fast data speeds and reliability. The MSI MEG X870E GODLIKE also provides outstanding connectivity with multiple USB options — including USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps, and USB 40Gbps Type-C ports — making it ideal for high-speed peripherals. Network capabilities are top-tier, featuring 10Gbps Marvell AQC113CS LAN, 5Gbps Realtek 8126 LAN, Wi-Fi 7, and Bluetooth 5.4 for unparalleled wired and wireless performance.

Thermal control and customization are elevated through RGB LED connectors, fan headers, and several power connectors for advanced cooling setups. Diagnostic and aesthetic enhancements such as the EZ Digit Debug LED and Dynamic Dashboard III provide visual feedback and style. The motherboard’s robust build, premium design, and intelligent cooling make it the ultimate choice for building a high-end, feature-rich PC optimized for Windows 11 64-bit.

Dynamic Dashboard III
The MSI MEG X870E GODLIKE features a 3.99-inch full-color LCD display that enhances usability by offering real-time hardware monitoring, BIOS update status, troubleshooting, and clock display. The exclusive EZ Link design integrates case front panel headers, fan headers, and RGB connectors into the EZ Bridge and EZ Control Hub for a cleaner build and simpler installation. With advanced thermal features such as the Double-Sided M.2 Shield Frozr, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, wavy fin design, and Frozr AI software, the motherboard ensures consistent peak performance under heavy loads.

Buy the MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your Desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard comes with a 3-year warranty.
