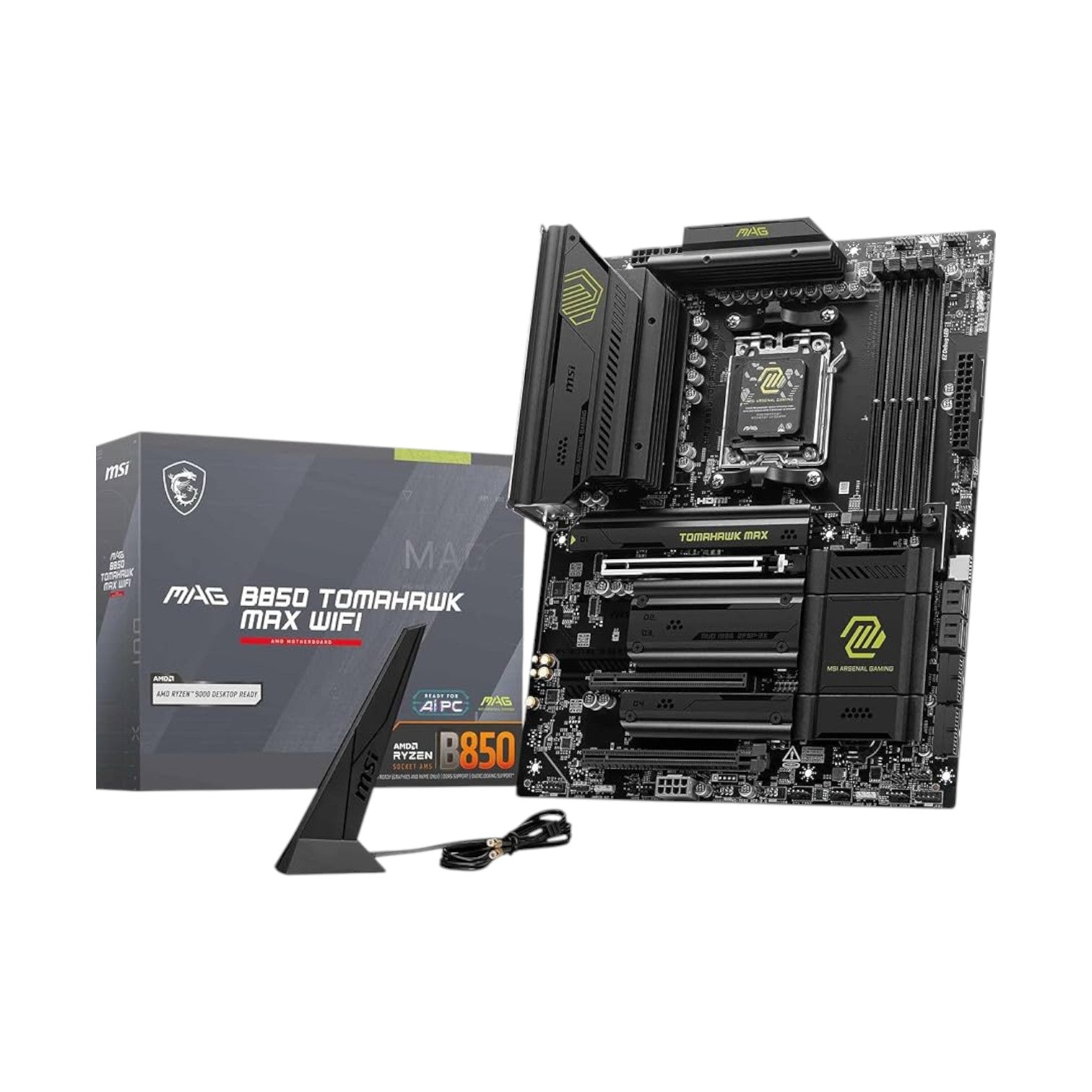

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: MAG B850 TOMAHAWK MAX WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI
Supported RAM: 4x DDR5, up to 8400+(OC) MT/s
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 37,700
Tk 38,000
Tk 37,700
Subtotal: Tk 37,700

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz.
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2
Supported Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard

The MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard is a premium MSI motherboard designed for gamers, creators, and professionals seeking unmatched performance, stable connectivity, and extensive customization for next-generation AMD systems. Built on the advanced AMD B850 chipset for the AM5 platform, this motherboard supports AMD Ryzen 7000 and Ryzen 9000 Series processors and offers overclocked DDR5 memory with speeds up to 8400+ MT/s across four DIMM slots, ensuring seamless multitasking and exceptional performance under demanding workloads.

Storage versatility is a key feature of the MSI MAG B850 TOMAHAWK MAX WIFI, with multiple M.2 slots including a flagship PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, additional PCIe 4.0 storage interfaces, and SATA 6Gb/s connectors to meet all storage requirements. Networking is next-generation, featuring Wi-Fi 7 and a high-speed 5G LAN port for reliable connectivity during gaming, streaming, or professional tasks.

Power delivery is handled by a robust 14+2+1 Duet Rail Power System with MSI’s Core Boost technology, providing precise and stable current for CPU and memory. Innovative cooling solutions, such as the EZ M.2 Shield Frozr II, ensure optimal thermal performance and system stability even during extended high-load sessions.

The MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard combines high performance, advanced connectivity, and user-friendly features, making it an excellent foundation for any future-ready AMD build.

Buy the MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard comes with a 3-year warranty.
