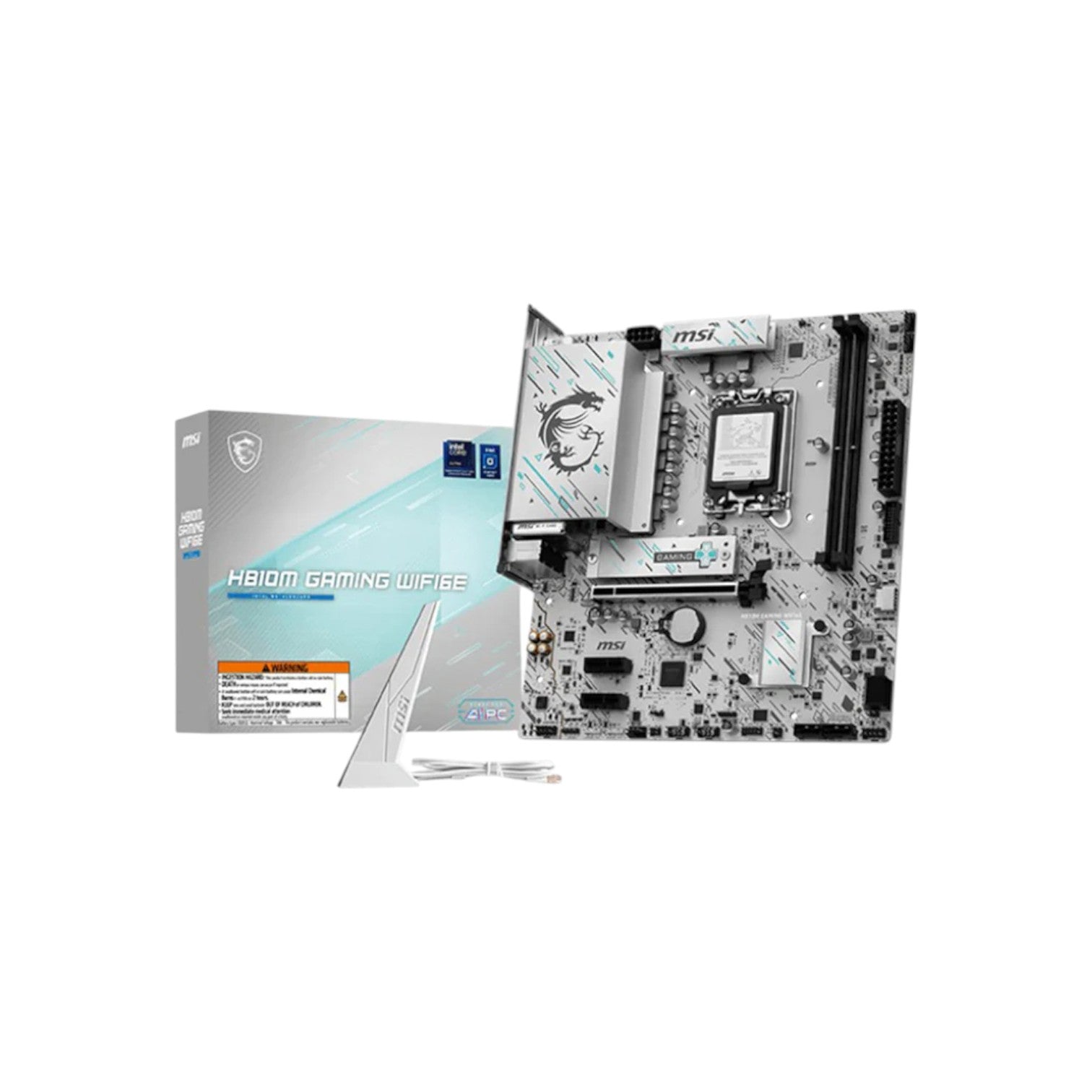

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard (MMSII5029)

Tk 20,200; ~~Tk 20,500~~; Tk 20,200
Unit price: per

Brand: MSI (Intel)

SKU: H810M GAMING WIFI6E

Availability: In stock

Key Features

Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Supported RAM: 2x DDR5 UDIMM, Up to 6400 MT/s, Max 128GB
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Features: 1x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3

Ask an expert

Subtotal: Tk 20,200

Quantity:

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard (MMSII5029)

~~Tk 20,500~~ Tk 20,200

Quantity:

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard (MMSII5029)

~~Tk 20,500~~ Tk 20,200

Description

Description

Specification

Basic Information

Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL H810
Form Factor	mATX 220mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

Memory

Type	DDR5
Slots	2
Supported Memory	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	128GB

Graphics

1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s)	Realtek 8126 5Gbps LAN
Wireless Communication module	Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

3 Years Warranty

Description

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard

The MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard is built for gamers and professionals who demand speed, stability, and performance in a compact form factor. Featuring the Intel H810 chipset and support for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, it ensures reliable next-generation computing for both gaming and productivity. It supports dual-channel DDR5 memory up to 128GB, with overclocked speeds exceeding 6400 MT/s, while Intel XMP 3.0 provides effortless memory tuning for optimized performance.

Engineered for durability, this motherboard integrates MSI’s Core Boost and Memory Boost technologies, a 6 P-PAK power system, and a robust 6-layer server-grade PCB for stable power delivery and enhanced reliability. The advanced Frozr Guard cooling system includes an extended heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and an M.2 Shield Frozr to ensure optimal thermal performance under heavy workloads.

For expansion and connectivity, the MSI H810M GAMING WIFI6E features a PCIe 5.0 x16 slot for modern GPUs and a PCIe 4.0 x4 M.2 slot for ultra-fast NVMe storage, along with four SATA 6Gb/s ports. Network and wireless connectivity are top-tier, with Realtek 8126 5Gbps LAN and built-in Wi-Fi 6E with Bluetooth 5.3, offering high-speed and stable communication for gaming, streaming, and multitasking. Display outputs include HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution at 60Hz, depending on the processor. Audio Boost powered by the Realtek ALC897 codec provides immersive 7.1-channel HD audio.

The rear I/O panel includes a USB 20Gbps Type-C, multiple USB 5Gbps ports, and front panel connectivity options like a 10Gbps Type-C for high-speed data transfer. MSI also enhances usability with EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, while EZ Debug LEDs and EZ Memory Detection LEDs simplify system setup and troubleshooting. With RGB headers for customization, Windows 11 compatibility, and a performance-focused layout, the MSI H810M GAMING WIFI6E delivers exceptional gaming and everyday performance in one balanced motherboard.

Buy the MSI H810M GAMING WIFI6E Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI H810M GAMING WIFI6E Motherboard comes with a 3-year warranty.
