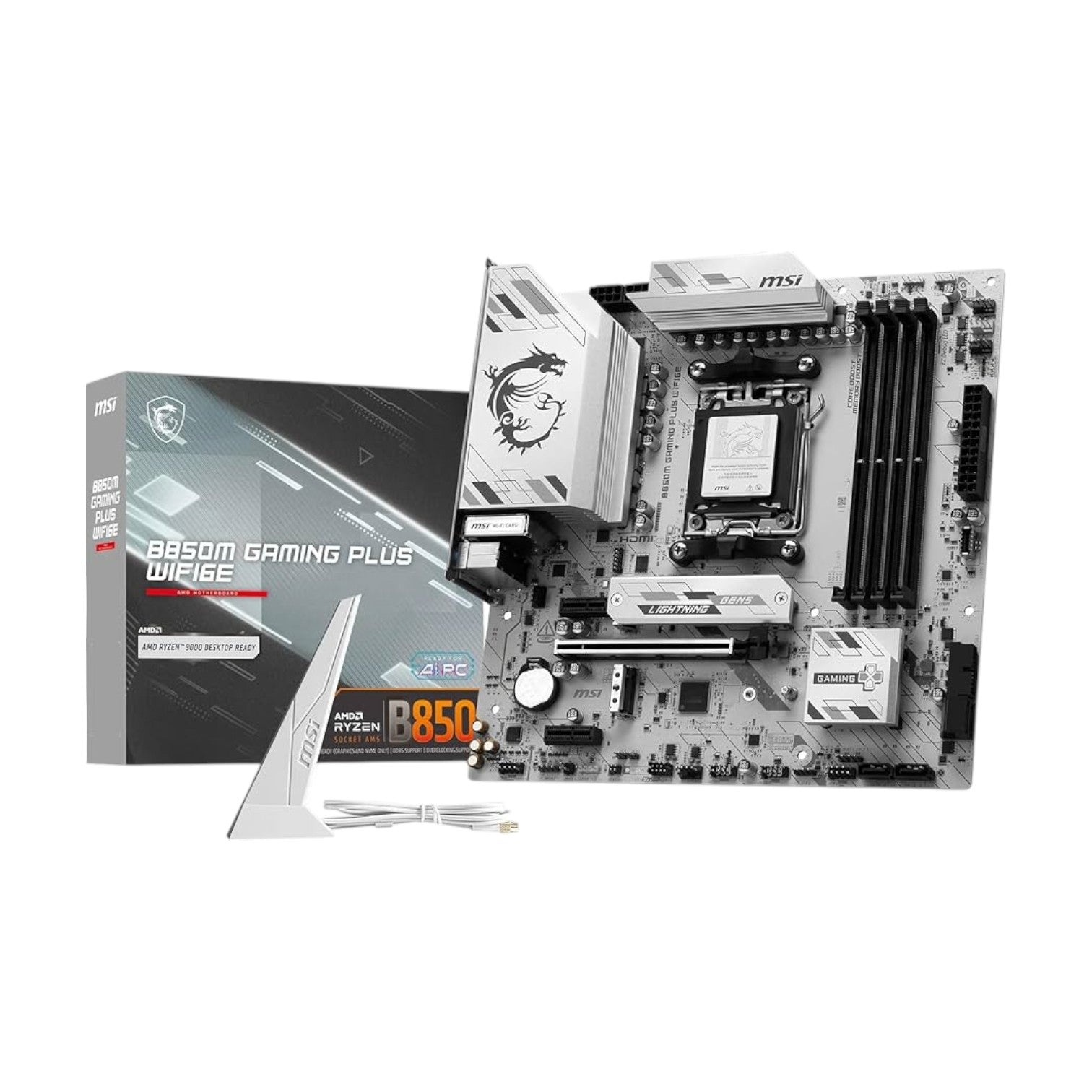

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: B850M GAMING PLUS WIFI6E
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 25,400
Tk 26,000
Tk 25,400
Subtotal: Tk 25,400
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 slot
Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)



Memory

Type DDR5
Slots 4 x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB

Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5G LAN
Wireless Communication module Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

Warranty 3 Years Warranty

Description

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard

The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard is a high-performance motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Built on the AMD B850 chipset with an AM5 socket, it delivers future-ready performance and stability for gamers and PC builders in a compact micro-ATX form factor. The board supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 8200+ MT/s (OC), dual-channel architecture, AMD EXPO compatibility, and non-ECC unbuffered modules, providing exceptional performance for gaming and productivity tasks.

Storage options include two M.2 slots (M.2_1 supports PCIe 5.0 x4 and M.2_2 supports PCIe 4.0 x4) and four SATA 6Gb/s ports, with RAID 0, 1, and 10 support for SATA and RAID 0 and 1 for NVMe. Expansion is versatile with one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, dynamically adjusting bandwidth for Ryzen CPU models. Graphics output features 1x HDMI 2.1 and 1x DisplayPort 1.4, supporting 4K @ 60Hz, ideal for high-resolution displays without a dedicated GPU.

Networking is powered by Realtek 8125D 2.5G LAN and Wi-Fi 6E with tri-band support (2.4GHz/5GHz/6GHz) up to 2.4Gbps, along with Bluetooth 5.3 for seamless device connectivity. Audio is handled by the Realtek ALC897 7.1-channel codec for immersive sound. Internal headers support CPU/system fans, RGB/ARGB lighting, front panel audio, TPM 2.0, and EZ Debug LEDs for easy installation and troubleshooting.

With its robust power delivery, durable components, and advanced thermal design, the MSI B850M GAMING PLUS WIFI6E ensures long-term stability. Its sleek, gamer-focused design fits compact cases while providing high-end features, making it ideal for new builds or upgrades with next-gen Ryzen CPUs, PCIe 5.0 NVMe storage, Wi-Fi 6E, and DDR5 memory.

Buy MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard comes with 3 years warranty.
