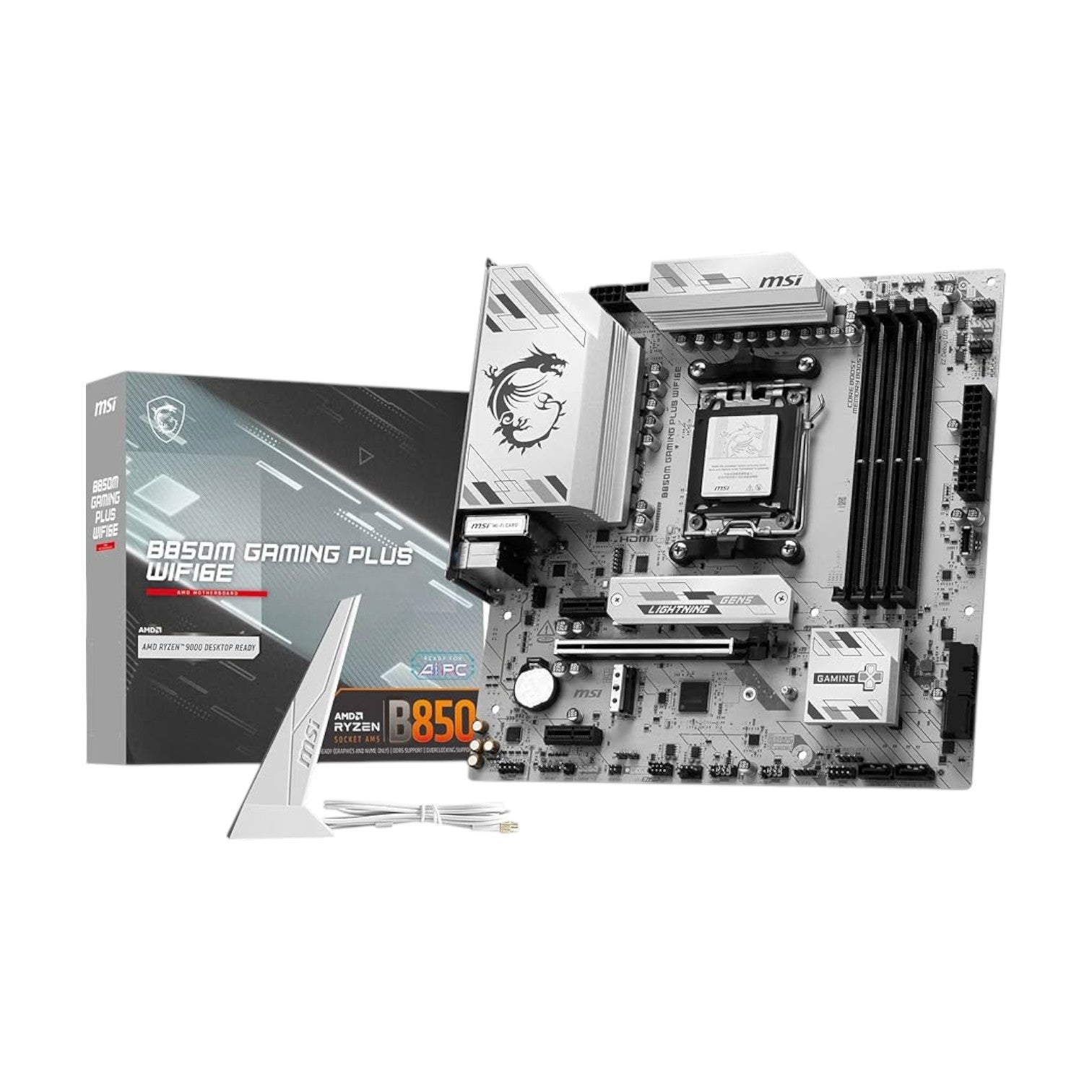

MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard

MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: B850M GAMING PLUS WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 25,400
Tk 27,500
Tk 25,400
Subtotal: Tk 25,400
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)

Memory

Type DDR5
Slots 4 x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5G LAN
Wireless Communication module Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Memory Detection LED
Bundled Software Support for Windows 11 64-bit

Warranty

Warranty 3 Years Warranty

Description

MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard

The MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard is a powerful and reliable choice for gamers, creators, and professionals who seek next-level performance and connectivity. Built on the advanced AMD B850 chipset and AM5 socket, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, ensuring cutting-edge performance and long-term compatibility. Designed in a compact micro-ATX form factor, it delivers the perfect balance of power, efficiency, and expandability for modern gaming and productivity builds.

The MSI B850M motherboard supports up to 256GB of DDR5 memory across four UDIMM slots, with speeds reaching 8200+ MT/s (OC) when paired with Ryzen 9000 Series processors. It features dual-channel memory architecture and AMD EXPO support for seamless overclocking and improved performance. Whether you’re gaming, editing, or multitasking, this motherboard ensures fast and stable performance across demanding workloads.

For display output, it includes HDMI 2.1 and DisplayPort 1.4 ports, both supporting 4K resolution at 60Hz, delivering ultra-clear visuals when used with CPUs featuring integrated graphics. Expansion capabilities include two PCIe x16 slots and one PCIe x1 slot, offering Gen 5.0 support for next-gen GPUs and Gen 4.0/3.0 compatibility for additional cards, ensuring flexibility for high-performance builds.

The storage configuration provides excellent versatility, featuring dual M.2 slots supporting PCIe 5.0/4.0 NVMe SSDs and four SATA 6Gb/s ports with RAID 0/1/10 for SATA and RAID 0/1 for NVMe. This allows for ultra-fast data access and secure storage configurations. Audio performance is powered by the Realtek ALC897 codec, delivering 7.1-channel high-definition sound for immersive gaming and entertainment.

Connectivity options are top-notch, featuring Realtek 8126 5G LAN for ultra-fast wired networking and built-in Wi-Fi 7 (802.11be) with MU-MIMO, tri-band (2.4GHz/5GHz/6GHz), and Bluetooth 5.4 for superior wireless speed and stability. The board also includes numerous internal connectors such as fan headers, RGB and ARGB headers (JARGB_V2 & JRGB), and TPM 2.0 support. It offers extensive USB connectivity, including USB 10Gbps Type-C and Type-A ports on both front and rear panels for high-speed data transfer.

Additional convenience features like EZ Debug LEDs, EZ Memory Detection LED, and a robust cooling-friendly layout simplify installation and system monitoring. Optimized for Windows 11 64-bit, the MSI B850M GAMING PLUS WIFI AM5 Motherboard ensures smooth operation and superior reliability across gaming and professional environments.

Buy MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard from Tech Buy BD. We have a wide selection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD store to get yours at the best price. The MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard comes with 3 years warranty.
