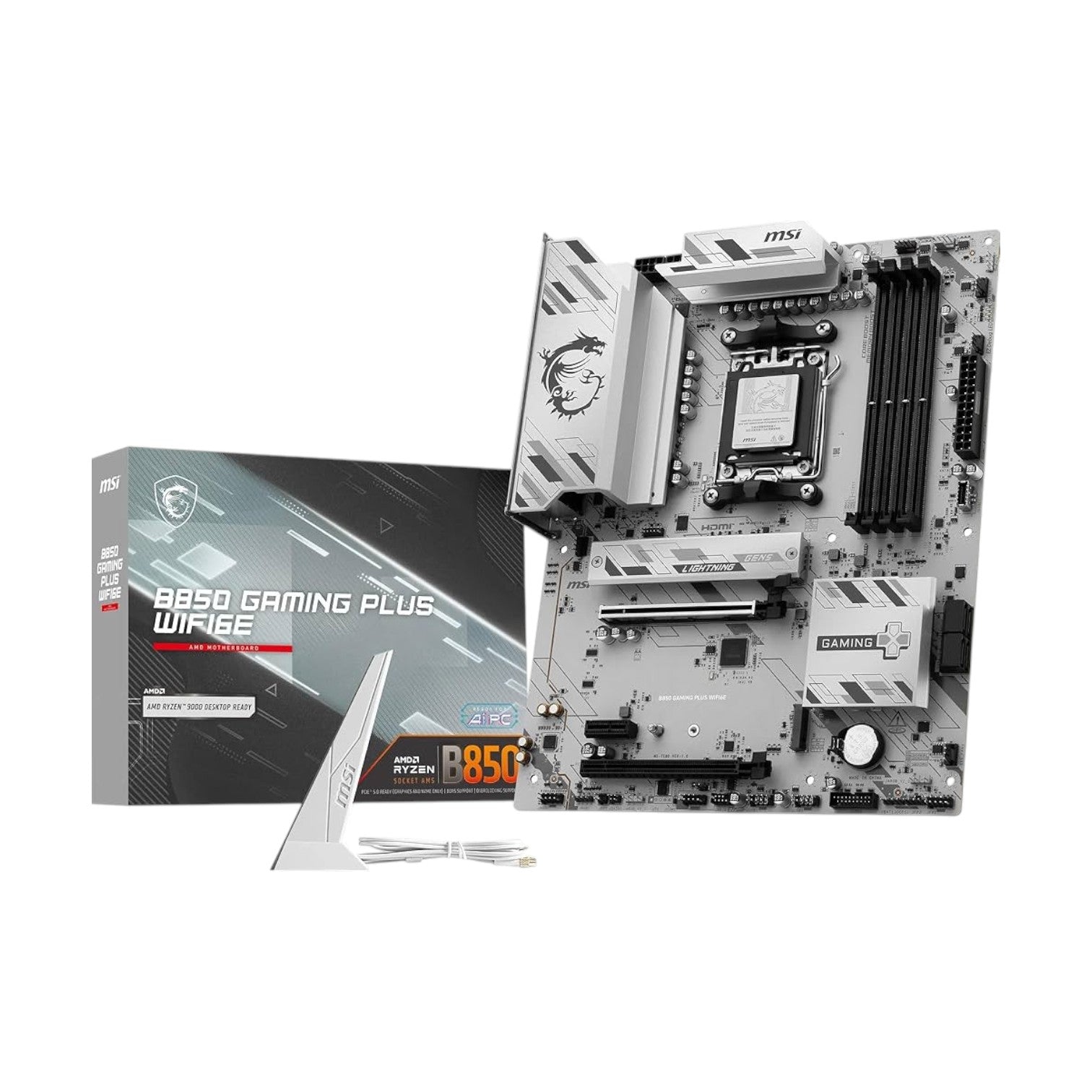

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: B850 GAMING PLUS WIFI6E
Availability: In stock

Key Features

Supported RAM: 4x DDR5, Up to 8200 (OC) MT/s, Max. 256GB
Graphics Output: 1x HDMI, 1x DisplayPort
Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

Ask an expert
Tk 28,500
Tk 29,000
Tk 28,500
Subtotal: Tk 28,500
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B850
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)



Memory

Type DDR5
Slots 4 x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5G LAN
Wireless Communication module Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

Warranty 3 Years Warranty

Description

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is engineered for gamers and PC enthusiasts who demand stability, speed, and superior performance. Powered by the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, ensuring top-tier gaming performance and future-ready computing power. With dual-channel DDR5 memory support of up to 256GB and overclocking speeds reaching 8200+ MT/s (OC), this motherboard delivers exceptional responsiveness and multitasking efficiency for modern gaming and creative workloads.

Built on a durable 6-layer 2oz copper PCB, the MSI B850 GAMING PLUS WIFI6E features a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies for enhanced performance and stability. For thermal control, MSI’s Frozr Guard design integrates extended heatsinks, 7W/mK MOSFET thermal pads, choke pads, and an EZ M.2 Shield Frozr II, ensuring reliable cooling even during intense gaming sessions.

Connectivity is state-of-the-art, featuring high-speed 2.5G LAN and built-in Wi-Fi 6E with MU-MIMO support for stable and low-latency online gameplay. Bluetooth 5.3 ensures smooth wireless device pairing and connectivity. The motherboard also provides fast storage solutions, including two M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4) for next-generation NVMe SSDs and four SATA 6Gb/s ports with RAID 0, 1, and 10 support.

For visuals, it includes HDMI 2.1 and DisplayPort 1.4 outputs, supporting 4K resolution at 60Hz—perfect for high-definition gaming and professional content creation. Expansion options include PCIe 4.0 slots for GPUs and other add-on cards, along with a front USB Type-C connector for rapid data transfers and modern connectivity.

MSI’s EZ DIY features—such as EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn design, and EZ antenna—make the build process faster and more user-friendly, even for first-time builders. Audio is powered by the Realtek ALC897 codec with Audio Boost technology, delivering immersive 7.1-channel HD sound that enhances every gaming and entertainment experience.

With its ATX form factor, premium components, and future-proof features, the MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is the perfect foundation for a high-performance AMD gaming build. Compatible with Windows 11 64-bit, it provides advanced performance, superior connectivity, and long-lasting reliability.

Buy the MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard comes with a 3-year warranty.
