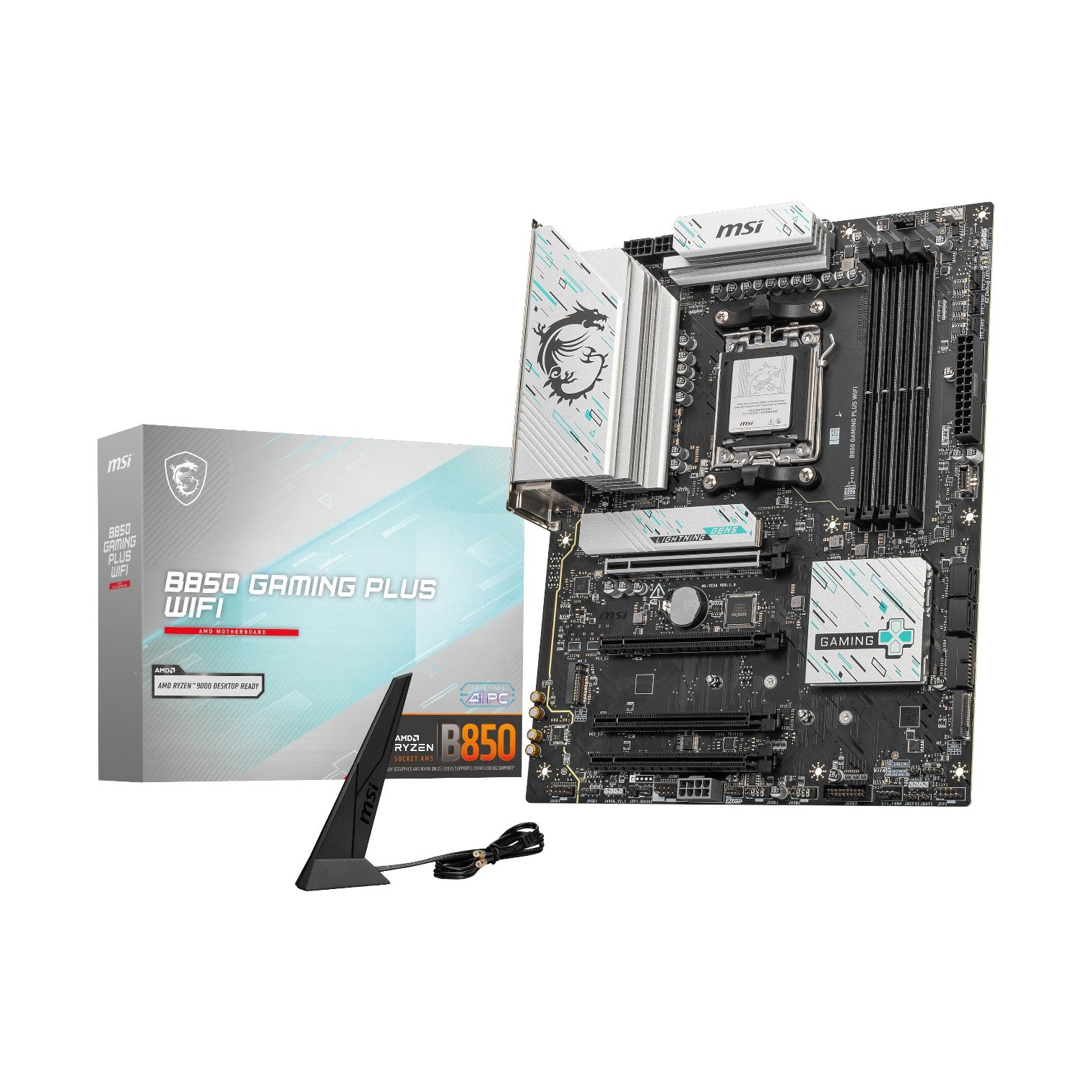

MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard

MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard

Brand: MSI (AMD)
Availability: In stock

Key Features

Supported RAM: 4x DDR5, up to 256GB, 8200+ MT/s (OC)
Graphics Output: 1x DisplayPort 1.2, 4K 60Hz Resolution
Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
Features: Realtek 8126VB 5G Ethernet, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 28,300
Tk 28,800
Tk 28,300
Subtotal: Tk 28,300
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor ATX
243.84mm x 304.8mm
Audio Realtek ALC897
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4 x UDIMM
Supported Memory max. 256GB, DDR5
Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB



Graphics

Graphics 1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x DisplayPort 1.2
Display Port (s)
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear
LAN Port (s) 1x Realtek 8126VB 5G LAN
Wireless Communication module Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices
4x SATA 6G

M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years Warranty

Description

MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard

The MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard is a high-performance and feature-rich solution designed for gamers, multimedia creators, and PC enthusiasts. Powered by the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket, ensuring cutting-edge performance and long-term platform compatibility.

With four DDR5 DIMM slots, the MSI B850 GAMING PLUS WIFI supports up to 256GB of memory and achieves overclocking speeds up to 8200+ MT/s, delivering seamless multitasking, faster load times, and exceptional gaming performance. Its optimized power design and high-quality components make it ideal for demanding workloads and overclocking.

This motherboard provides extensive expansion options with four PCIe x16 slots, including a primary PCIe 5.0 slot for next-generation GPUs and expansion cards. Storage performance is equally impressive, featuring three M.2 slots—one PCIe 5.0 x4 slot for ultra-fast NVMe SSDs and two PCIe 4.0 x4 slots—alongside four SATA 6Gb/s connectors for additional storage flexibility.

Connectivity is top-tier, with Realtek 8126VB 5G LAN for blazing-fast wired internet and built-in Wi-Fi 7 with Bluetooth 5.4 for ultra-fast, reliable wireless performance. Whether you’re gaming online, streaming content, or transferring data, the MSI B850 GAMING PLUS WIFI delivers stable and high-speed connections.

Audio is powered by the Realtek ALC897 7.1-channel high-definition codec, ensuring rich, immersive sound quality for gaming, movies, and music. The rear I/O panel includes multiple USB connectivity options, including USB 10Gbps Type-A and Type-C ports, along with a DisplayPort 1.2 output for integrated graphics support.

Additional features include ARGB and RGB headers for customizable lighting, an EZ Debug LED for easy troubleshooting, and a Flash BIOS button for quick firmware updates—making this motherboard not only powerful but also extremely user-friendly.

With its durable ATX design (243.84mm x 304.8mm) and compatibility with Windows 11 64-bit, the MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard provides a strong foundation for any high-performance gaming or productivity build. It offers future-proof connectivity, robust performance, and outstanding reliability—perfect for enthusiasts looking to build or upgrade their AMD system.

Buy the MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard comes with a 3-year warranty.
