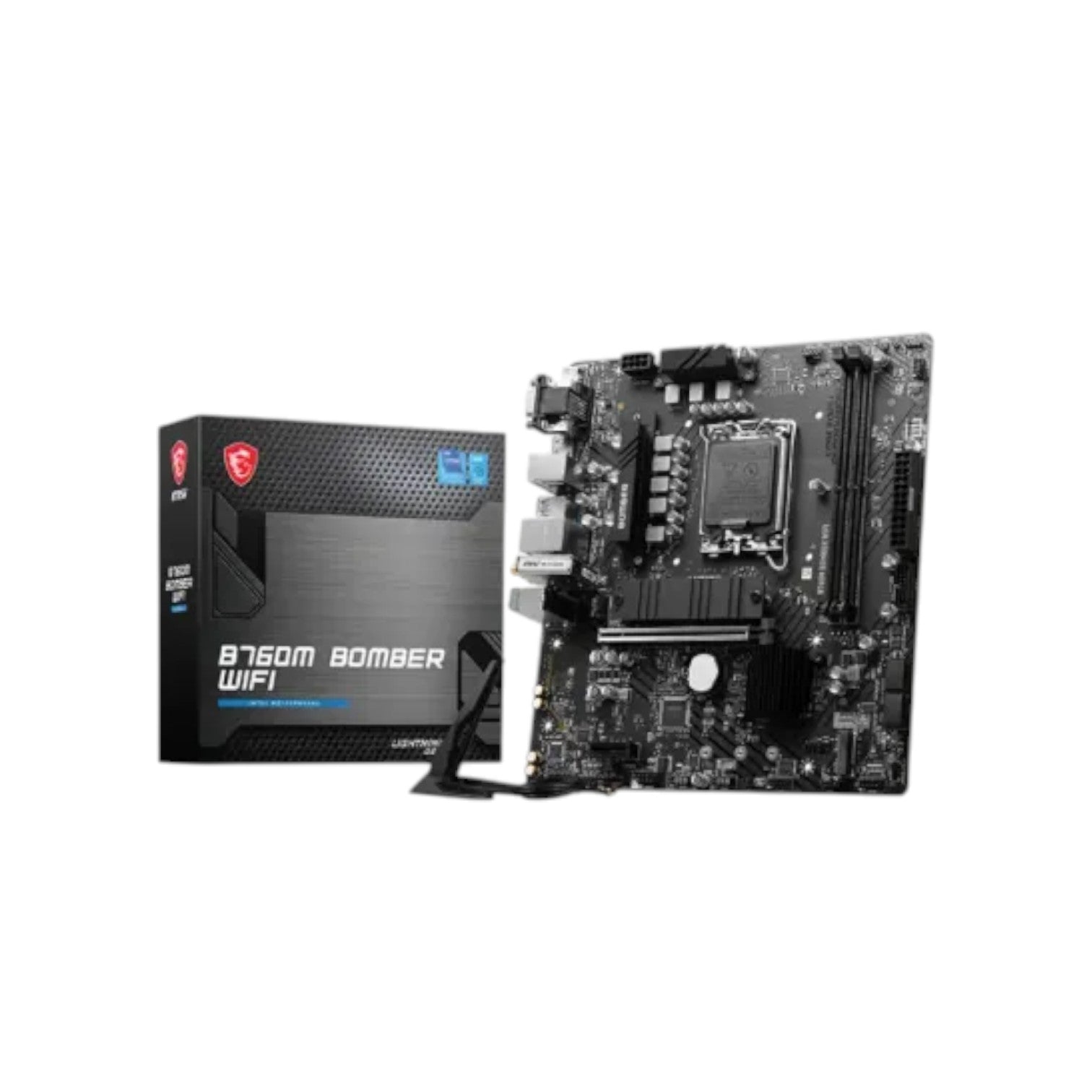

MSI B760M BOMBER WIFI mATX Motherboard

Brand: MSI (Intel)
SKU: B760M BOMBER WIFI
Availability: In stock

Key Features

Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)

Tk 19,200
Tk 19,500
Tk 19,200
Subtotal: Tk 19,200

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA1700
Chipset INTEL B760
Form Factor mATX
220mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Expansion Slots

PCI 5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 2
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 96GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
D-Sub (s) 1x D-Sub
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years Warranty

Description

MSI B760M BOMBER WIFI mATX Motherboard

The MSI B760M BOMBER WIFI mATX Motherboard is a powerful and feature-rich solution designed for gamers and performance enthusiasts. Supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket, this motherboard ensures wide compatibility and delivers exceptional processing power for gaming, content creation, and productivity.

Equipped with dual-channel DDR5 memory support up to 6400+MHz (OC), it ensures high-speed data transfer and efficient multitasking. The enhanced power architecture features a 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, and premium digital design, providing clean and stable power for demanding CPUs. MSI’s Core Boost and Memory Boost technologies further optimize performance and efficiency for a seamless computing experience.

Thermal management is a key highlight of this motherboard. It includes an extended heatsink, 7W/mK MOSFET thermal pads, and additional choke thermal pads to maintain low temperatures even during heavy gaming or intensive workloads. The MSI B760M BOMBER WIFI also supports high-speed connectivity options such as PCIe 4.0, a Lightning Gen4 x4 M.2 slot with M.2 Shield Frozr for NVMe SSDs, and Turbo USB 3.2 Gen2 10G ports for ultra-fast data transfer.

Networking is robust with a 2.5G LAN and Wi-Fi 6E integration, offering fast and stable wired or wireless connections ideal for online gaming, streaming, and multitasking. The 6-layer PCB with 2oz thickened copper enhances signal stability and durability, while Audio Boost technology delivers high-definition, studio-grade sound for immersive gaming and entertainment.

The MSI B760M BOMBER WIFI mATX Motherboard strikes the perfect balance between performance, durability, and advanced connectivity, making it an excellent choice for gamers and professionals who demand reliability and speed in their builds.

Buy the MSI B760M BOMBER WIFI mATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI B760M BOMBER WIFI mATX Motherboard comes with a 3-year warranty.
