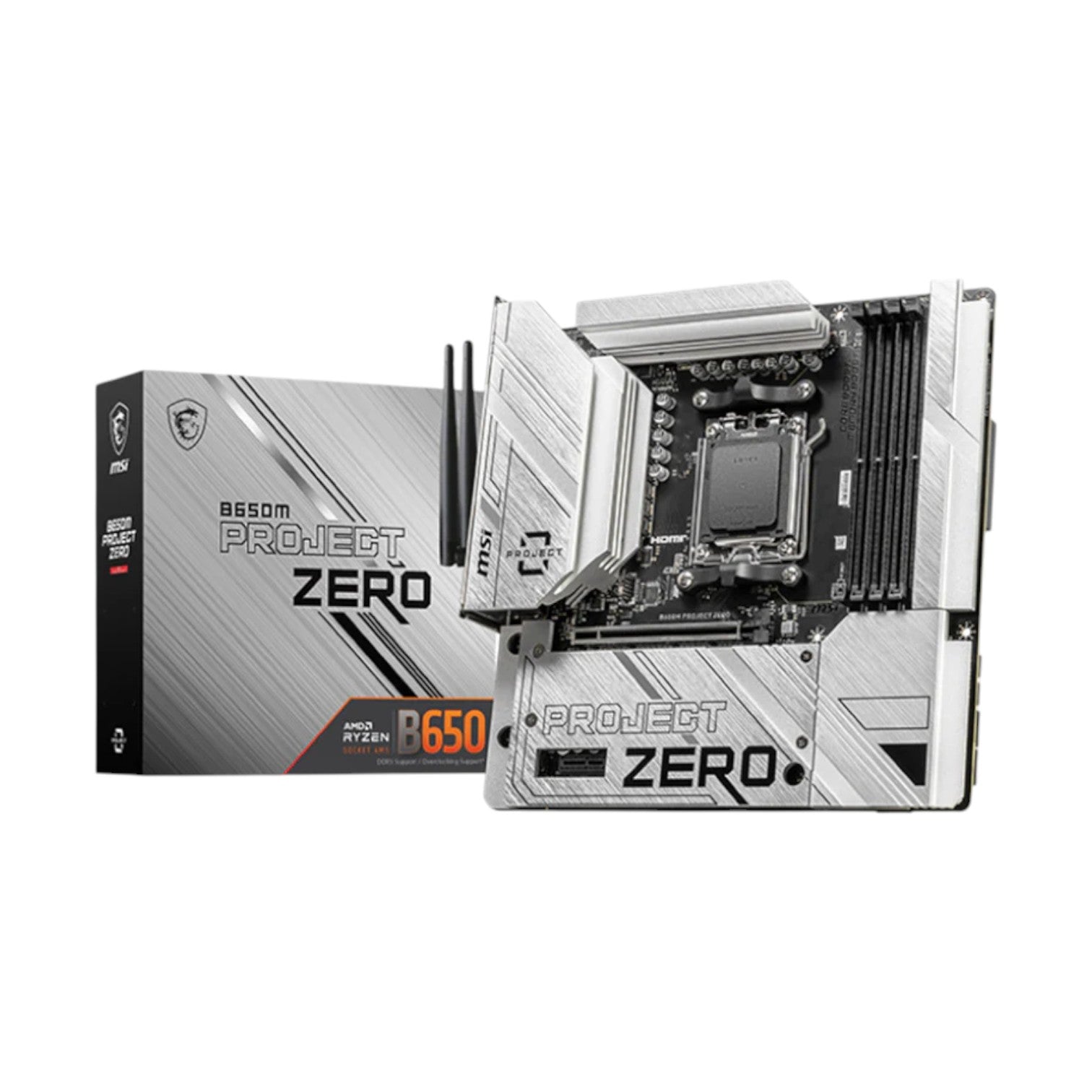

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

Brand: MSI (AMD)
SKU: B650M PROJECT ZERO
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 7600+(OC) MHz
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 24,900
Tk 25,500
Tk 24,900
Subtotal: Tk 24,900
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000 & 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 2x M.2



Memory

Type DDR5
Slots 4
Supported Memory 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, the maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

BACK PANEL PORTS
DisplayPort
2.5G LAN
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
Clear CMOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 Years Warranty

Description

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard

The MSI B650M PROJECT ZERO AM5 is a micro-ATX motherboard built for professional and multimedia users. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors and DDR5 memory with a maximum overclocking frequency of 7600+ MHz, delivering efficient multitasking and high-speed data processing. Its advanced thermal design, including Extended Heatsinks and M.2 Shield Frozr, prevents thermal throttling and ensures stable performance under heavy workloads.

Connectivity is enhanced with 2.5G LAN and AMD Wi-Fi 6E, offering secure, stable, and fast networking. Storage performance is optimized through Lightning M.2 for PCIe Gen 4 SSDs and Lightning USB 20G with USB 3.2 Gen 2x2 for up to 20Gbps data transfer. Audio Boost provides studio-quality sound for immersive experiences. Memory Boost technology ensures clean data signals for stability and peak performance, while Lightning Gen4 delivers up to 64GB/s bandwidth for maximum transfer speeds. The M.2 Shield Frozr protects SSDs from throttling, improving storage efficiency.

With support for Wi-Fi 6E, including the 6GHz band, MU-MIMO, and BSS Color technology, wireless speeds reach up to 2400Mbps. Premium 2.5G LAN ensures an excellent wired network experience. The back-connect design enhances aesthetics and simplifies cable management, making it an ideal choice for both professional and entertainment setups.

Buy MSI B650M PROJECT ZERO AM5 m-ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B650M PROJECT ZERO AM5 m-ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards for your Desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI B650M PROJECT ZERO AM5 m-ATX Motherboard comes with a 3-year warranty.
