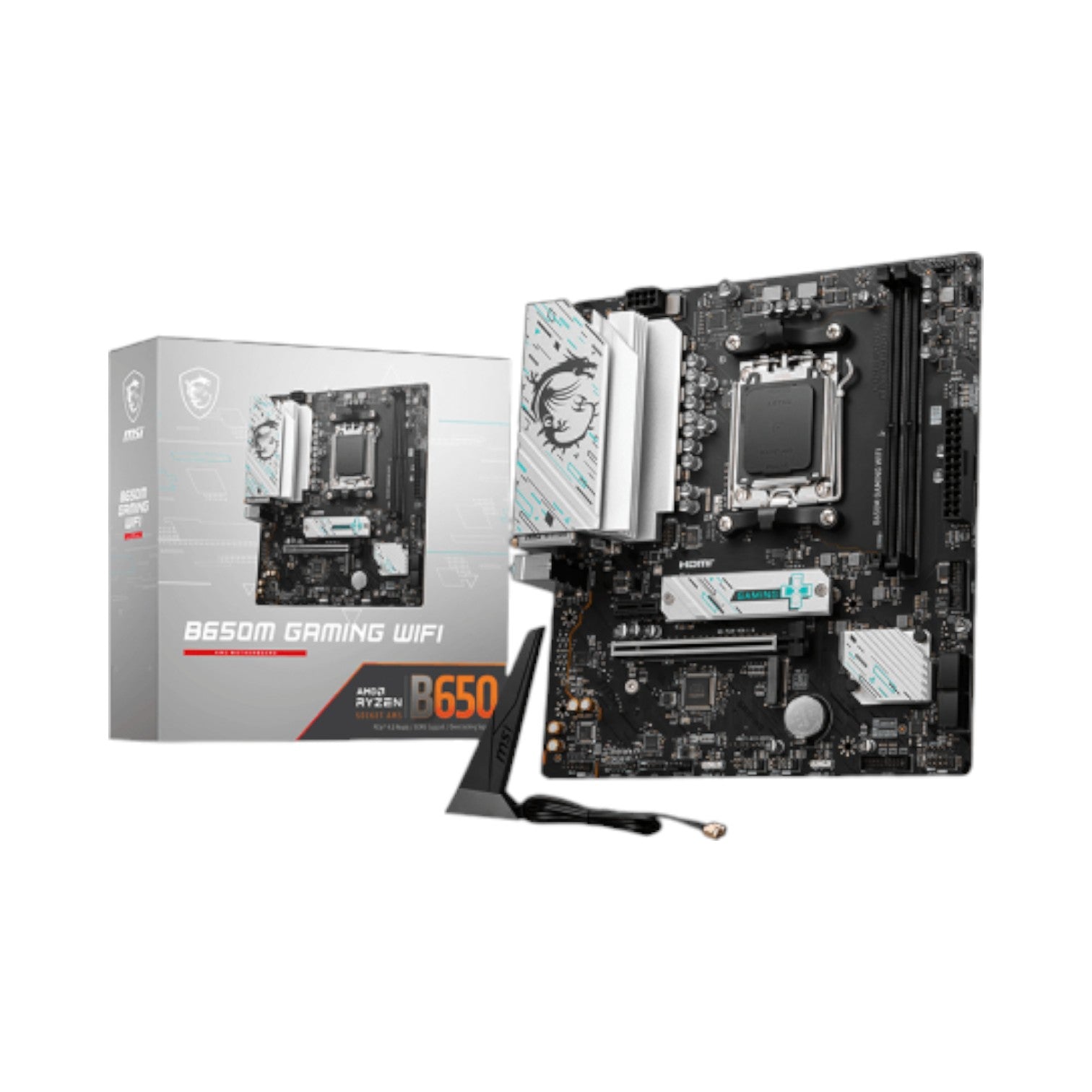

MSI B650M GAMING WIFI AM5 mATX Motherboard

Brand: MSI (AMD)
SKU: B650M GAMING WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Supported RAM: 2x DDR5, up to 7800+(OC) MHz
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 18,800
Tk 19,000
Tk 18,800
Subtotal: Tk 18,800

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor mATX
226mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket 2x M.2

Memory

Type DDR5
Slots 2
Supported Memory 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports INTERNAL IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

BACK PANEL PORTS
DisplayPort
HDMI
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty

Manufacturing Warranty 3 Years

Description

MSI B650M GAMING WIFI AM5 mATX Motherboard

The MSI B650M GAMING WIFI AM5 mATX Motherboard is a high-performance platform engineered to deliver next-level gaming power and reliability. Built for AMD Ryzen 8000 and 7000 Series Desktop Processors, it ensures exceptional speed, stability, and future-ready compatibility. Supporting DDR5 memory with speeds of up to 7800+(OC) MHz, this motherboard maximizes performance and responsiveness for demanding gaming and multitasking workloads. With Core Boost and Memory Boost technologies, it offers optimized power delivery and enhanced stability for consistent, lag-free performance.

The motherboard includes Lightning Gen4 M.2 slots and PCIe 4.0 support for ultra-fast data transfers, while Steel Armor reinforcement ensures your graphics cards remain protected from bending and electromagnetic interference. Connectivity is seamless thanks to the inclusion of AMD Wi-Fi 6E and Bluetooth 5.3, providing ultra-low latency and stable wireless performance for online gaming and streaming. Visuals come to life with 1x HDMI and 1x DisplayPort outputs, supporting stunning high-resolution displays for immersive gameplay.

For superior audio quality, the MSI B650M GAMING WIFI features Audio Boost technology, delivering studio-grade sound for a rich, detailed listening experience. Built on a durable 6-layer PCB with 2oz thickened copper, it ensures excellent heat dissipation and long-lasting reliability even under heavy load. Every design element—from the premium thermal layout to high-speed connectivity—has been optimized for gamers and PC enthusiasts seeking top-tier performance.

Buy MSI B650M GAMING WIFI AM5 mATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B650M GAMING WIFI AM5 mATX Motherboard from Tech Buy BD. We have a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI B650M GAMING WIFI AM5 mATX Motherboard comes with a 3-year warranty.
